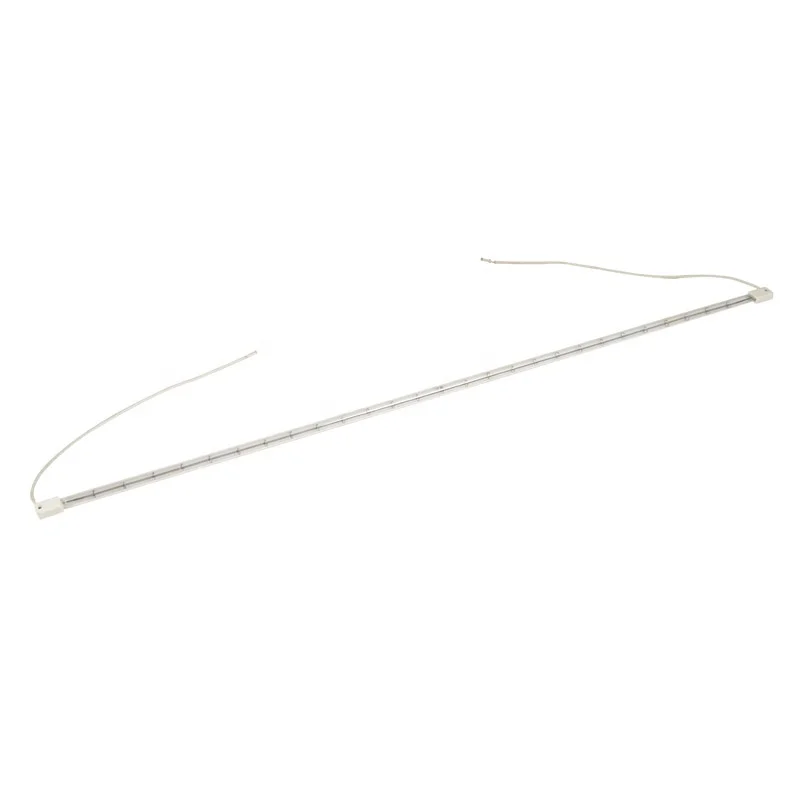

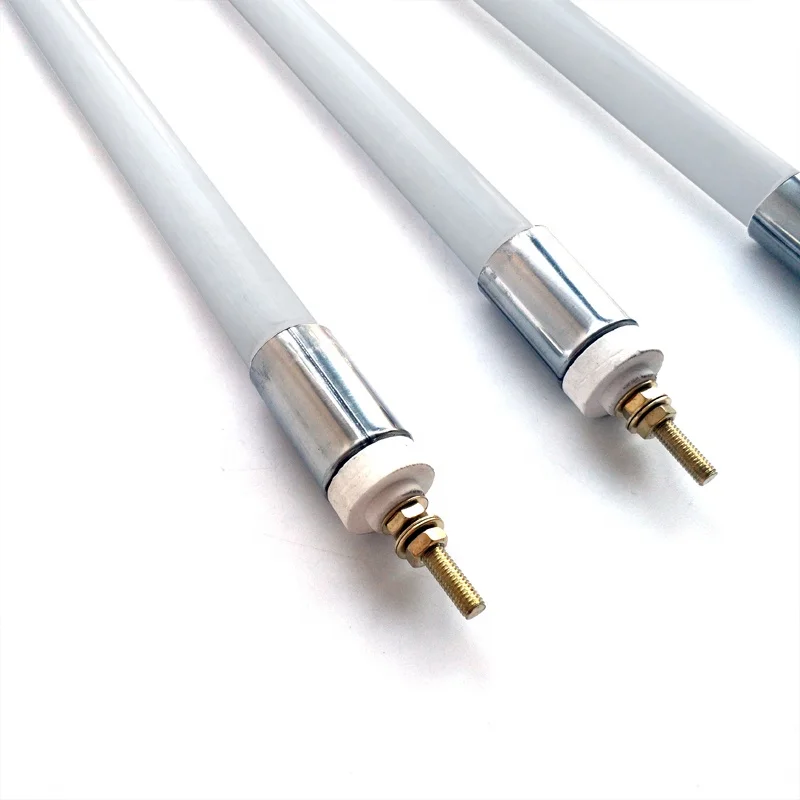

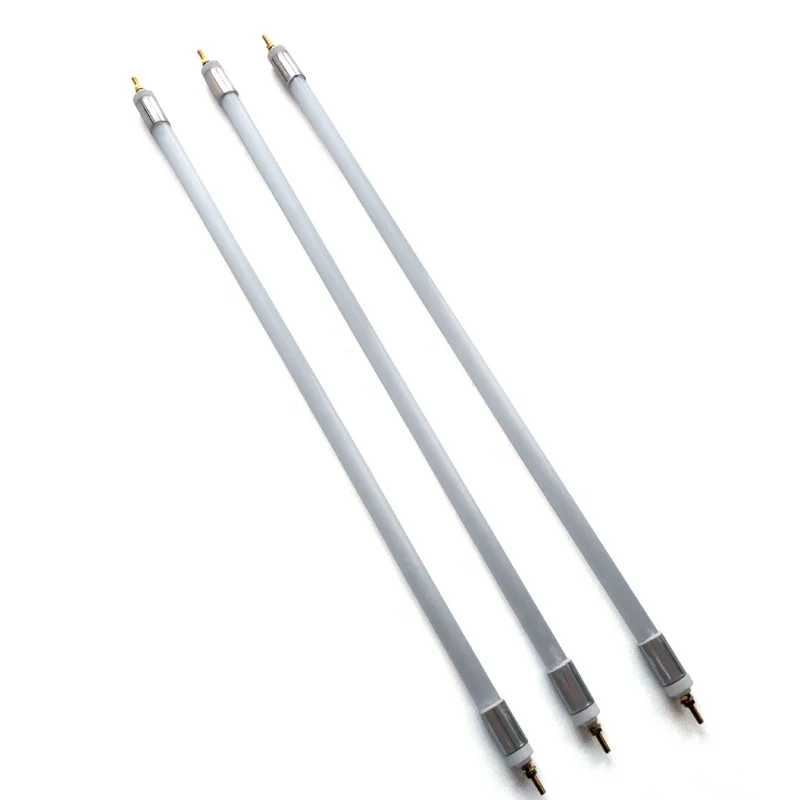

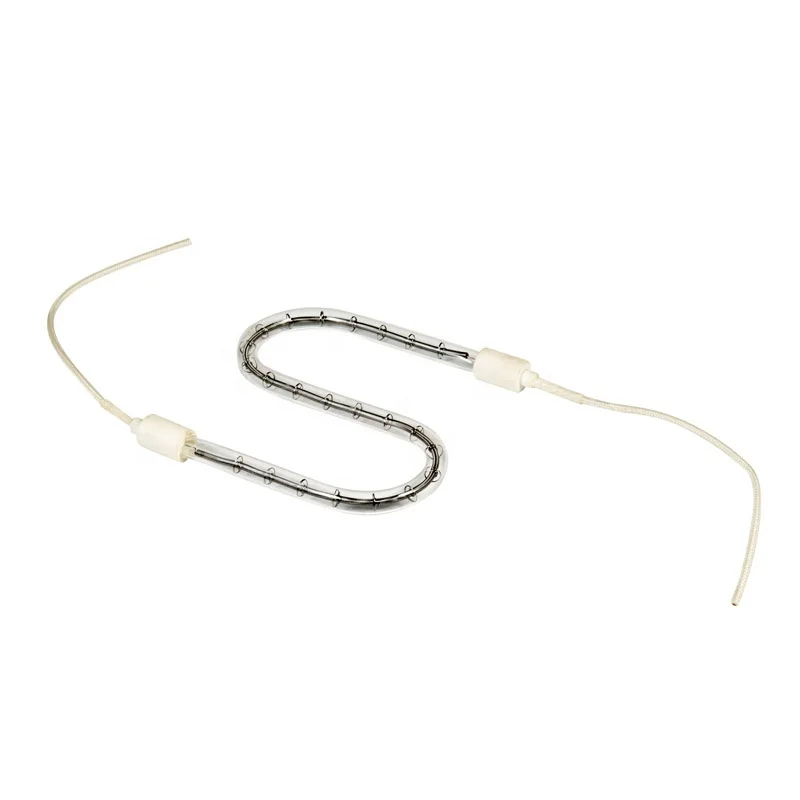

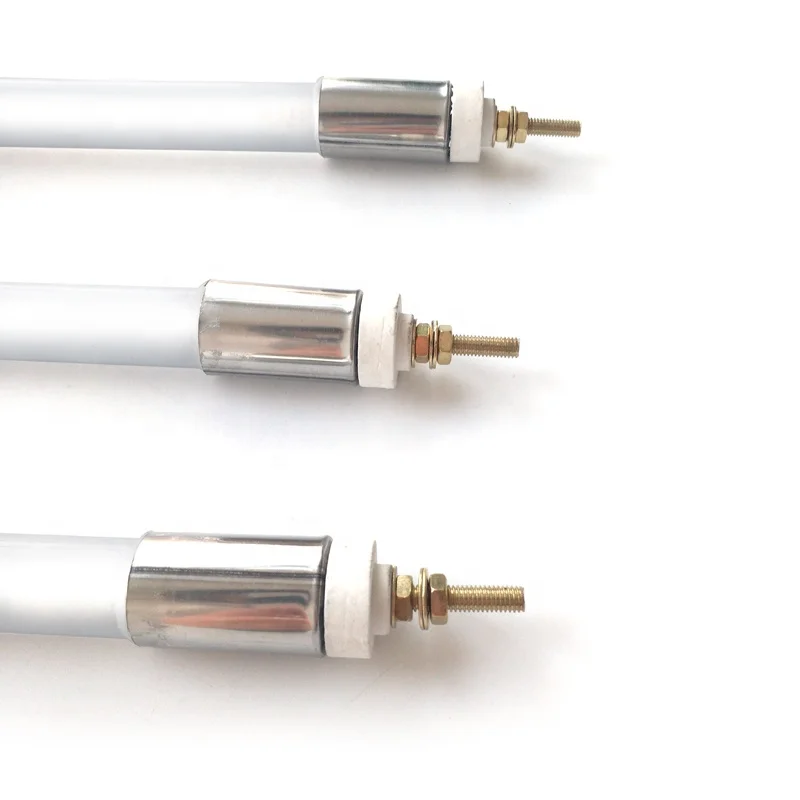

Infrared replacement halogen quartz heater tube 400w
- Category: >>>
- Supplier: Yancheng Hongtai Alloy Electric Apparatus Co. Ltd.
Share on (62005195426):
Product Overview
Description
\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t
Ceramic heater
Ceramic heater emitter
Sunna heater
Quartz heater
Tubular heater
Silicone heater
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
Quartz heating Element range consists of cassette style elements constructed with aluminised steel as standard, stainless steel is also an option. These emitters have peak emissions in the medium to long wavelength range. They are commonly used in a wide range of industrial heating and drying applications including energy efficient industrial heaters. The pillared quartz element is available in 2 industry standard sizes – models PFQE and PHQE. All heaters are mounted using a pressed ceramic pillar which also houses the screw terminals for connecting the electrical supply to the element. The element requires a 42 x 15mm punched slot in the reflector for mounting with the supplied spring and clip. Maximum reflector thickness is 1.5mm. Contact Ceramicx industrial heat consultants for more information.
\t\t\t\t\t\t\t\t\tPhoto Shows \t\t\t\t\t\t\t
Characters
1) Spectrum matching the absorption
2) For long-term operation, performance of radiation is not changed
3) High electric conversion efficienc,Compared with Other heating elements, saving about 30%
4) Heating up fast, small thermal inertia, high temperature resistance, corrosion resistance, thermal stability and good chemical resistance.
Model no. | Voltage | Wattage | Diameter | Total length | Arc length | Reflector | Based |
01 | 120 | 500 | 10 | 241 | 142 | Clear | X |
02 | 120 | 500 | 10 | 218 | 142 | White | X |
03 | 235 | 500 | 10 | 227 | 127 | White | SK15 |
04 | 235 | 700 | 10 | 216 | 150 | White | SK15 |
05 | 235 | 1000 | 10 | 370 | 280 | Clear | X |
06 | 235 | 1000 | 10 | 370 | 280 | White | X |
07 | 235 | 1000 | 10 | 350 | 280 | Clear | Y |
08 | 235 | 1000 | 10 | 355 | 280 | White | Y |
09 | 235 | 1000 | 10 | 355 | 280 | Clear | X |
10 | 235 | 1000 | 10 | 355 | 280 | Gold | SK15 |
11 | 235 | 1000 | 10 | 370 | 280 | White | X |
12 | 230 | 2000 | 11.5 | 550 | 497 | Clear | RS7 |
13 | 230 | 2000 | 11.5 | 657 | 500 | Clear | SK15 |
14 | 235 | 2000 | 11.5 | 350 | 286 | White | V |
15 | 235 | 2000 | 11.5 | 370 | 288 | Clear | X |
16 | 400 | 2000 | 11.5 | 512 | 416 | Clear | X |
17 | 400 | 2000 | 11.5 | 512 | 416 | White | X |
18 | 400 | 2000 | 11.5 | 512 | 410 | Clear | X |
19 | 400 | 2000 | 11.5 | 512 | 410 | White | X |
20 | 480 | 2500 | 11.5 | 731 | 635 | Clear | U |
21 | 480 | 2500 | 11.5 | 731 | 638 | Gold | U |
22 | 230 | 3000 | 11.5 | 787 | 700 | Clear | SK15 |
23 | 230 | 3000 | 11.5 | 787 | 700 | White | SK15 |
24 | 400 | 3000 | 11.5 | 802 | 700 | Gold | X |
25 | 400 | 3000 | 11.5 | 802 | 700 | White | X |
26 | 230 | 3200 | 11.5 | 1062 | 815 | Clear | U |
27 | 480 | 3650 | 11.5 | 1061 | 965 | Gold | R7s+lead |
\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t
All kinds of metal components, sucs as the large tower, pressure vessels, bridges, high pressure pipeline welding preheating, welding preheating, welding stress relief.
* Piping, vessels of auxiliary heating
* Longitudinal-seam welded bends
* Area heating
