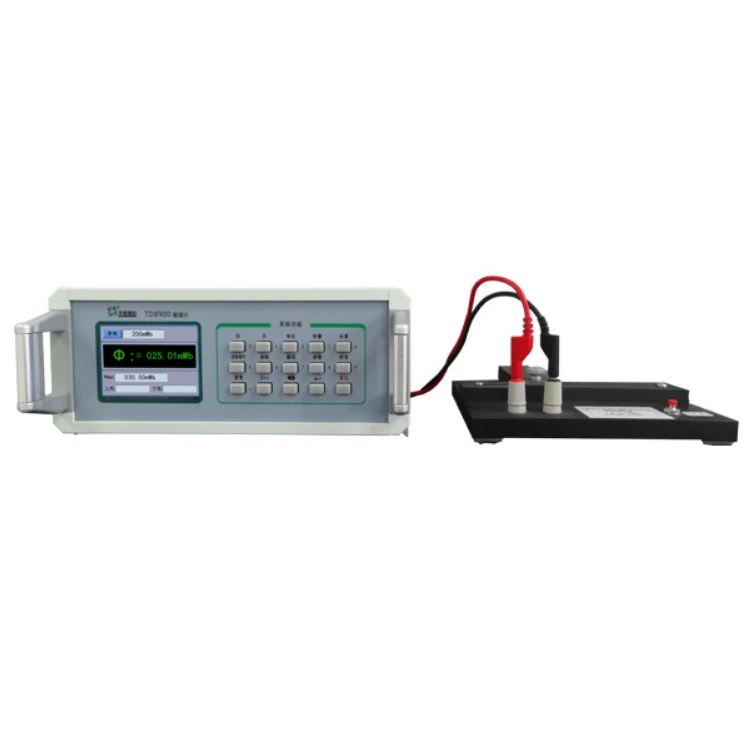

Capacitance Integral Magnetic Flux Meter

Product Overview

Description

product description:

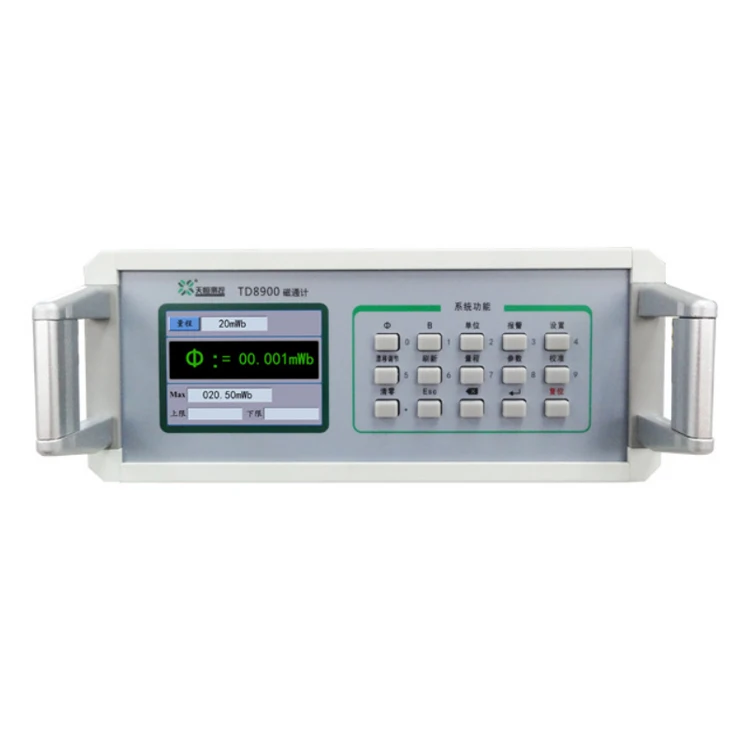

The TD8900 is a high-precision flux measuring instrument designed with a high-speed microprocessor and a low-drift digital integrator that measures the magnetic flux Φ of a spatial magnetic field using a variety of coils. The instrument can be widely used in the research and analysis of permanent magnets, soft magnetic materials, etc., or the quality control and screening of components.



Main features

1. Wide measurement range: 0 ~ 2 Wb; and measurement accuracy up to ± 0.5% (± 0.2% optional).

2. With automatic one-key zero-drift function, the zero drift is very small, < 1 μWb per minute.

3. Magnetic flux multi-unit switching: Flux units such as Wb, mWb, Vs, mVs can be selected.

4. Set parameters such as coil area and number of turns to automatically calculate the magnetic flux density and switch between units T and G.

5. High-definition LCD display, four and a half display, high display resolution, minimum resolution as low as 0.1 μWb.

6. The upper limit and lower limit can be set. The alarm can be exceeded when the setting range is exceeded, and the maximum value display function is available.



Main Specifications

model	TD8900
Ranges	2 mWb,20 mWb,200 mWb,2 Wb
Measuring range	0~2Wb
Minimum resolution	0.1uWb
Accuracy	± 0.5%,± 0.2% Optional
Zero-drift	<1uWb/min
Analog output(option)	Full scale ± 5V
Working power	AC ( 220 ± 22 ) V  , 50Hz ~ 60Hz
working environment	0℃ ~ 40℃;40%R·H ~ 85%R·H
Storage environment	-20 ° C ~ 70 ° C, < 95% R · H, no condensation
Device size	230 mm × 200 mm × 90 mm ( L × W × H )
Device weight	About 3kg
Communication interface	coil input, RS232
