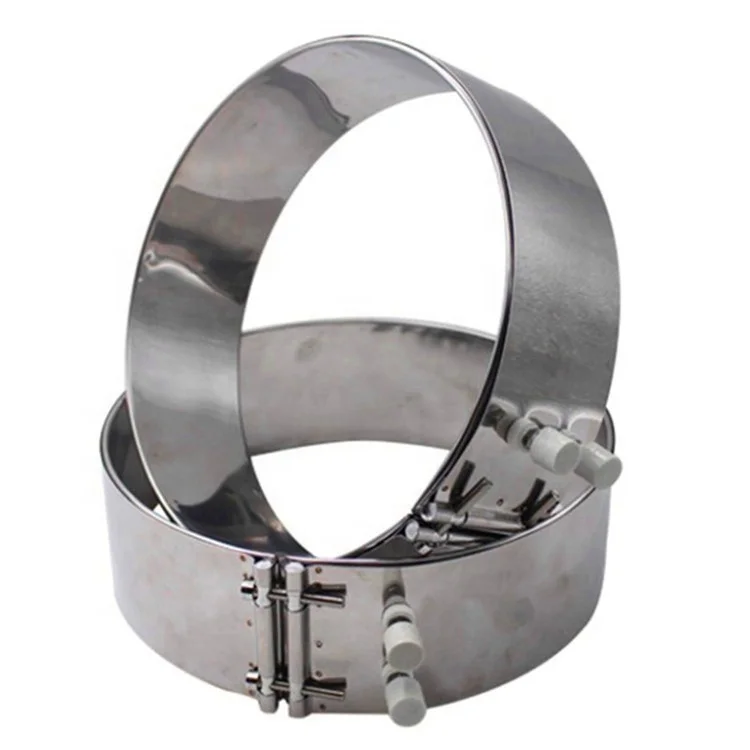

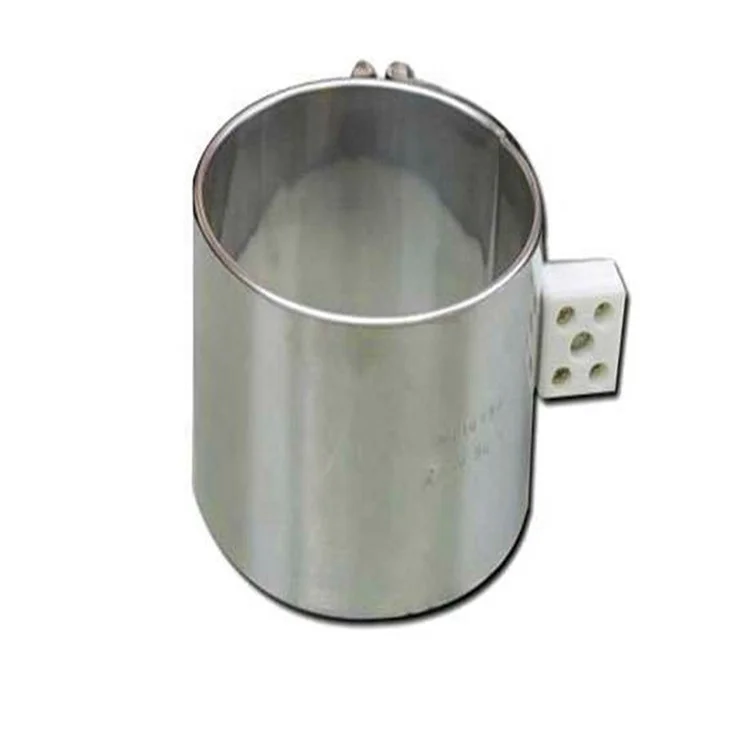

Mica electric heater for Injection Molding Machine Die Head 230v 300w

Delivery:
•\tPackaging Details standar  packing for Heater shatterproof, waterproof standard
•\tDelivery Time 10-15working days

Mica electric heater overview
     The mica heater is a high-efficiency hot-segmented heater with excellent thermal conductivity of the metal alloy, ensuring uniform temperature on the hot surface and eliminating hot spots and cold spots in the equipment. It has long life, good thermal insulation performance, strong mechanical properties, corrosion resistance and magnetic field resistance. The external heat dissipating surface is increased by the heat preservation device, and the inner heat dissipating surface is sintered with infrared rays, thereby saving 35% of electricity consumption.

Mica heater performance and use

1, product features: simple processing, reliable work, easy to use, rapid temperature rise, high thermal efficiency, low power consumption, long service life, production is not limited by the size and size of the model.
2, product use: widely used in plastic machinery, packaging and printing, petrochemical, electronic equipment and other industries.

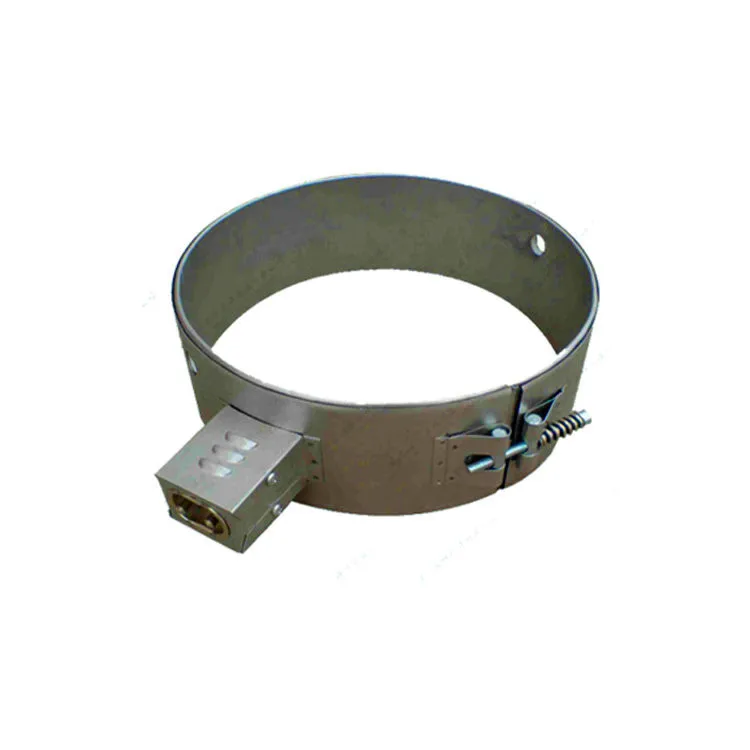

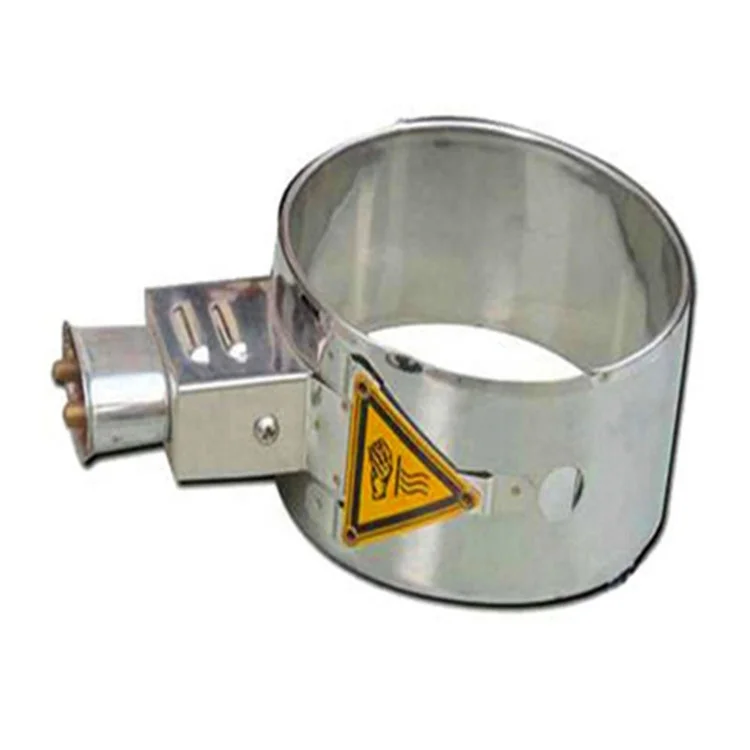

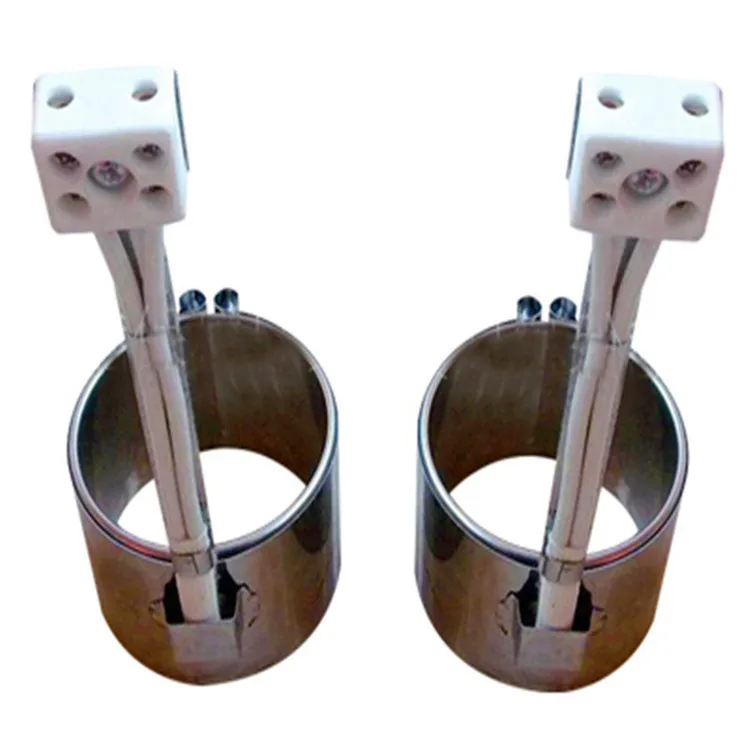

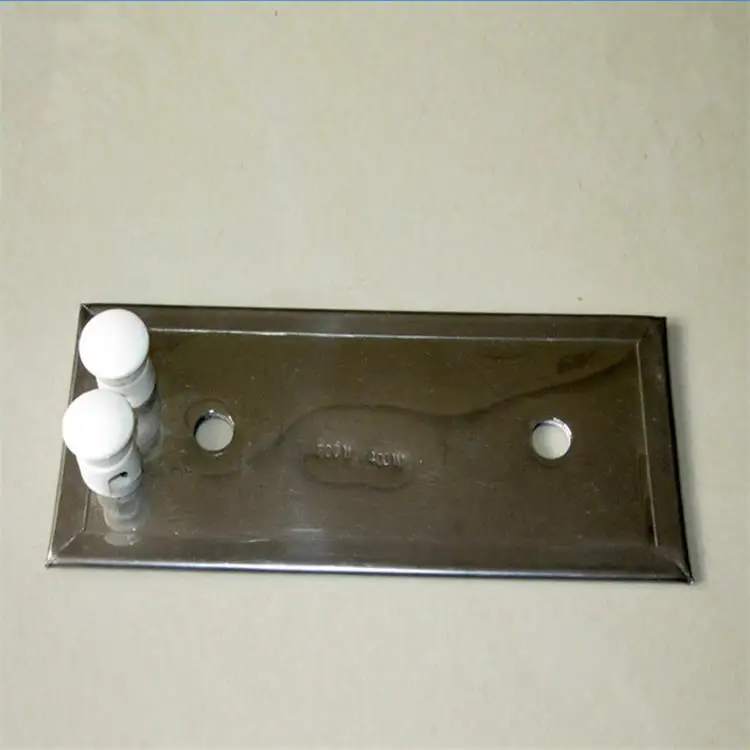

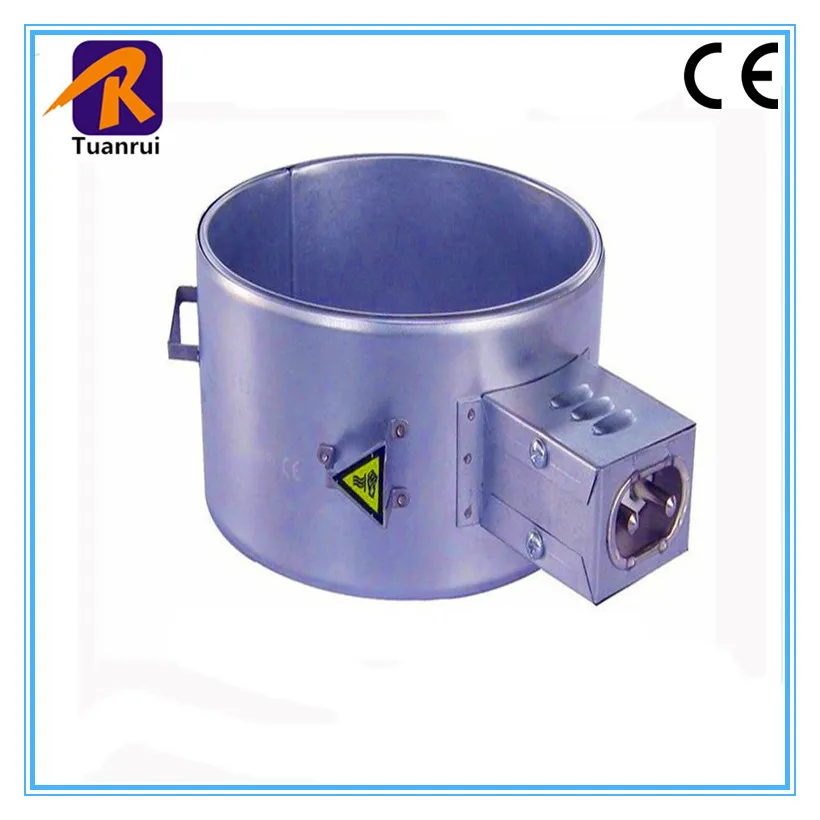

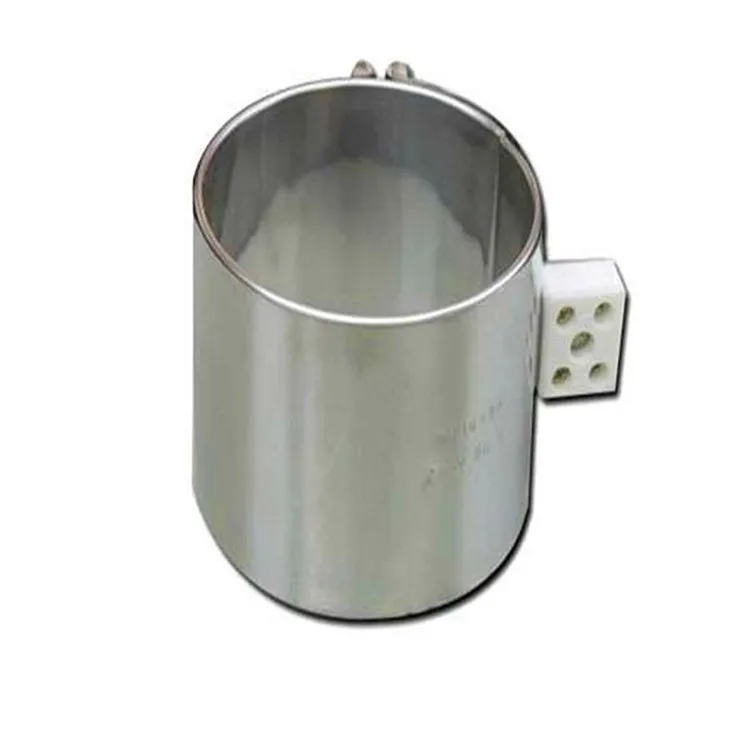

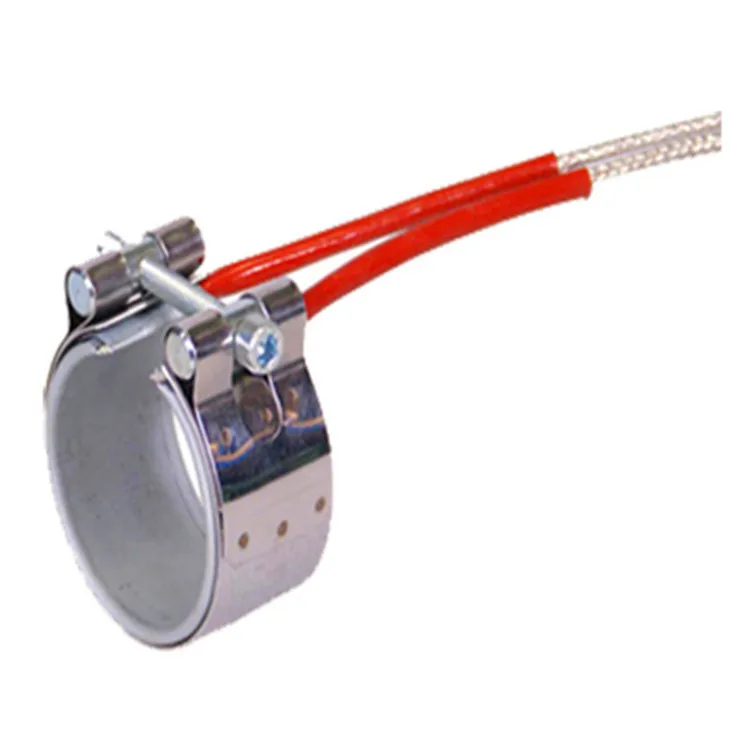

3. The stainless steel mica heater is made of 0.3~0.5mm stainless steel plate with the high insulation and high temperature resistant mica plate as the core, and the nickel-chromium alloy resistance wire of various standard specifications is evenly wound as the heating element. Processed into a variety of shapes. According to the wiring requirements of users, the voltage is from 110V, 180V, 220V, 380V, and the highest power load is 3.5W per square. The external heat dissipating surface is increased by the heat preservation device, and the inner heat dissipating surface is sintered with infrared rays, thereby saving 35% of electricity consumption. Stainless steel mica heaters are available in ring and plate shapes.

Mica electric heater performance indicators and technical parameters
1, insulation resistance: ≥ 100MΩ.
2, withstand voltage: 1500V / 1 minute.
3, temperature resistance: 600 ° C.
As shown in Figure 4, the power deviation range is ± 5%.
5, voltage ≤ 380V
6, power 0.5-3.5w / cm2
7, working temperature -20~600 °C
Mica heater instructions
1, the operating voltage must not exceed 10% of the rated value;
2, the wiring part is placed on the heating layer, outside the insulation layer, the outer casing should be effectively grounded;
3, should be stored in a dry place.

        Yangzhou Tuanrui Electric Co., Ltd. Located in the beautiful historical and cultural city of Yangzhou. The company is a factory that integrates R&D, design, production, and sales services. Our factory specializes in PTC heaters,MCH Ceramic Heater, mica heaters, ceramic heaters, cast aluminum heaters, cast copper heaters, cast iron heaters, electric heaters, Quartz Heater, Explosion-Proof Heater, Foil Heater, Teflon Heater, Track Heater, Hot Runner Heater, Armored Heater, Ceramic Fiber Heater, Far Infrared Ceramic Heater, Hot Melt Machine heater, electric heating film, silicon carbide heater, silicon molybdenum heater, metal heating tube, heating coil, heating plate, heating rod, silicone rubber heater, radiant heater, heating cable, temperature sensor, thermal resistance , thermocouples, high temperature wire and cable, instrumentation, slip line bridge, bus switchgear, insulation materials, test instruments, ceramic ignition pin and other electrical complete sets of equipment. Products are mainly used in military, chemical, power, electronics, steel, metallurgy, medicine, machinery, automobiles, air conditioning, industrial furnaces, home appliances and other heating industry equipment. All products can be customized according to the requirements of customers, many products have now filled the domestic blank, instead of imports. At present, our heaters, temperature sensors, etc. have been sold to countries in the world and are well received by customers. Welcome new and old customers at home and abroad to visit us.

Q1. Can I have a sample order forCeramic Heater?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks
Q3. Do you have any MOQ limit for Ceramic Heater?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5.How to proceed an order?
A: Firstly provide the heater size , voltage, wattage, quantity
Secondly We quote according to your size
Thirdly customer confirms the order
Fourthly We arrange the production.
Q6. Is it OK to print my logo?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee?
A: Yes, we offer 8000 hours warranty to our products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new heater with new order for small quantity.
