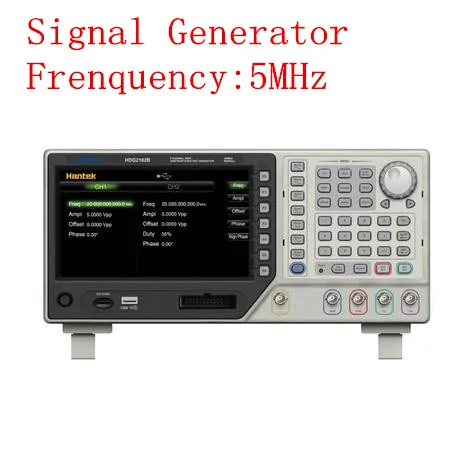

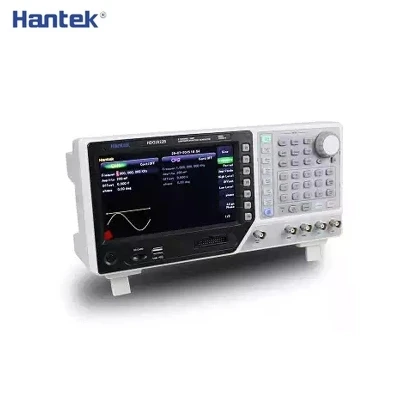

Hantek HDG2002B Signal Generator 5Mhz 2 Channels DDS Function Arbitrary Waveform USB Benchtop LCD Digital Function Generator
- Category: >>>
- Supplier: Shenzhen Ever Good Electronic Co. Ltd.
Share on (62005241436):
Product Overview
Description
HDG2002B Signal Generator 5Mhz 2 Channels DDS Function Arbitrary Waveform USB Benchtop LCD Digital-Function-Generator
Features:
- 16Bit Resolution, 250MSa/s Sample Rate; 64M Memory Depth;
- 100/80/60/30/20/10MHz or 5MHz Max. Sine Output Frenquency;
- 16 channels digital output, together with the analog channel can rebuild the more mixed signals in daily practice
- Support AM, FM, PM, ASK, FSK, PSK and PWM modulations
- TCXO timebase standard, OCXO optional for ultra-high stability
- 7 inch, 64K true color TFT display, WVGA(800X480)
- Plenty of interfaces: USB Host, USB Device, LAN
- 80M Frequency Counter;
- Technical parameter:
| Model | HDG2102B | HDG2082B | HDG2062B | HDG2032B | HDG2022B | HDG2012B | HDG2002B |
| Main Features | |||||||
| Channel | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Memory Depth | 64M | 64M | 64M | 64M | 64M | 64M | 64M |
| Frenquency | 100MHz | 80MHz | 60MHz | 30MHz | 20MHz | 10MHz | 5MHz |
| Sample Rate | 250MSa/s | ||||||
| Voltage Resolution | 16Bit | ||||||
| Digital Output | 16 Channels output | ||||||
| Frenquency Characteristic | |||||||
| Standard Waveforms | Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Haver Sine, Lorentz, Dual-Tone, DC | ||||||
| Sine | 1uHz~Max. | ||||||
| Square | 1uHz~30MHz | 1uHz~Max. | |||||
| Pluse | 1uHz~15MHz | 1uHz~Max. | |||||
| Ramp/Triangle | 1uHz~4MHz | ||||||
| White Noise | 1uHz~Max. | ||||||
| Arb. | 1uHz~30MHz | 1uHz~25MHz | 1uHz~20MHz | 1uHz~Max. | |||
| Resolution | 1uHz | ||||||
| Accuracy | ±2ppm, 18~28 | ||||||
| Sine Wave Spectrum Purity | |||||||
| Harmonic Distortion | Typica(l0dBm)DC-1MHz: <-60dBc; 1MHz-10MHz: <-55dBc; 10MHz-100MHz: <-50dBc | ||||||
| Total Harmonic Distortion | <0.1% (10Hz-20kHz, 0dBm) | ||||||
| Spurious signal (non-hormonic) | Typical(0dBm): ≤10MHz: <-65dBc; >10MHz <-65dBc+6dB/spectrum phase | ||||||
| Phase Noise | Typical(0dBm,10kHz offset,) 10MHz: ≤-115dBc/Hz | ||||||
| Square | |||||||
| Rise/Down time | <10ns | <11ns | <12ns | <14ns | <16ns | <18ns | <18ns |
| Overshoot | <3%(100KHz, 1Vpp) | ||||||
| Duty Cycle | ≤10MHz: 20.0%~80.0%; 10MHz~40MHz: 40.0%~60.0%; >40MHz: 50.0% | 8.0%~92.0% | |||||
| Non-symmetry | 1% of period+5ns | ||||||
| Jitter(rms) | Typical(1MHz,1Vpp, 50Ω)≤5MHz: 2ppm+500ps; > 5MHz: 500ps | ||||||
| Ramp | |||||||
| Linearity | ≤1%(1KHz, 1Vpp) | ||||||
| Symmetry | 0%~100% | ||||||
| Arb. Wavefrom Generator | |||||||
| Waveform Length | 64M Point | ||||||
| Vertical Resolution | 16 Bit | ||||||
| Sample Rate | 250MSa/s | ||||||
| Rise/Fall time | Typical(1Vpp):<6ns | ||||||
| Jitter | Typical(1MHz, 1Vpp, 50Ω) ≤5MHz 2ppm+500ps; > 5MHz 500ps | ||||||
| General Specifications | |||||||
| Interface | USB host, USB Device, LAN optional | ||||||
| Display | 7’’ 64K Color TFT Display, 800*480 | ||||||
| Power Voltage | 100-120VACRMS(±10%), 45Hz to 440Hz, CATII; 120-240VACRMS(±10%), 45Hz to 66Hz, CATII | ||||||
| Power Consumption | <60W | ||||||
| Weight | 3KG | ||||||

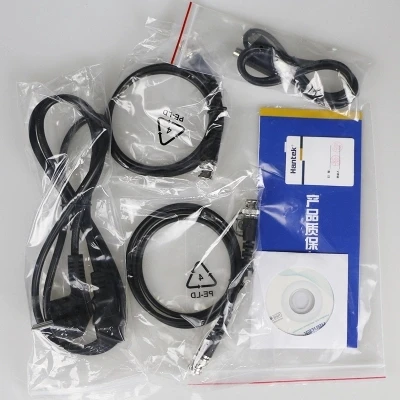

Package:
- 1 x HDG2002B Generator1 x Power cable1 x USB cable
