Silver stainless steel 316L volume control damper
- Category: >>>
- Supplier: Guangzhou Tofee Electro Mechanical Equipment Co. Ltd.
Share on (62005285593):
Product Overview
Description

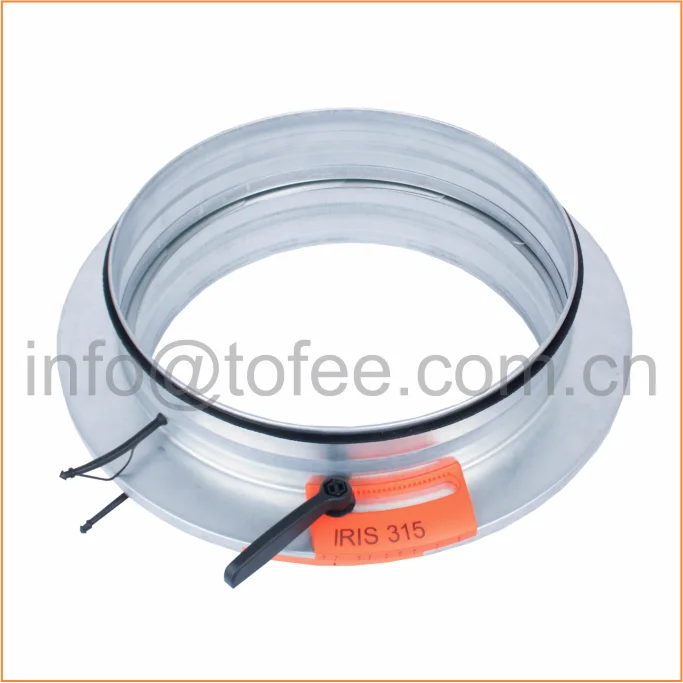

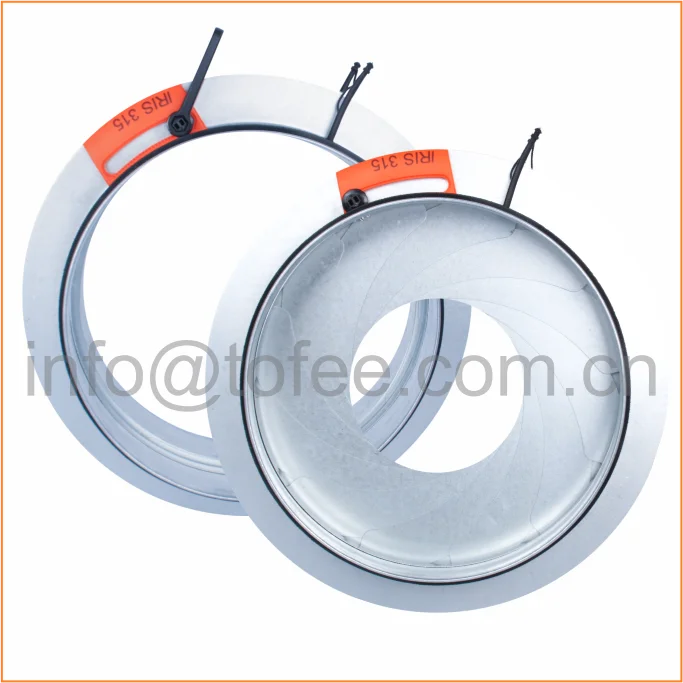

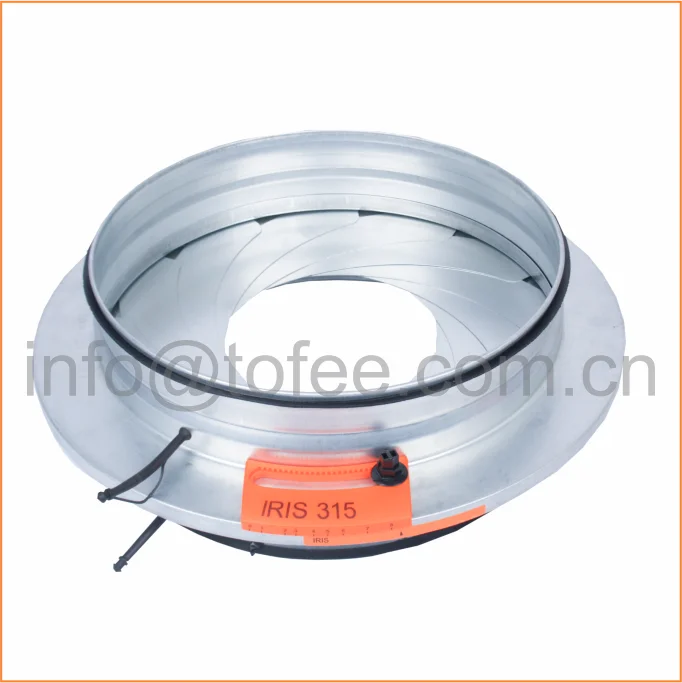

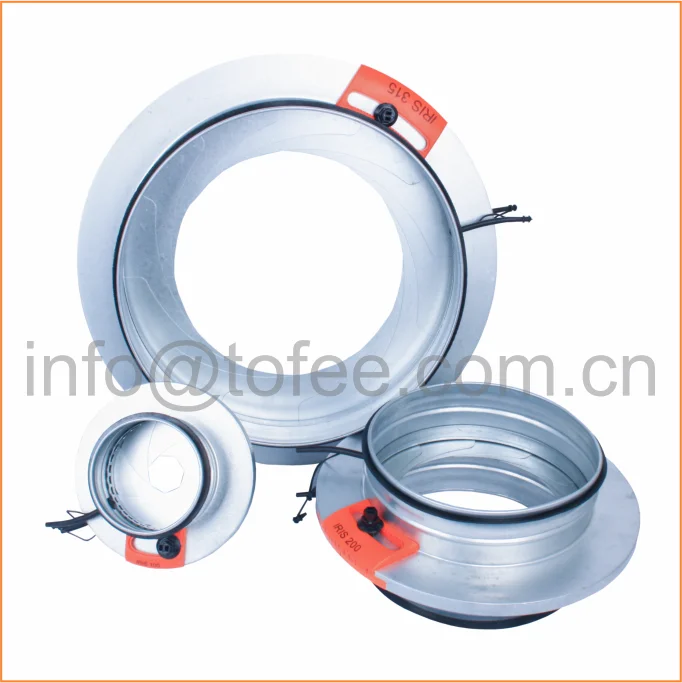

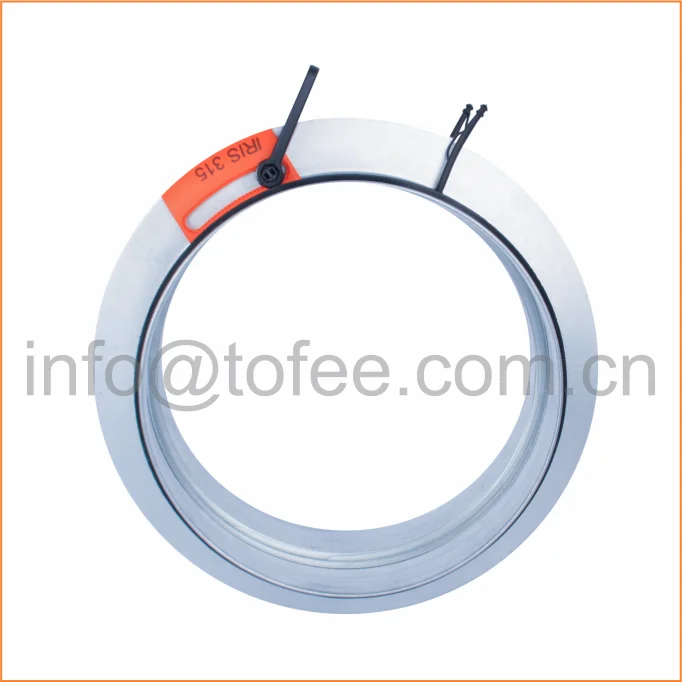

Galvanized steel IRIS air volume control damper of the
diaphragm type with pressure measuring points
Available in range from Ø 80 up t0 800mm
Size | inner | total | L (mm) | A (mm) | Material | Weight |
THK (mm) | (KG) | |||||
80 | 79 | 125 | 115 | 33 | 0. 60 | 0. 40 |
100 | 99 | 465 | 115 | 27 | 0. 60 | 0. 60 |
125 | 124 | 188 | 115 | 27 | 0. 60 | 0. 70 |
150 | 149 | 230 | 115 | 27 | 0. 60 | 1. 00 |
160 | 159 | 230 | 115 | 27 | 0. 60 | 1. 00 |
200 | 199 | 285 | 120 | 27 | 0. 60 | 1. 50 |
250 | 249 | 335 | 135 | 33 | 0. 60 | 1. 90 |
300 | 299 | 405 | 140 | 33 | 0. 60 | 2. 50 |
315 | 314 | 405 | 140 | 33 | 0. 60 | 2. 50 |
400 | 398 | 525 | 150 | 46 | 1. 00 | 6. 10 |
500 | 498 | 655 | 150 | 46 | 1. 00 | 8. 80 |
630 | 628 | 815 | 155 | 46 | 1. 00 | 15. 80 |
800 | 798 | 1015 | 285 | 110 | 1. 00 | 24. 80 |
