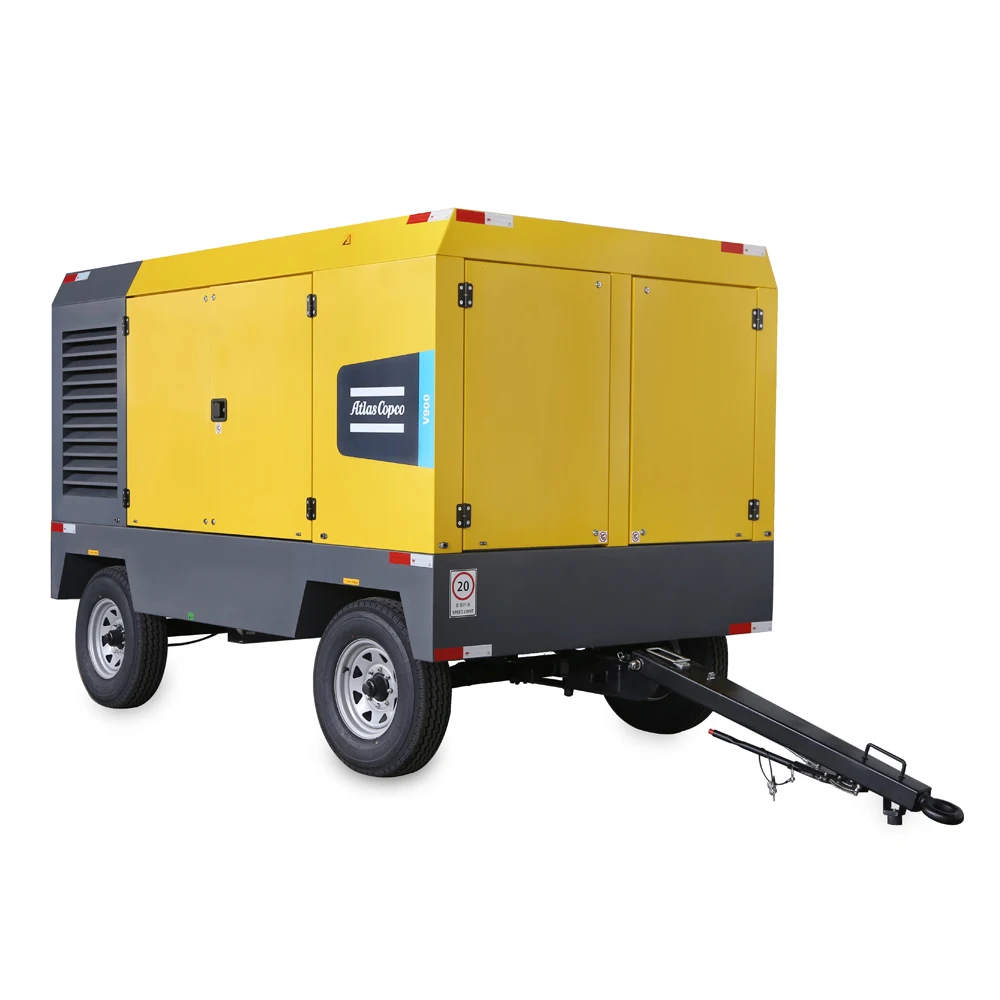

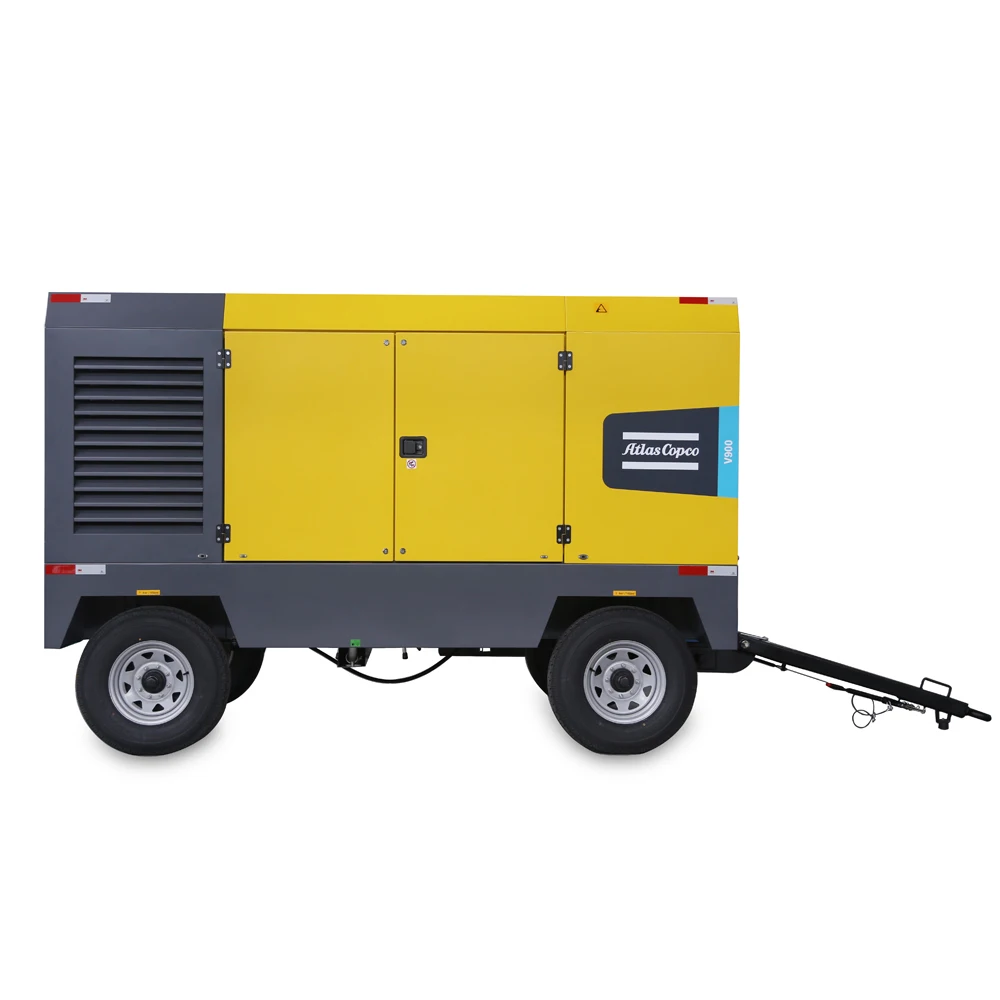

atlas copco 850cfm 23Bar Portable Diesel Air Compressor
- Category: >>>
- Supplier: Liuzhou Tuozhi Mine Tech Co. Ltd.
Share on (62005315828):
Product Overview
Description
Atlas Copco is a leading manufacturer of portable compressed air machines in the world. Over the years, we have consistently listened to our customers and developed machines that exceed their expectations.
ATLAS COPCO portable air compressor technical data
| Compressor Data | XRHS888(Box frame) |
| Free Air Delivery @ Normal Working Pressure | 857cfm or 964cfm |
| Normal Working Pressure | 23Bar or 18Bar |
| Air Receiver Capacity | 89L |
| Outlet Valve Configuration | 1 x 2” G, 1x 3/4” G |
| Nominal working condition | Inlet pressure 1bar,Humidity0%,Temp20 °C |
| Sound Pressure Level (ISO2125) | 80dB(A) |
| Maximum Ambient Temperature at sea level | 50 °C |
| Diesel Engine Data | Cummins QSL8.9-C360 |
| Horsepower Developed @ Rated Speed | 264kW |
| Cylinders | 6 |
| Fuel Tank Capacity | 420L |
| Engine Coolant Capacity | 58L |
| Engine Oil Capacity | 21L |
| Maximum Loaded Speed | 1900 / 1700RPM |
| Dimensions | Standard Towing Speed 20 km/h |
| Length | 3666mm ( within towbar ) |
| Width | 2140mm |
| Height | 2225 mm |
| Weight ( filled with oil & coolant , Initial fuel ) | 4585 kg |
Working show:
