RAWS008 Ultrasonic Sensor High Visibility Measure Automatic Weather Station In Highway
- Category: >>>
- Supplier: Sichuan Weinasa Technology Co. Ltd.
Share on (62005329986):
Product Overview
Description

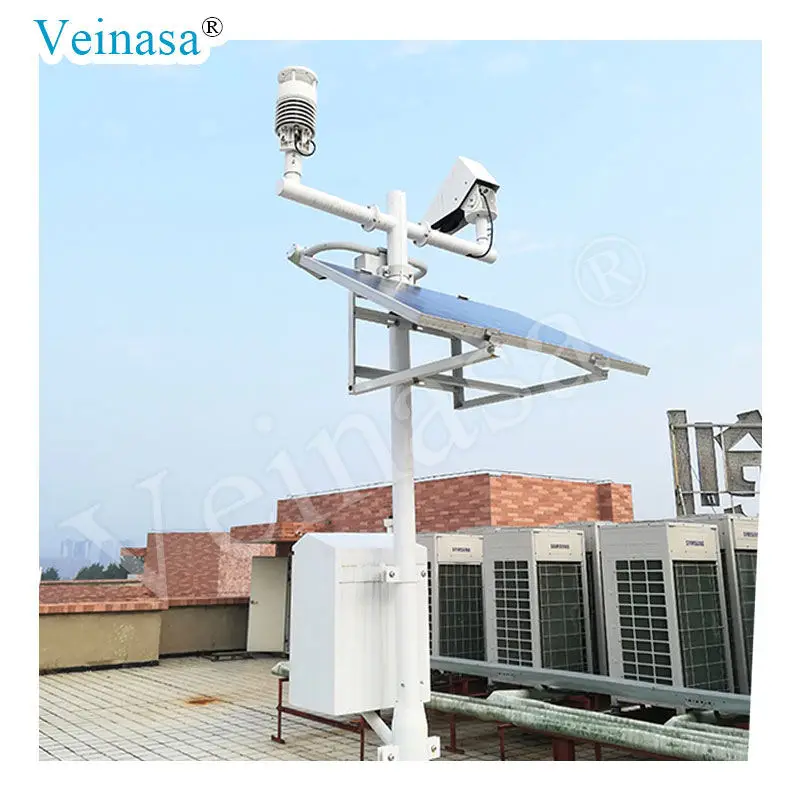

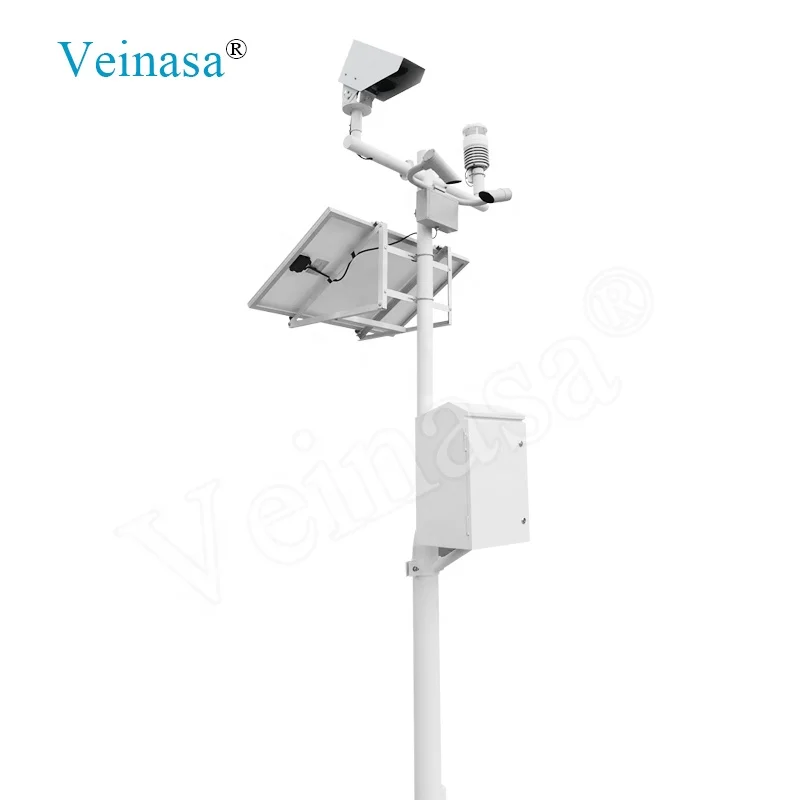

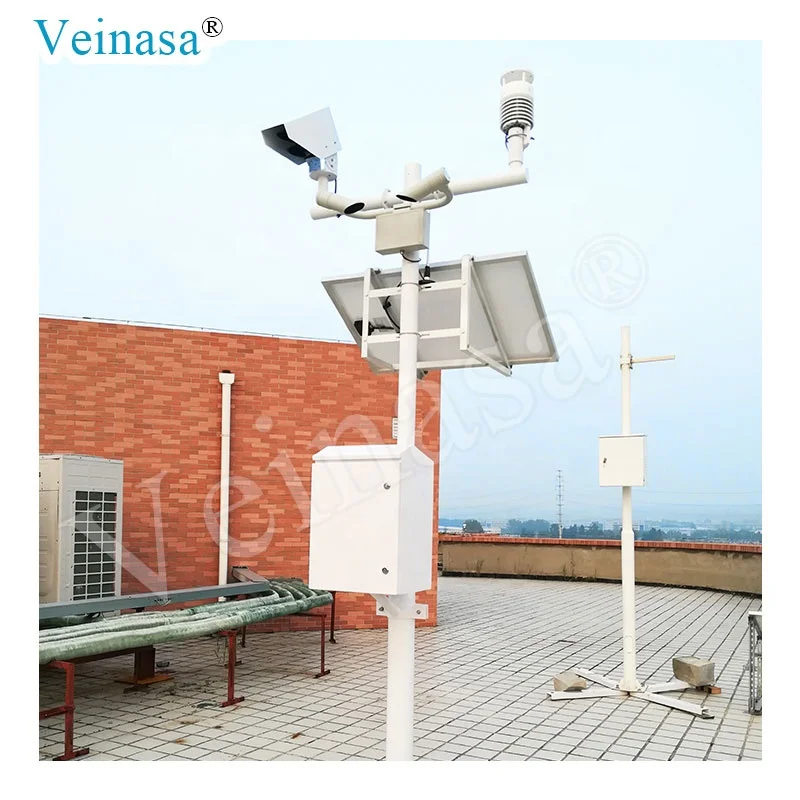

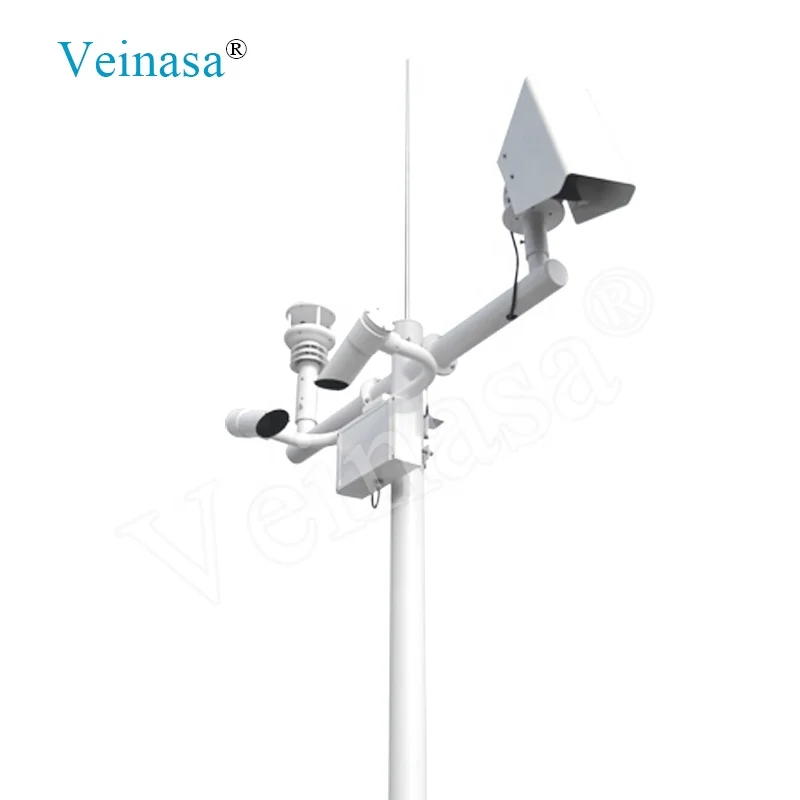

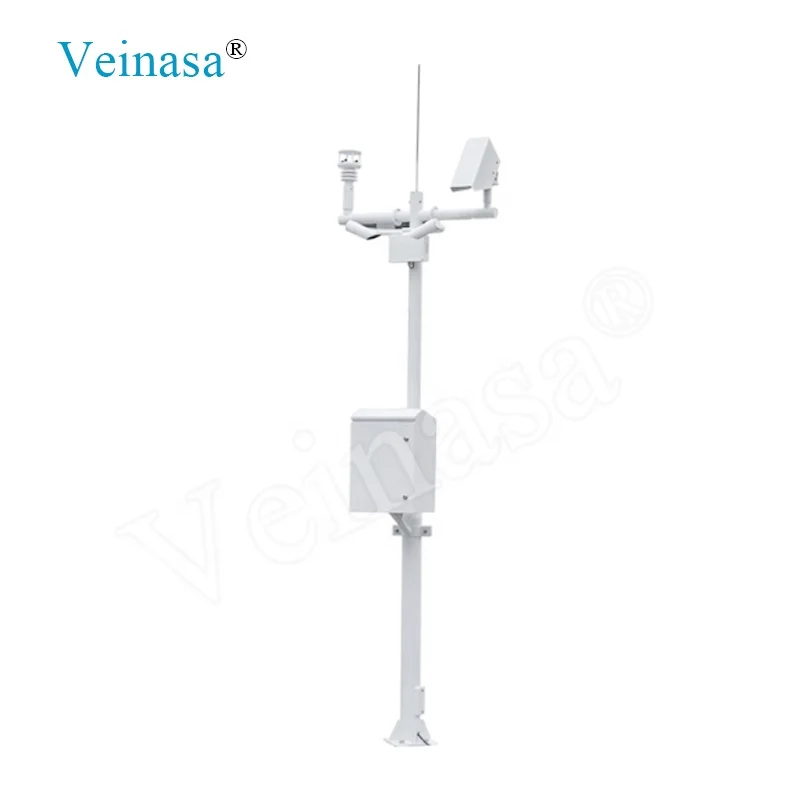

RAWS008 Ultrasonic Sensor High Visibility Measure Automatic Weather Station In Highway
Products Description
RAWS008 Ultrasonic Sensor High Visibility Measure Automatic Weather Station In Highway mainly use integrated acquisition and control technology, computer software technology, communication technology and other technologies to integrate the application of a variety of meteorological sensors from structure to system composition.
Meteorological sensors used in traffic meteorological monitoring stations include visibility weather phenomena detector, wind speed, wind direction temperature humidity and pressure rain integrated micro-meteorological station, laser remote sensing road condition sensor, etc. They also include special integrated meteorological data collector, support structure, power supply communication control box, lightning protection system and other unit.
Meteorological sensors used in traffic meteorological monitoring stations include visibility weather phenomena detector, wind speed, wind direction temperature humidity and pressure rain integrated micro-meteorological station, laser remote sensing road condition sensor, etc. They also include special integrated meteorological data collector, support structure, power supply communication control box, lightning protection system and other unit.
Product Paramenters
Name | Unit | Quantity | Note | |||
Sensor | ||||||
Air temperature sensor | pcs | 1 | Six-in-one sensor VWS006 Inside the rain-proof, ultraviolet and corrosion-resistant louver box, measure Air Temperature, Humidity and Atmospheric Pressure Sensor Ultrasound Wind Speed and Direction Sensor Microwave Radar Rainfall Sensor | |||
Air humidity sensor | pcs | 1 | ||||
Atmospheric pressure sensor | pcs | 1 | ||||
Ultrasonic Wind speed sensor | pcs | 1 | ||||
Ultrasonic Wind direction sensor | pcs | 1 | ||||
Microwave radar Rain sensor | pcs | 1 | ||||
Visibility Detector | pcs | 1 | PWD920A Measuring visibility, forward scattering, Measurement range: 5m-10km measurement type: fog | |||
Laser Remote Sensing Pavement Condition Detector | pcs | 1 | Long-distance measurement of pavement meteorological conditions, measurement of water, ice, snow thickness, pavement slippery degree, pavement temperature, including laser indicators | |||
Meteorological data collector | ||||||
Meteorological data collector and software | set | 1 | Multichannel port, LCD display, timing storage, parameter setting, power-down protection. Complete sets of special software (query, analysis, download and other functions) | |||
Power supply system | ||||||
220V power supply | set | 1 | 220V power supply, Transfer 12VDC power supply | |||
Solar power supply | set | 1 | 30W solar panels, 40Ah battery, charge and discharge controller | |||
Communication system | ||||||
RS485/232 | set | 1 | RS-485/232,USB data line | |||
GPRS Wireless transmission | set | 1 | GPRS Communication Module, Power Supply, Data Line | |||
Mounting bracket attachment | ||||||
3meters | set | 1 | 3 m double-section combination pure white vertical pole surface galvanized, carbon steel bracket | |||
Standard weather main chassis | set | 1 | Built-in partitions, fixed plate, external locks, waterproof | |||
Other accessories | set | 1 | Venetian boxes, cross arm, sensor bracket and other hardware | |||
Lightning protection system (Optional) | ||||||
Lightning protection system | set | 1 | Lightning rod, lightning rod, ground angle steel, etc. | |||
Main Features
RAWS008 Ultrasonic Sensor High Visibility Measure Automatic Weather Station In Highway
Ø The monitoring station adopts modular assembly structure design, compact and compact, with small size, light weight and convenient installation.
Ø Photoelectric measurement technology is used to measure visibility, current weather phenomena and pavement conditions. It is completely measured by remote sensing. It does not need to destroy the pavement, save time and effort, and avoid maintenance.
Ø Ultrasound measurement technology is used to measure wind speed and direction without moving rotating parts. It is totally free of maintenance and long period measurement, and can be used in harsh environment of expressway.
Ø The monitoring station adopts modular assembly structure design, compact and compact, with small size, light weight and convenient installation.
Ø Photoelectric measurement technology is used to measure visibility, current weather phenomena and pavement conditions. It is completely measured by remote sensing. It does not need to destroy the pavement, save time and effort, and avoid maintenance.
Ø Ultrasound measurement technology is used to measure wind speed and direction without moving rotating parts. It is totally free of maintenance and long period measurement, and can be used in harsh environment of expressway.

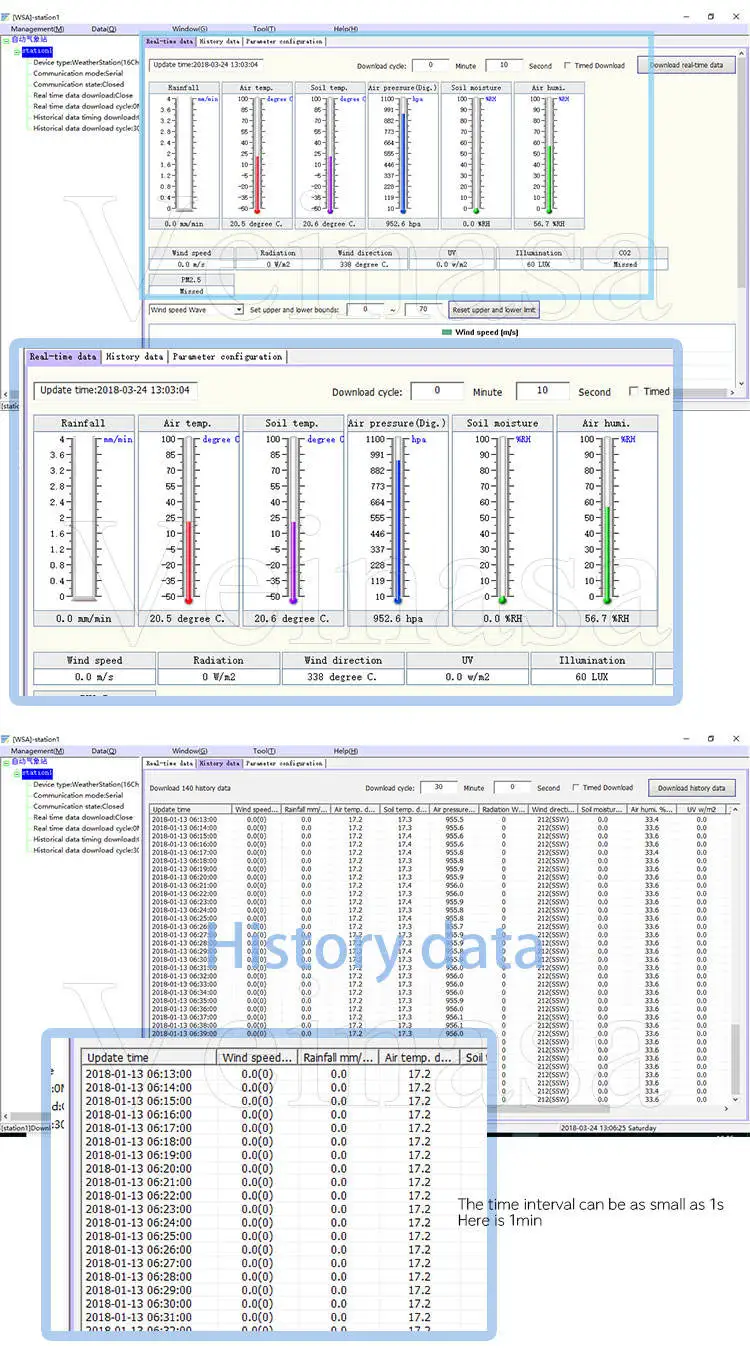

Software Interface

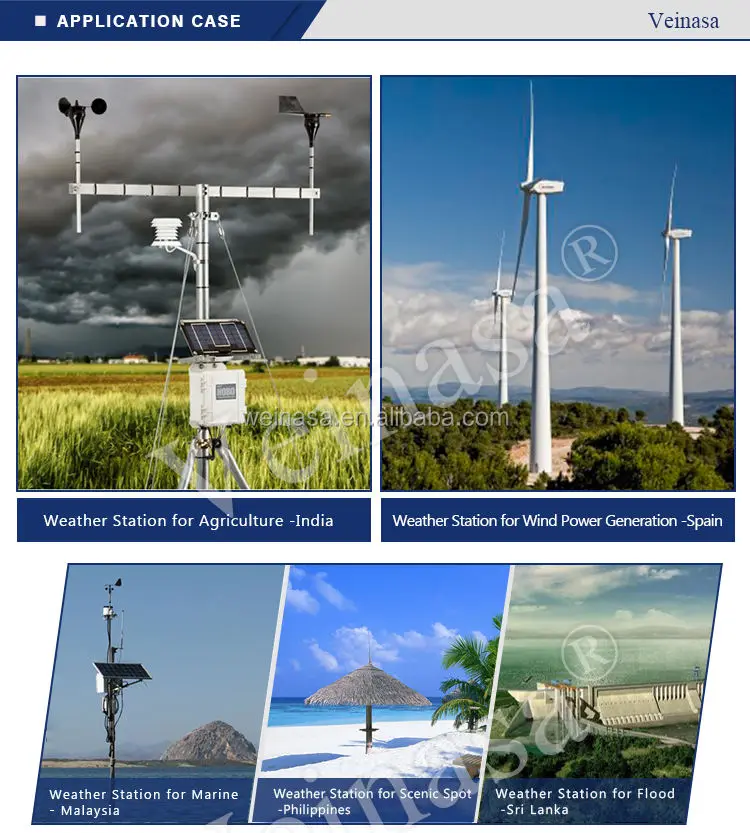

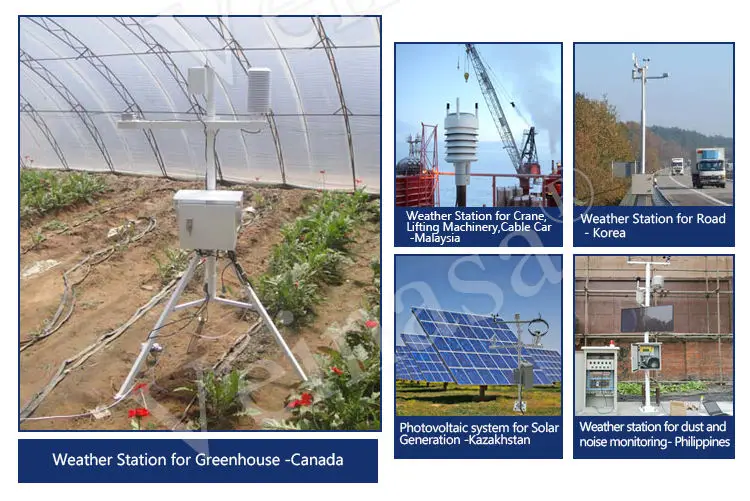

Application Field
RAWS008 Ultrasonic Sensor High Visibility Measure Automatic Weather Station In Highway
1. It can carry out all-day meteorological elements such as visibility, atmospheric temperature, atmospheric humidity, wind direction, wind speed, barometric pressure, rainfall
2. Remote sensing pavement condition (pavement condition: dry, wet, frost, snow, ice, ice-water mixture) and current weather condition: fog (mist, fog, dense fog), rain (light rain, Moderate rain, heavy rain), snow (light snow, medium snow, heavy snow), rain and snow. Waiting test;
3. Actively collect meteorological data, pre-process and arithmetic process the collected data, form minute-by-minute values by correlative statistics of the collected data and store them in the memory of the monitoring station.
1. It can carry out all-day meteorological elements such as visibility, atmospheric temperature, atmospheric humidity, wind direction, wind speed, barometric pressure, rainfall
2. Remote sensing pavement condition (pavement condition: dry, wet, frost, snow, ice, ice-water mixture) and current weather condition: fog (mist, fog, dense fog), rain (light rain, Moderate rain, heavy rain), snow (light snow, medium snow, heavy snow), rain and snow. Waiting test;
3. Actively collect meteorological data, pre-process and arithmetic process the collected data, form minute-by-minute values by correlative statistics of the collected data and store them in the memory of the monitoring station.
Related Products
Company Profile
FAQ
Q: Areyou a factory/manufacturer?
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather station Veinasa-THPPRW-02. It can measure 7 parameters: wind speed, wind direction, temperature, humidity, atmospheric pressure, rainfall and thermoelectric radiation.
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather station Veinasa-THPPRW-02. It can measure 7 parameters: wind speed, wind direction, temperature, humidity, atmospheric pressure, rainfall and thermoelectric radiation.
Q: What’s the main characteristics of this compact weather station?
A: Congratulations, it has robust structure, easy for installation, factory price but amazing quality.This compact ultrasonic weather can compact weather station can integrate several parameters in one but it still light weight.
Q: Can it add/integrate other parameters?
A: Yes it can add/integrate other parameters like light，PM2.5/10. We can customize as you need.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC7-30V, RS485. But we can customize for you as demands.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this Mini Ultrasonic Mini Compact Ultrasonic Weather Station?
A: At least 5 years long. It has its own calibration certificate or testing report.If necessary, we will provide you.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What’s the standard cable length?
A: Its standard length is 4m. But it can be customized.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
Q: What’s the IP grade?
A: It’s IP65.
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
