Handheld digital gauss meter magnetometer / Tesla meter / Magnetic field strength indicator/ magnetic strength meter

Product Overview

Description

product description:

The TD8610 is a portable instrument designed to measure the magnetic flux density of weak magnetic fields. The measurement range is from 0.05G to 20G. The instrument is mainly used to measure the residual magnetism after processing metal parts, the weak magnetic field generated by shielding of ferromagnetic materials, the DC magnetic field in space, the earth's magnetic field and the environmental magnetic field. It has the characteristics of convenient carrying, simple use, accuracy and reliability, and is especially suitable for carrying to the field for magnetic field measurement.



Features

1.Accuracy level 5 level.

2.With automatic zero and auto range, and maximum hold function.

3.With backlight adjustment, power display and automatic shutdown function.

4.Light weight, low power consumption, and a variety of Hall probes are available.



Main Specifications

model	TD8610
Ranges	2G, 20G (automatic range switching)
Measuring range	0.05G~20G
Minimum resolution	1mG; 4 digits display
Measurement accuracy	±5%

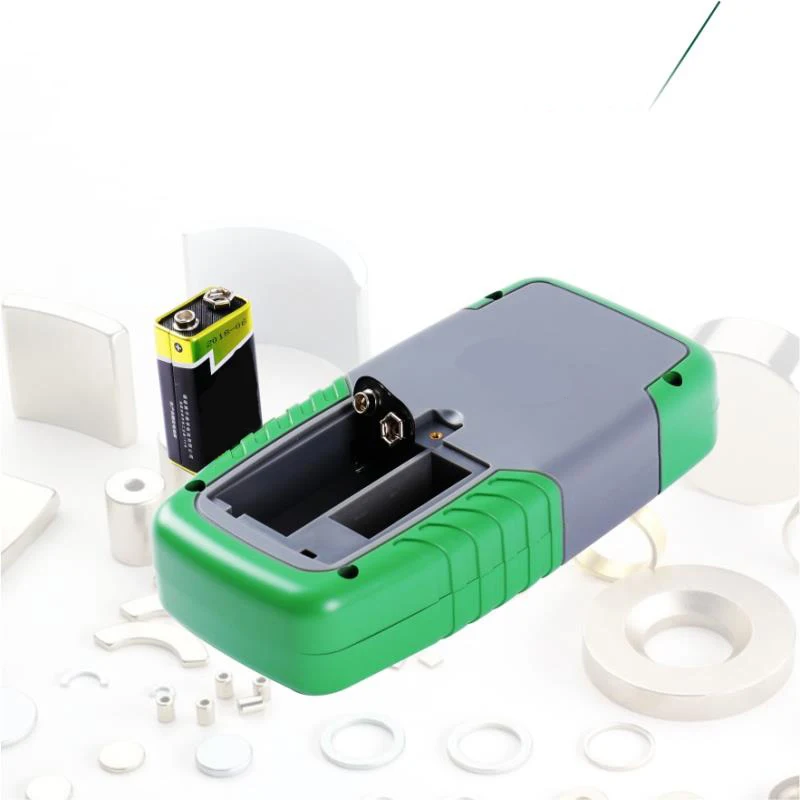

Working power	one 9V battery
working environment	0℃ ~ 50℃;20%R·H ~ 85%R·H
Device size	160 mm × 80 mm × 32 mm ( L × W × H )
Device weight	About 260g

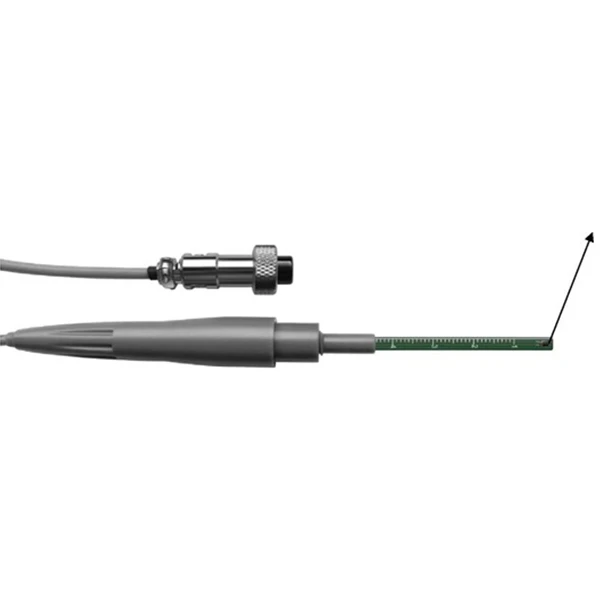

Hall probe	Longitudinal Hall probe, wire about 2 meters
