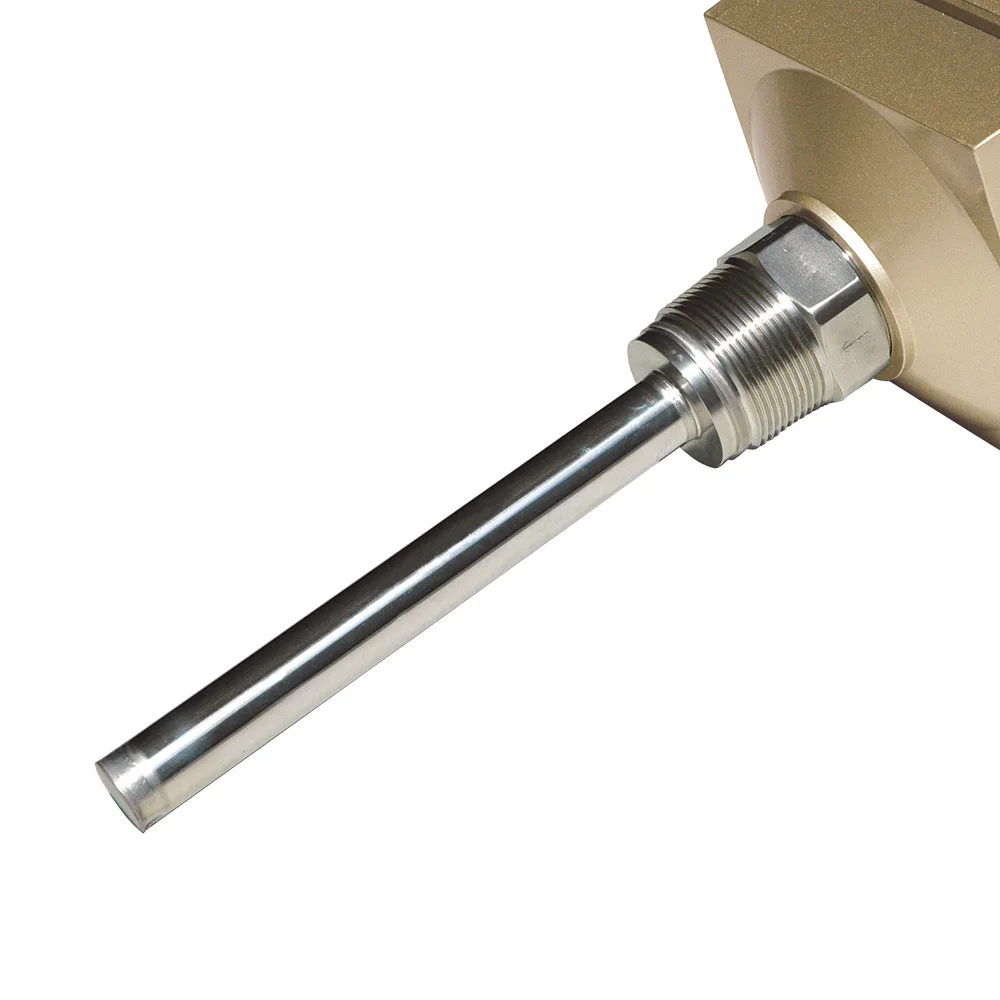

Vibration Type Level Switch KVA 111 Powder with specific gravity over 0.1 is detectable

Product Overview

Description

Vibration Type Level Switch KVA-111 Powder with specific gravity over 0.1 is detectable

Features

The vibration type level switch stably detects even substances with variations of the relative permittivity and electrical properties!

• It detects even measured substances with variations of properties such as relative permittivity and moisture percentage.
• As it has a stainless steel integral construction, it has an excellent pressure-proof performance.
• Withstandable load 500N Max.
• Powder with specific gravity over 0.1 is detectable.
• Power supply DC24V is available as option.
• Fail safe function is equipped as standard.

Operating Principles

The vibration rod is operated by the vibration element built in the sensing unit. When the rod touches the measured substance, the vibration is attenuated. This is detected electrically and the contact is output.

Standard Specification

Power Source	105/210VAC ±10% 50/60Hz
Sensitivity	over 0.1 Specific Gravity
Output Contact	SPDT 250VAC 10A / 30VDC 10A(Resistance load)
ON Delay	about 10sec max. variable
Allowable Temperature	-20~+60℃
Allowable Pressure	980kPa
Process Connection	R1 1/2
Color	Gold
Enclosure Rating	IP67

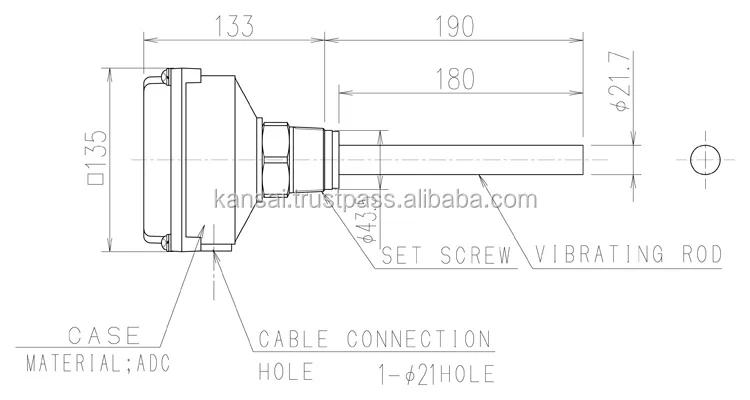

 Drawing
