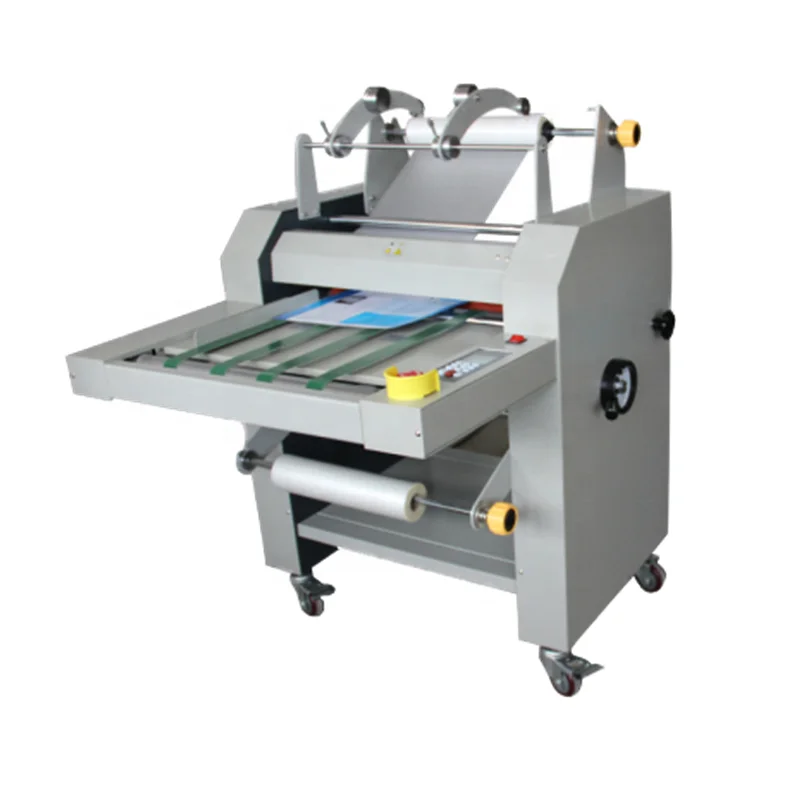

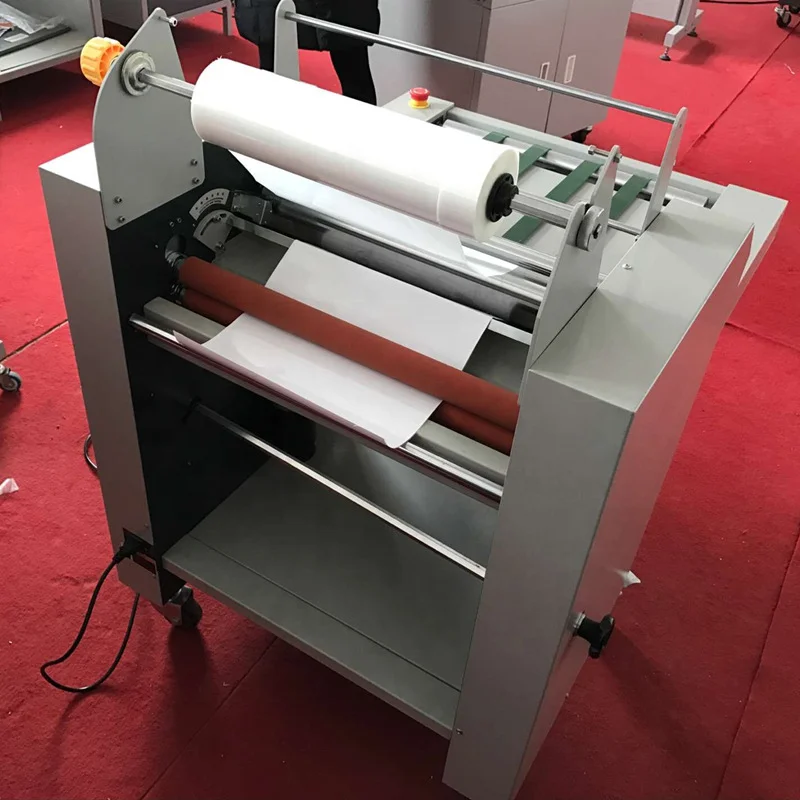

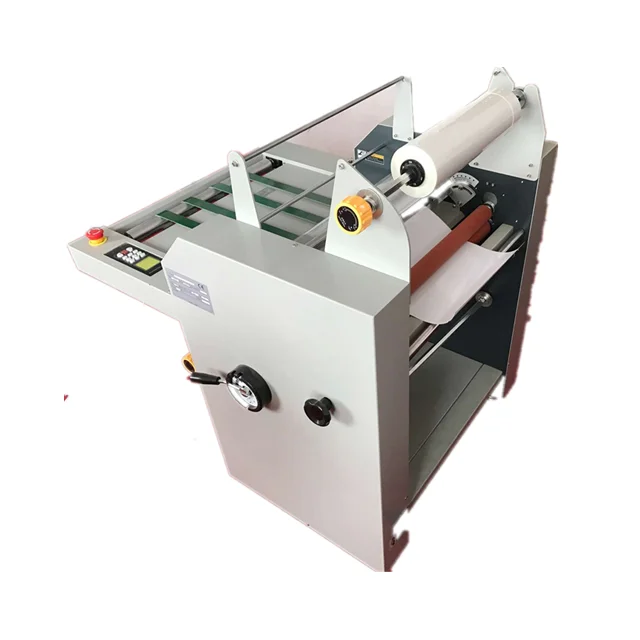

490mm/720mm Double sides hot and cold roll to roll laminating machine

This machine covers a small area, is operated conveniently, run fast. It's equipped with automatic temperature-control and speed-regulation, automatic feeding. Several rolls or redundant rolls can be slit at one time, so this machine is regarded as a slitter.

The machine adopts pre-coated film as the material. It is widely used for lamination on the surface of window packing paper boxes, various books, maps, pictures, certificates, holographic cellphone etc. After the above products are laminated, they have the features of water-resistance, clear graphic arts and strong three-dimensional sense.

\t
490mm/720mm Double sides hot and cold roll to roll laminating machine
\t
Model Name
\t
BR490
\t
BR720
\t
Max. Laminate Width
\t
490mm
\t
720mm
\t
Laminate Thickness
\t
60-800gsm
\t
Max. Laminate Speed
\t
10m/min
\t
Warming Up Time
\t
10min
\t
Suggested Laminate BOPP Film
\t
25-250mic
\t
Max. Temperature
\t
150 degree
\t
Operating Panel
\t
LCD Screen
\t
Auto Feed Paper with Belt
\t
Yes
\t
Single Laminate
\t
Yes
\t
Double Laminate
\t
Yes
\t
Cold&Hot Laminate
\t
Yes
\t
Cut film knife
\t
Yes
\t
Perforating knife
\t
Yes
\t
Auto rewinding paper
\t
Yes
\t
Reverse
\t
Yes
\t
Dia. of core
\t
1",1.5",3"
\t
The quantity of roller
\t
4pcs
\t
Speed control
\t
9 gear
\t
Power
\t
2.2KW
\t
2.5KW
\t
Voltage
\t
AC110V(60HZ)

AC210V~230V(50HZ)
\t
\t
\t
Package
\t
1pcs/Wooden Case
\t
Carton Size
\t
102*89*111cm
\t
112*102*111cm
\t
G.W.
\t
130kgs
\t
180kgs
\t
N.W.
\t
110kgs
\t
158kgs
\t
Steel Roller DIA
\t
100mm
\t
\t
Detailed Images
\t
TROUBLESHOOTING
\t
Machine will

Not turn on
\t
a.Power switch is in "o"

(Off) position

b. Tripped circuit breaker.

c. Blown main power fuse
\t
a.Put the power switch to

the "l" (On) position

b. Reset the circuit breaker.

c. Replace the fuse.
\t
There is power, but the rollers are not turning after the "RUN" button is pressed
\t
a.Safety cover is not closed.

b.Paper guide is not installed correctly

c.Blown motor fuse.
\t
a.Close the safety cover to active the safety switch.

b.Properly install the paper guide so that the micro switch is activated.

c.Replace the motor fuse.
\t
The unit is not heating up
\t
a.The machine is in "COLD" mode.

b.Set temperature is lower than the room temperature.
\t
a.Switch to "HOT" mode.

b.Raise the temperature according to the recommended film temperature.
\t
The paper is not automatic feeding
\t
a.The paper feeding roller is damaged.

b.Paper board is too high
\t
a.Change the roller

b.Lower the paper board.
\t
Many papers are feeding at the same time
\t
a. Paper board is too low
\t
a. Turn the paper board up.
\t
Curled lamination
\t
The main roller temperatures are too low and/or lamination speed is too fast.
\t
Raise the roller temperatures and/or lower the lamination speed.
Packing & Delivery
\t
\t
Packaging Details
\t
Size
\t
102*89*111cm
\t
Weight
\t
130kgs
\t
\t
The normal package is non-fumigation casewooden box.
