3D 5 13mm 180 degree CNC Automatic Stirrup Bending Machine/Steel Bar Bending Machine
- Category: Rebar Bending Machine >>>
- Supplier: Xingtai Huachang Machinery Manufacturing Co. Ltd.
Share on (62005807412):
Product Overview
Description
Product Description
Our CNC Automatic Steel Bar Bending Machine #TG5-13 is designed by our engineers who have more than 10 years' practical experiences.
It has the comprehensive process capacity, which can bend steel bar 180°.
It can bend DIA 5-13 mm steel bar.
It is working with a series of automatic process of the uninterrupted material feeding, straightening,bending and cutting.
This product is widely used in construction industry, large steel bar processing plant,high speed railway, expressway, water conservancy construction, etc.
Features:
1. CNC automatic touch panel
2. Completely processing of steel bar feeding,straightening,bending and cutting
3. Bending more than 500 types according to design
4. Safe operation,high efficiency and high precision
5. Widely use
Parameter
| Steel Bar Bending Machine TG5-13 | |
| DIA of processing single rebar | 5-13mm Round steel bar(HPB300) |
| 5-12mm Ribbed rebar(HRB400) | |
| DIA of processing double rebar | 5-12mm Round steel bar(HPB300) |
| 5-10mm Ribbed rebar(HRB400) | |
| Max bending angle ( Forward, Reverse) | 180° |
| Max traction speed | 75m/min |
| Max bending speed | 1000°/s |
| Length accuracy | 1mm |
| Angle accuracy | 1° |
| Processing shape | 500 types |
| Servo motor power for feeding | 22KW ( Beijing CTB servo) |
| Servo motor power for bending | 7.5KW( Beijing CTB servo) |
| Motor power for cutting | 4KW |
| Air pump power | 4KW |
| Working temperature | -5℃-40℃ |
| Min pneumatic pressure | 0.8mpa |
| Equipment power | 23.5KW/380V/60Hz |
| Average power consumption | 5KW/H |
| Weight | 2200kg |
| Dimension | 3560*1080*2030mm |

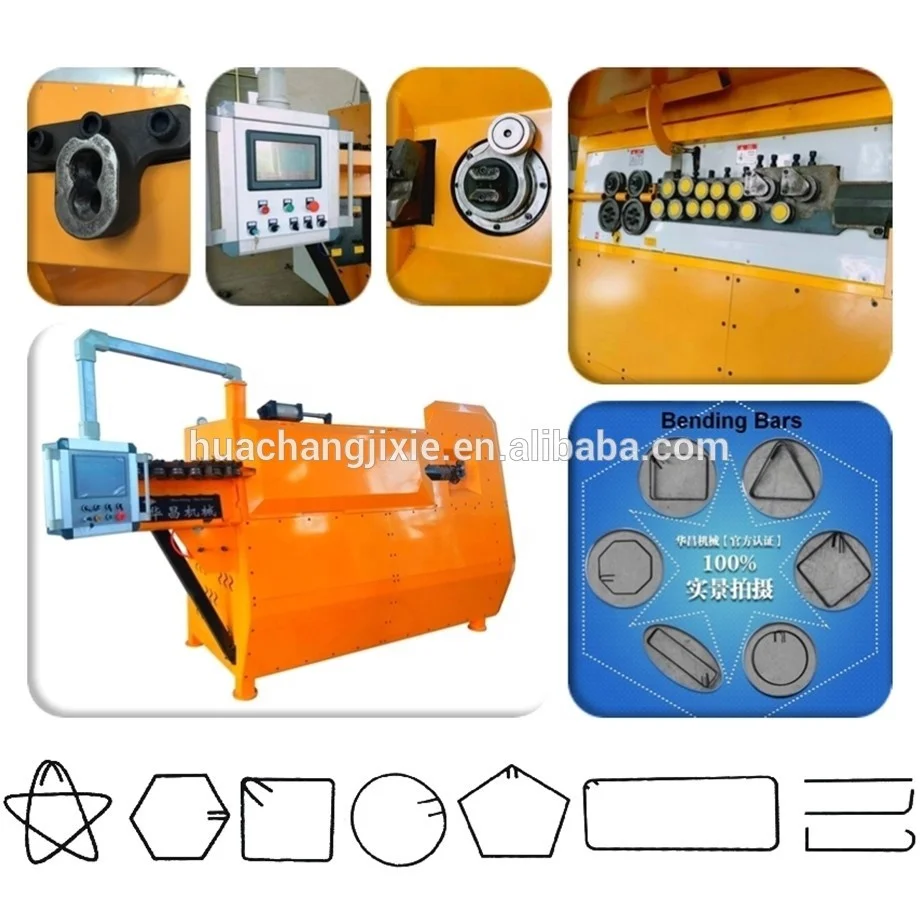

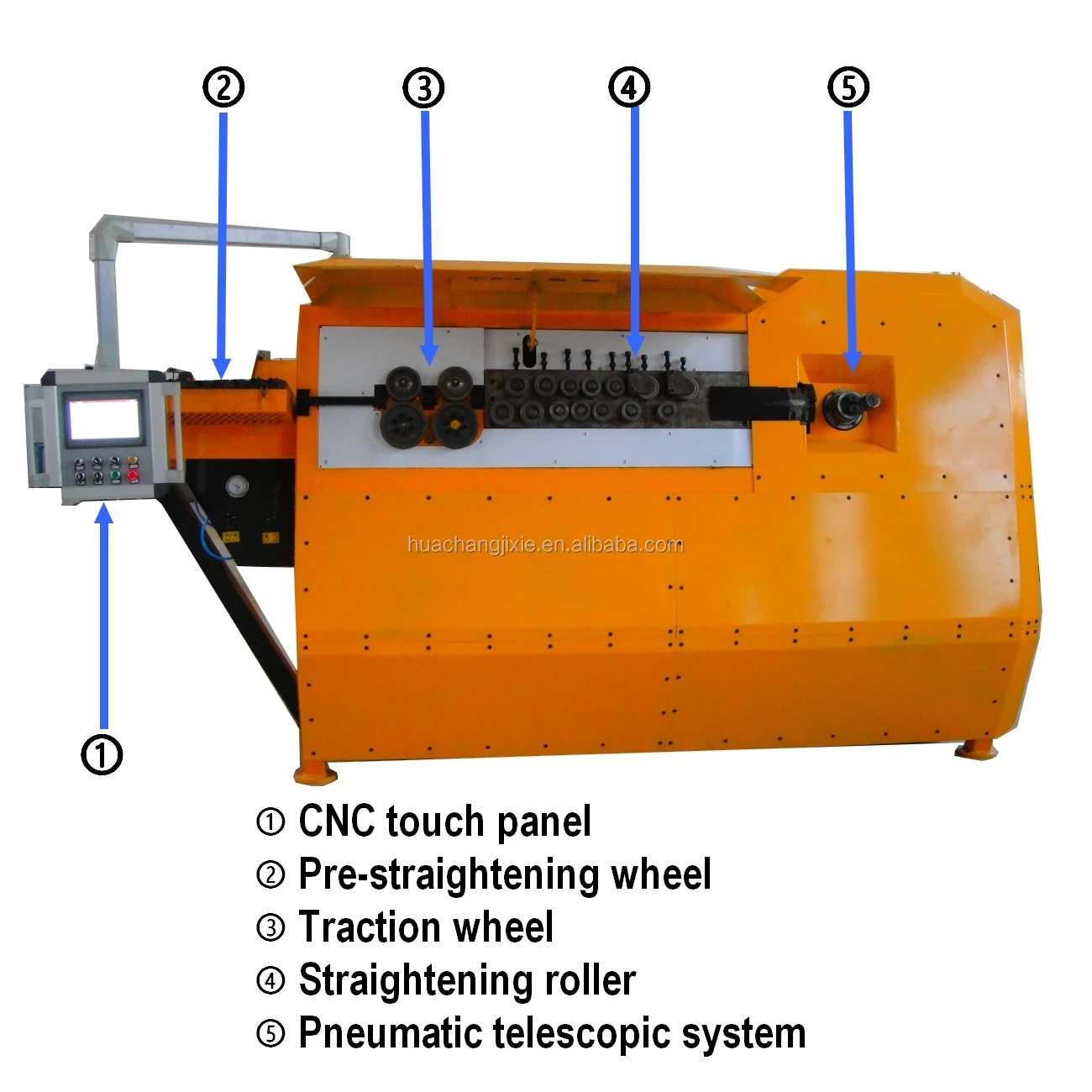

Machine Details
Material Feeding Holes

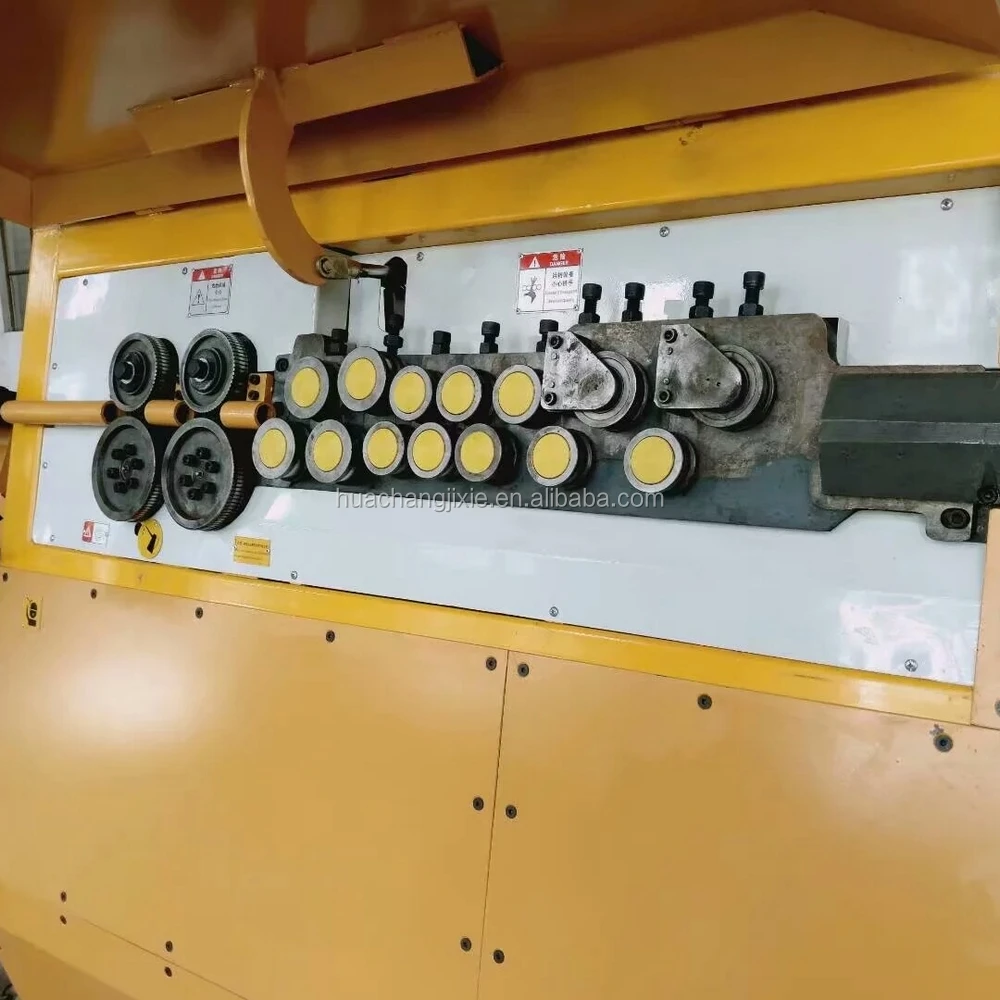

Straightening Rollers

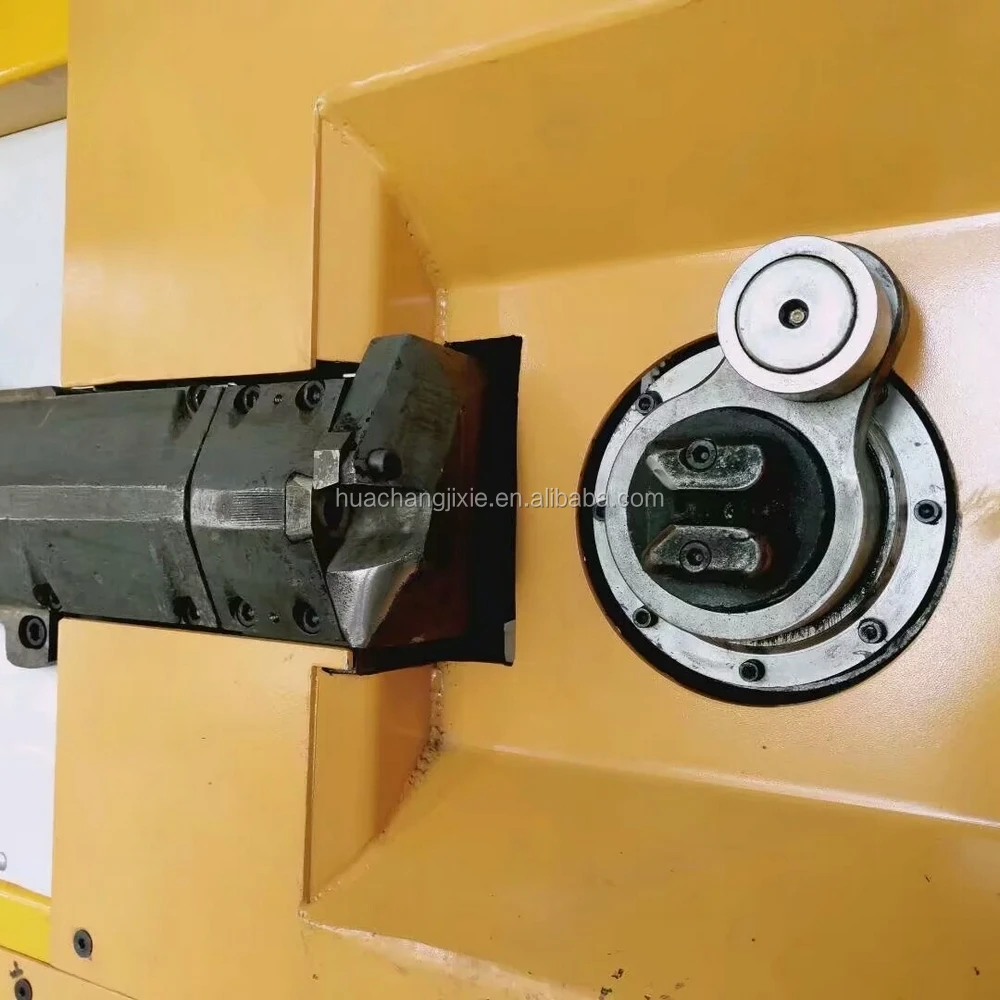

Bending and Cutting Parts

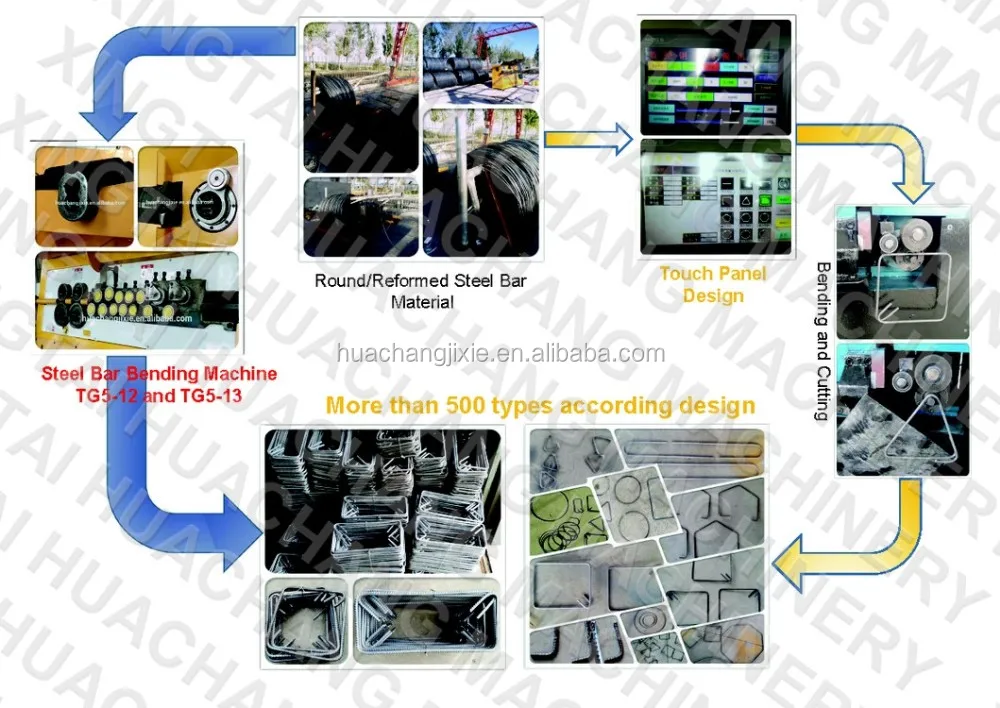

Processing Flow

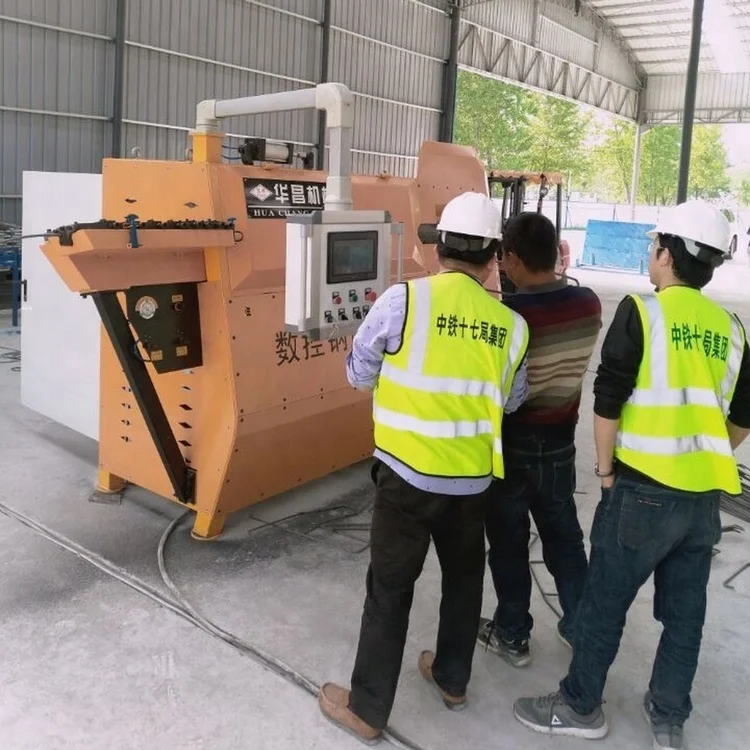

Machine Working Site

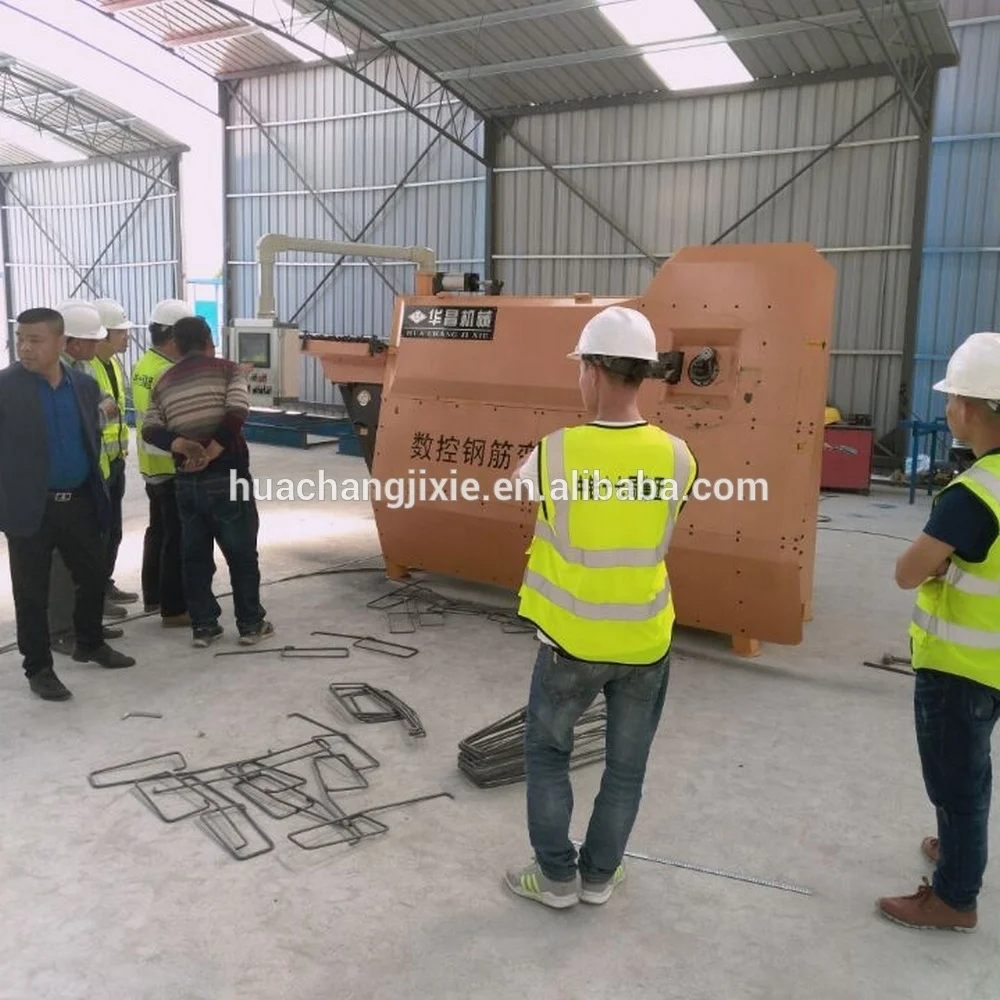

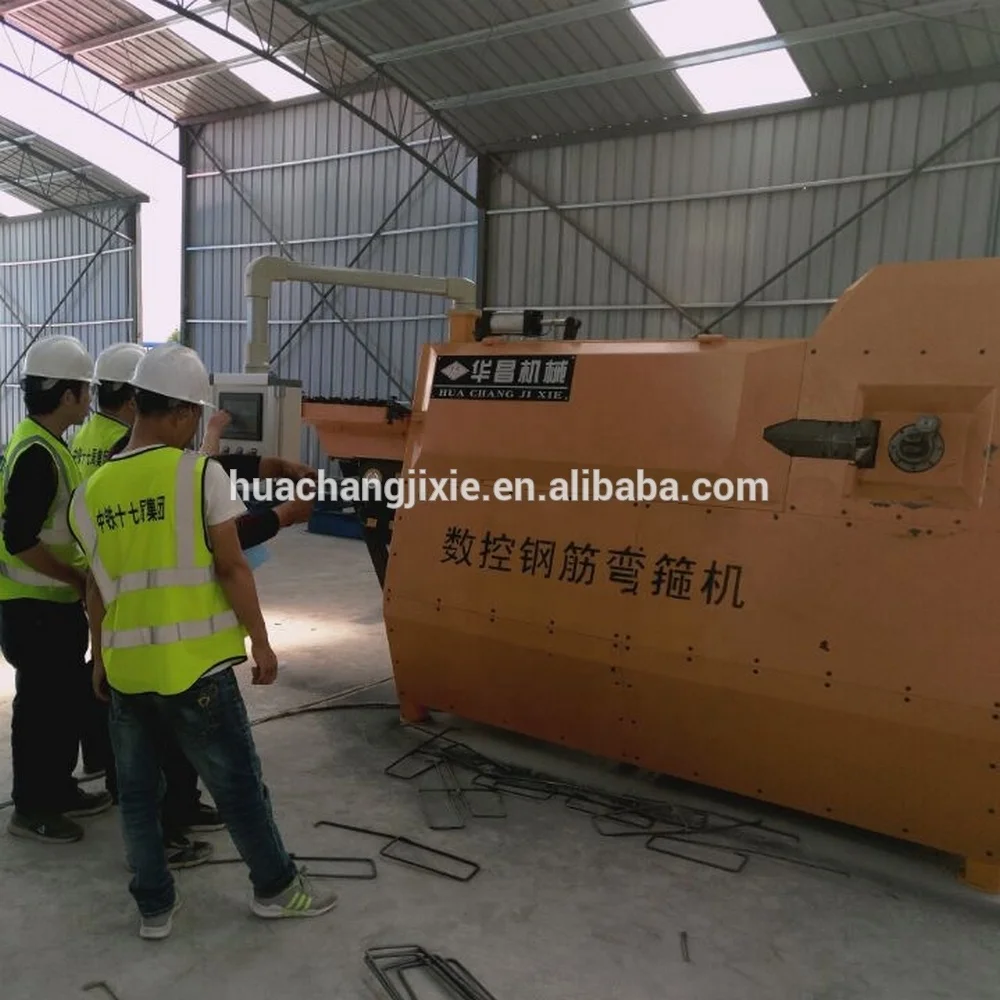

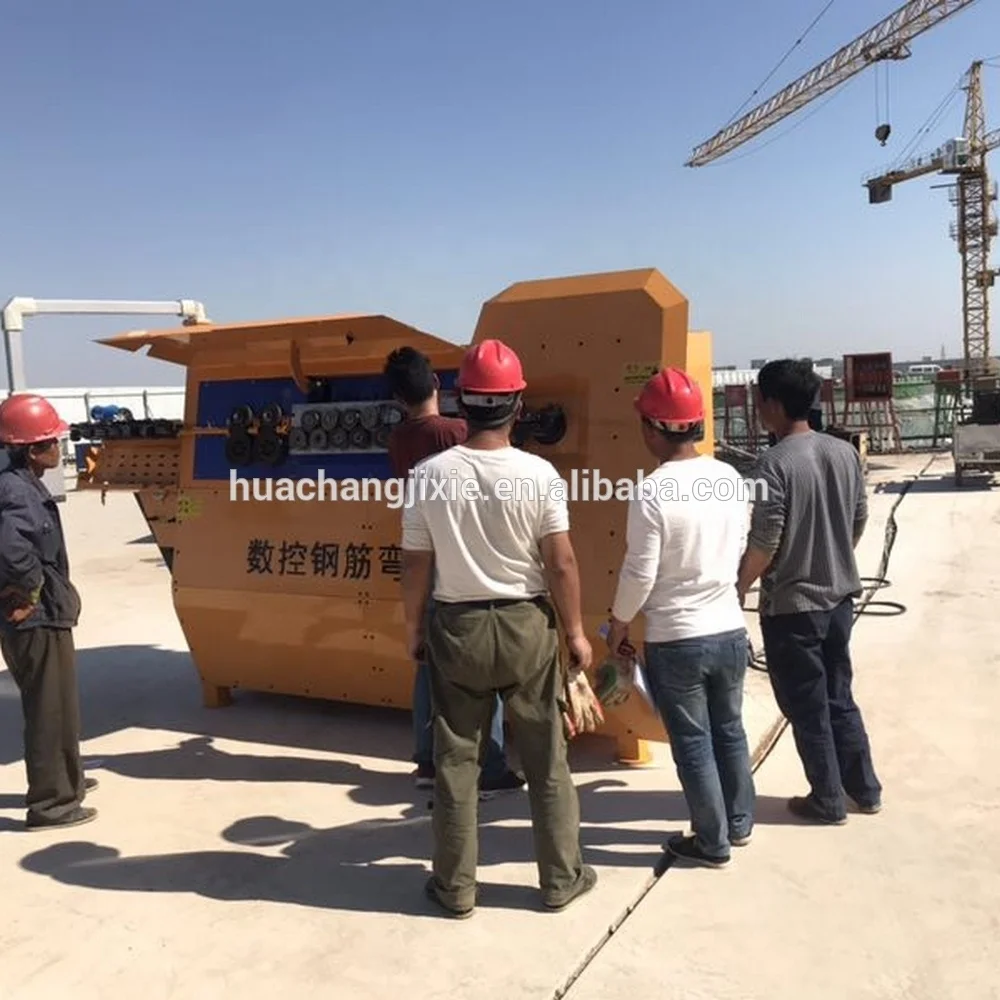

Machine in Construction site
Machine in Construction site
Machine in Construction site

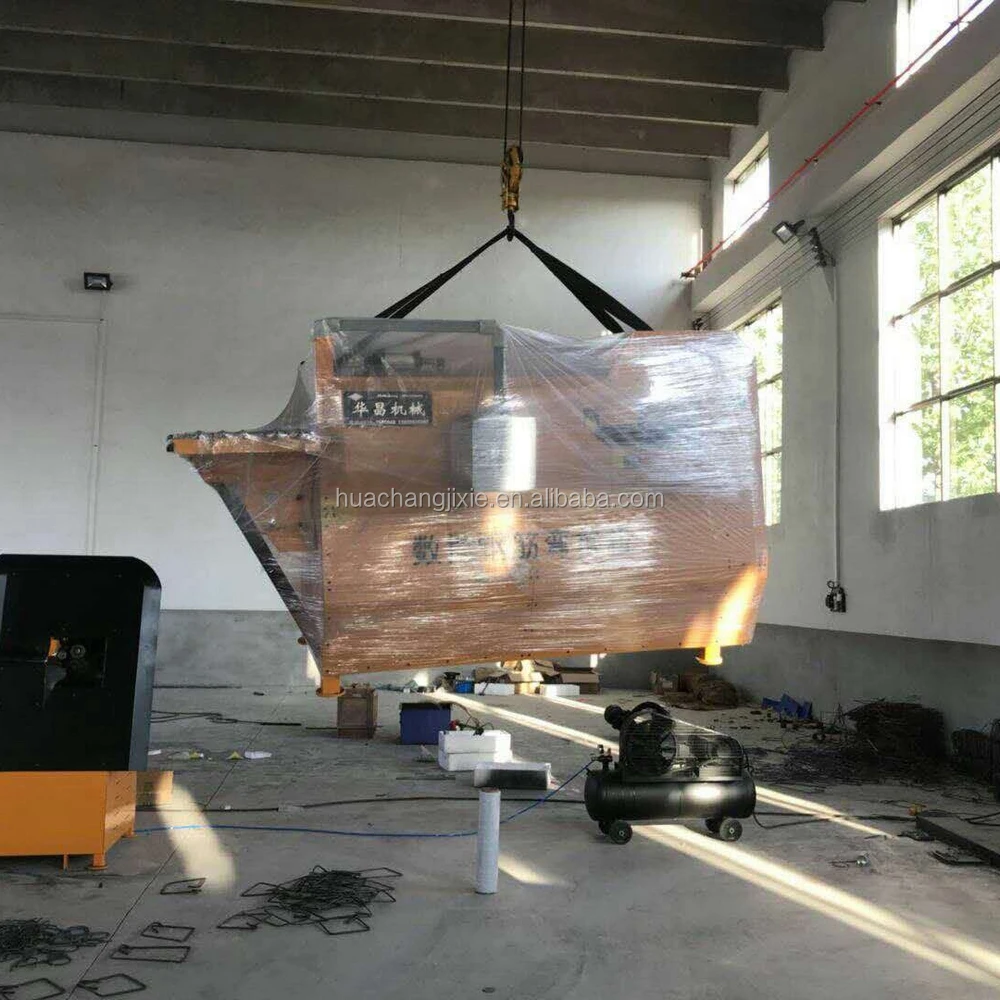

Packing & Delivery
Packing Details: Plastic bag and then fumigation free wooden case
Delivery: within 10 days if machine is in stock;
producing according to customers' order within 15-25 days
Related Products
TG5-12 Bending Machine
Steel Bar DIA 4-12mm
TG5-13 Bending Machine
Steel Bar DIA 5-13mm
TG4-8 Bending Machine
Steel Bar DIA 4-8mm
Our Service
Pre-Sale Service
1.Communicate about your actral use situation and help you to choose most suitable machine model
2. Design color,marks according to your requriy
3.Produce the machine according to your order
Sale Service
1.Check the machine upon delivery
2.Help you to make operating manual and precautions
After Service
1.Guarantee for a year.
2.Discuss the problem and send corresponding repair parts,if the machine has working problem
3.Free repair whole using life with our Professional Engineer and After-sales Team (excluding the freight and accessories charge).
FAQ
Q: Are you a factory or trading company?
A:We are a manufacturer with 10 years experience,you could get factory price from us.
Q:Where is your factory located? How can I visit?
A:Our factory is located in Ren County,Xingtai City,Hebei Province,China,about 3 hours from Beijing.We can pick up clients from Beijing Airport or Shijiazhuang Airport to visit us.
Q:Can you do OEM?
A:Yes,we do OEM machines.
Q:what is your payment terms?
A:Generally,30% in advance,70% before shipment.
Q:Can you provide installation service?
A:Yes,we can,but you need to take charge of our engineer's air tickets,hotel and food fee,and 50 USD/day.
