AVMATRIX PVS0615 Best price 6 Channel Portable Live Streaming Mixer HDMI SDI Video Switcher with Recorder use
- Category: >>>
- Supplier: Zhangzhou Matrix Electronic Technology Co. Ltd.
Share on (62005821742):
Product Overview
Description
Brief Introduction
PVS0615
Best price 6 Channel Portable Video Switcher Mixer with Recorder use
Best price 6 Channel Portable Video Switcher Mixer with Recorder use
Main Features
1) Portable All-In-One design with 15.6 inch FHD LCD display
2) 6 channel inputs: 4×SDI and 2×DVI-I/HDMI/VGA/USB
3) 3×SDI PGM out(1×AUX), 2×HDMI PGM & 1×HDMI multiview out
4) Input format auto-detected and PGM/AUX output format selectable
5) T-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effects
6) Luma Key/ Chroma Key for virtual studio
7) PIP/POP window size and position adjustable
8) Record PGM video to SD card, up to 1080p60
9) Audio mixer: TRS audio & SDI, HDMI, USB embedded audio
Product Description

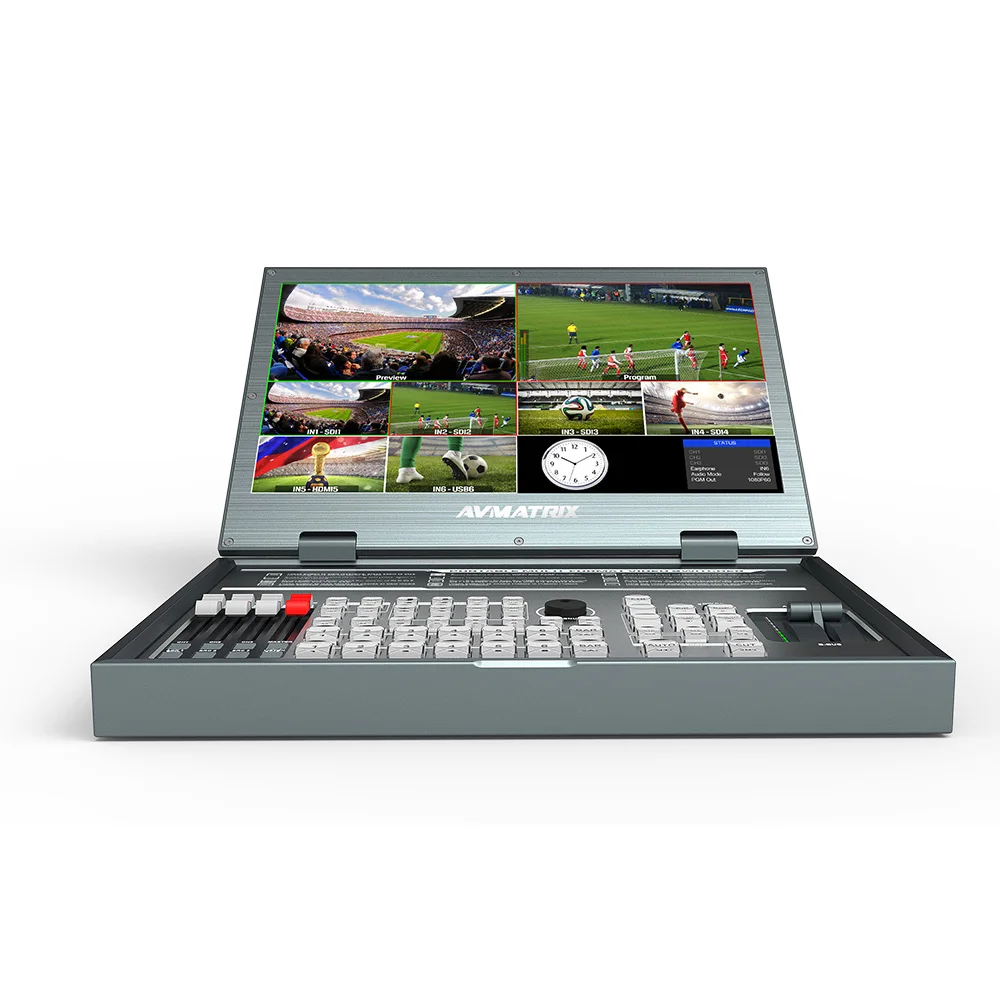

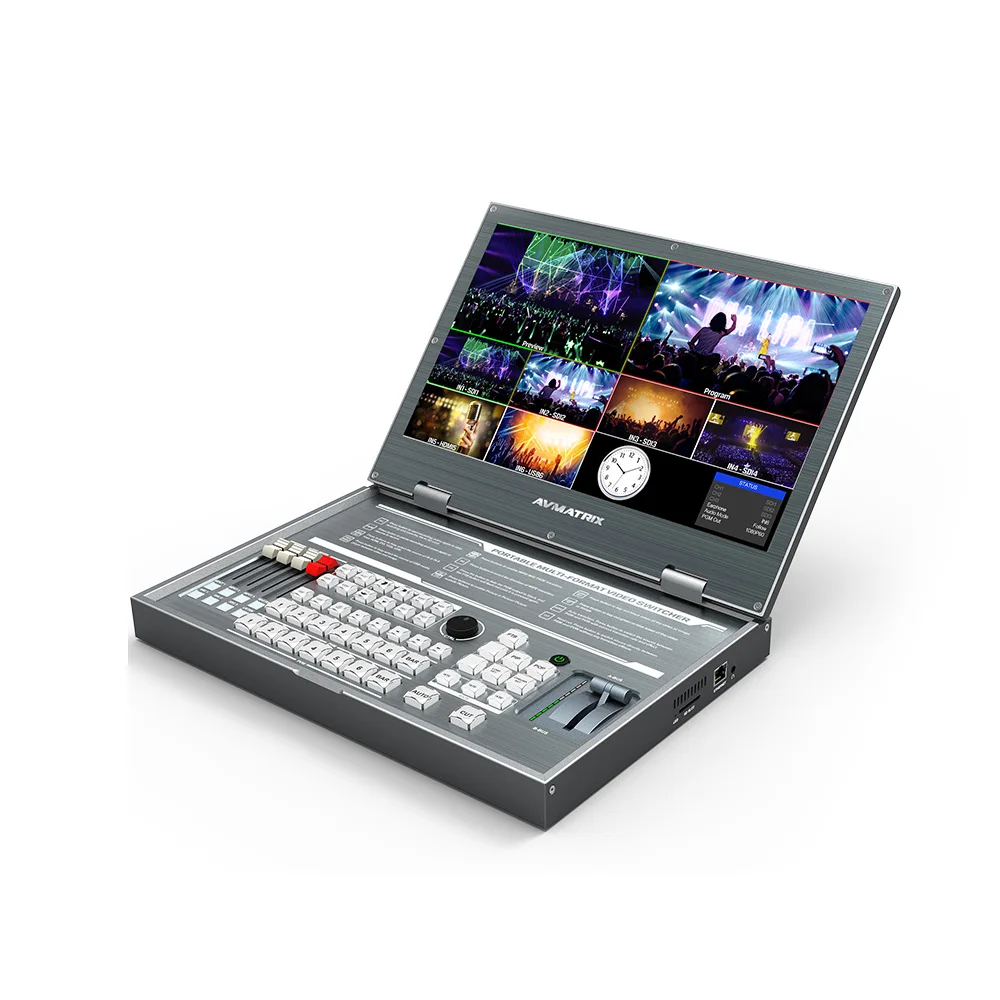

The Thinnest AIO Portable Video Switcher

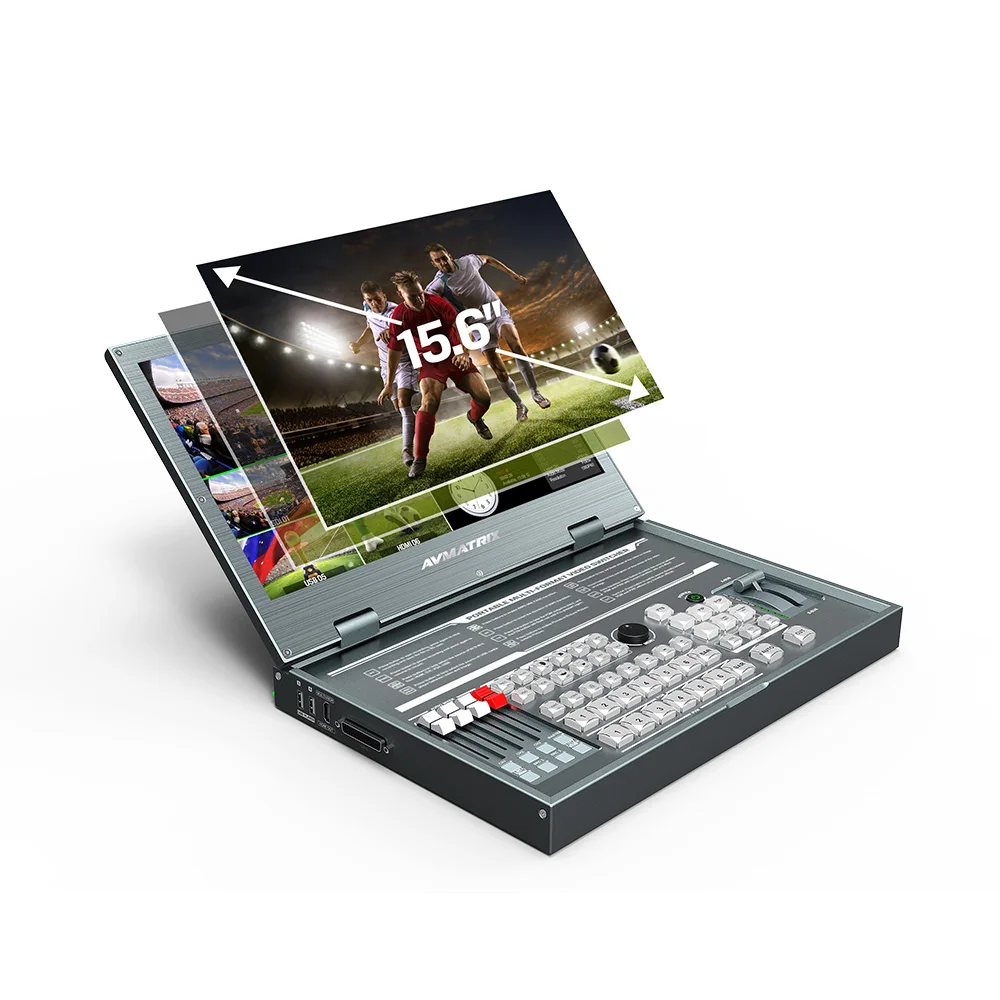

The world's thinnest video switcher with an integrated 15.6 inch FHD screen and solid metal case. You can clearly view PVW, PGM with audio bar, multiviewer, clock and menu setting on the screen.
Chroma/Luma Key
Support real-time background matting, user can use Chorma key to cutout PVW green or blue background. And use the Luma Key to cutout black background. Users can adjust the size and position of the windows according to their needs. Audio sliders can be used for multi-channel audio mixing.
T-bar & Transitions
T-Bar, AUTO and CUT for switching between PVW and PGM. Under T-Bar & AUTO mode, it supports various transition effects such as WIPE, MIX and FADE. There are 3 different transition rates to meet different needs.
PGM Recording
Extra SD card recording function, video recording up to 1080p60, which can achieve recording and pausing. Multiple recording qualities are available.
USB Media Player
The channel 5 and 6 support different signals such as USB media player, HDMI DVI and VGA which can satisfy customers to realize different signal input. USB Media Player support Video and Images.
Widespread Application
The all-in-one 6 channel video switcher can be widely used in various field events, such as live sports, virtual studio, Education, internet, concert, and so on

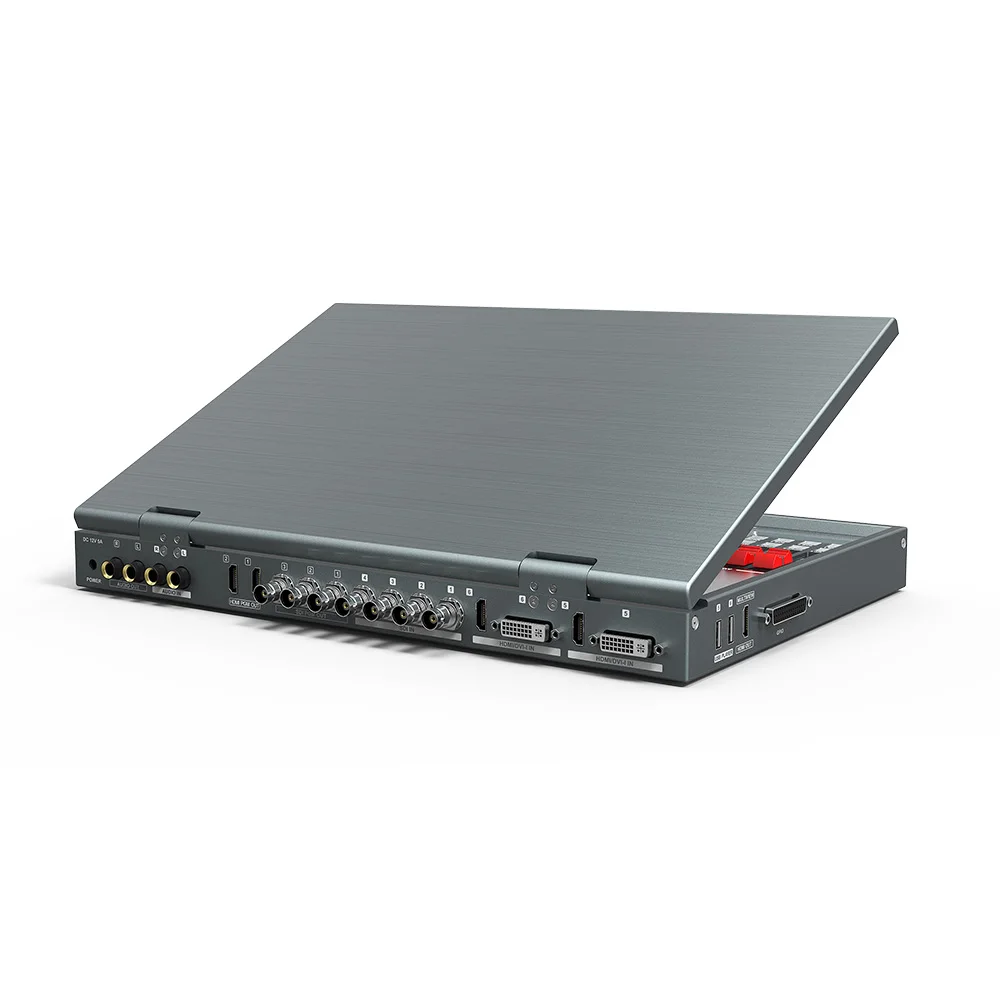

Auto-detected inputs & selectable PGM outputs
The compact fuselage also has various interfaces to meet various demands. 4×SDI and 2×DVI-I/HDMI/VGA/USB player inputs, 2×SDI & 2×HDMI PGM outputs, 1×SDI AUX output for PVW & PGM, 1×HDMI multiview output. The Input format is auto-detected, and PGM/AUX outputs format is select-able.
Techniacl Parameter
Transitions | Manual T-bar/ AUTO/ CUT | |
Transition Effects | Wipe/ Mix/ Fade/ FTB / Color Bar | |
Keys & Layouts | Luma Key/ Chroma Key/ PiP/ PoP/ Multiview | |
Audio Mixer | Following/Mixing | |
LCD Display | 15.6 inch, 1920×1080 resolution | |
Record | SD card, H.264, record for PGM up to 1080p60 | |
Video Inputs | SD/HD/3G-SDI(75Ω)×4, HDMI2.0 type-A(100Ω)×2, DVI-I(VGA-compatible)×2 | |
USB Media Player | USB type-A×2 | |
Analog Audio Inputs | TRS(L/R)×1 | |
LAN | Synchronize local time | |
OUTPUTS | PGM Outputs | SD/HD/3G-SDI(75Ω)×2, HDMI type-A(100Ω)×2 |
AUX Output (PGM/PVW) | SD/HD/3G-SDI(75Ω)×1 | |
Multiview Output | HDMI type-A×1 | |
Analog Audio Output | TRS(L/R)×1 | |
Tally | GPIO | |
STANDARD | SDI Input Format Support | 1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50 PAL, 525i 59.94 NTSC |
HDMI Input Format Support | 4K 60/50/30, 2K 60/50/30 1080p 60/59.94/50 1080p 30/29.97/25/24/23.98/23.976 1080i 50/59.94/60 720p 60/59.94/50/30/29.97/25/24/23.98 576i 50, 576p 50 | |
SDI & HDMI Scaling Output | 1080p 60/50/30/25/24 1080i 60/50 | |
Multiview HDMI Output | 1080p 60 | |
SDI Compliance | SMPTE 292M / SMPTE 259M / SMPTE 424M | |

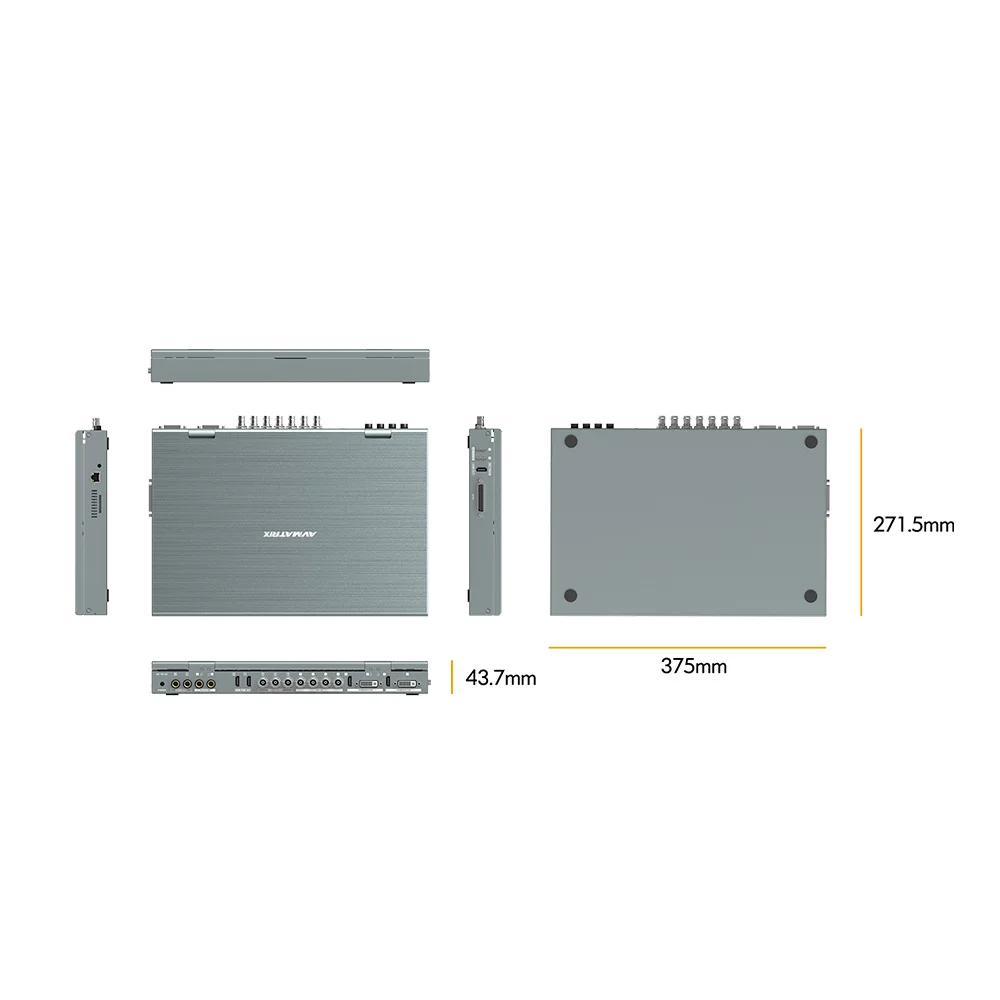

Dimension(LWD) | 375 × 271.5 × 43.7mm | |
Weight | 3.8kg | |
POWER | Power Supply | DC 12V 5A, 33W |
ENVIRONMENT | Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ | |
Relative Humidity | 0%~90% non-condensing | |
Warranty | Warranty | 2 year limited warranty |
