High precision network GNSS receiver with WEB interface 4GNSS OC 103 NET

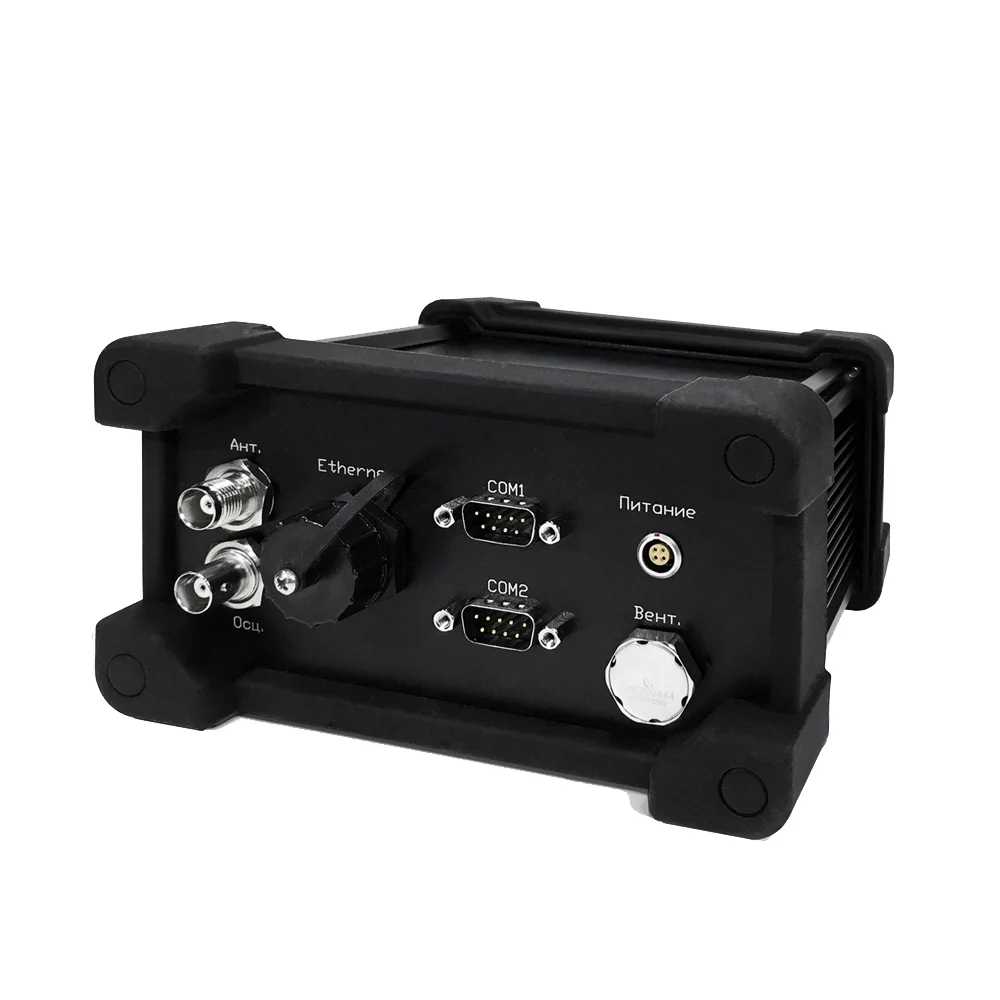

High-precision network GNSS receiver with WEB interface 4GNSS OC-103-NET
High-precision network GNSS receiver with WEB interface 4GNSS OC-103-NET

High precision network GNSS receiver with WEB interface 4GNSS OC 103 NET

Share on (62005841786):


Price:$3,990.00

Quantity:


Product Overview

Description


Product Description

High-precision network GNSS receiver with WEB interface 4GNSS OC-103-NET

Multifunctional network GNSS receiver with a built-in web interface for remote configuration and downloading of raw data. Support NTRIP and TCP/IP protocols, RTCM 2.x, 3.x, CMR corrections. Built-in 32 GB memory. Raw data is easily converted to RINEX format using a free utility.

Web interface: supports FTP-server and FTP-client functions (FTP-Push).
Purpose: excellent for Base station networks and for a single Base station.
Design features: supplied with shock-absorbing rubber bumpers. Dust-proof, all ports are sealed and condensate valve.
Size (LxWxH), mm: 165 x 163.9 x 90.1
Weight: 1.34 kg
GPS: L1 C/A, L2C, L2P, L5; BeiDou B1/B2/B3; GLONASS: L1C/A, L1P, L2C/A, L2P; Galileo E1, E5a, E5b, QZSS
WebUI
Advanced QuantumTM Algorithm
32GB onboard memory

Country of origin
• Russia

Detailed Images
Specification
\t
Signal Tracking
\t
496 channels
\t
GPS L1 C/A, L2C, L2P, L5
\t
BeiDou B1, B2, B3
\t
GLONASS L1C/A, L1P, L2C/A, L2P
\t
Galileo E1, E5a, E5b
\t
QZSS (reserved)
\t
SBAS: WAAS, EGNOS, MSAS, GAGAN
\t
Performance Specifications
\t
Start <100s
\t
Acceleration 4g
\t
Overload 15g
\t
Time Precision
\t
20ns
\t
Positioning Specifications
\t
Post Processing Static
\t
2.5 mm+1 ppm Horizontal
\t
5 mm+1 ppm Vertical
\t
Single Baseline RTK (<8km)
\t
8 mm + 1 ppm Horizontal
\t
15 mm + 1 ppm Vertical
\t
DGPS
\t
0.4 m 3D RMS
\t
SBAS
\t
1 m 3D RMS
\t
Communications
\t
Communication port
\t
2 DB-9 (male) RS-232 ports, baud rates up to 921600 bps
\t
1 Lemo0 4pin power port
\t
1 LAN Ethernet port
\t
Web interface
\t
FTP-server and FTP-Push
\t
Positioning data outputs
\t
1Hz, 2Hz ,5Hz, 10Hz, 20Hz (depends on installed option)
\t
Protocol
\t
TCP and NTRIP protocol
\t
Data Format
\t
Correction data I/O
\t
CMR, RTCM 2.x,3.x, RTCM COMPASS
\t
Position data output
\t
ASCII
\t
NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST; PTNL, PJK; PTNL, AVR; PTNL, GGK
\t
ComNav Binary data
\t
Physical
\t
Size(L×W×H)
\t
164mm × 87.4mm × 53.6mm
\t
Weight
\t
1.34 kg
\t
Antenna
\t
1 x TNC female (GNSS), 1 x BNC female (OSC)
\t
Environmental
\t
Working temperature
\t
-40℃ to +85℃
\t
Storage temperature
\t
-40℃ to +85℃
\t
IP protection
\t
IP67
\t
Electrical
\t
 Input voltage
\t
9-28 VDC
\t
Power consumption
\t
2W (4 constellations)
\t
Memory
\t
32 GB
\t
Software
\t
ComNav Compass Receiver Utility software
Packing & Delivery
\t
Port
\t
St. Peretburg
\t
Processing Time
\t
2 days
\t
MOQ
\t
1 piece
