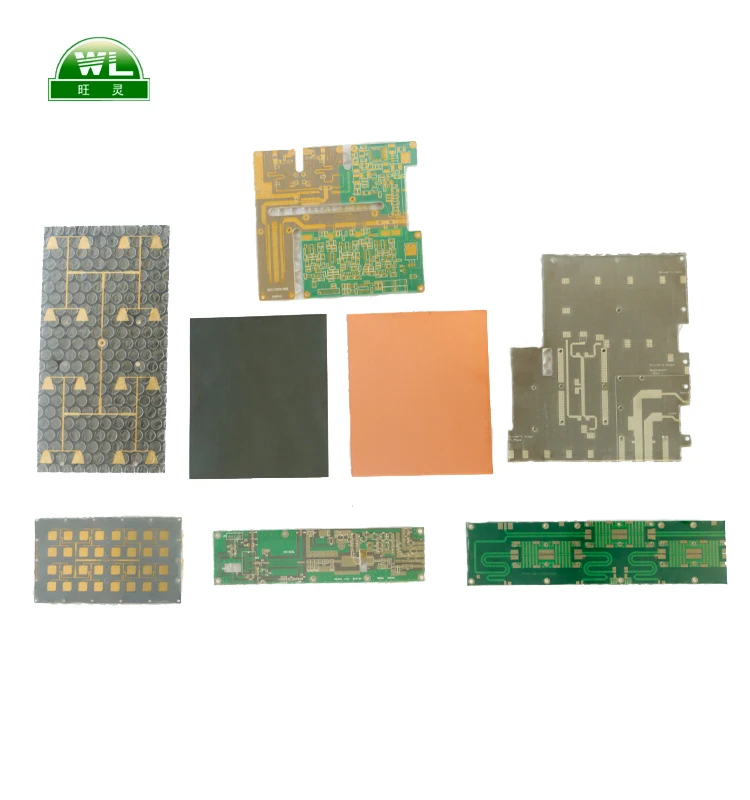

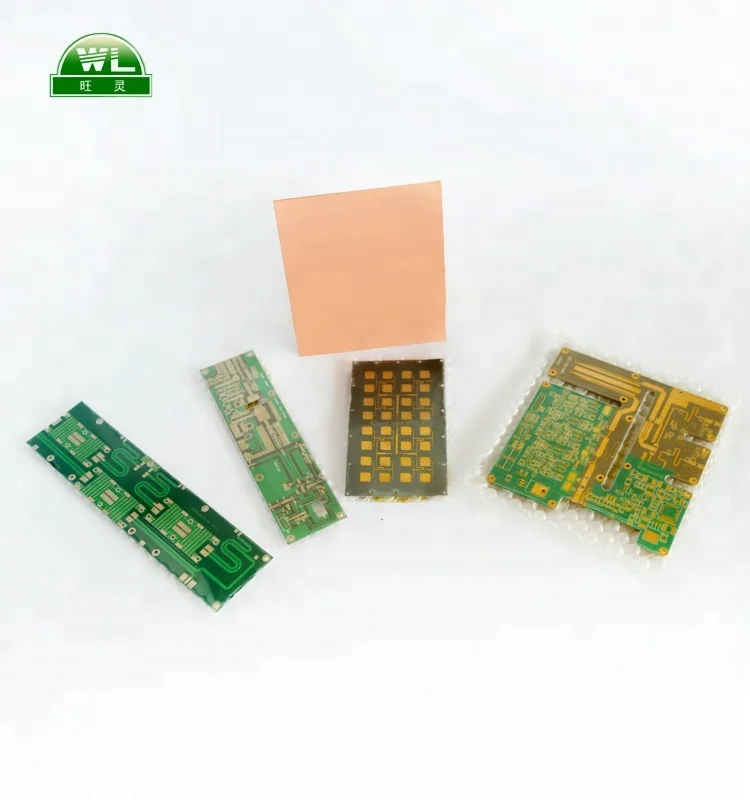

High permittivity ptfe copper clad laminate material F4BM for PCB board(F4BM265) thickness1.0mm high frequency laminate material
- Category: >>>
- Supplier: Taizhou Wangling Insulation Material Factory
Share on (62006095684):
Product Overview
Description

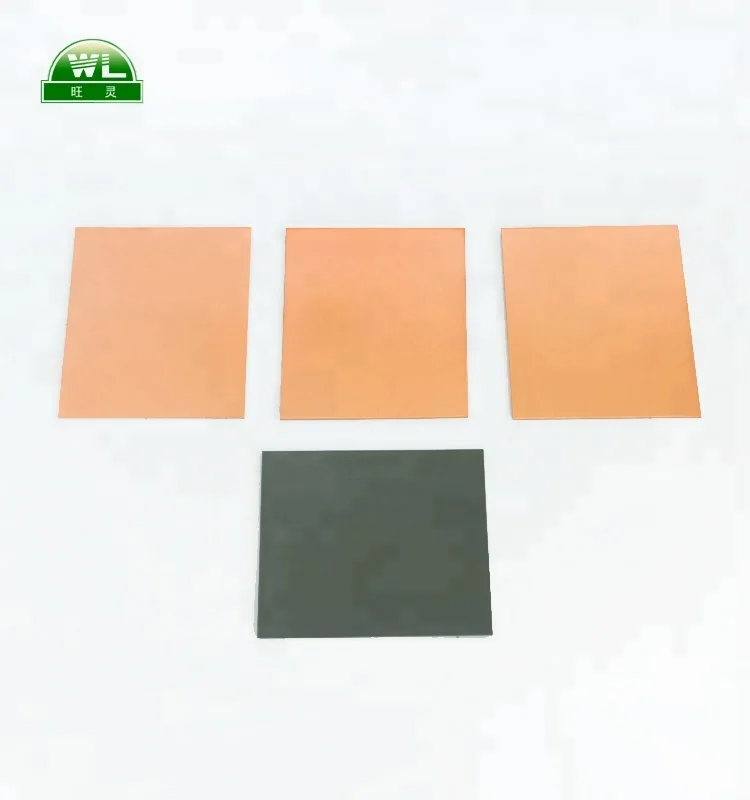

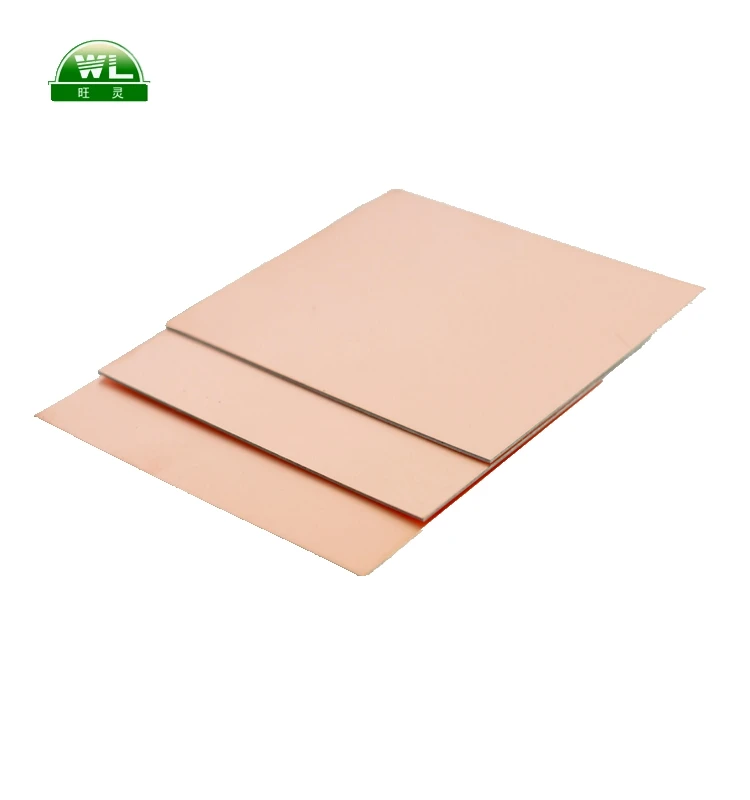

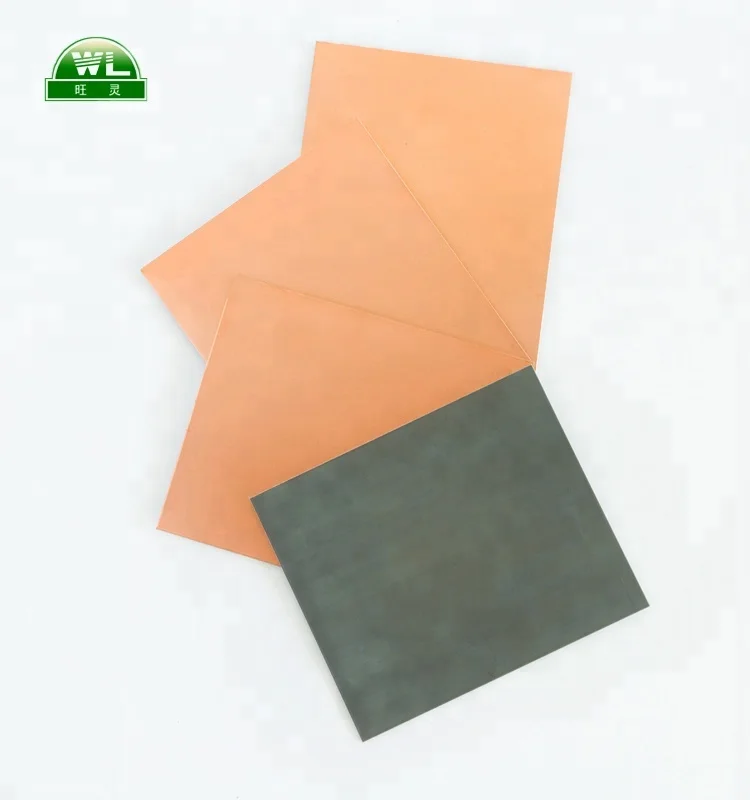

PTFE woven glass fabric copper clad laminates with high permittivity(F4BM265)
1.Description:
F4BM-1/2 is laminated by laying up of non-alkali fiberglass fabric,bond film,with Ptfe resin and Polytetrafluoroethylene film,according to the scientific formulation and strict technology process.
Product code des
2.Specifications:
Types | Double side, Original side, Single side |
Dimensions (mm) | 12''x10''(300x250mm), 14''x15''(350x380mm), 17''x22''(440x550mm), 18''x24''(460x610mm), 20''x20''(500x500mm), 20''x24''(500x600mm), 24''x36''(610x914mm), 33''x33''(840x840mm), 36''x48''(914x1220mm) |
Special dimension can be customized according to customer’s requirement. | |
Dielectric constant (@ 10GHz) | 2.65±0.05 |
Thickness(including two sides of copper foil) and Tolerance(mm) | 1.0±0.05 |
For special thickness,customized lamination is available. | |
ED Copper thickness(OZ) | 1/2 or 1 or 2 (electrodeposited copper foil ) |
Volume Resistivity (MΩ.cm) | Condition: normal state ≥6×106 |
Surface Resistivity (MΩ.cm) | Condition: normal state(500V DC) ≥1×105 |
Dissipation factor (@ 10GHz) | Less than or equal to 0.0015 |
Copper peel strength (1oz copper) | ≥18N/cm |
Coefficient of thermal expansion(ppm/℃) X Axis Y Axis Z Axis |
Condition: -55℃ to 288℃ 16 21 173 |
Flammability | Meets requirements of UL94-V0 |
Workshop
3.Technical index:
3.1 Mechanical strength & Chemical property
3.2 Electrical property
Applications
