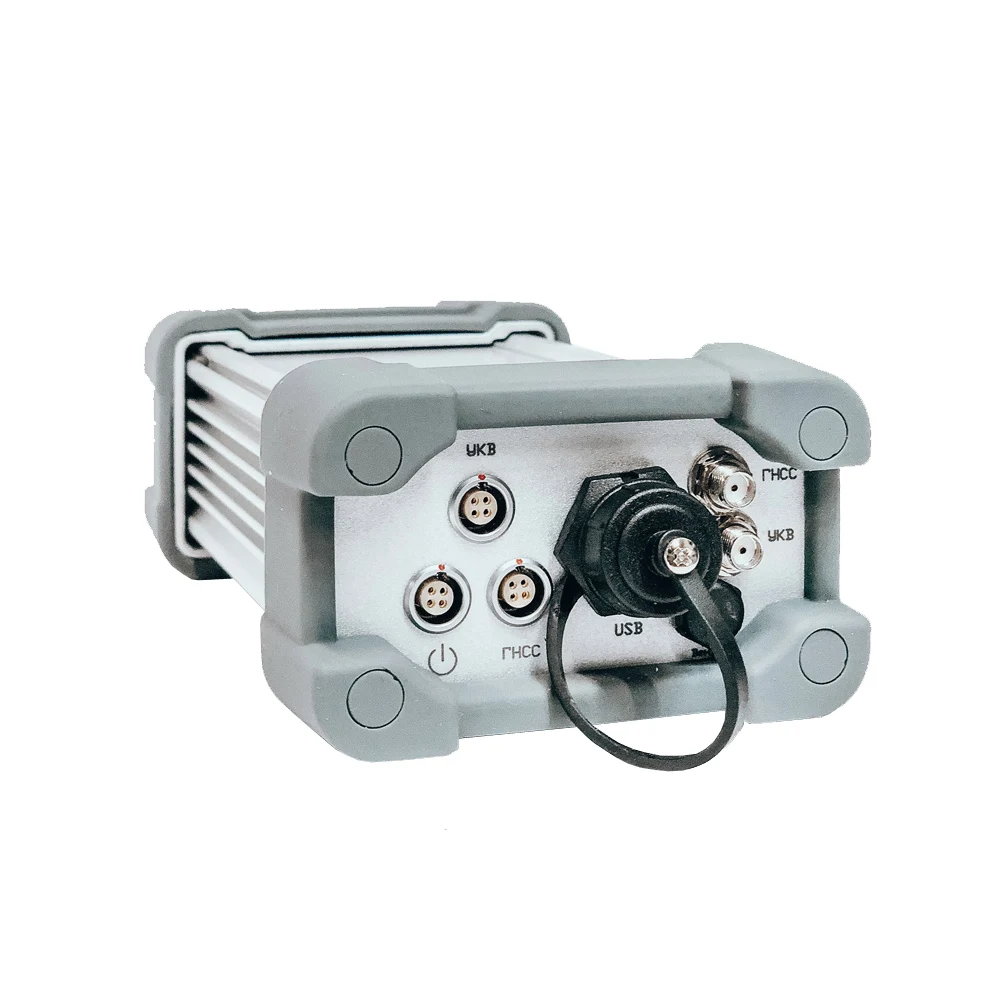

High precision satellite GNSS receiver for mobile station

Single-frequency RTK GNSS receiver for Mobile or Base station. Excellent for UAV and RTK applications. Measurements are recorded in the internal memory of 8 GB (optionally 32 GB). Supports RTCM 2.x, 3.x, CMR corrections. Raw data is easily converted to RINEX by the receiver's internal WebUI or PC free utility. WebUI to configure and control the receiver. Includes internal battery for 10h autonomous working.

Purpose: mobile or base station.
Design features: supplied with shock absorbing rubber bumpers.
Frequencies: GLONASS L1, GPS L1, BeiDou B1
Size (LxWxH), mm: 164 x 87.4 x 53.6
Weight, kg: 0.8

Country of origin
• Russia

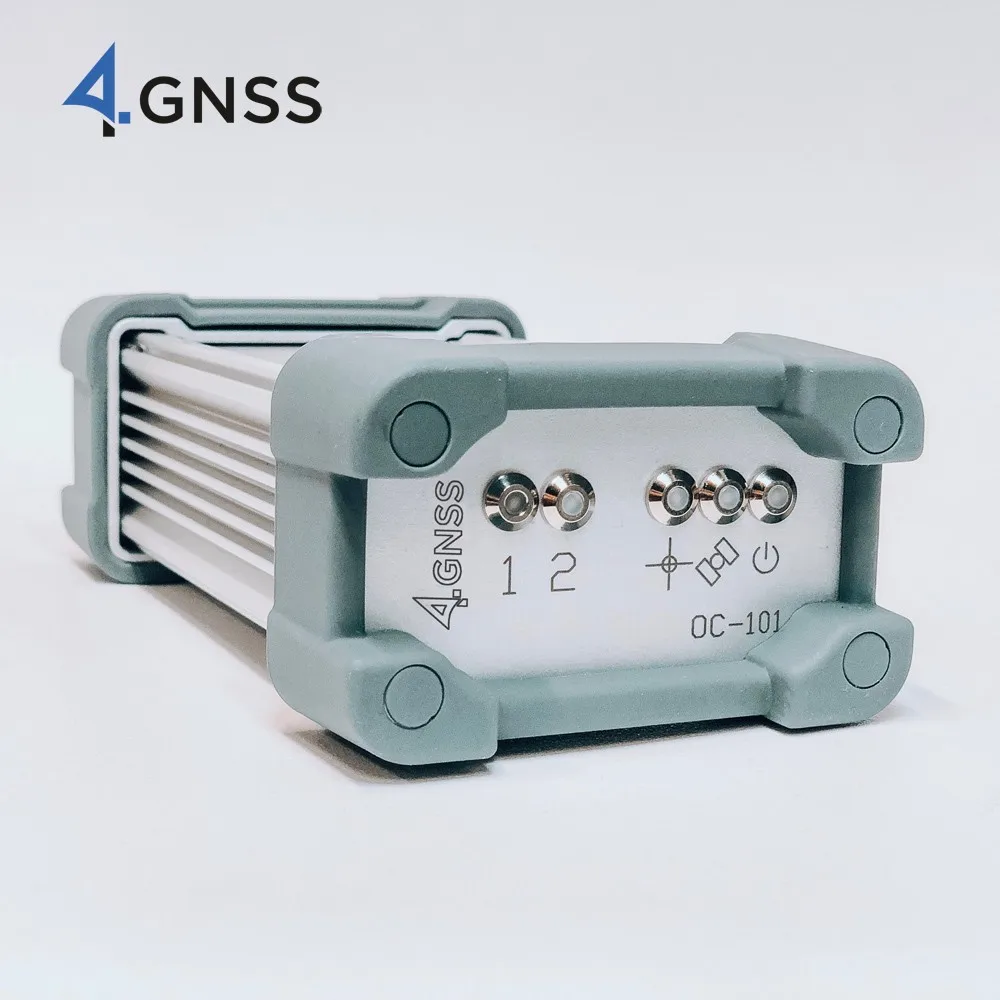

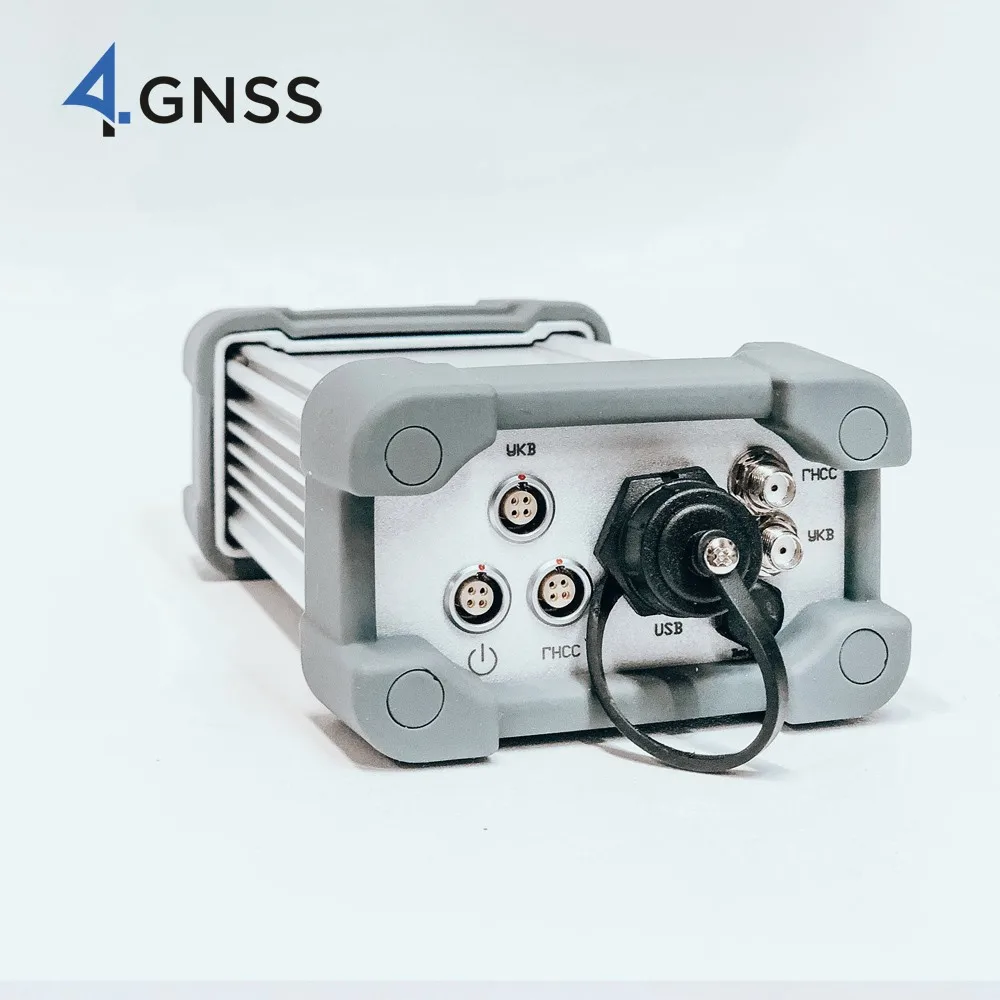

Detailed Images

Specification

Signal Tracking

200 channels

GPS L1 C/A

BeiDou B1

GLONASS L1 C/A, L1P

SBAS: WAAS, EGNOS, MSAS, GAGAN

Performance Specifications

Acceleration 4g

Overload 15g

Cold start <50s

Warm start <45s

Signal reacquisition <2s

Velocity Accuracy 0.03m/s

Time Precision	20ns
Positioning Specifications
Post Processing Static	2.5 mm+1 ppm Horizontal
	5 mm+1 ppm Vertical
Single Baseline RTK (<8km)	10 mm + 1 ppm Horizontal
	20 mm + 1 ppm Vertical
DGPS	0.4 m 3D RMS
SBAS	1 m 3D RMS
Standalone	1.5m 3D RMS

Communications

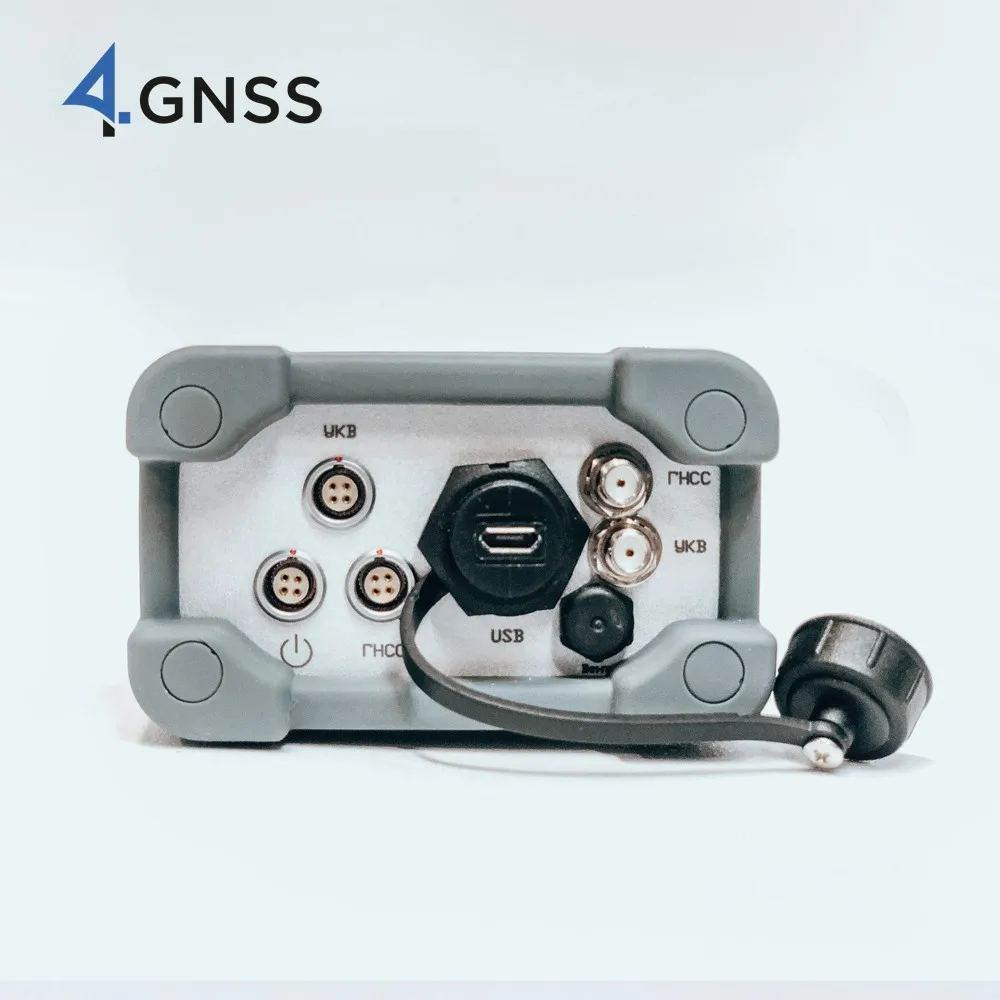

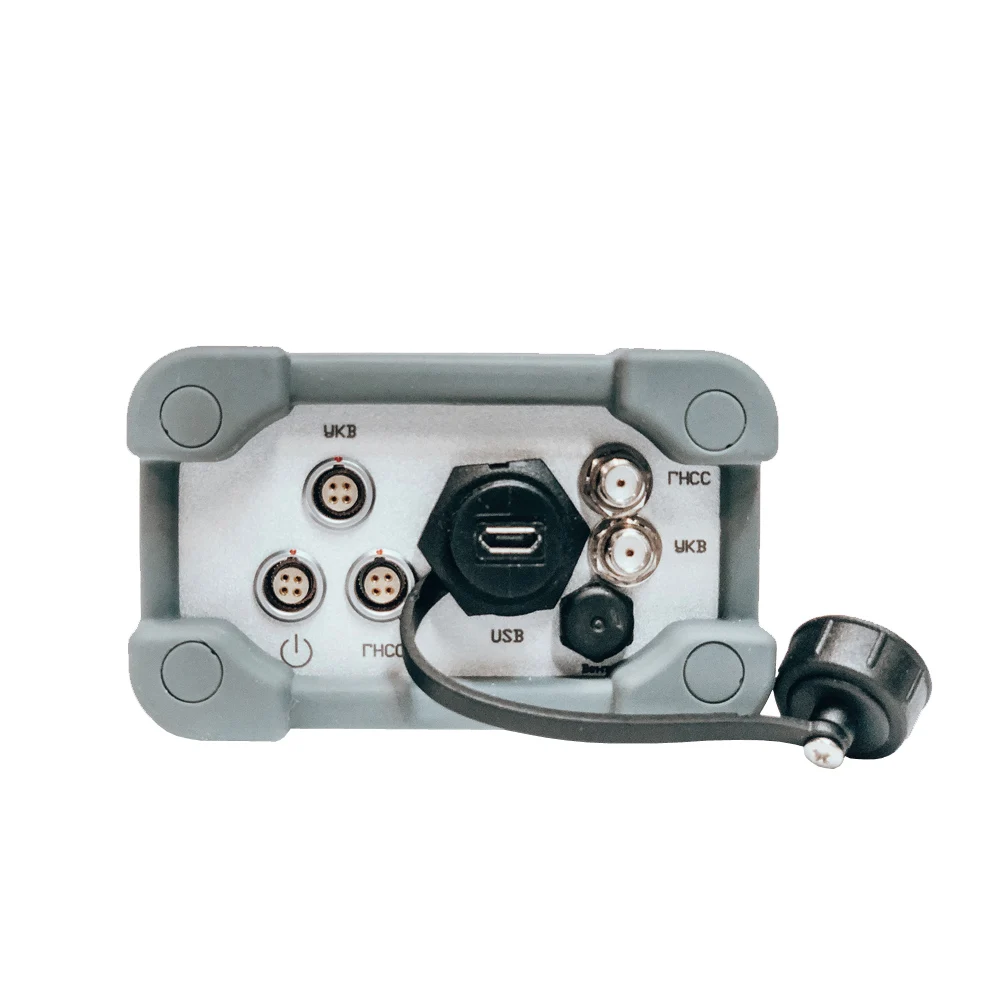

Communication port	2 Lemo0 4pin (female) RS-232 ports, baud rates up to 921600 bps
	1 Lemo0 4pin power port
	1 USB port
Bluetooth	optionally
6.5W UHF modem Harxon	optionally
WebUI	FTP-server and FTP-Push
Positioning data outputs	1Hz, 2Hz ,5Hz, 10Hz, 20Hz (depends on installed option)
PPS	1 Pulse Per Second Output
Event marker input

Data Format
Correction data I/O	CMR, RTCM 2.x,3.x, RTCM COMPASS
Position data output	ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST; PTNL, PJK; PTNL, GGK; PTNL, AVR; NAVPOS
	ComNav Binary data

Physical
Size(L×W×H)	164mm × 87.4mm × 53.6mm
Weight	0.8 kg
Antenna	1 x SMA female (GNSS), 1 x SMA female (UHF)

Environmental
Working temperature	-40℃ to +85℃
Storage temperature	-40℃ to +85℃
IP protection	IP67

Electrical
Input voltage	7-28 VDC
Power consumption	1.6W (3 constellations)

Additional functions

UHF 6.5W (OC-101UHF) without internal battery

GPS L1, BeiDou B1, GLONASS L1, SBAS

WebUI

Advanced QuantumTM Algorithm

Support short baseline RTK

Support PPS and Event Marker

Low power consumption and compact size

Packing & Delivery

Port	St. Peretburg
Processing Time	2 days
MOQ	1 piece
