drywall profiles roll forming machine
- Category: >>>
- Supplier: Zhangjiagang Gihua Machinery Co. Ltd.
Share on (62006163097):
Product Overview
Description
Product Description

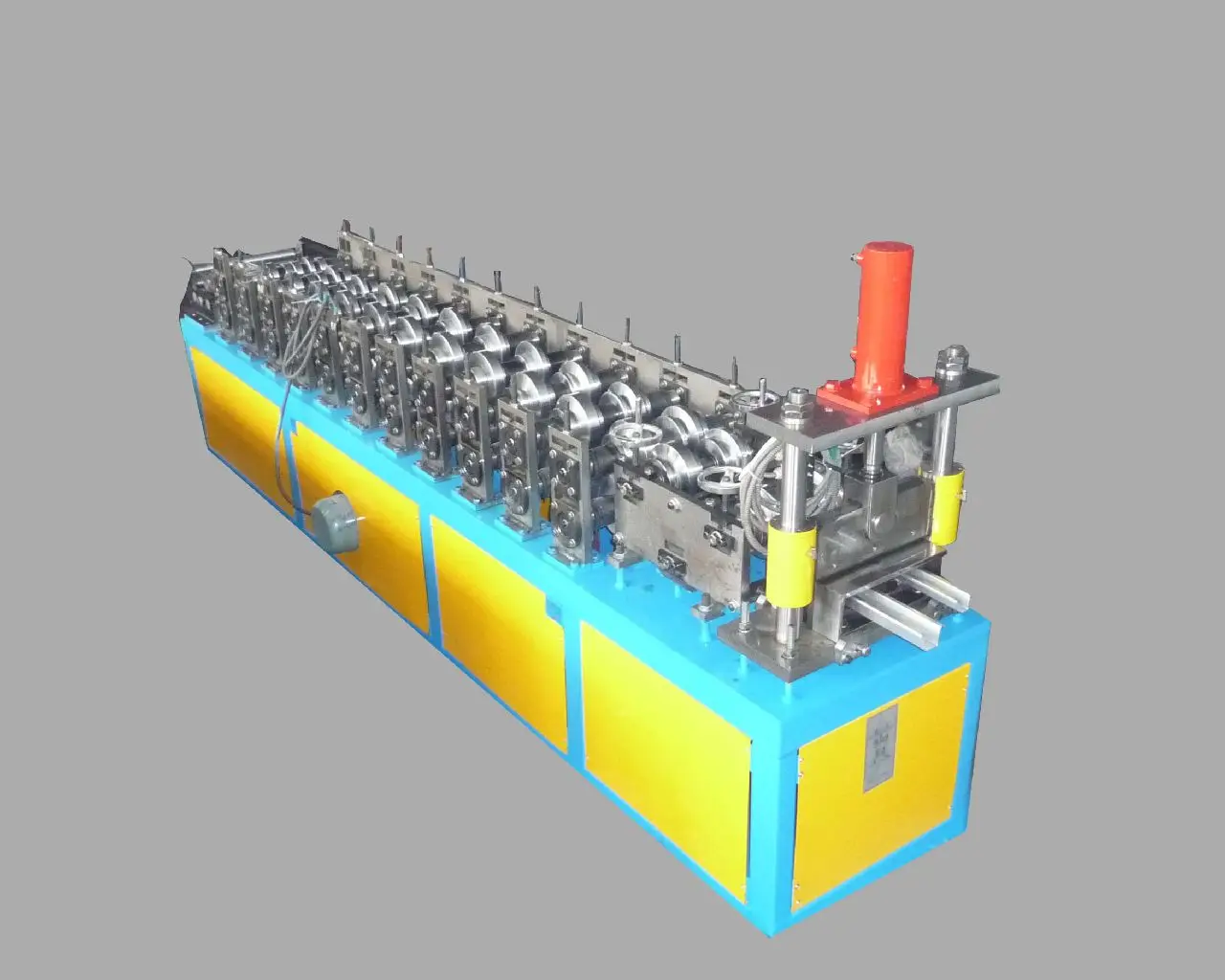

C purlin roll forming machine（Only for reference）
Maximum production speed: not less than 15 meters per minute excluding cutting and punching);Bending precision: the maximum profile deviations (dimensions and shape) shall not exceed the tolerances specified as following data (or equivalent tolerances);
Bending quality: ability to bend the profiles of the specified configuration at the specified maximum steel thickness; cracking of the steel or metal coating is not permitted for all required steel grades.
If you have your own special requirements,our machine can be also customized.

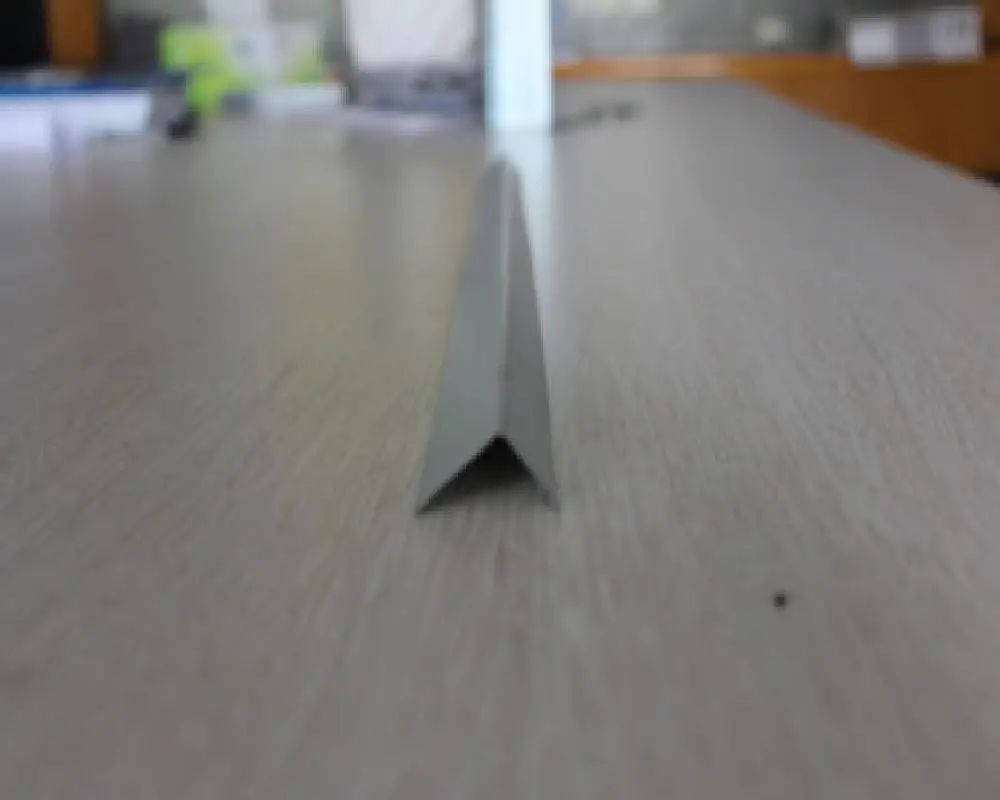

profile as following:

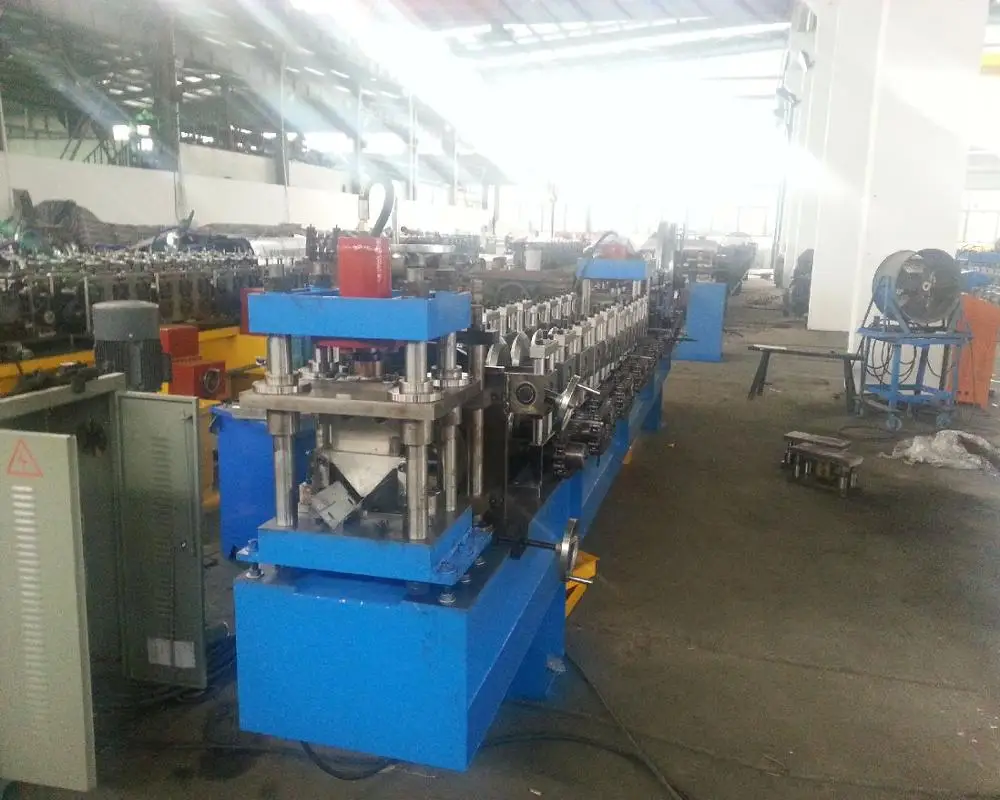

Whole machine:
Main Features
Profile thickness between 0.4-0.8mm carbon steel
Effective width: base on proilr
This machine include two sizes
Detailed Images
3T manual decoiler:
Dimensions: 1700mm*1000mm*800mm
Width of feeding: 500mm
Capability: 3 Ton
Bound of expand &fight: 420mm—510mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual

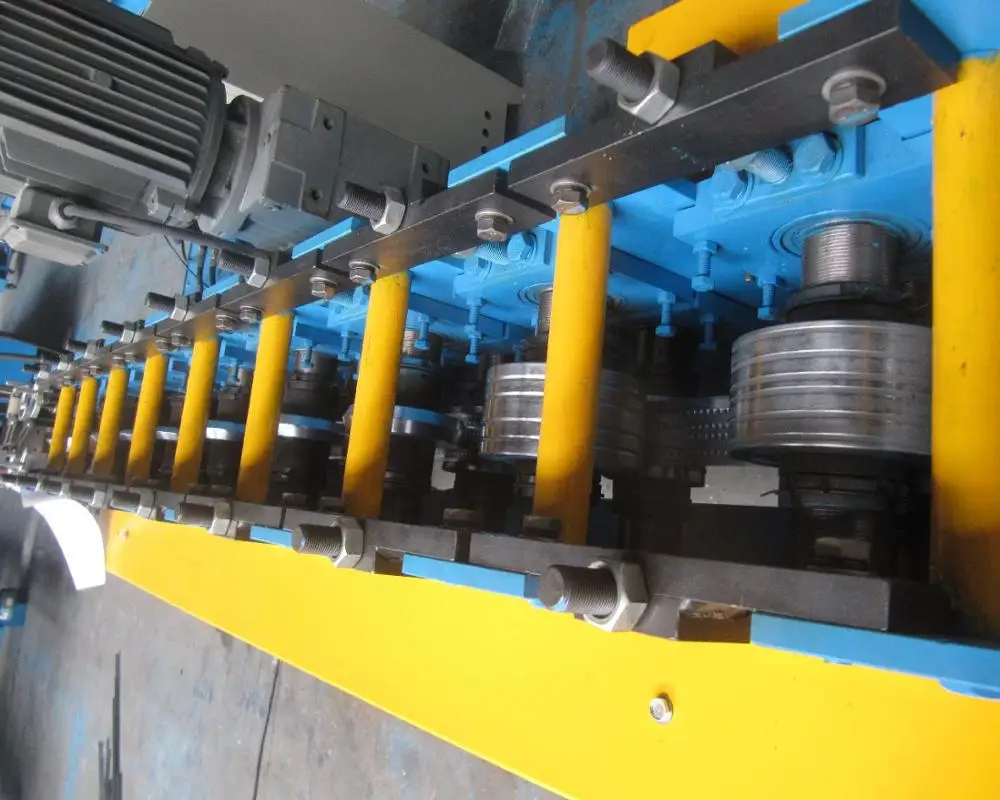

Forming section
Profile steel thickness 1.5mm carbon steel and stainless steel
Main motor power: 4KW, AC motor, side motor to save space (Brand: Guomao which made in China)
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station:11stations +1 station of rectify
Roller material:SAE1045, hardness and chrome plated surface
Shaft diameter: ￠56mm material: SAE1045
Machine roll forming speed: 0-15m/min
Transmission: by chain, 1.0inch double line

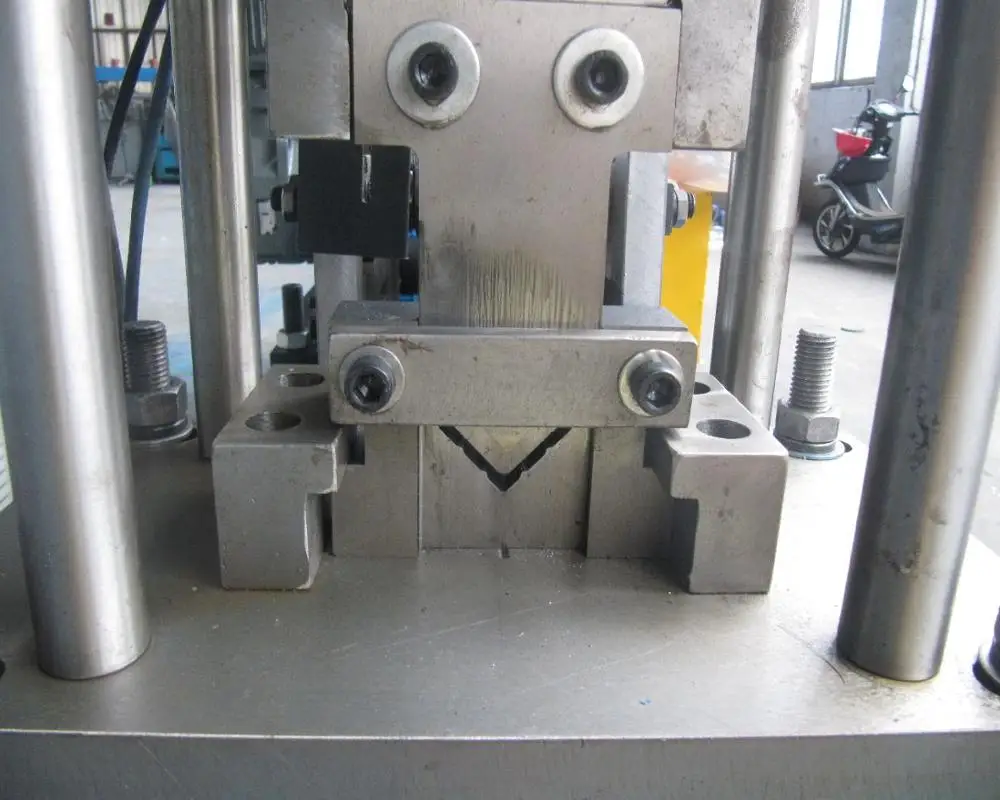

Post cutting :
Hydraulic power: 3KW
Hydraulic working pressure: 10Mpa
Cutting after forming: Cut the sheet after roll forming to required length
Material of blade:Cr12 with heat treatment 58-60°2 sets cutter
Length measuring: Automatic encoder length measuring, brand: Omron
Tolerance of length: 3000mm+/- 1.5mm
out table:
Frame: welding by tube
Size: about 1.0m long*0.3mwide*0.9mhigh
One out table with support roller
Supporter roller: ASTM 1045 with chrome
Diameter of rollers: 55mm
Color: Blue
Quantity: 2 units
Size: about 1.0m long*0.3mwide*0.9mhigh
One out table with support roller
Supporter roller: ASTM 1045 with chrome
Diameter of rollers: 55mm
Color: Blue
Quantity: 2 units
Hydraulic station:
Hydraulic power: 3kW
Working pressure: 10Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)
Control carbinet:
1)Programmable setting of profile length and quantity
2)Automatic stopping of the equipment after completion of the cutting programme.
2)Automatic stopping of the equipment after completion of the cutting programme.
3)Operating system language: English and Chinese
4)Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview
Package&Delivery
Our Service
Enginer to test machine for clients.
Clents learning to check the products.
FAQ
If any needs or questions, feel free to contact me please.
We would like to design the machine for you
Mob/WhatsApp: 008618551231440
WeChat: 243554222
