sun tracker dual axis

Product Overview

Description

Model : SST-1018 with pan/tilt unit

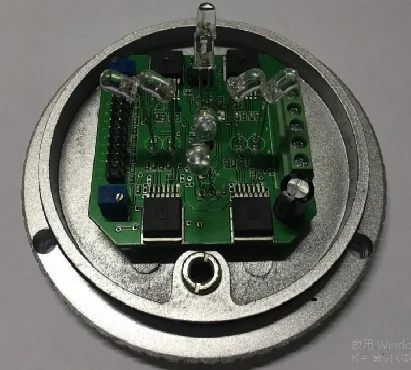

This sensor is combined with motor drive circuit
High Current support 30A
width range voltage input from 6V to 28V , ( this design is fit for who is no good experience to build DIY tracking system )
also the circuit has sencing frequence adjustable design
user can adjust the sensing frequence from every 1 minute to every 10 minutes .
that is mean the sensor can be detect the sun each 1 minute when you adjust it on 1 minute with the dump pin .
this design can be help to extend the motor life ( reduce the motor working frequence )
----------------------------------------------------------------------------------------------------------------------

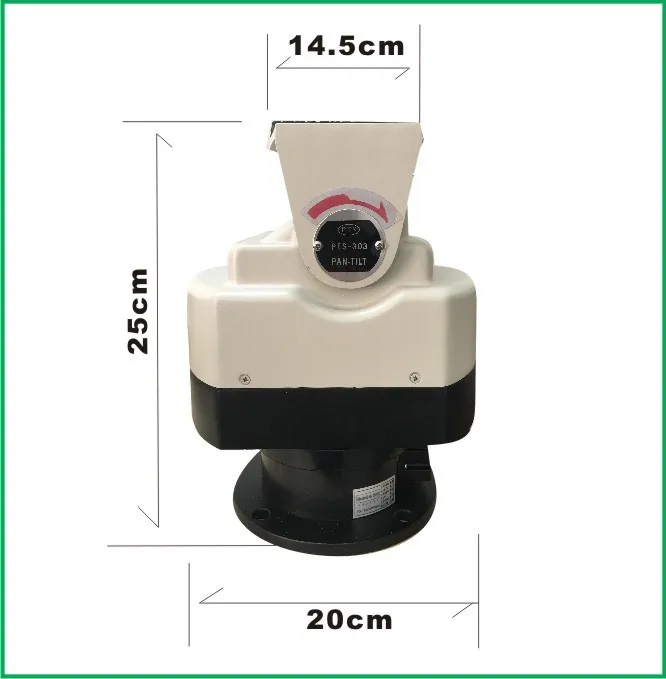

The Pan/Tilt unit

Turn angle	Pan=350°  / Tilt =+/- 35°
Load	Level : 25KGS , Plumb 17KGS
working temperature	-20 ° ~ + 60°
product Dimensions	190 * 275 mm ( 301 )
	200 * 255 mm ( 303 )
Weight	3.7 KGS
input voltage	12DCV

Product included :

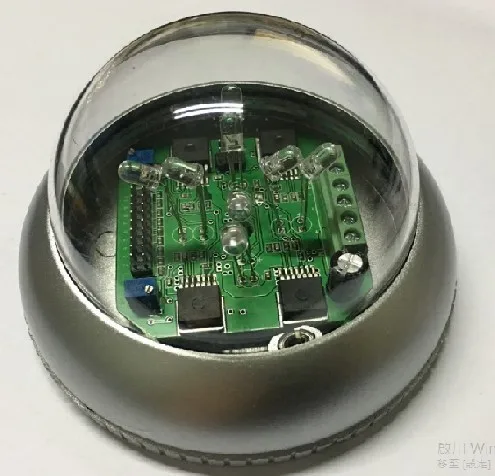

1 * dual axis sun tracker  with sensor ( with dome case )
1 * Pan / Tilt unit
----------------------------------------------------------------------------------

Input power    : 12 DCV
Output power : 12 DCV
------------------------------------------------------
Product fit for school project and for home user .
