Product Overview

Description


product description

tire shredder machine rubber crusher for rubber crumb powder

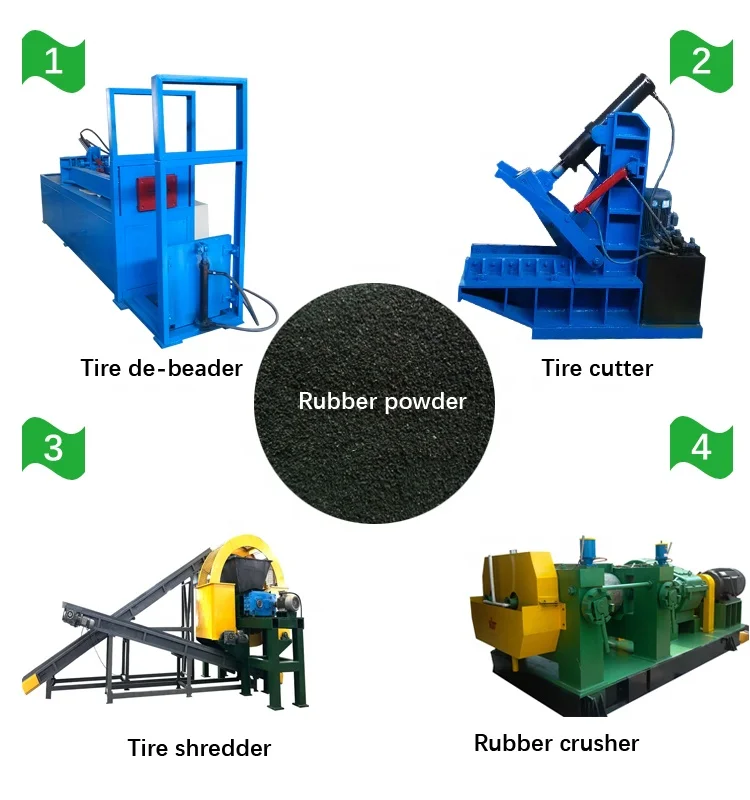

Flow chart of fully-automatic tire recycling line

(Fully-automatic Production Line):

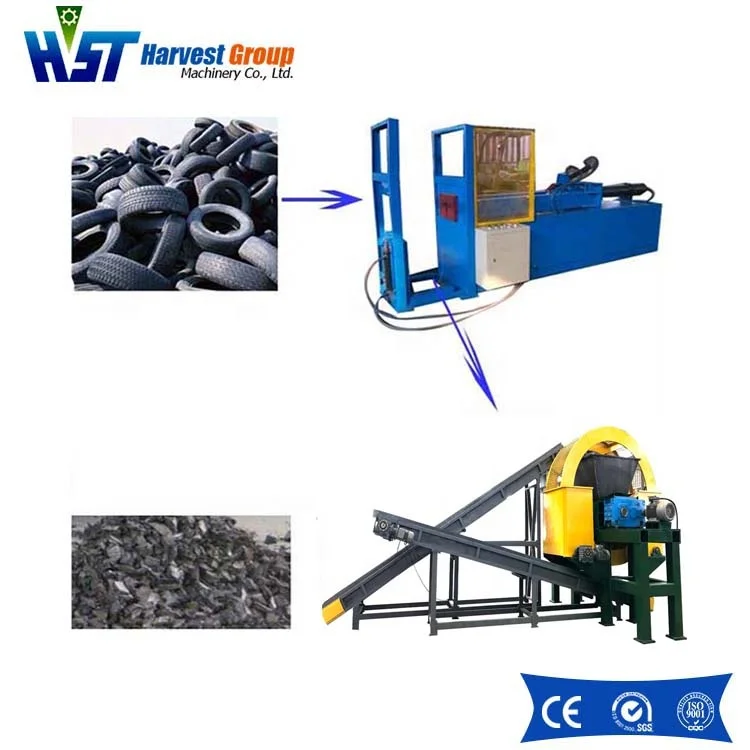

Waste tire - Tire de beader- whole tire cutting - tire shredder - Rubber crushing - magnetic separator - fiber separator - Rubber powder

Flow chart of semi automatic tire recycling line

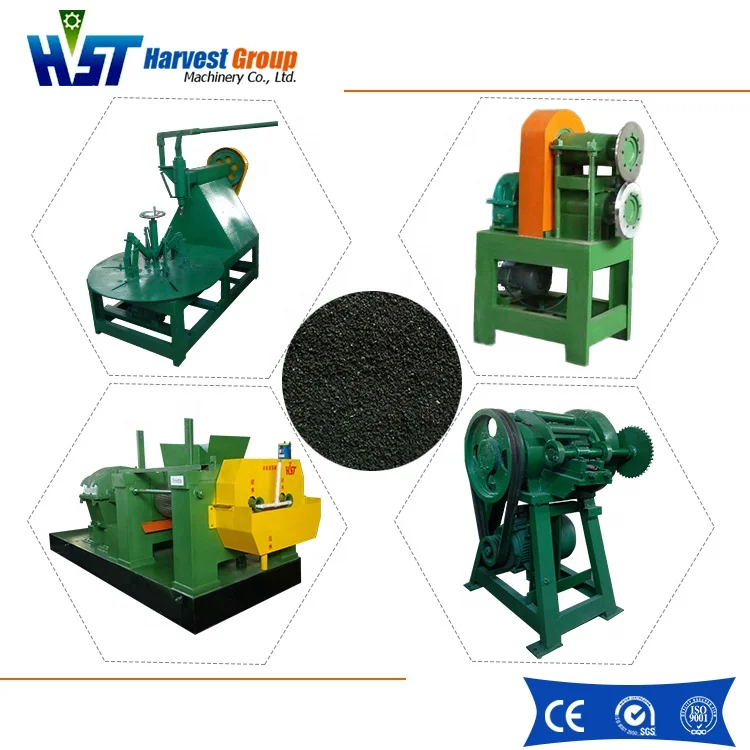

Pre-processing machine: tire circle cutter, tire strip cutter, tire slice cutter

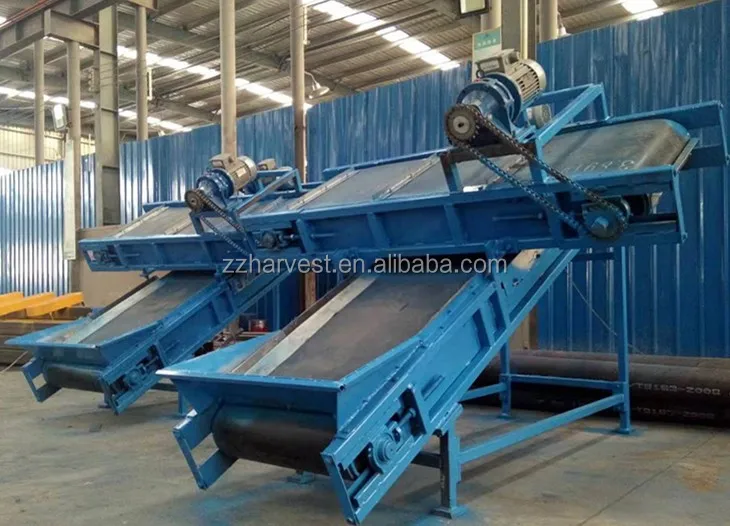

Conveyor--Rubber crusher--Magnetic separator--Nylon fiber separator--rubber powder

Process

Tire circle

to cut open the joint of tire bead and side wall

Tire strip

to cut tire into strip

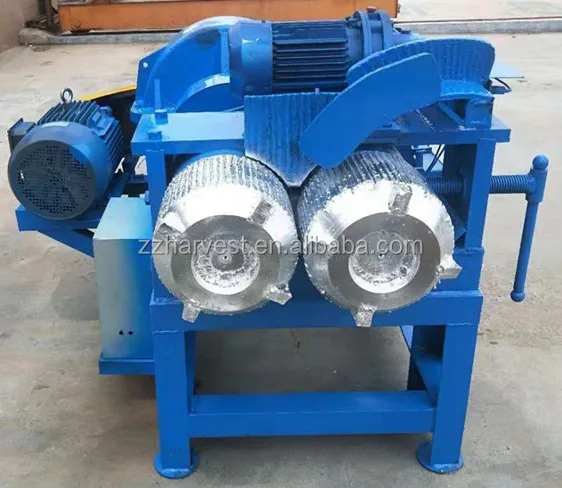

Tire slice cutter

To cut strip into rubber block

Rim separator

to separate the wire steel from tire bead

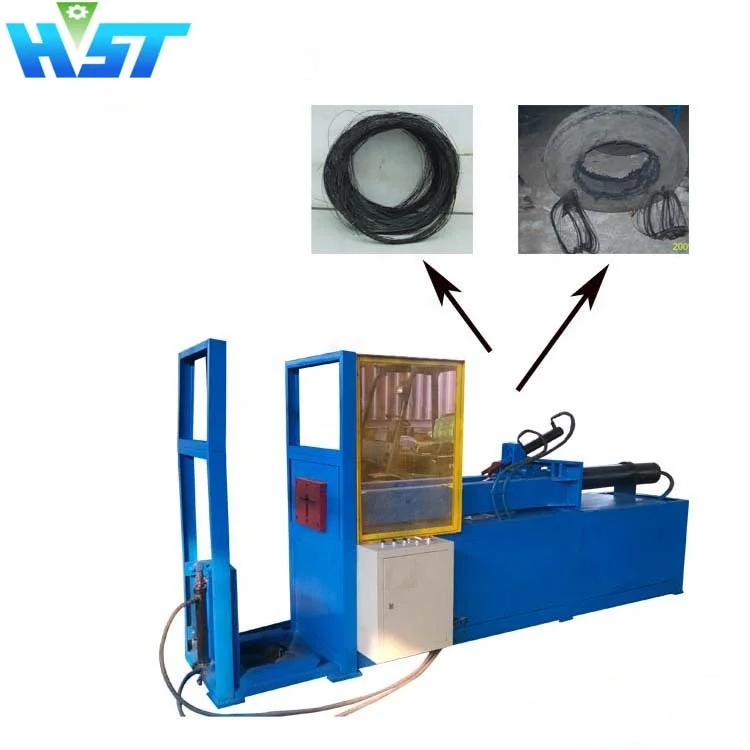

Hydraulic souble hook tire de-beader: draw out the wire steels from the tire bead.


\t
Model No.
\t
TD-1200
\t
Feed size of tire(mm)
\t
≤φ1200
\t
Capacity(tires/h)
\t
80
\t
Power(KW)
\t
18.5
\t
Overall dimensions(m)
\t
4.5*1.5*1.8
\t
Equipment weight(T)
\t
3.5


Whole tire cutter: used to cut big tires into small pieces.


\t
Model No.
\t
TC-1200
\t
Feed size of tire(mm)
\t
≤φ1200
\t
Capacity(tires/h)
\t
30-40
\t
Power(KW)
\t
7.5
\t
Working pressure(T)
\t
12
\t
Overall dimensions(m)
\t
1.85*0.7*1.76
\t
Equipment weight(T)
\t
2.5

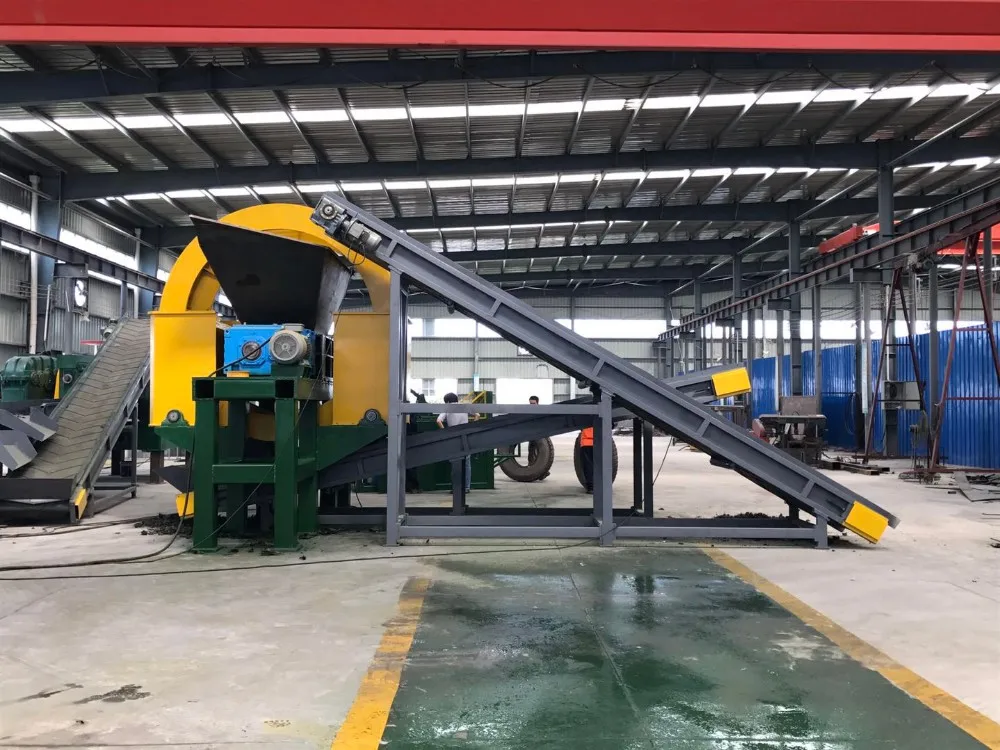

Whole tire shredder: shred whole tires into 50*50mm/60*60mm rubber blocks.

\t
Model
\t
TS-800
\t
TS-1200
\t
Production capacity
\t
1-2ton/h
\t
3-5ton/h
\t
Size of feeding
\t
≤800mm whole tyre
\t
≤1200mm whole tyre
\t
Size of the slice
\t
≤50*50mm
\t
≤60*60mm
\t
Quantity of the knives
\t
16pcs
\t
20pcs
\t
Motor power
\t
22KW*2
\t
37KW*2


Host equipment,rubber crusher: is used to be grind the chunks into small mesh powder through the vibrating screen as you need.


\t
Model
\t
capacity
\t
Drum diameter
\t
Drum length
\t
Front roll
linear
\t
Roll speed
ratio
\t
Max roller
spacing
\t
Motor power
\t
XKP-350
\t
3ton-6ton
\t
350mm
\t
500mm
\t
26.2m/min
\t
1:2.5
\t
8mm
\t
30KW
\t
XKP-400
\t
6ton-12ton
\t
400mm
\t
600mm
\t
34.5m/min
\t
1:2.5
\t
8mm
\t
45KW
\t
XKP-450
\t
8ton-16ton
\t
450mm
\t
760mm
\t
38.0m/min
\t
1:2.5
\t
8mm
\t
55KW
\t
XKP-560
\t
10ton-20ton
\t
560mm
\t
800mm
\t
38.6m/min
\t
1:2.5
\t
8mm
\t
75KW
\t
XKP-560D
\t
20ton-40ton
\t
560mm
\t
1000mm
\t
42.5m/min
\t
1:2.5
\t
8mm
\t
132KW

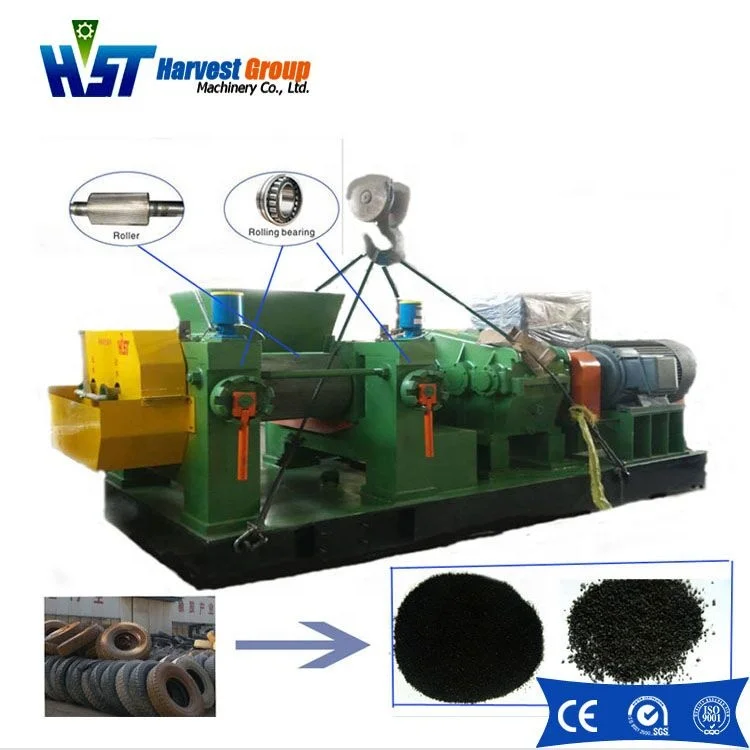

Machines feature of rubber crusher

1)Roller structure: Our two rollers are both grooved, which increase the friction and then improve the output.


2)Roller material: The roller is made by Welding wear resistant alloy materials, 5Cr6MnMo. We can offer you 3 years warranty of the roller.

3)Crusher roller speed ratio:Roller speed ratio is 1:2.5, high speed and low noise

4)Bearing:there are 8 pieces bearing in the main crusher.

5)9.99% nylon and radial removing rate. keeping the final rubber powder is pure.


Magnetic separator: Separate the wire steel from the powder.

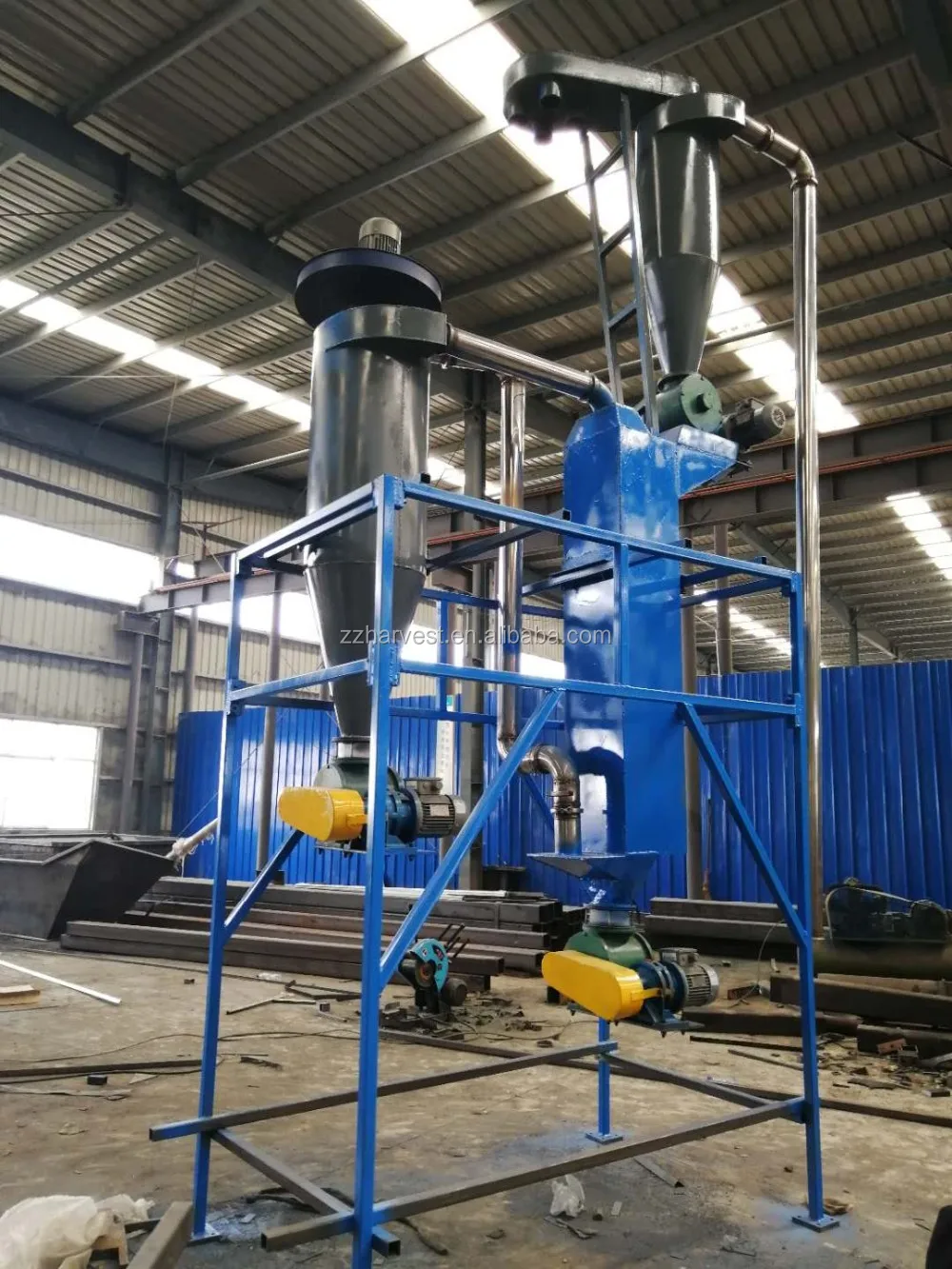

Nylon separator: separate the nylon fiber from the nylon tire

\t

Motor power
\t

11kw
\t

Weight
\t

2.5T
\t


Specifications
\t


1.5 x 1.5 x 3.5m
