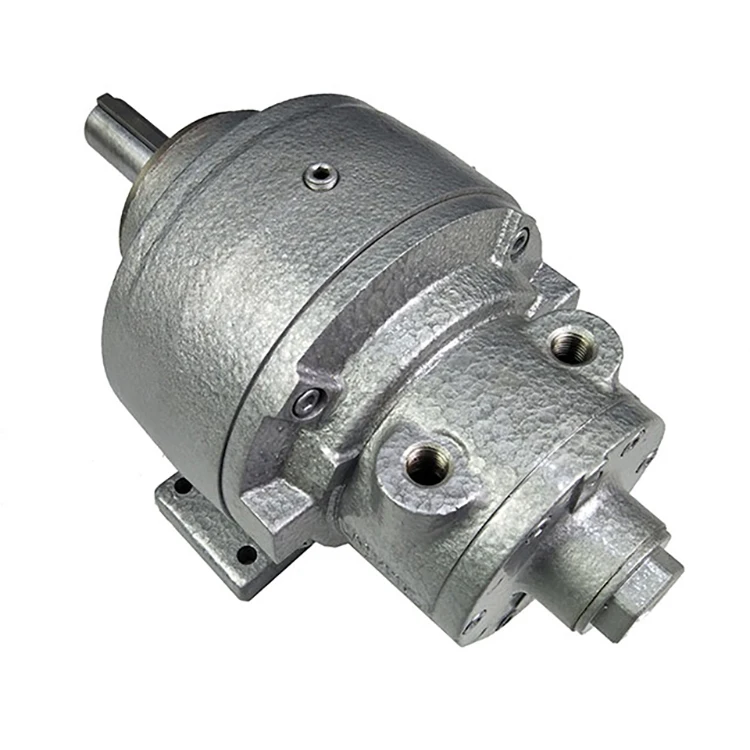

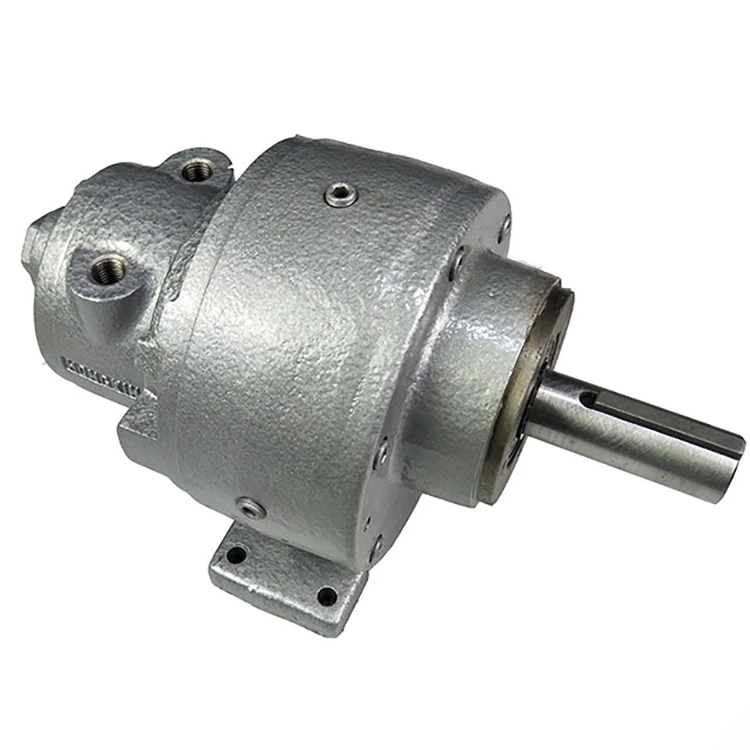

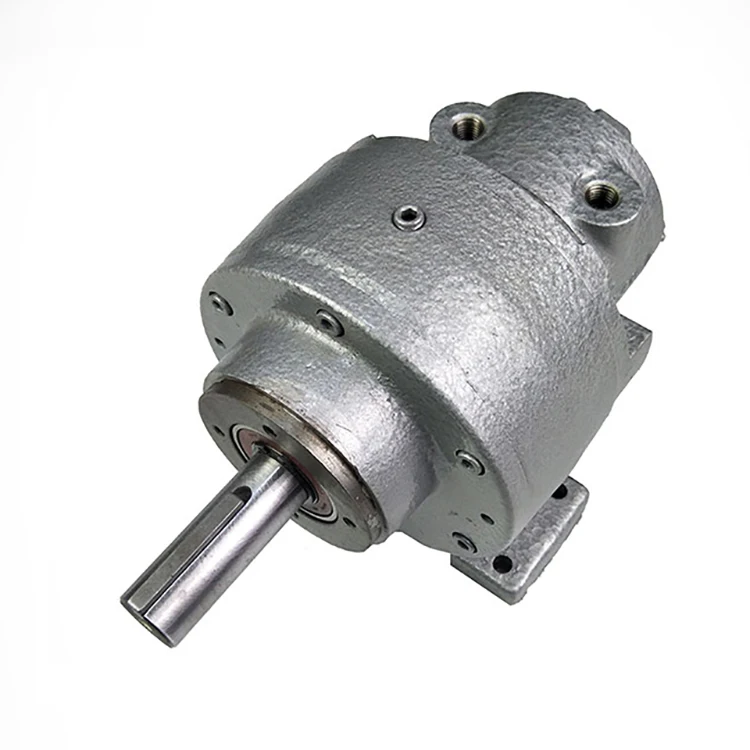

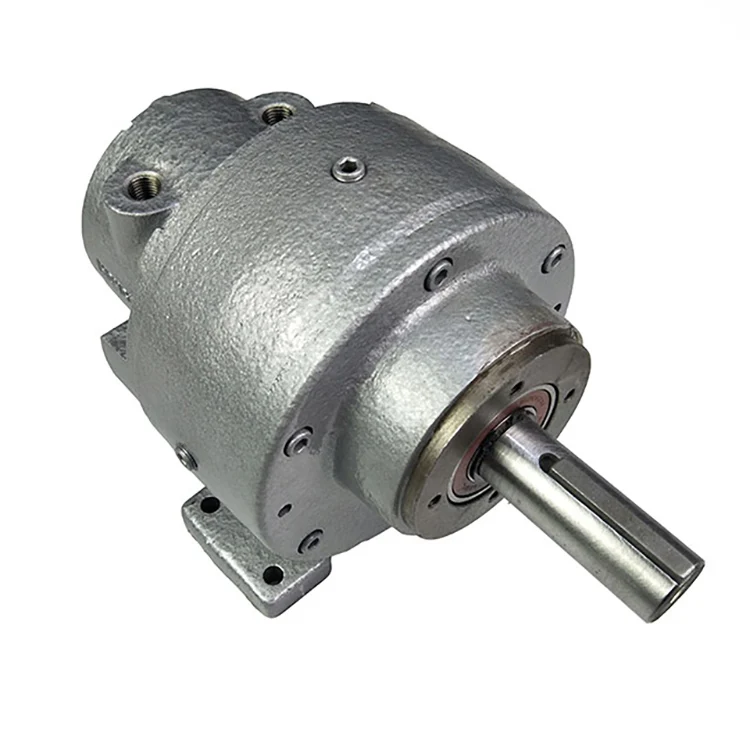

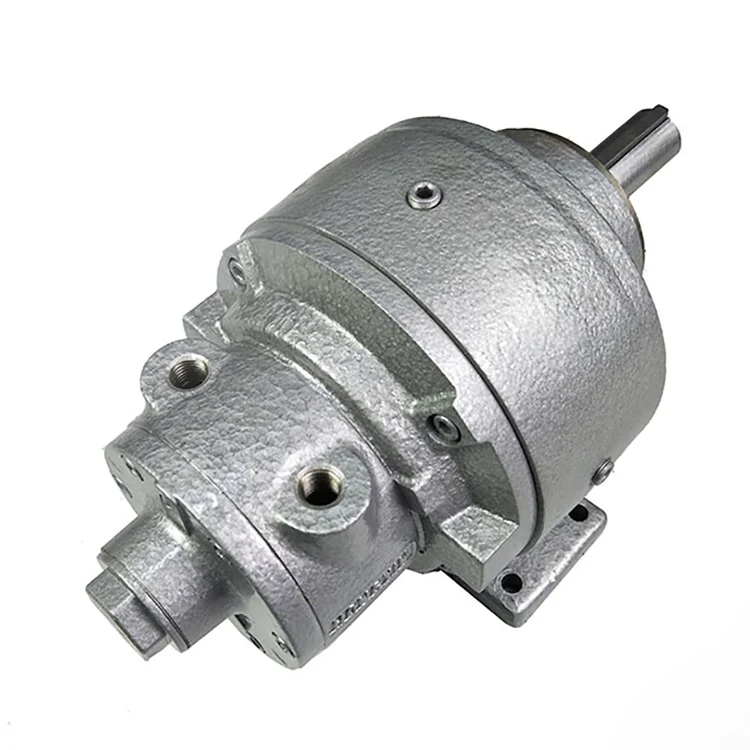

Air powered gear motor high quality high power air rotary motor planetary 4AM RV 10
- Category: >>>
- Supplier: Rudong Hongxin Machinery Co. Ltd.
Share on (62006247532):
Product Overview
Description
Product Description
Product Application
With compressed air as medium and make use of expansion function of it, blade air motor converts pressure energy into mechanical energy.
It can be operated in tough environment which is damp, high temperature, excessive dust or other poor working environment.
So it is widely used as power in mine rock drilling or loading machinery and more popular in many fields, e.g. ship, offshore platform,metallurgy,papermaking and petrochemical industries, etc.

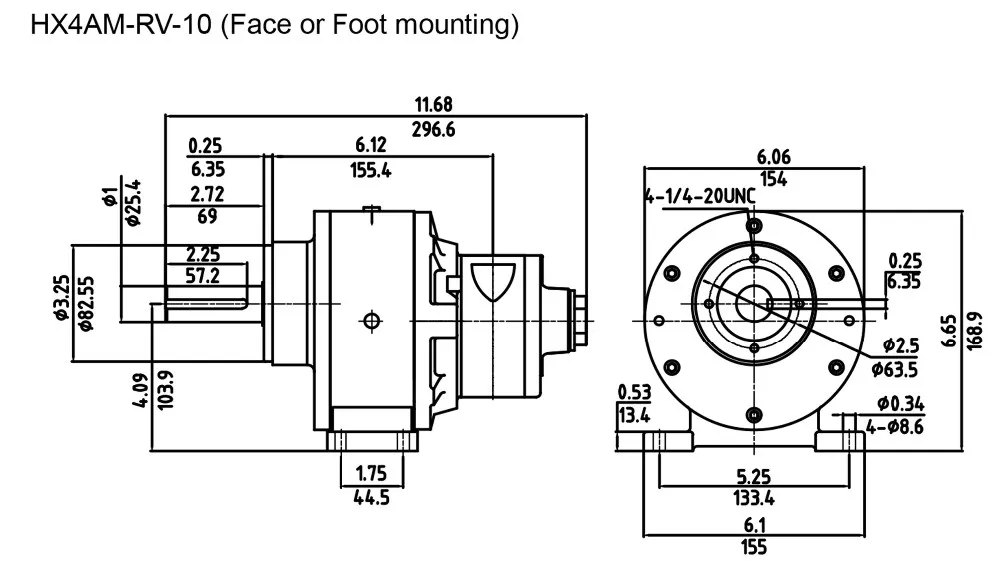

HX4AM-RV-10 | ||||||
Operation Date at Max. Power | Power | hp/kW | 1.26/0.94 | |||
Torque | Nm/Ib.in | 31/274 | ||||
Rotate Speed | rpm | 300 | ||||
Air Consumption | m³/h | 98 | ||||
cfm | 57.5 | |||||
Maximum Torque | Rotate Speed | rpm | 30 | |||
Torque | Nm/Ib.in | 48/425 | ||||
Packing & Delivery
Packaging | ||
Size | 320(L) * 180(W) *190(H)mm | |
Weight | 13.5KG | |
Packaging Details | Plywood case Plywood is a material manufactured from thin layers or plies of wood veneer that are glued together with adjacent layers.It is an engineered wood from the family of manufactured boards which includes medium-density fibreboard (MDF) and particle board (chipboard). | |
