Thrust ball bearings are designed to withstand thrust loads at high speeds and consist of gasket rings with ball rolling raceway grooves. Because the ring is a cushion, thrust ball bearings are divided into two types: flat base cushion and aligning spherical cushion. Besides, the bearing can bear axial load, but it can not bear radial load.It is only suitable for those machines which bear one side axial load and have low speed, such as crane hook, vertical pump, vertical centrifuge, jack, low speed reducer, etc. Bearing rings, seat and rolling parts are detached and can be detached separately.
| great quality bearing thrust ball bearing 51104/51104M | |||
![]() | Model | 51104/51104M | |
| Size | 20*35*10mm | ||
| Material | Gcr15 | ||
| Cage | Brass ,Steel | ||
| Seal Type | ZZ;RS;Open | ||
| Quality | ISO9001 2000 Standard;CE | ||
| Port | Qingdao,Shanghai,Beijing,Tianjin,Guangzhou,Shenzhen,Hongkong | ||
| Package | Standard exported package or according to our customers' requirement | ||
| Delivery Time | within 3 days after confirm, it will be 3~7 days if the goods are not in stock , The specific time need refer to the quantity | ||
| Related Model | |||||

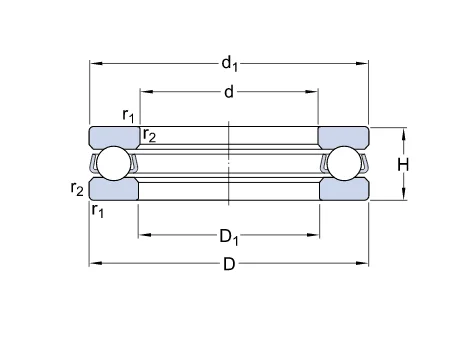

| Bearig Number | Principal dimensions(mm) | Weight(KG) | |||
| d | D | T | rsmin | ||
| 51100 | 10 | 24 | 9 | 0.3 | 0.019 |
| 51200 | 10 | 26 | 11 | 0.6 | 0.028 |
| 51101 | 12 | 26 | 9 | 0.3 | 0.021 |
| 51201 | 12 | 28 | 11 | 0.6 | 0.031 |
| 51102 | 15 | 28 | 9 | 0.3 | 0.023 |
| 51202 | 15 | 32 | 12 | 0.6 | 0.043 |
| 51103 | 17 | 30 | 9 | 0.3 | 0.025 |
| 51203 | 17 | 35 | 12 | 0.6 | 0.050 |
| 51104 | 20 | 35 | 10 | 0.3 | 0.037 |
| 51204 | 20 | 40 | 14 | 0.6 | 0.077 |
| 51105 | 25 | 42 | 11 | 0.6 | 0.056 |
| 51205 | 25 | 47 | 15 | 0.6 | 0.111 |
| 51305 | 25 | 52 | 18 | 1.0 | 0.169 |
| 51405 | 25 | 60 | 24 | 1.0 | 0.330 |
