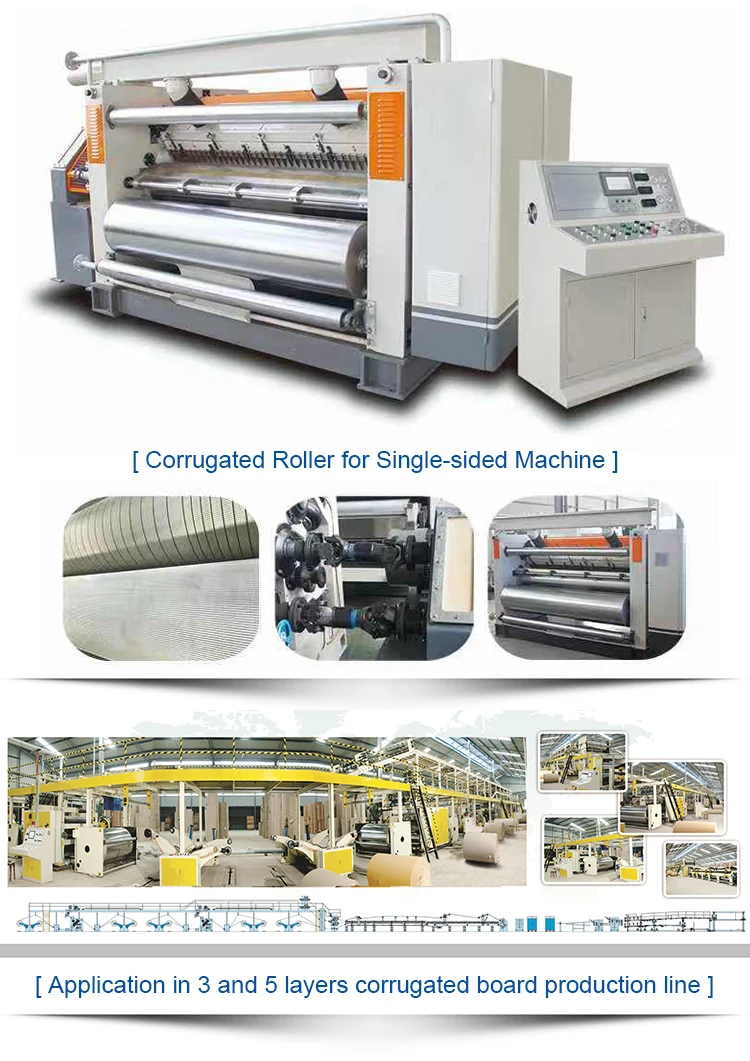

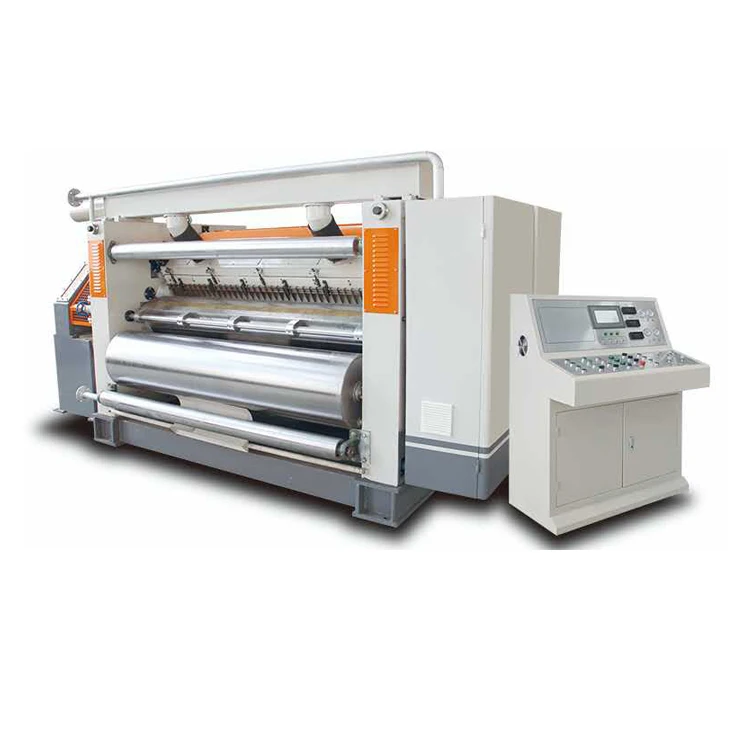

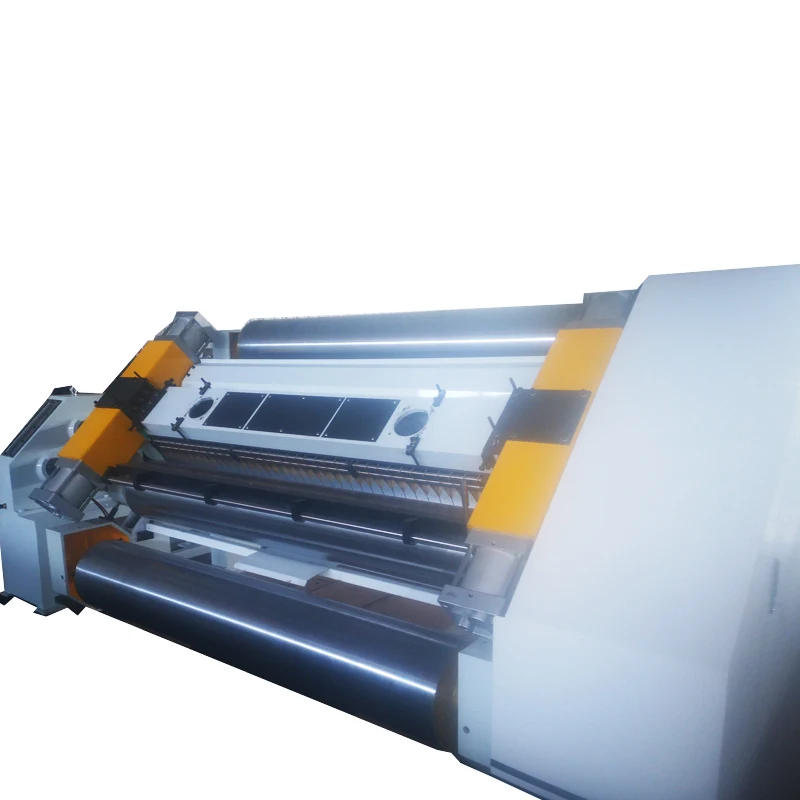

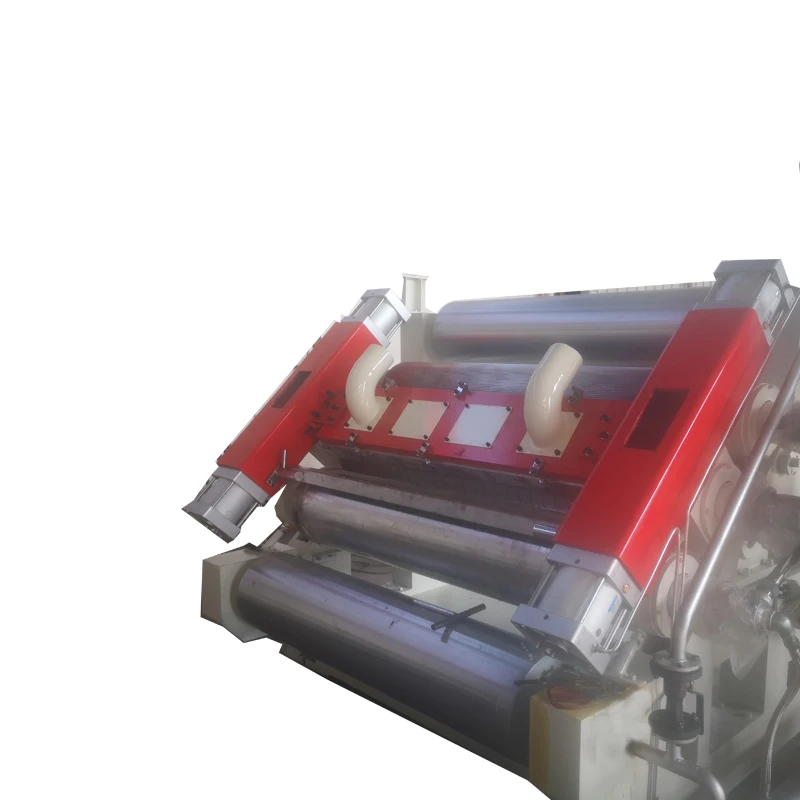

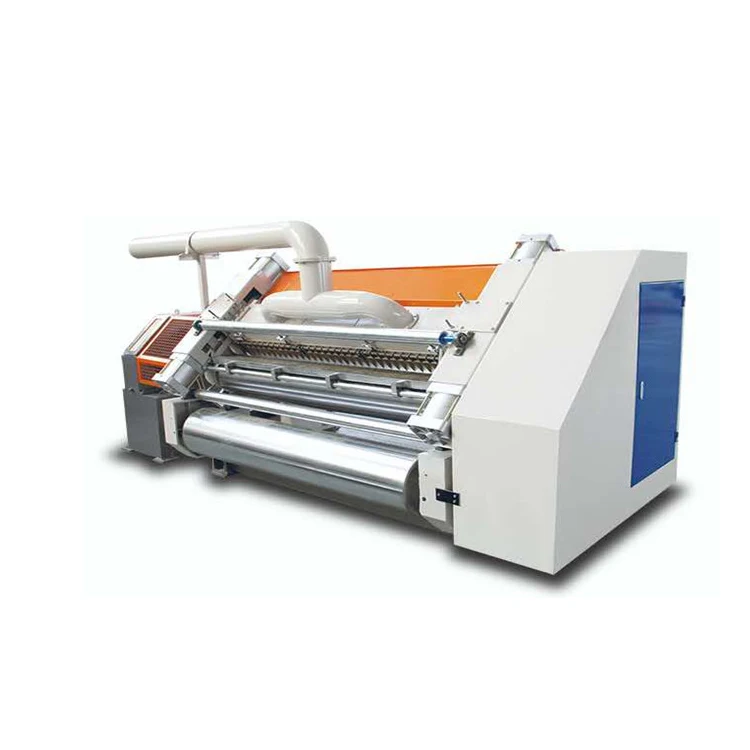

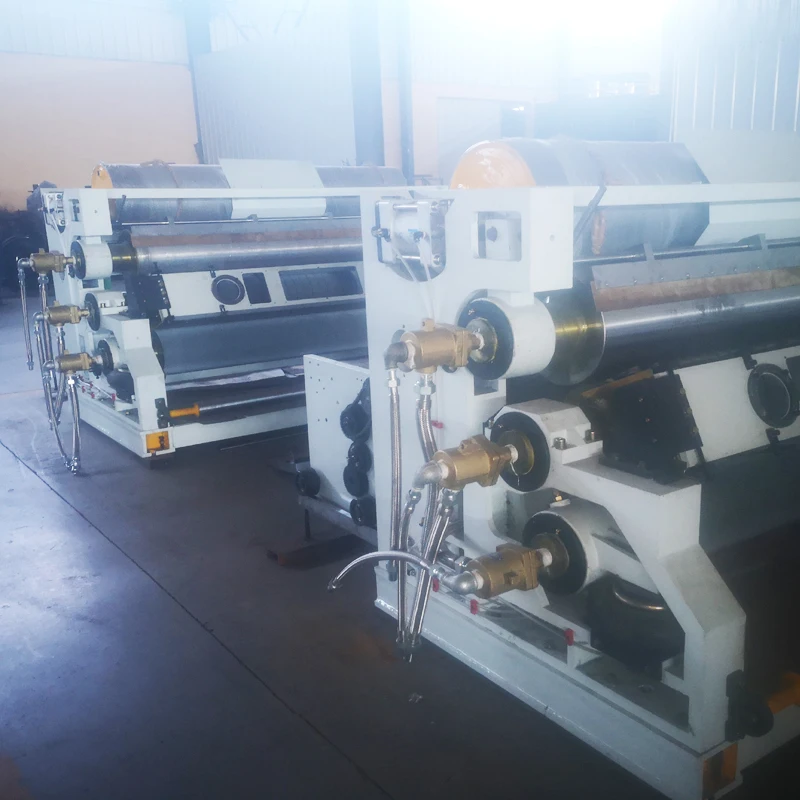

SF 380/410 односторонний адсорбирующий гофрирующий аппарат для

Main engine

1.Guide paper, with strong fan air source pump and electrical control concentrated in the same operation control cabinet.

2. Corrugated roller adopts alloy tempering, medium frequency quenching, surface polishing and hard chrome plating.

3. The pressure roller adopts surface grinding and hard chrome plating, and the cylinder controls the movement up and down.

4, on the surface of the cots dot processing hard chrome plating, automatic gluing, circulating gluing.

5, scraping roller grinding hard chrome plating.

6, corrugated roll pressure roll all with chengdu special steel.

7. Adopt speed regulating motor.

Technical parameters:

1. Corrugated material 45CrMo, diameter 268, wall thickness 45mm.

2, hard chrome plated surface hardness HRC55-60 °.

3. Motor power: 5.5kw

4. Havalo national standard high-temperature bearing is adopted for bearing.

5. High temperature grease is used for lubrication. Good sealing and reliable.

6. Standard flute: E=1.6 high and UV.

7. External size: 3000 * 1600 * 2600mm.

8. The design speed is 60m/min, and the economic speed is 40m/min.

9. The machine weight is about 3.2t
