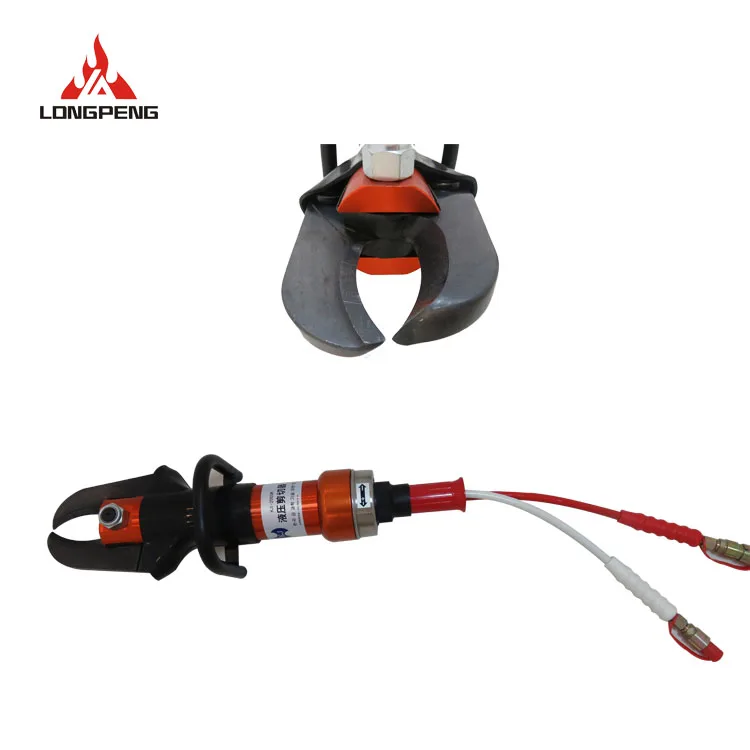

Accident rescue tool 72 Mpa hydraulic cutter portable cutter
Accident rescue tool 72 Mpa hydraulic cutter portable cutter
Accident rescue tool 72 Mpa hydraulic cutter portable cutter
Accident rescue tool 72 Mpa hydraulic cutter portable cutter
Accident rescue tool 72 Mpa hydraulic cutter portable cutter
Accident rescue tool 72 Mpa hydraulic cutter portable cutter
Accident rescue tool 72 Mpa hydraulic cutter portable cutter

Accident rescue tool 72 Mpa hydraulic cutter portable cutter

Share on (62006312466):


Price:RUB 55,833.03

Quantity:


Product Overview

Description

Product Description

1.Cutting round steel,sections,cables,pipeline etc


2.Pipe cutting in installation work


The opening distance of the scissors end
115 mm
Rated working pressure
72 MPa
Cutting force
29.3 T
Weight
14.4 kg
Dimensions(length * width * height)
655 x 185 x 160 mm

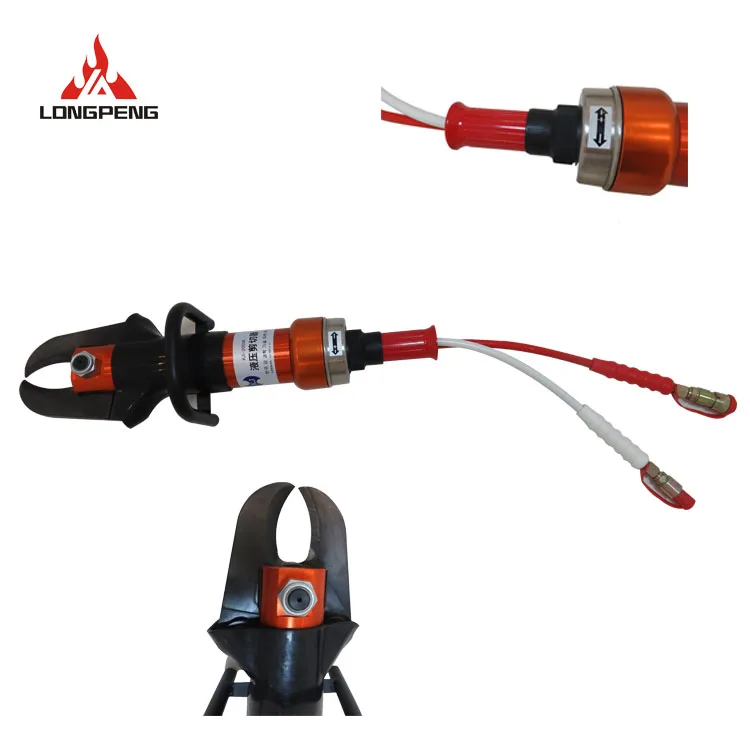

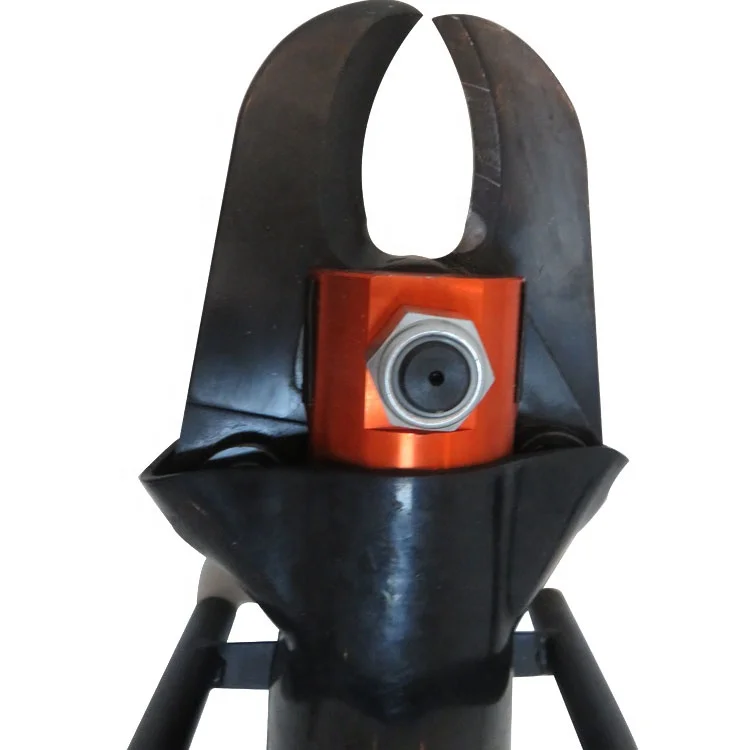

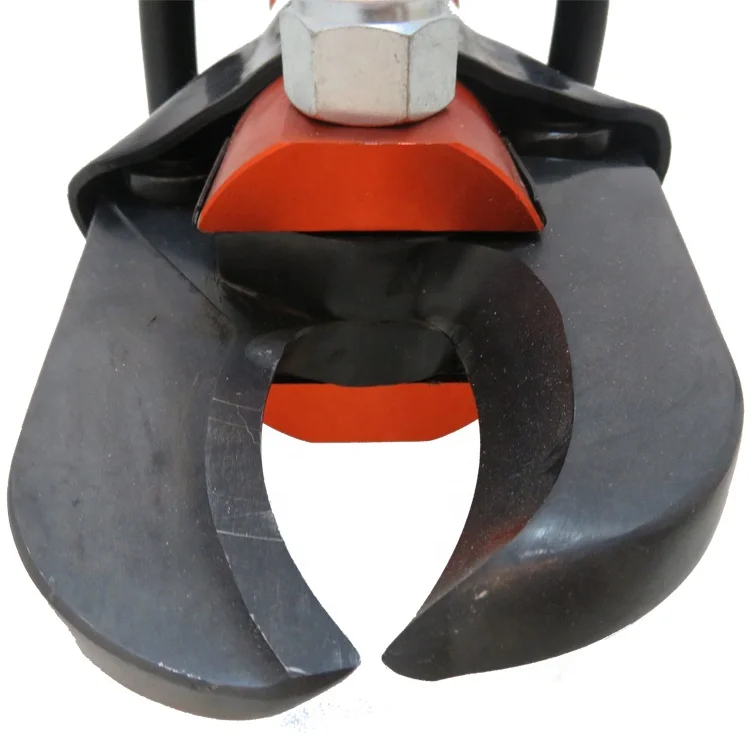

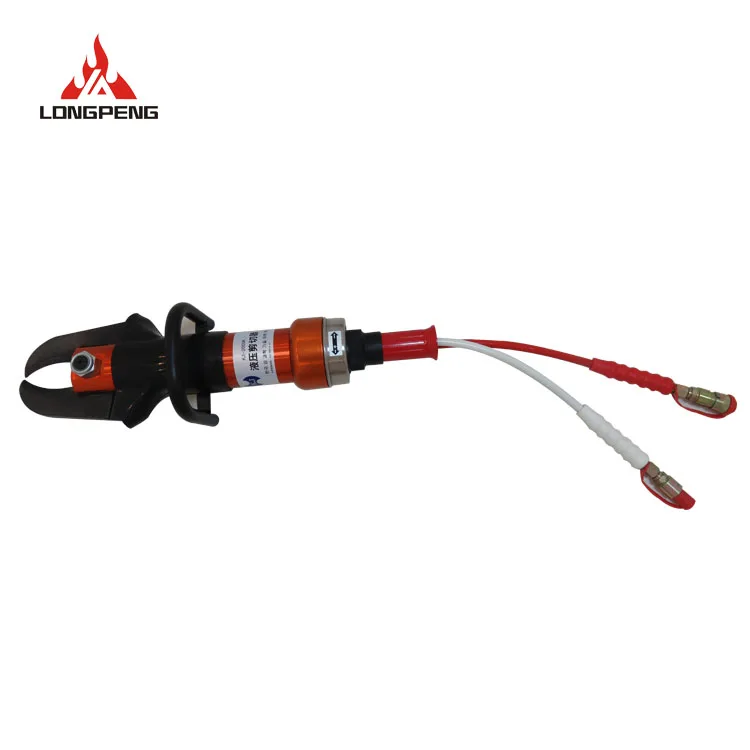

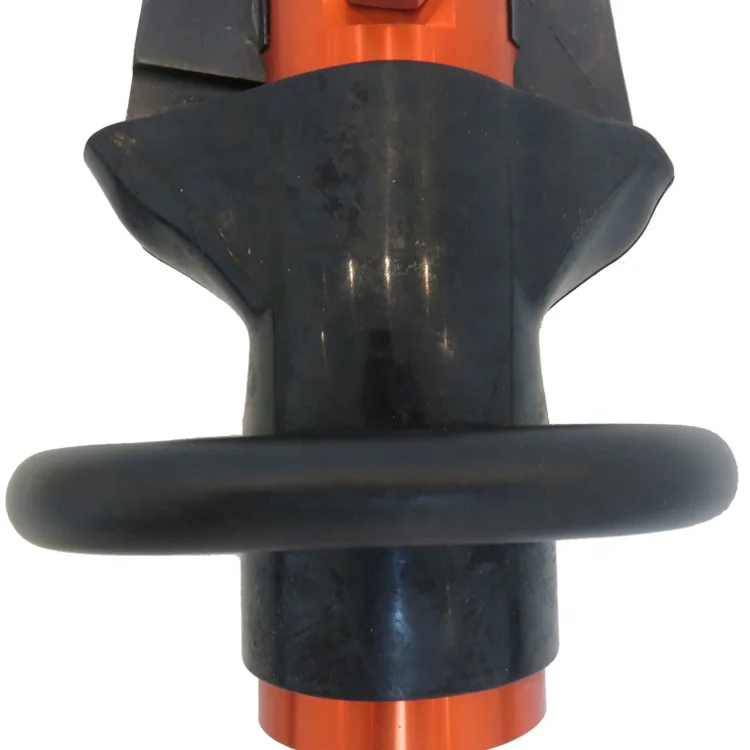

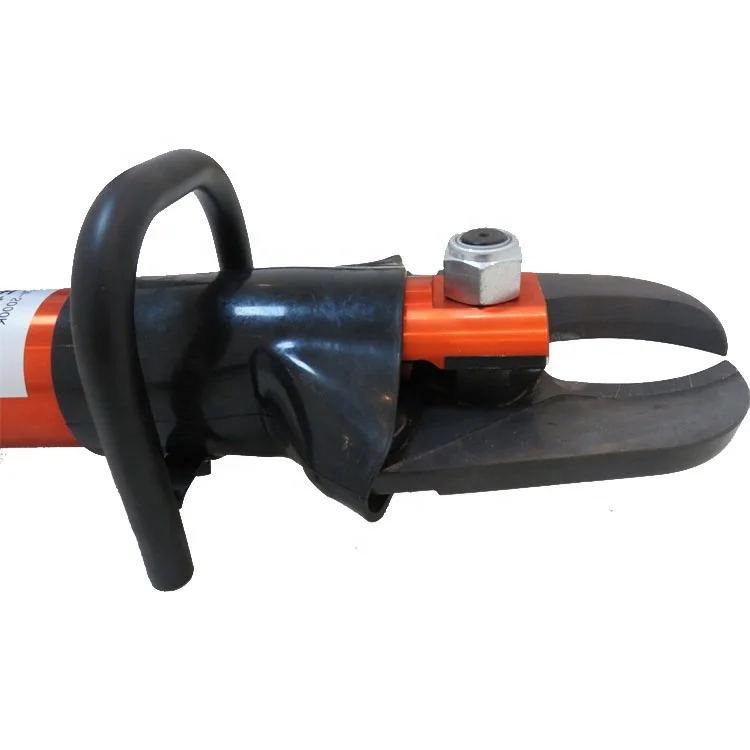

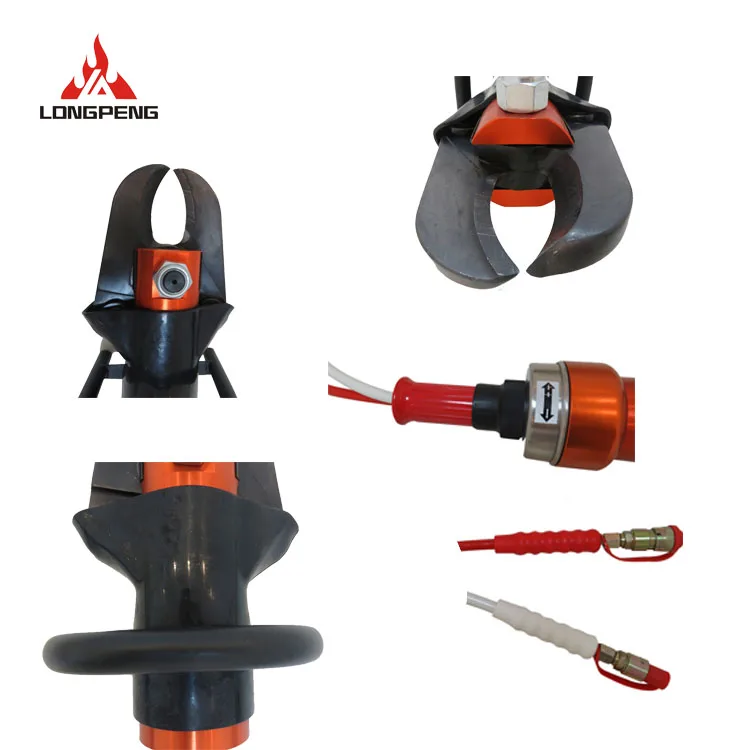

Products Show

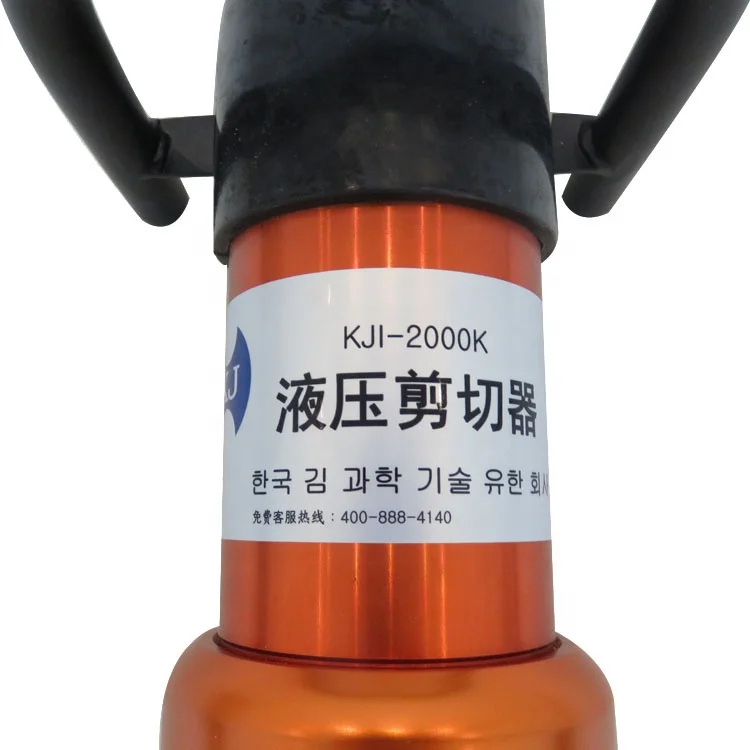

Working principle of KJI-2000K hydraulic cutter

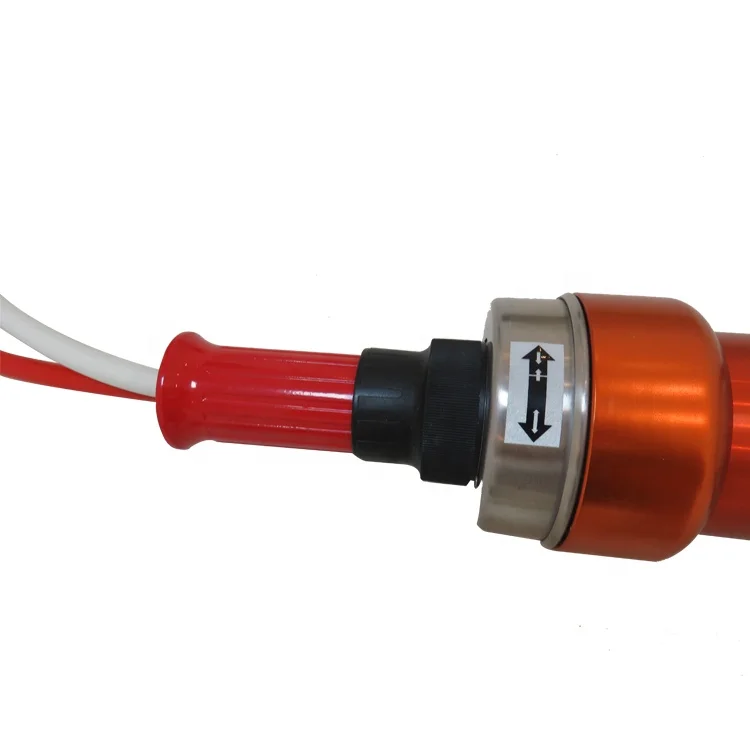

The high-pressure hose is connected to the motor pump or the manual pump. The pump works to transport the hydraulic oil to the tool. The hydraulic oil pushes the piston, and the power of the piston is transmitted to the rotating tool through the connecting rod, thereby performing the rescue operation of cutting and clamping the object to be broken. The manual control valve controls the opening and closing of the tool. When the manual control valve is in the neutral position, the tool does not move and the pressure oil directly returns to the oil tank.

KJI-2000K hydraulic cutter operation application

a. Remove the cutter from the fixture or the storage box, and connect the male and female ports of the quick interface to the male and female ports of the manual pump or motorized pump respectively. After the quick interface is docked, the male and female dust caps are fastened together to avoid dust.

b. Care must be taken when using a motorized pump as the power source; it is only allowed to start the engine after the quick interface is bundled. After the engine speed has stabilized, turn off the on/off valve of the motor pump (clockwise rotation) to bring the connected cutter into normal operation.

KJI-2000K hydraulic cutter Note

a. When the hydraulic cutter is used for cutting, it can only cut the material of Q235 or HRC≤20, and it is not allowed to cut the hardened steel, otherwise it will damage the cutter or crack and hurt people. For this reason, the user is reminded; if the material to be cut is unclear, the test should be carried out, that is, the cutting structure is 1-2 mm (mm) and then the tool is withdrawn, and the cutting condition is observed. When it is found that the material is hardened, the operation should be stopped and replaced. Other tools.

b. Reiterate that when the vertical separation distance of the cutting edge of the two cutter ports is greater than 3 mm, the work should be stopped immediately and the knife should be retracted, and the cut angle should be adjusted and then cut again. (Otherwise, the tool will be damaged)

c. During the cutting operation, the work piece to be cut and the plane of the cutter should be straightened to prevent the cutter from being damaged by the lateral force. When cutting the hydraulic cutter, when cutting more than 10m of sheet material or 20m of round steel (Q235 material), in order to prevent damage to the tool, it should be deliberately not to cut it once, but in the special cutting part multiple times, multi-directional Cut.

d. When cutting work, do a good job of safety protection. The object to be cut should be properly and safely fixed.

e, the tightening torque of the multi-function knife center pin lock nut is 150~180Nm.

f. The maintenance and adjustment of the hydraulic part of the cutter shall be carried out by professional maintenance personnel in the designated maintenance department.
