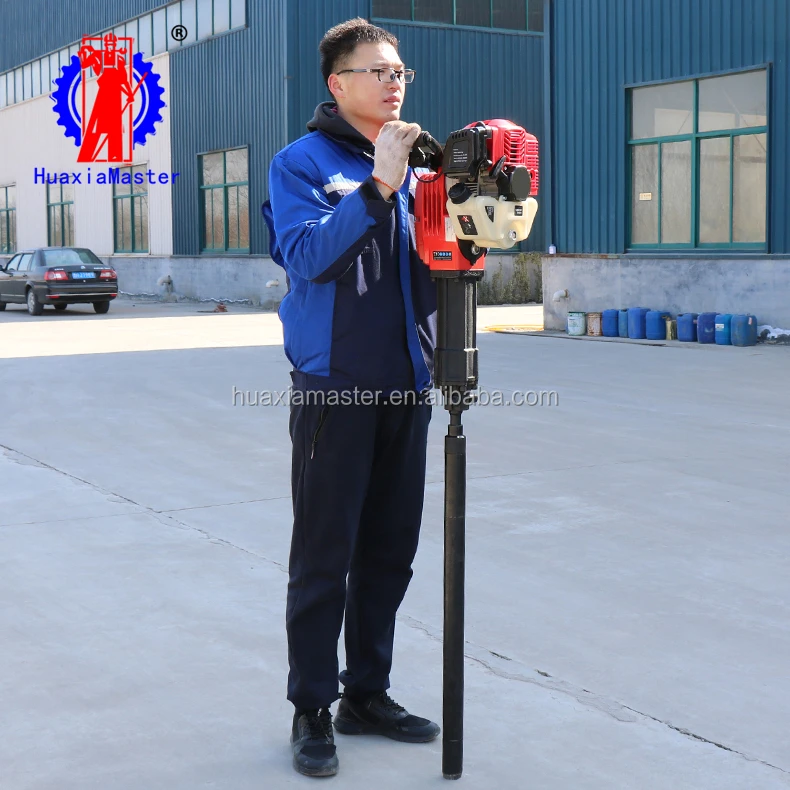

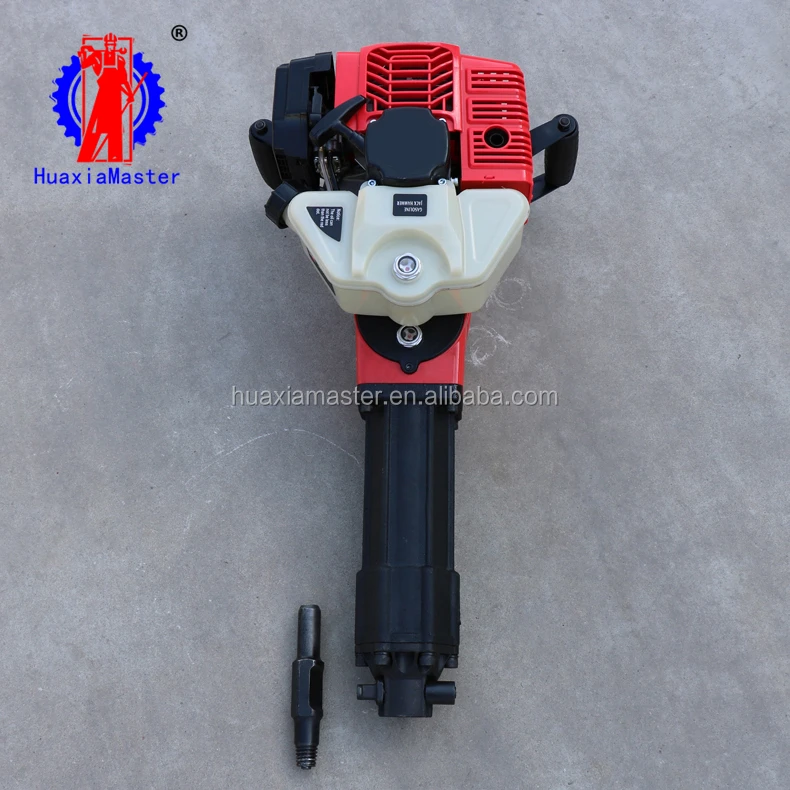

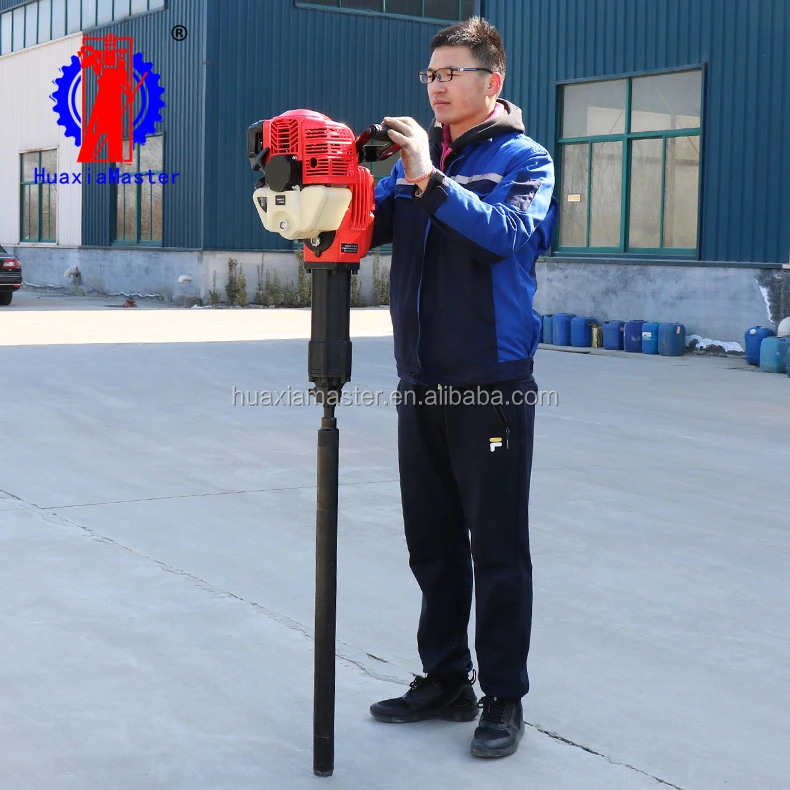

1. The brief introduction of QTZ-2 soil sampling drilling rig
QTZ-2 soil sampling drilling rig is a upgraded product of the QTZ-1 soil sampling drilling rig.The rig adopts the more power, and the impact force is stronger and the drilling depth is deeper, which can drill up to 10-15 meters.
2. The applications of QTZ-2 soil sampling drilling rig
· Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.
· Groundwater survey; coastal geological survey; wetland environment investigation.
· Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.
3.The technical parameters of QTZ-2 soil sampling drilling rig
QTZ-2 soil sampling drilling rig | ||
Power | power | 3.3HP |
lighter way | backflush pull rope | |
oil consumption | 0.55 l/h | |
Impact times | 1650r/min | |
Impact energy | 35J-65J | |
Core depth | 10m-15m | |
Host weight | 25kg | |

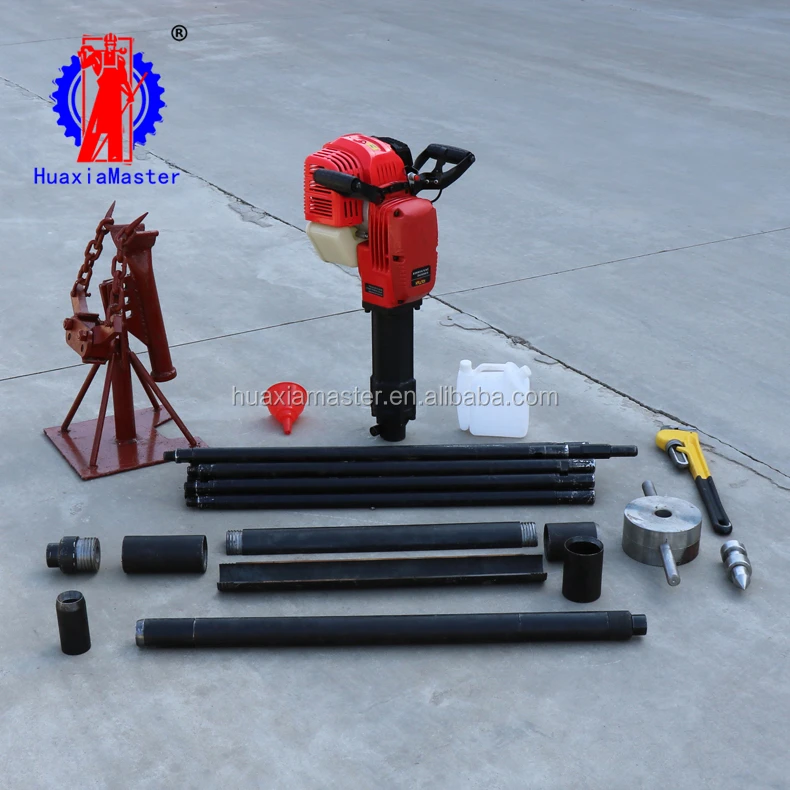

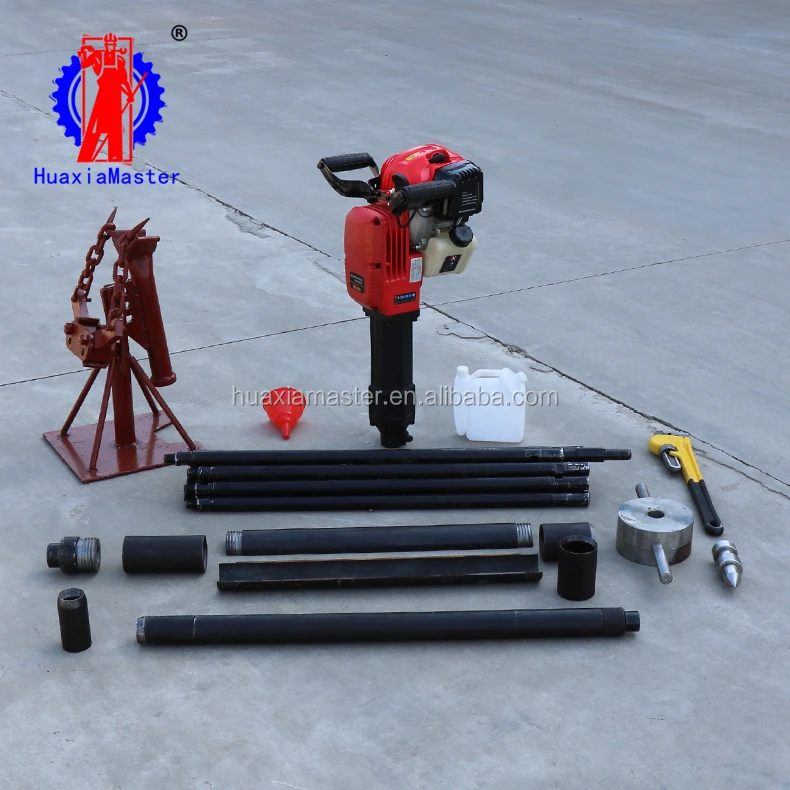

4.The configurations list of QTZ-2 soil sampling drilling rig
Item | Parameter | Platform | Quantity |
Soil sampling drilling rig | QTZ-2 | set | 1 |
Side buckle impact take over | 32*150 | pc | 1 |
Tapered tap | 32*80 | pc | 13 |

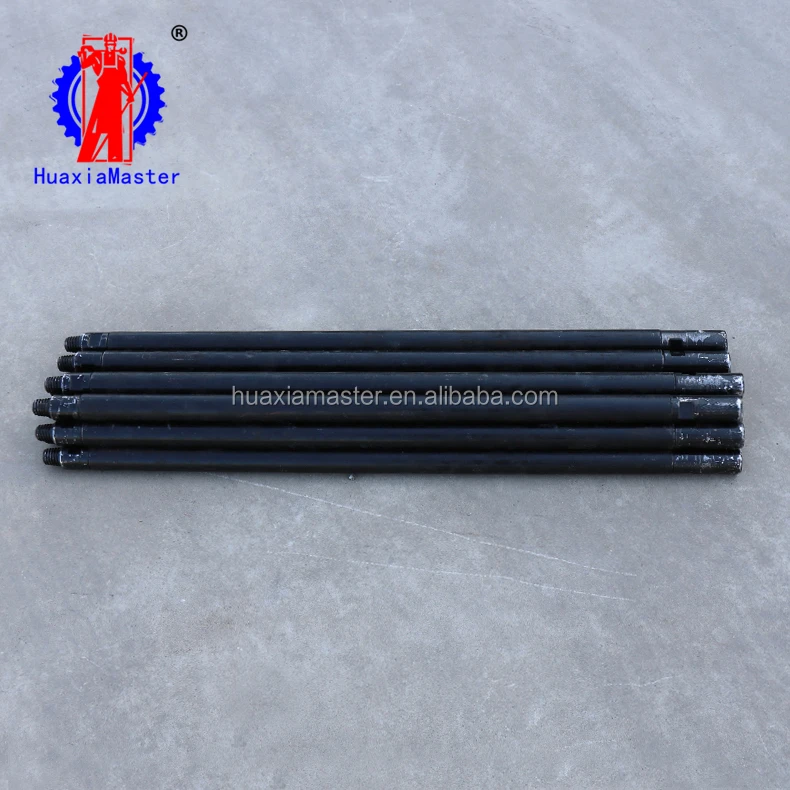

Drill pipe | 32*700 | pc | 13 |
Taper tap | 32*100 | pc | 13 |
Reducing nipple | 32*50 | pc | 1 |
Collar | 50*150 | pc | 1 |
Open tube | 50*600 | pc | 1 |
Double-edged pipe boots | 50*100 | pc | 2 |
Reducing nipple | 32*70 | pc | 1 |
Collar | 70*150 | pc | 1 |
Open tube | 70*600 | pc | 1 |
Inner edge pipe boots | 70*100 | pc | 1 |
Outer edge pipe boots | 70*100 | pc | 1 |
Portable sounding hammer | 10kg | pc | 1 |
Sounding the reducing nipple | 32 | pc | 1 |
Double sided hand | 32 | pc | 1 |
Touch probe | 32 | pc | 1 |
Puller | three force arm | set | 1 |
The ratio of oil | 25:1 | pc | 1 |
Oil funnel |
| pc | 1 |
Pipe wrench | 80mm | hold | 1 |
Special internal six party | multi-function |
| 1 |
Wrench | 24/27 |
| 1 |
Internal six party | #6 |
| 1 |
Six prismatic wrench |
|
| 1 |
Spark plug wrench |
|
| 1 |
Screw driver |
|
| 1 |
Spare spark plug |
|
| 1 |
91.8cm*50cm*30.3cm
25kg
Due to continuous product improvement, please ask us for the latest data.
