Spare Parts for Generator Power Generator Controller 6120 Control Panel Manufacturers

DESCRIPTION

The Model 6120 is Automatic Engine Control Module, which has been designed to allow the OEM to meet most of the industry's complex specifications. 6100 series genset controller integrating digital, intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarm protective. The controller uses LCD display, optional Chinese and English display interface with operation easy and reliable. 6100 series genset controller uses micro-processing technique which can carry out precision measure, constant value adjustment, timing and threshold setting and etc. functions. It can be widely used in all types of generator automatic control system for compact structure, advanced circuits, simple connections and high reliability, can be widely applied to various types of generating units automation system. Adjustments are made by using the integral front panel editor allowing changes in the field, with no specialist equipment required.

FEATURE

• Based on 6110 and add mains AC monitoring, Mains/Generator automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator.
• Full testing functions, can test all the electricity parameter and non electricity parameter of generator sets
• Multi start success conditions (RPM sensor, oil pressure, power)

• Control protection: Automatic start/stop, load transfer and alarming of generator

• LCD is 128*64 and backlight display between Chinese and English, key touch for operation
• Configurable single phase 2 wires or 2 phase 3 wires or 3 phase 4 wires AC system input

• Parameters setting: Allow user to modify setting and store them inside internal FLASH memory, the parameters can not be lost even with power down. All parameters can be set from the front panel, or be set by PC used SG72

• Three channel analog inputs, may joint with Resistive-type temperature/ pressure/ fuel level sensors, Several temperature and pressure sensors can be used directly, also may select “user defined” sensor via entering 8 point curves

• Display of generator cumulated electric energy

• Security password-protected programming levels

• Several crank success conditions are optional

• Built- in speed/frequency detecting units can accurately judge the states such as crank success and over speed

• Power supply range is wide, accommodating to different starting battery voltage environments

• All parameters use digital modulation, abandoning analog modulation using conventional electronic potentiometer, reliability and stability are increased

• Built-in watch dog can never be dead halt, ensuring smooth program execution
• Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

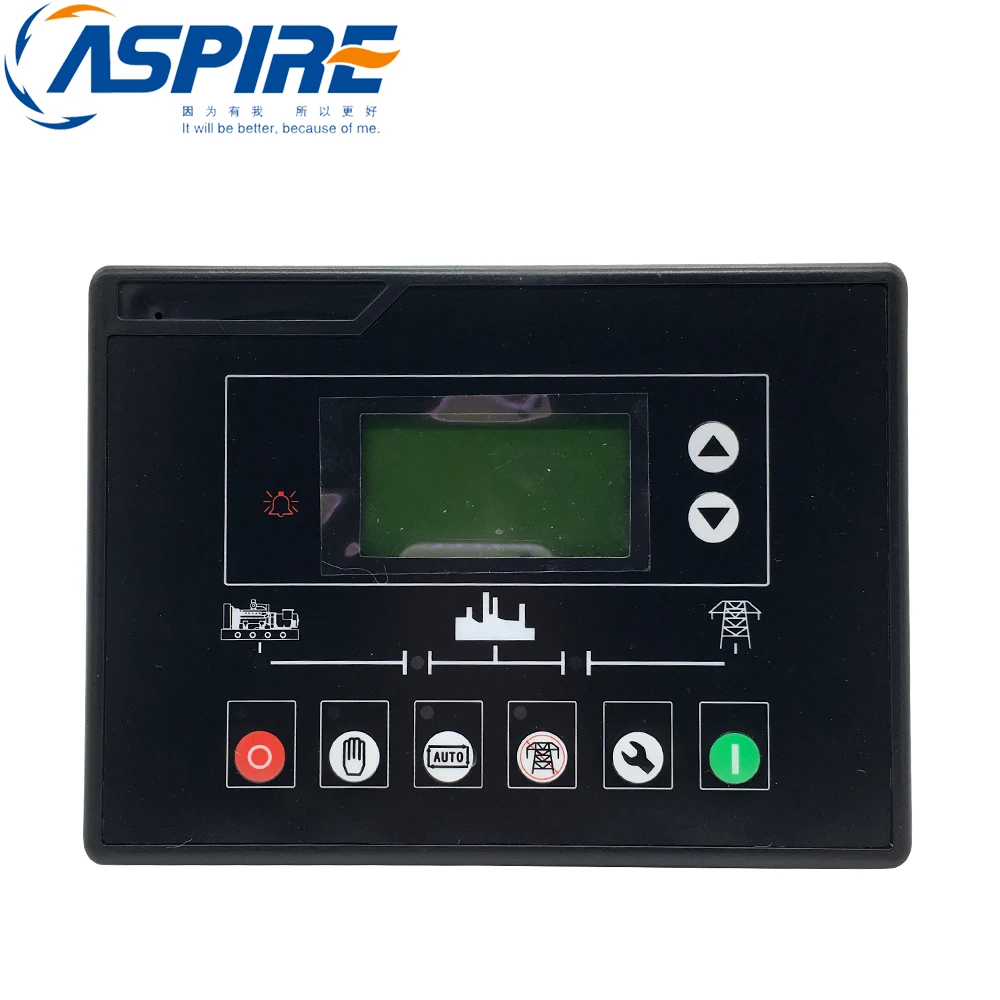

6120 PICTURE
