High Pressure Condensing Sf6 Gas Evacuation and Refilling Machine

SF6 Gas Evacuation and Refilling Machine Features

1.         Vacuumize and check vacuum pressure for retrieving device itself including its storing vessel and pipes;

2.         Vacuumize and check vacuum pressure for the insulation equipment

3.         Retrieve and store SF6 gas and check the remaining vacuum pressure of the insulation equipment;

4.         Get rid of water content and other particulates in the SF6gas with filtration and purification process;

5.         Refill up the SF6 gas into the insulating equipment to specified operating pressure.

SF6 Gas Evacuation and Refilling Machine Advantages

1)             Advanced design, full function and compact structure with simple operation.

2)            Compressed systems: it takes closed compressor to ensure no leakage.

3)            Vacuum systems: it takes rotary vane vacuum pump to prevent oil returning

4)            Purification systems: Equipped with Ingersoll Rand filters which takes electric heating and high efficient adsorbents. Without frequent replacement of the adsorbents, so the purification result is better.

5)            Electric systems: Equipped with automatically confirmation three phase power devices, failure protection.

6)            Control systems: the valves take the latest technology.

7)            Storage system: Provide the storage tank according to users requirements.

8)            This equipment is mobile type.

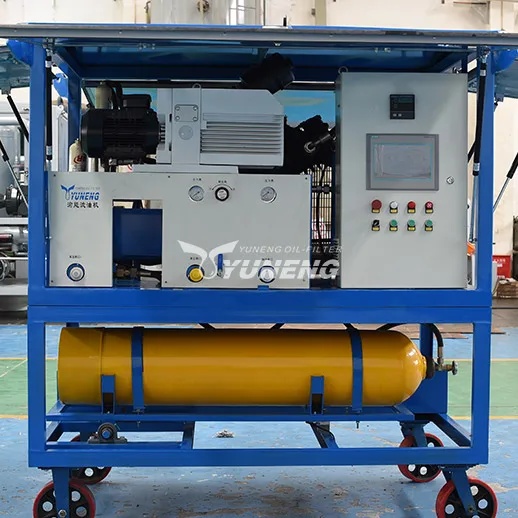

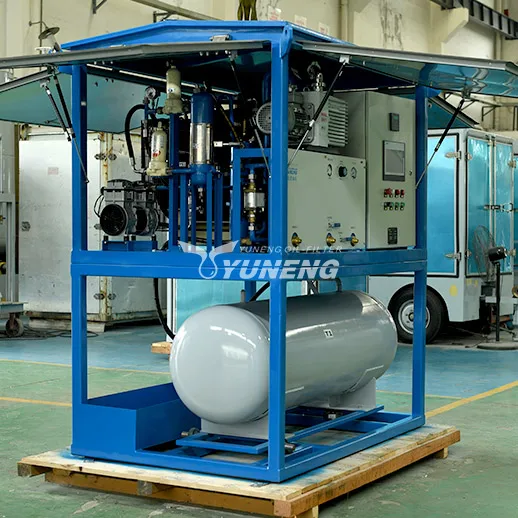

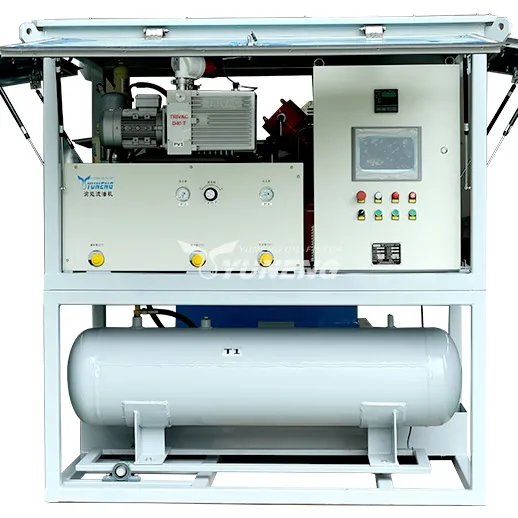

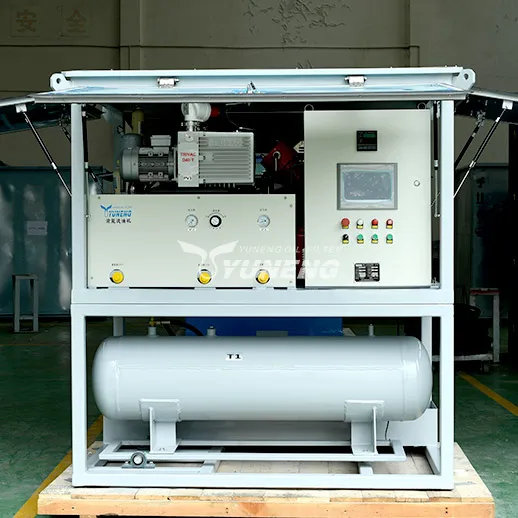

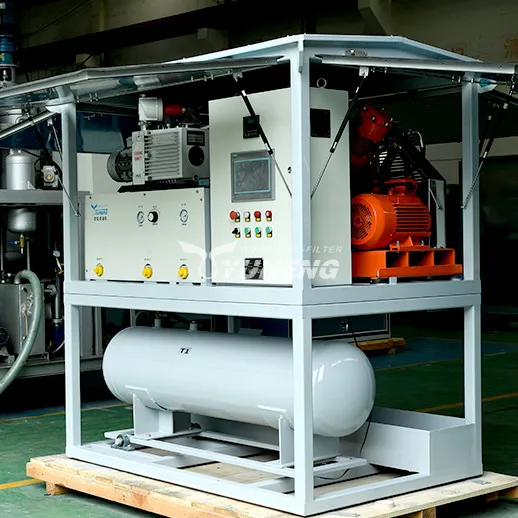

SF6 Gas Evacuation and Refilling Machine Photos for reference:
