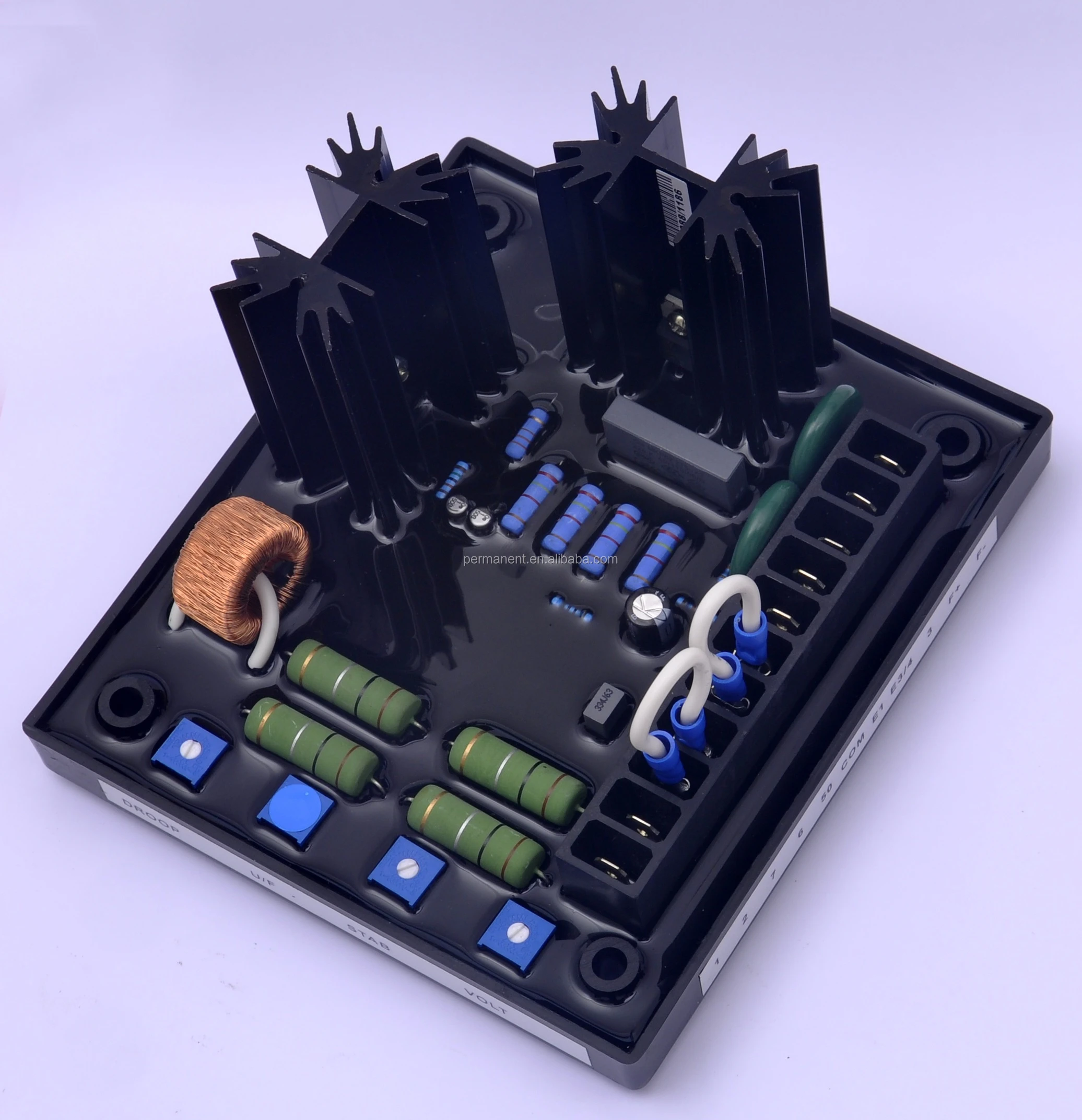

Brushless Type Alternator Generator Automatic Voltage Regulator AVR AVC63 7

Product Overview

Description

Brushless Type Alterator Generator Automatic Voltage Regulator AVR AVC63-7

TECHNICAL DATA



the AVC63-7 half wave voltage regulator is designed for use on 50/60 Hz brushless generators. This encapsulated regulator is small in size, ruggedly constructed, and incorporates solid state technology with frequency compensation, automatic voltage build-up, and parallel droop as standard.



Brushless AVR	AVC63-7
Sensing Voltage Input	190-240V AC
Voltage Input	190-277V AC
Frequency	50-60Hz nominal
Voltage Output	max 63V dc at 207V ac input
Current	continuous 7A. Intermittent 10A for 10secs
Regulator	±1.0% RMS with 4% engine governing
Type	brushless
