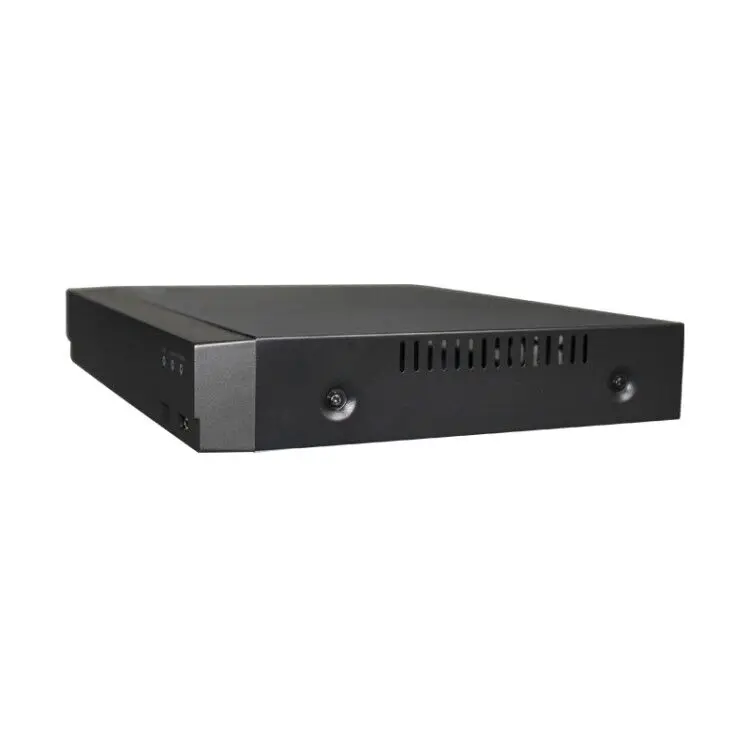

Hot sell Gevilion 4CH 4K 5MP TVI CVI AHD IP CVBS DVR HD Hybrid CCTV 5 in 1 XVR Dahuai
Hot sell Gevilion 4CH 4K 5MP TVI CVI AHD IP CVBS DVR HD Hybrid CCTV 5 in 1 XVR Dahuai
Hot sell Gevilion 4CH 4K 5MP TVI CVI AHD IP CVBS DVR HD Hybrid CCTV 5 in 1 XVR Dahuai
Hot sell Gevilion 4CH 4K 5MP TVI CVI AHD IP CVBS DVR HD Hybrid CCTV 5 in 1 XVR Dahuai
Hot sell Gevilion 4CH 4K 5MP TVI CVI AHD IP CVBS DVR HD Hybrid CCTV 5 in 1 XVR Dahuai
Hot sell Gevilion 4CH 4K 5MP TVI CVI AHD IP CVBS DVR HD Hybrid CCTV 5 in 1 XVR Dahuai

Hot sell Gevilion 4CH 4K 5MP TVI CVI AHD IP CVBS DVR HD Hybrid CCTV 5 in 1 XVR Dahuai

Share on (62006458555):


Price:$26.88 - $33.88

Quantity:


Product Overview

Description





Product Paramenters


Hot sell Gevilion 4CH 4K 5MP TVI CVI AHD IP CVBS DVR HD Hybrid 265 CCTV 5 in 1 XVR Dahuai




FEATURES
Ø Support 265+ encoding, ultra-low bitrates, compatible with H.264 surroundings;
Ø Support VGA, HDMI full HD output simultaneously;
Ø Support O-NVIF; access third party;
Ø Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Ø Support web, CMS, center platform management software XMEYE,
Ø Support various mobile monitoring (iPhone, Android);
Ø Remote Access, With DNS (ARSP),easy to monitor remotely
Ø Support UTC, control signal& video stream transmit through one single coaxial
Ø Support XVI/AHD/TVI/CVI/CVBS/IP six signals;
Ø Support intelligent analysis: functions like Perimeter alert, item retention, Video diagnosis, intelligent fast play and
intelligent retrieval


Products Description




System
Operating System
HI3520DV400
Preview
1/4/8/9
Video
Encoding Format
265+
Monitor Quality
VGA(1080P at most); HDMI(4K at most)
Preview Ability
4*4K-N @ 15fps(6 in 1)/4*5M @ 12fps(6 in 1)/
4*4M @ 15fps(6 in 1) /4*3M @ 18fps(6 in 1) /4*1080P(6 in 1)
Encode Ability
4*4K-N @7fps(6 in 1)/4*5M @ 6fps(6 in 1)/
4*4M @ 8fps(6 in 1) /4*3M @ 10fps(6 in 1) /4*1080P @ 18fps(6 in 1)
Decode Ability
1*4K-N @ 7fps(6 in 1)1*5M @ 6fps(6 in 1)/
4*4M @ 8fps(6 in 1) /4*3M @ 10fps(6 in 1) /4*1080P @ 18fps(6 in 1)
Multi-mode Input
Analog: 4*5M; 4*4M; 4*1080P
Digital to analog conversion: support(except 4*5M, 4+4 hybrid mode)
Hybrid: 4*4M(analog) +4*4M(network)
Network: 16*1080P; 8*5M
Motion Detection
Each screen can be set to 192 (16 * 12) detection areas;
Multi-level sensitivity can be set (Limited local channel)
Audio
Audio Compression
G.711A
Intercom
Support
Record & Playback
Record Mode
Manual>Alarm>Motion detection>Timing
Local Playback
4CH (analog input mode)
Search mode
Search by time, calendar, event, channel
Storage & backup
Video storage
HDD, network
Backup mode
Network, USB hard disk, USB burner, SATA burner

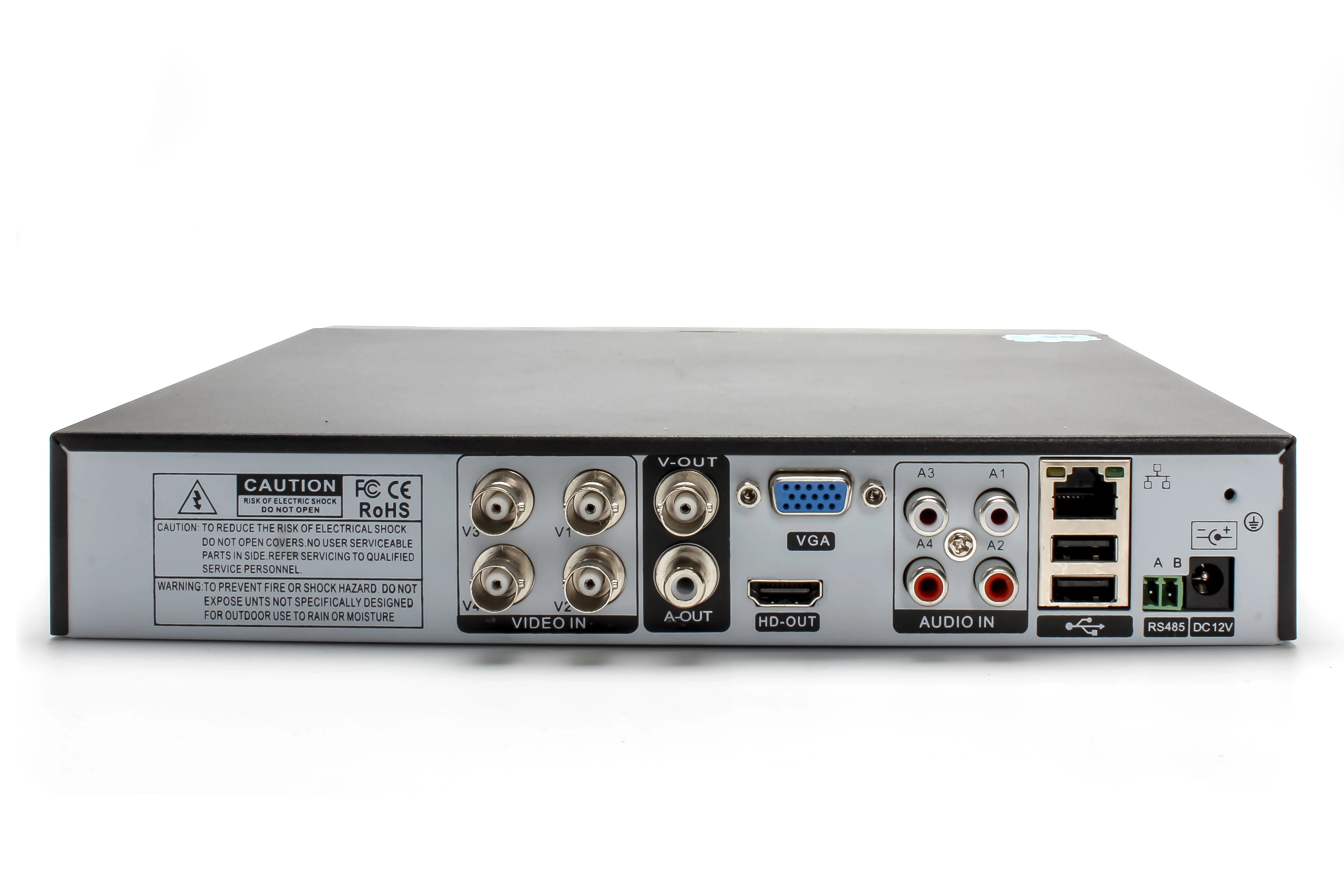

External Interface
Video Input
4CH BNC
Video Output
1CH VGA, 1ch HDMI
Loop Out
N/A
Audio I/O
1(4)/1
Alarm I/O
0/0
Network Interface
RJ45 10M/100M self-adaption
PTZ Control
1*RS485, Support kinds of PTZ protocols
USB
2* USB 2.0 ports
HDD
1*SATA ports (Max 8TB/per)
Wireless
3G, WIFI (extend via USB)
General

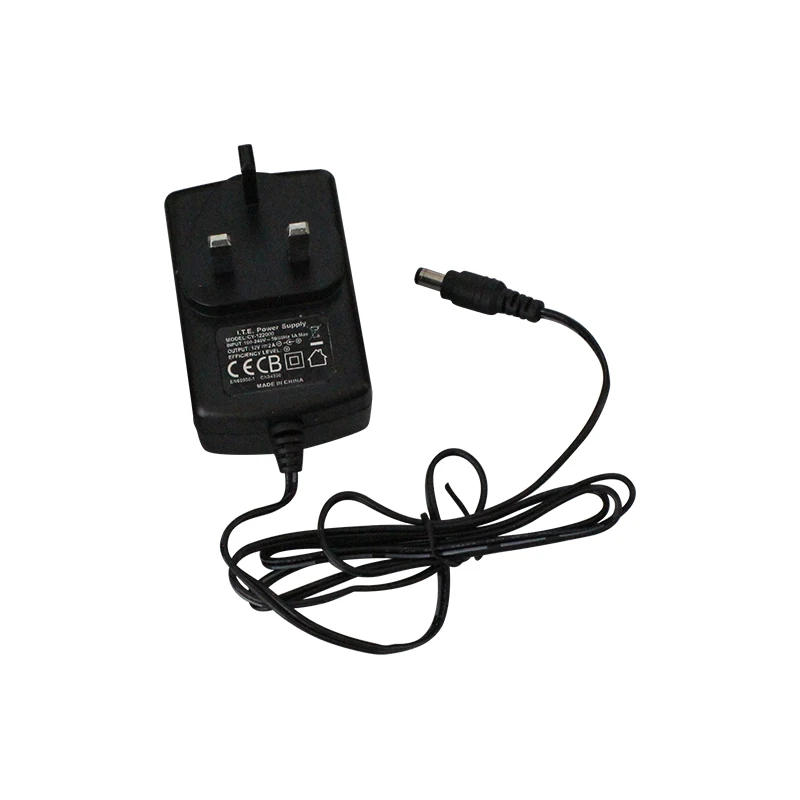

Power Supply
12V/2A
Power Consumption
<15W (without HDD)
Working Environment
Temperature: 0℃—+55℃, Humidity: 10%—90%, Atm: 86kpa—106kpa


Recommend Products




Company Profile




About Us

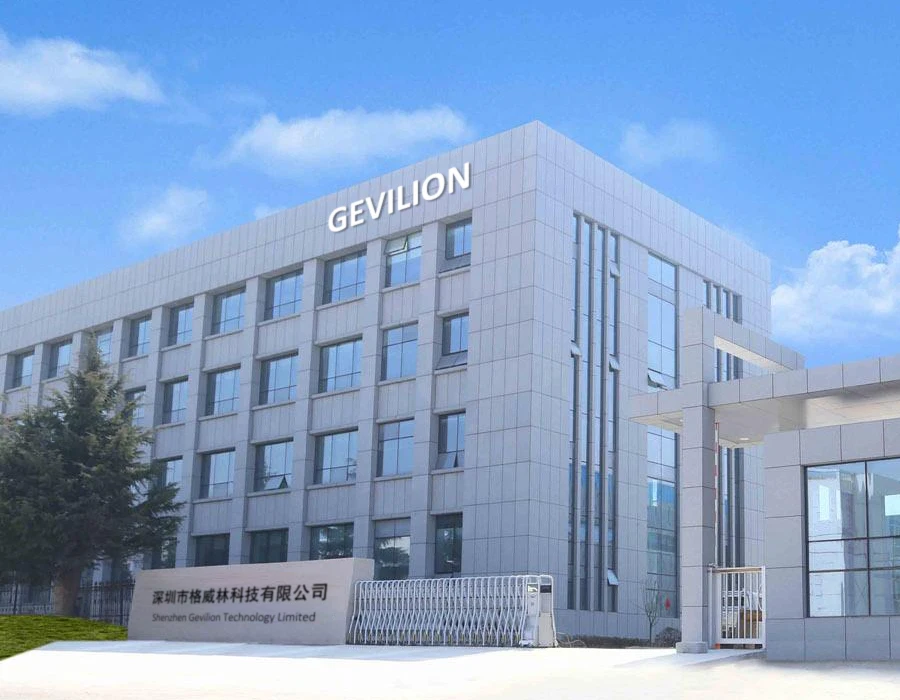

>Shenzhen Gevilion Founded in 2008, with the certification ISO9001:2008 , and nowadays we have the factory with floor space around 50,000 square meters and over 1200pcs employees.

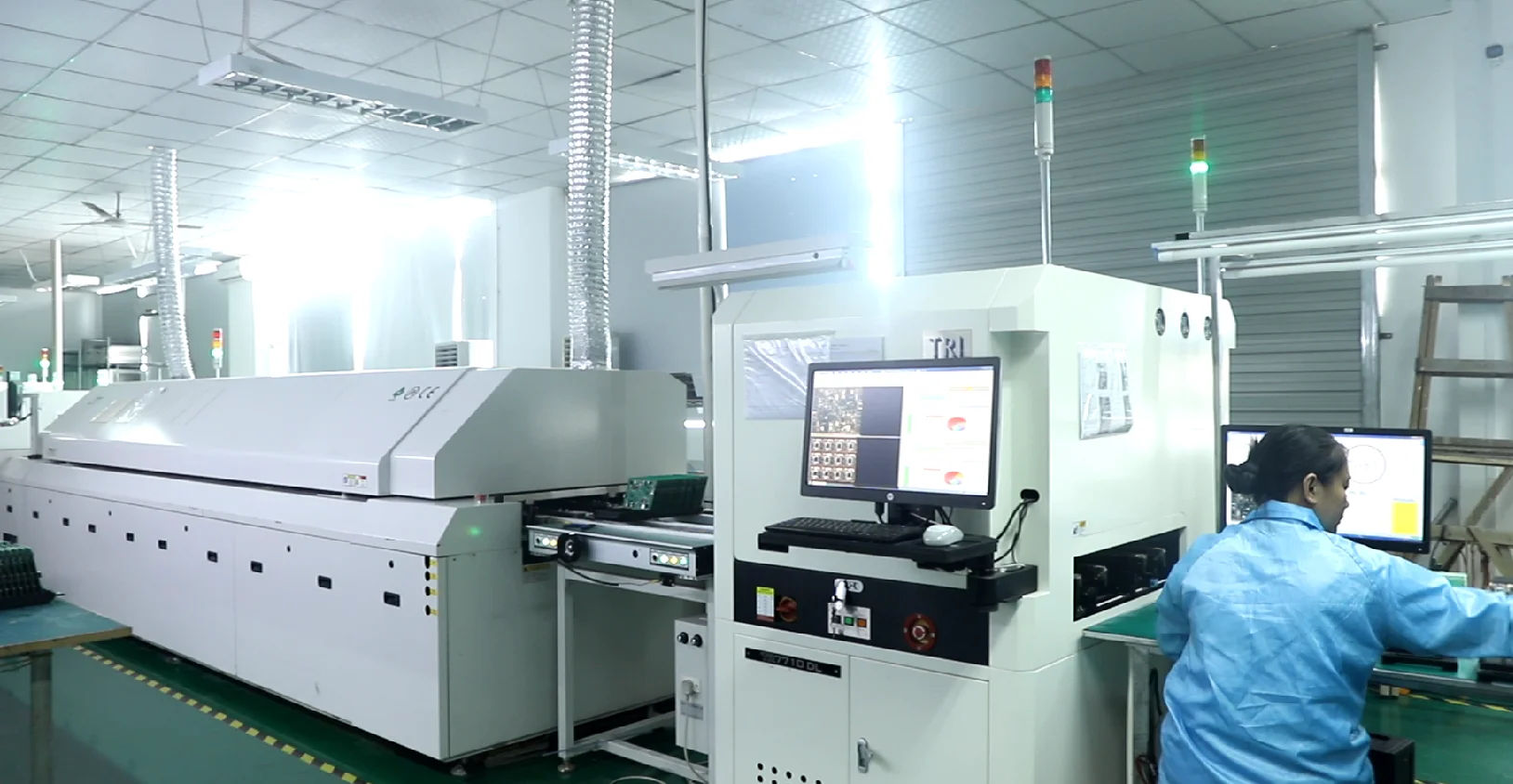

>Include housing production lines, SMT production lines, With complete quality/cost control, Gevilion has got absolute advantagesto spread solutions,products and services in over 150 countries.

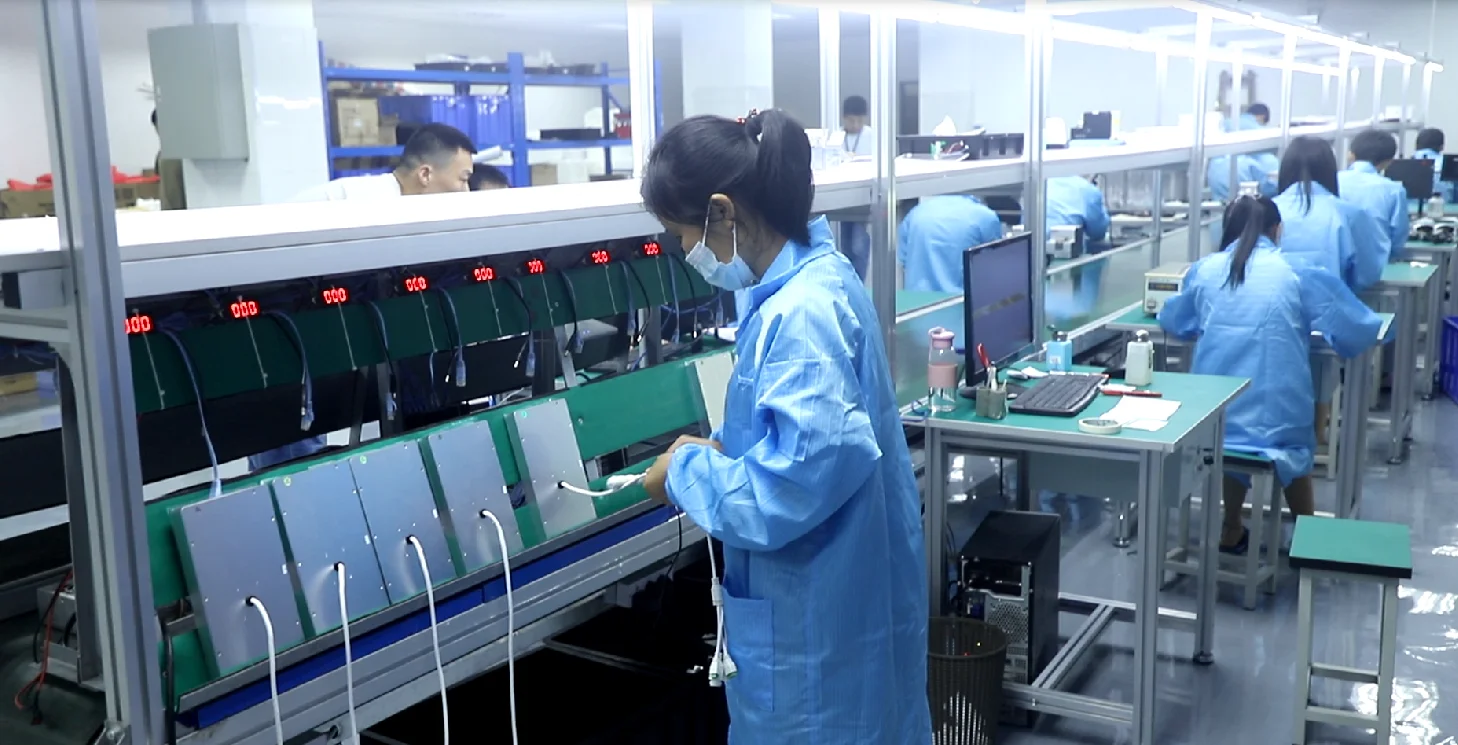

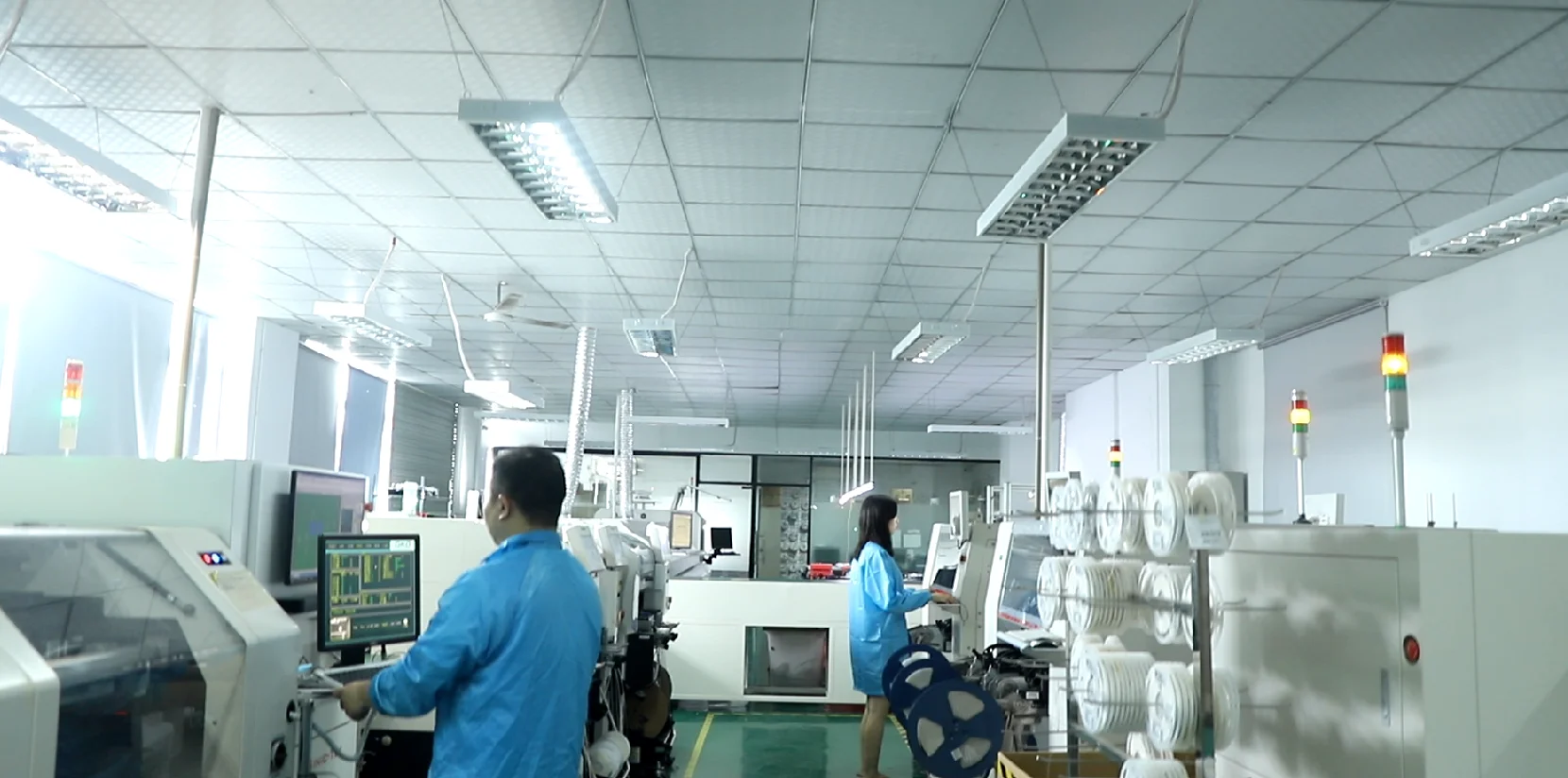

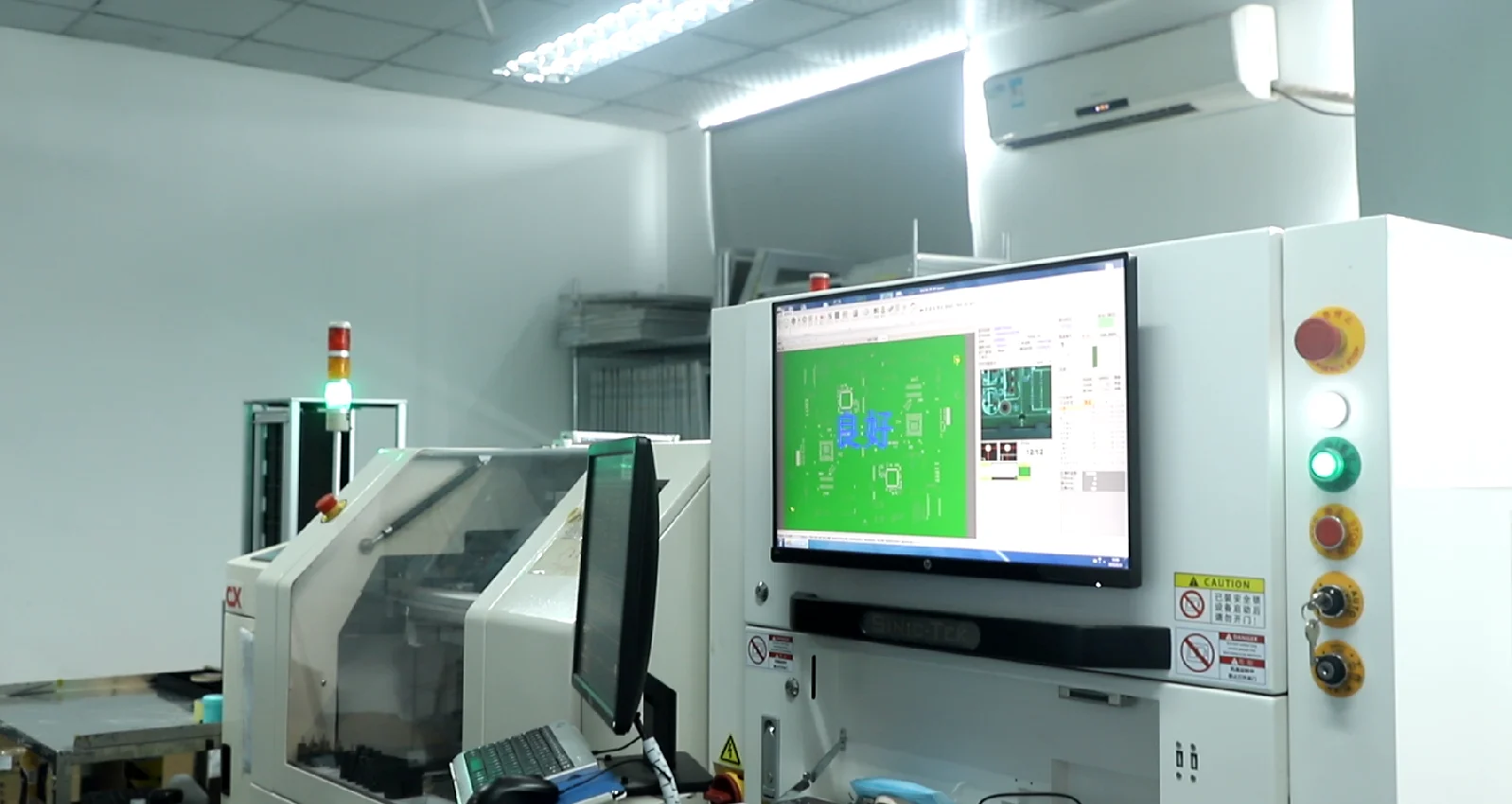

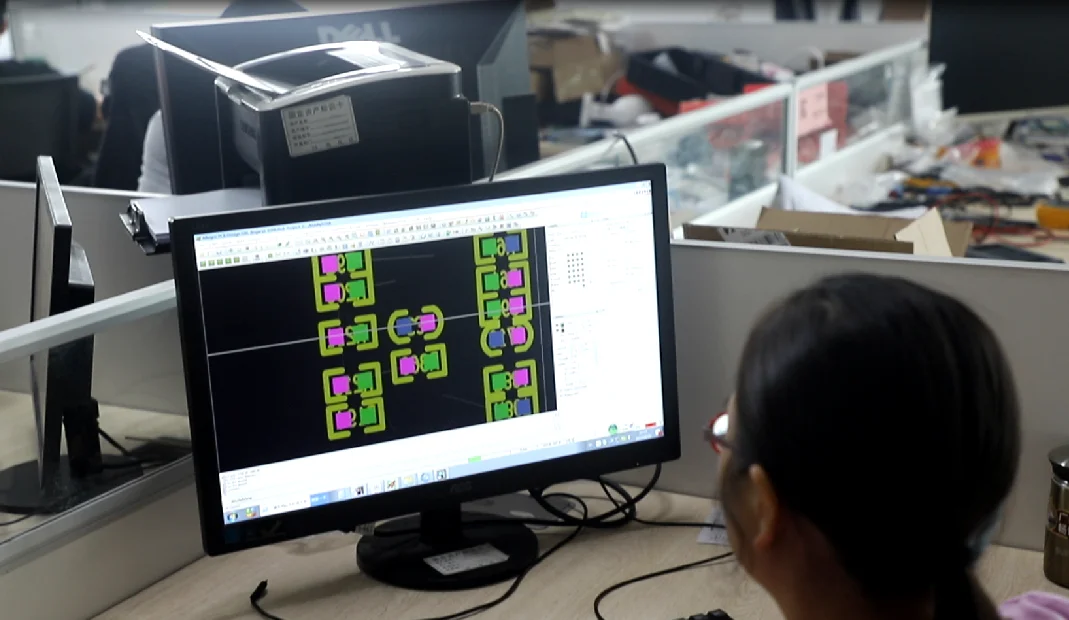

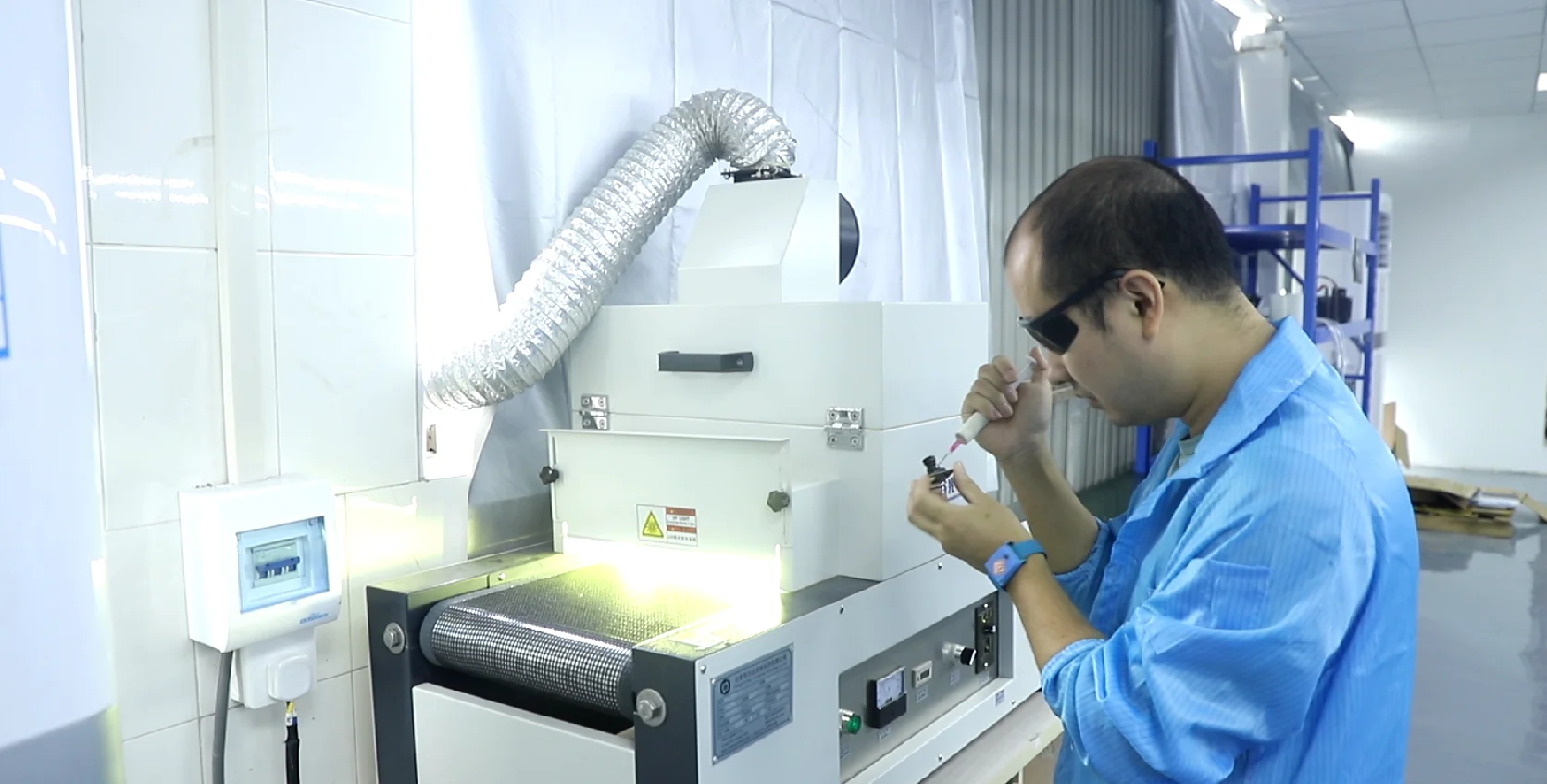

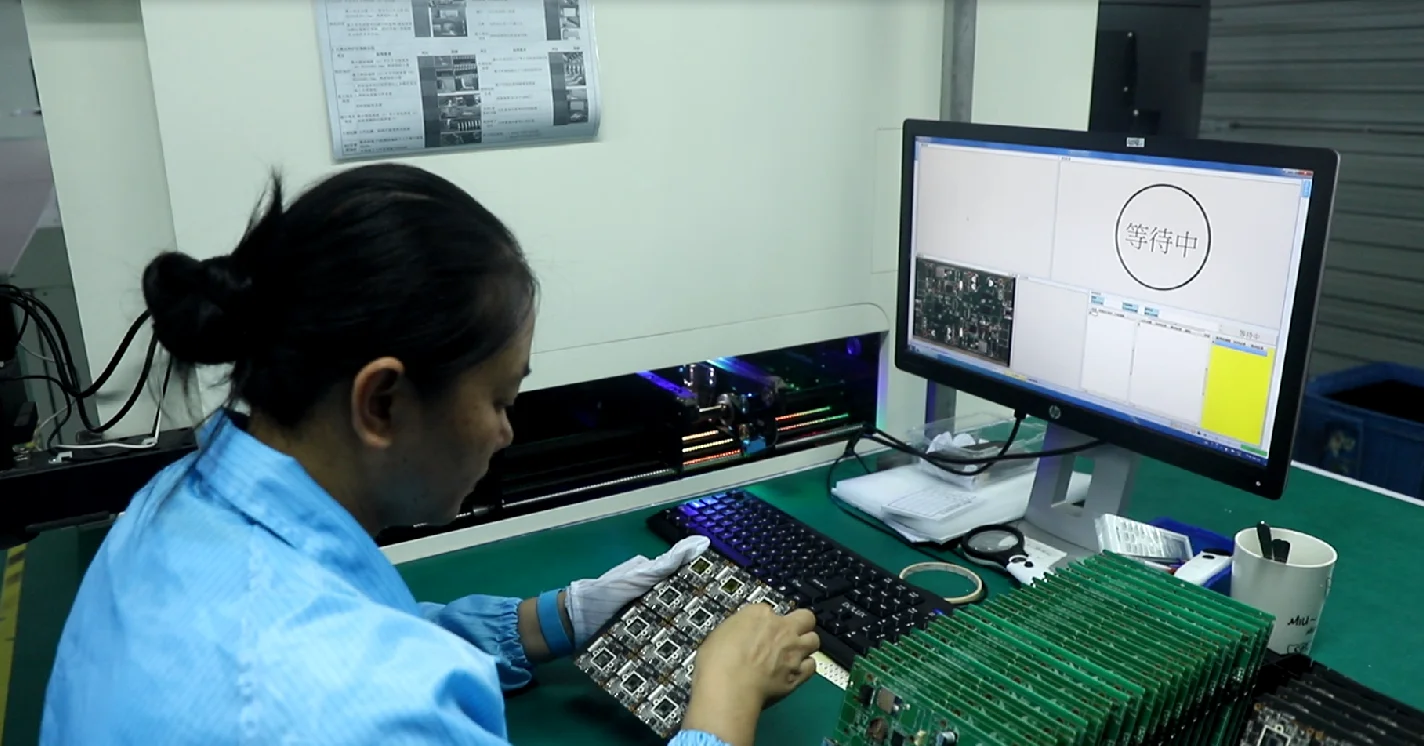

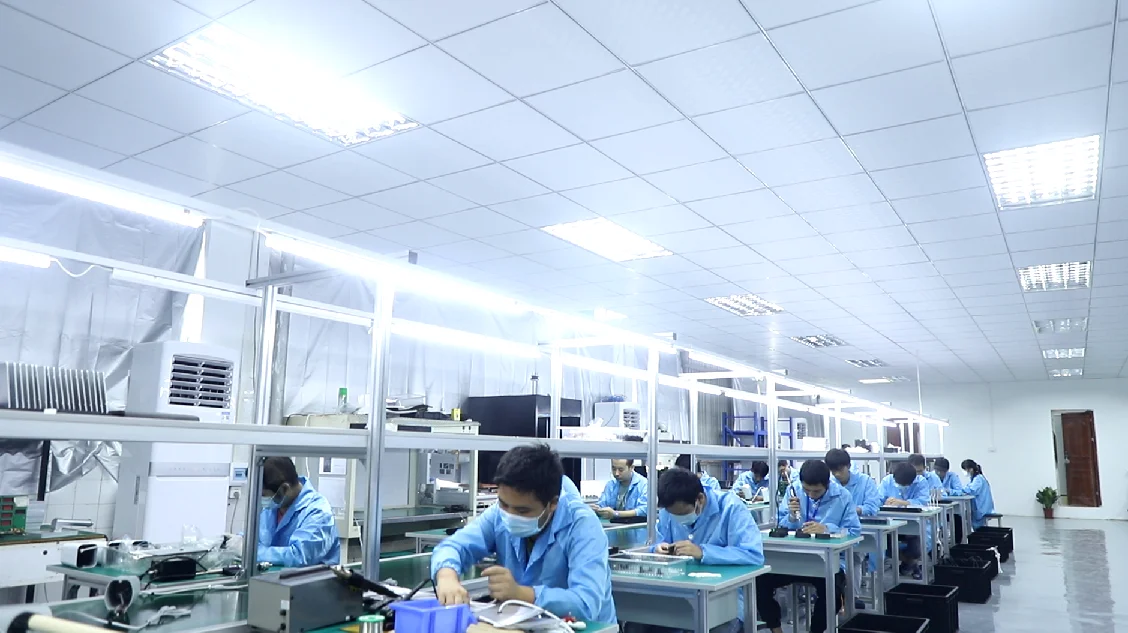

Our Factory










OEM & ODM
> OEM Silkprint LOGO/Sticker/Box/Manual/Software/Carton Box, Free of Charge with MOQ
> ODM Projects acceptable and welcome to your inquiries!


Exhibition




Exhibition
>Will attend many professional Security show each year: ISC America,Secutech Taiwan,IFSEC UK,Mips Russia,ESSEN Germany,Intersec Dubai,CPSE China.etc.Welcome to meet us at the show!

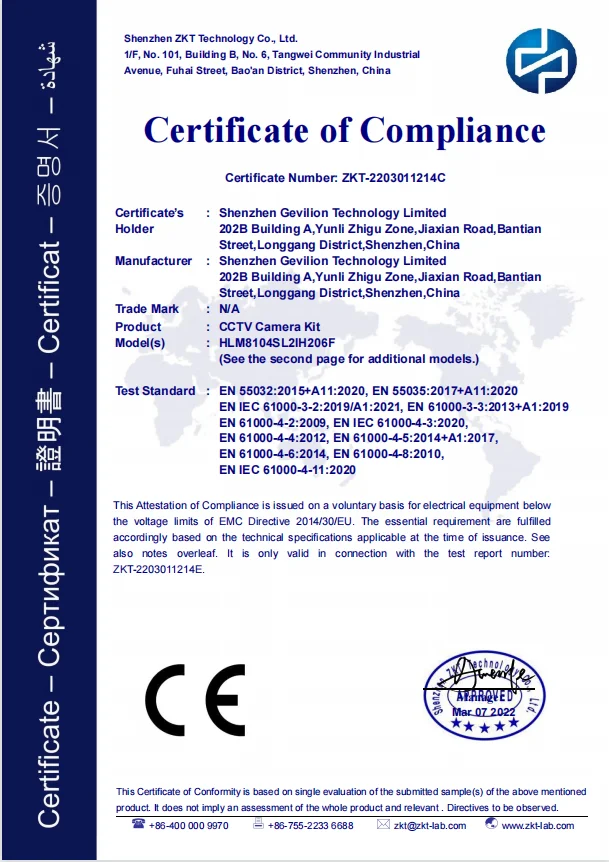

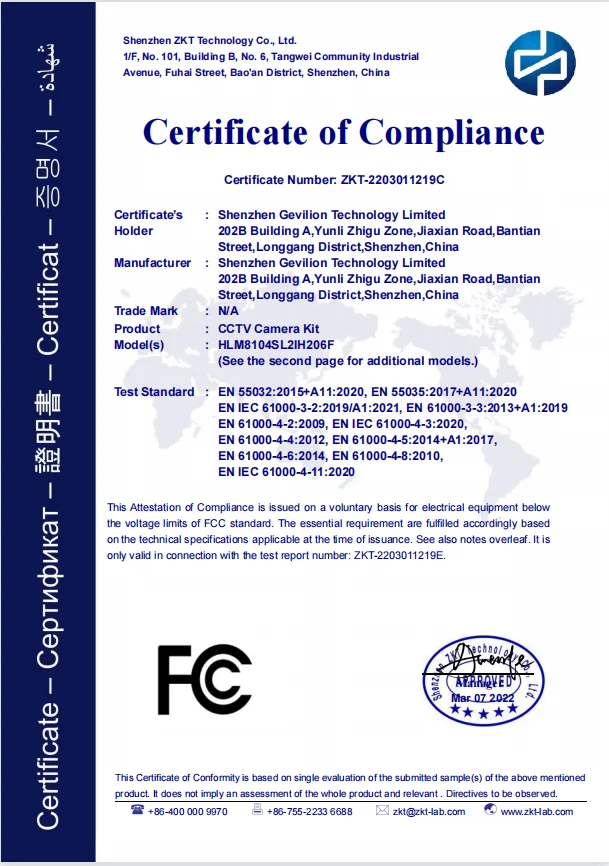

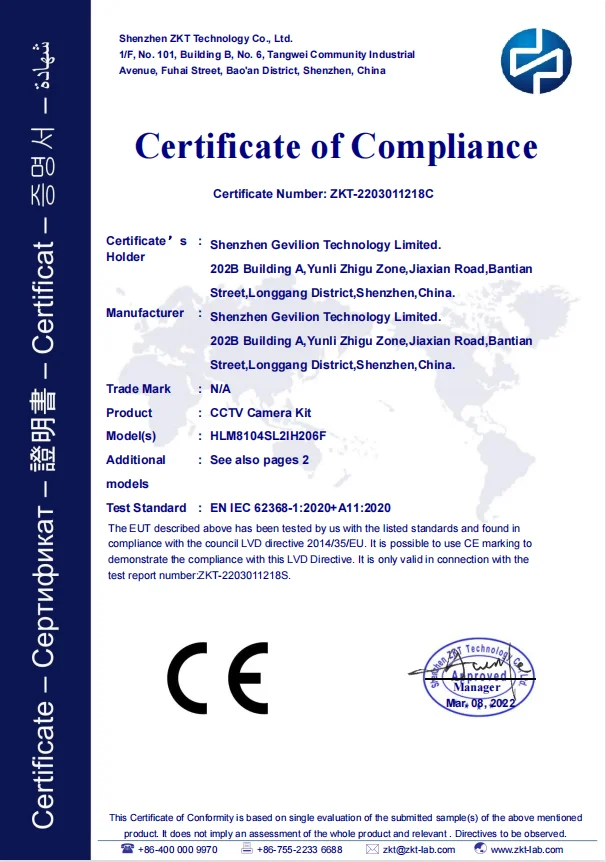

Certifications




Product packaging




1.Warranty & RMA
(1) 2 years free repair and lifetime technical support provided after the shipment date.
(2) Any product proves defective under normal usage, we will repair or replace it by free of Charge.
> If you could repair the products by yourself, we will supply the spare parts.
> If you couldn't repair the products, please sent back to us, and we repair and afford 50% freight charge.
All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 1%

2. OEM & ODM
> OEM Silkprint LOGO/Sticker/Box/Manual/Software/Carton Box, Free of Charge with MOQ
> ODM Projects acceptable and welcome to your inquiries!

3. Payment Terms
T/T, Paypal, Western Union, Sinosure & L/C
> We accept T/T 30% deposit to arrange production,70% balance payment when goods ready.
> Sinosure & L/C acceptable according to the order amount

4. MOQ
Welcome trial order! Sample Order no MOQ; after sample order, MOQ 10pcs per model.
Silkprint OEM logo MOQ 100pcs, OEM Design box MOQ 1000pcs.

5. How to order from us?
> Please confirm the model no. & quantity that you would like to purchase with our sales person, or email to us
> We will send you a Proforma Invoice to specify net cost of mentioned goods, and other relevant charges once you confirm the
order.
> After you arrange the payment and send us the bank slip, Your order will be put into production, and let your know the delivery
date in 2 days.
> When the goods are ready, we will send by DHL, by air or by sea, or other shipping method appointed by the customers. and let
you know the tracking number and estimated time of arrival.

6.Technical Support
Professional technical support team 24 Hours Online!
