Product Overview

Description





Product Description

Product Description






AM6100 is 6 vital sign veterinary monitor, for cat and dogs like.

Monitoring 6 vital signs: spo2, PR, NIBP, ECG, Resp, Temp.
Free App can be download at google play for Android pad and android phone, named: Pet Monitor.
Support  BLE 4.0 & 3.0, And the data is transmit from device to App via/serial port. Can active the device via physical button or on App.
Small, lightweight, it is simple to operate and easy to carry.
Rechargeable Lithium-ion Battery support continuously working 12 hours.






Used at home and in hospitals, it can be freely combined with other medical devices, which can greatly improve the level and function of primary medical products and provide excellent platform for the improvement of pet treatment and management level.













Detailed Images

Detailed Images

















Veterinary Monitor

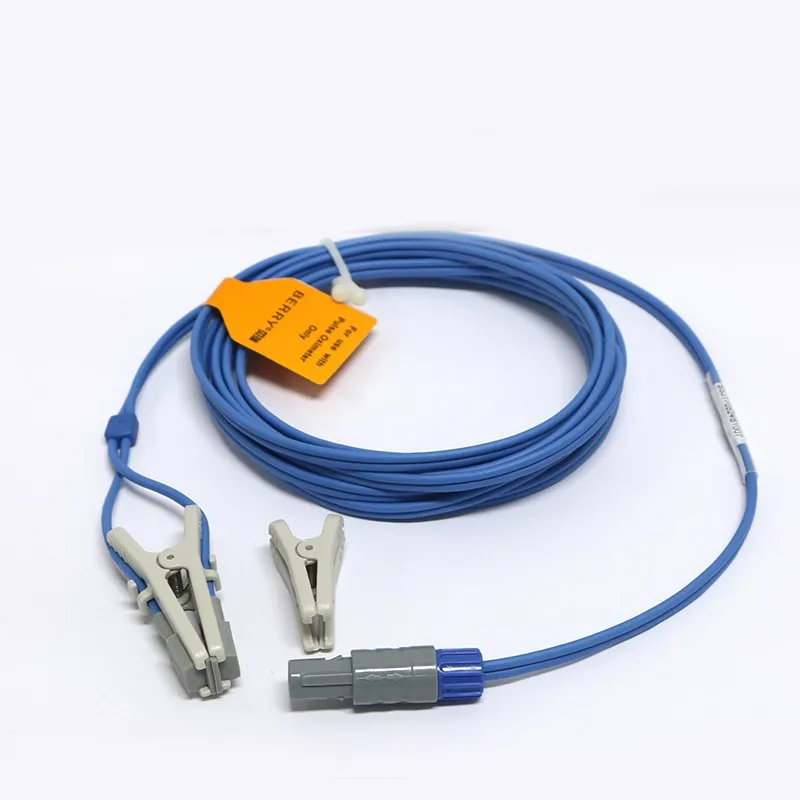

Ear clip spo2 sensor with 1 changeable tongue clip

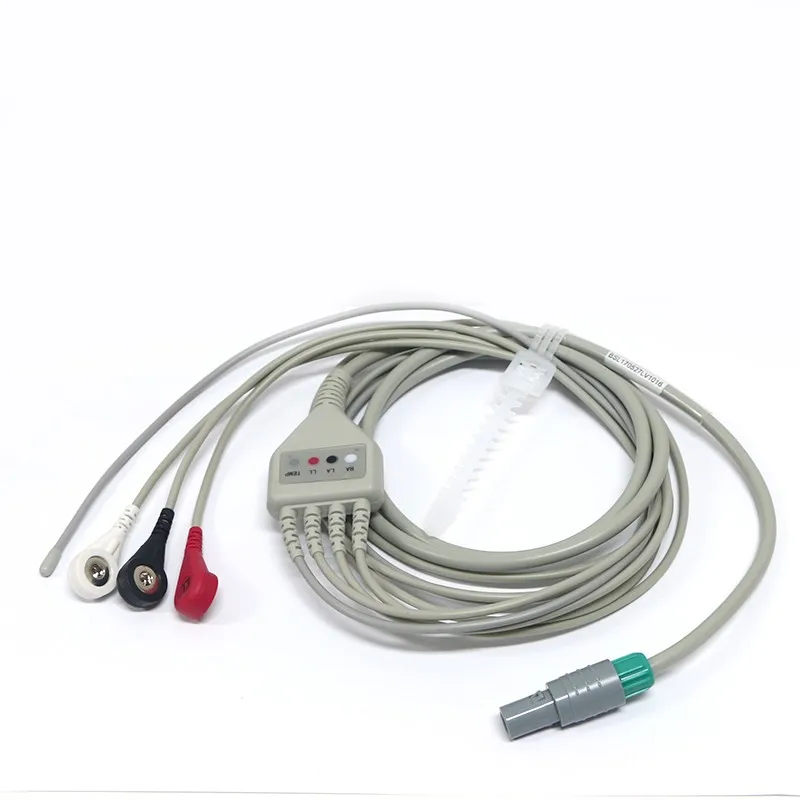

ECG Cable, built together with rectal temperature sensor























ECG Clap






Reusable NIBP Cuff

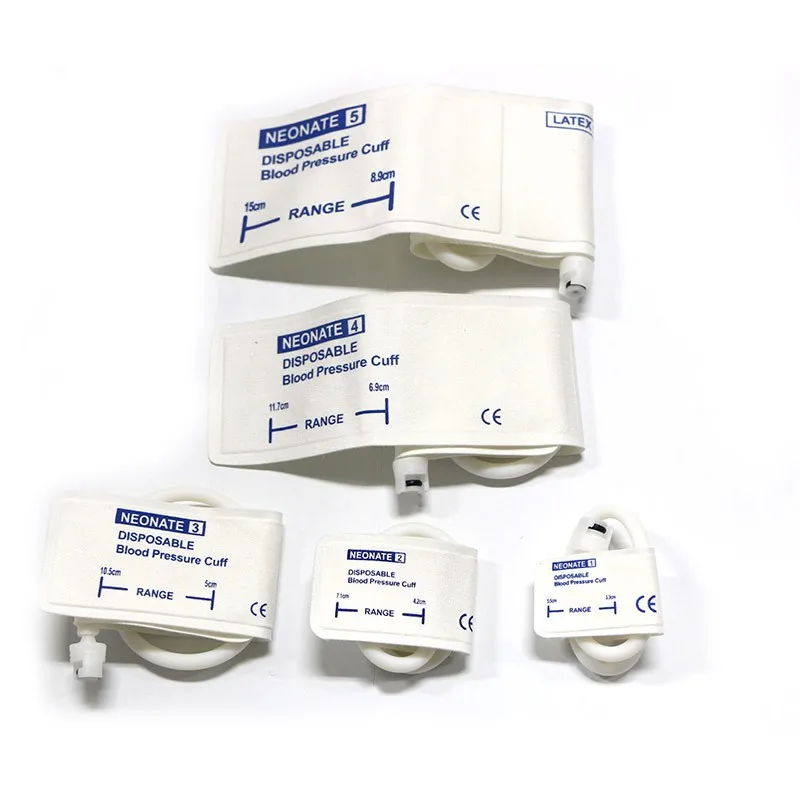

Disposable NIBP Cuff, 1set, 5pcs























NIBP Tube

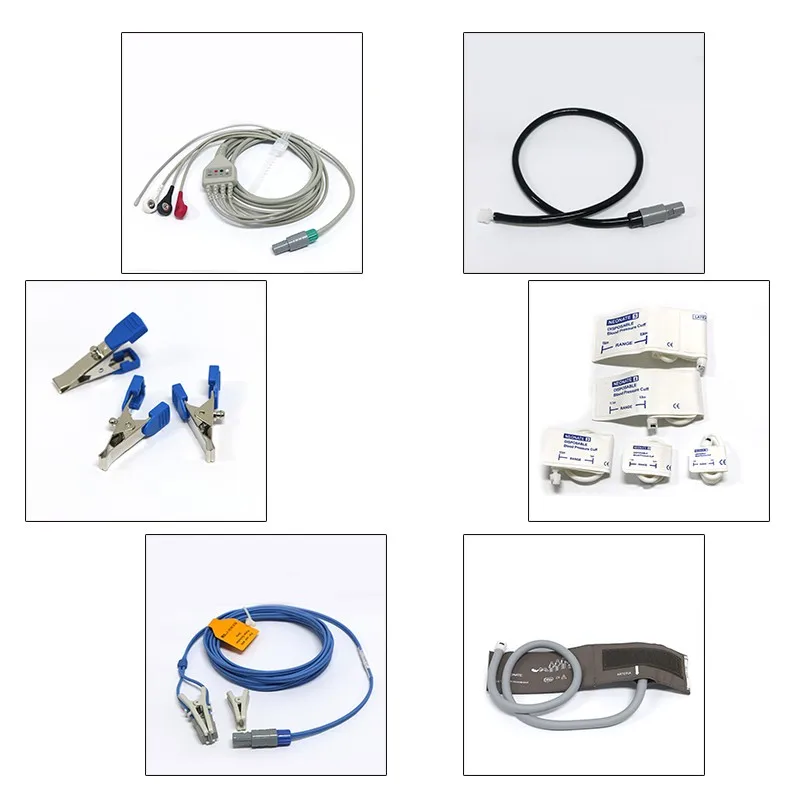

All Accessories for 1 set AM6100

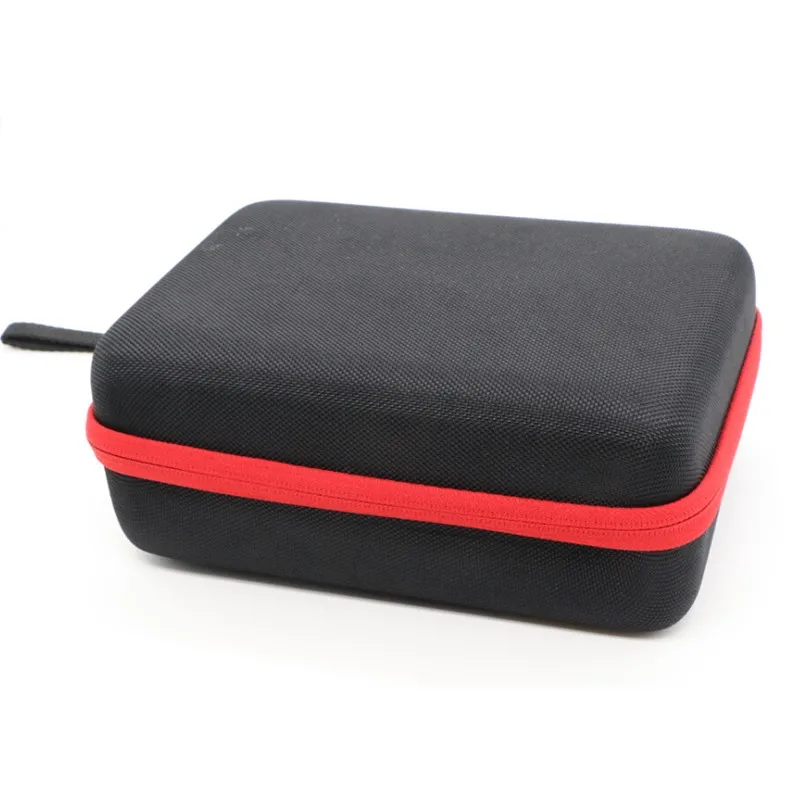

All the accessories into 1 carry case










Specification

Specification























































SpO2


Detection scope: 35%-100%
Accuracy: ±2% 80%-100%
                   ±3% 70%-79%


Heart rate


Scope: 15bpm to 300bpm
Accuracy: ±1bpm



NIBP


Detection scope:
Systolic blood pressure: 4kPa-34kPa(30-255mmHg)
Diastolic pressure: 2kPa-29.3kPa(15-220mmHg)
Mean pressure: 2.7kPa-31.3kPa(20-235mmHg)
Detection accuracy: Static pressure:±4mmHg


ECG


Waveform: Lead I
Band width 0.05Hz-100Hz(3dB) diagnose mode
1-40Hz monitor mode
0.1-25Hz operation mode


Resp


/


Temp


Type: Vascular/surface temperature
Scope: 20℃-50℃
Accuracy: ±0.2℃



Built-in-Battery


3.7V,1800mAh lithium battery


Service life


3 years


Size


145mm*85mm*37mm


Weight


240g


Display


2.4 inch color TFT LCD


Key


Power on and perform functions







APP Quick Guide

APP Quick Guide




PET MONITOR







1.Search "Pet Monitor" or "Berry Monitor for pad"app on the Google play. And Register an account
2.Launch SpO2/NIBP/ECG/TEMP
3. Display the results on the screen.




















Free App




Connect with Android Pad and Phone






Android Pad










Clinic Use

Clinic Use
























Packing & Delivery

Packing & Delivery











1 SET into 1 Black Carry Case, G.W: 1.5KG/Set   28*19*16CM


5 sets into 1 exporting Carton, G.W.: 6.0KG    46*26*21CM


10 sets into 1 exporting Carton, G.W.: 11KG  53*47*21CM


20 sets into 1 exporting Carton, G.W.: 22KG   47*44*43CM





Delivery Time: 15 days for 100 units for reference.
