Veinasa GF 2 Higher accuracy Sensor Remote Monitoring System Photovoltaic Weather Station
- Category: >>>
- Supplier: Sichuan Weinasa Technology Co. Ltd.
Share on (62006577870):
Product Overview
Description

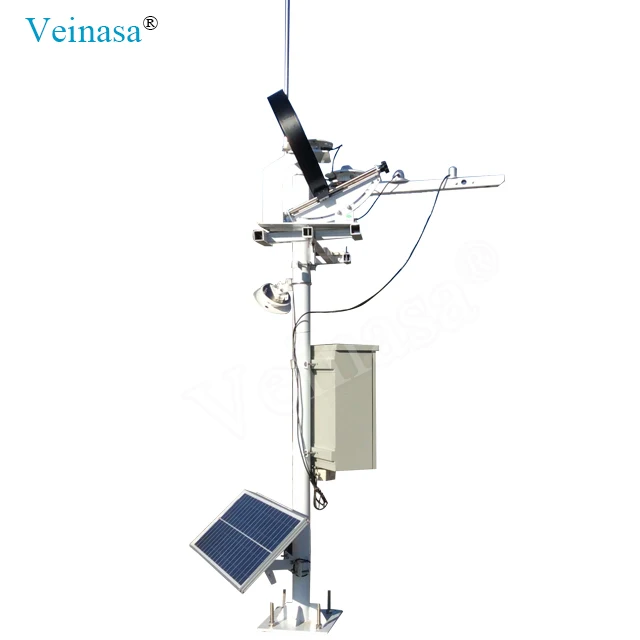

Veinasa-GF-2 Higher-accuracy Sensor Remote Monitoring System Photovoltaic Weather Station
Products Description
Veinasa-GF-2 Higher-accuracy Sensor Remote Monitoring System Photovoltaic Weather Station is specifically designed for solar photovoltaic mounting system, providing comprehensive environmental monitoring solution for users with a variety of sensors.

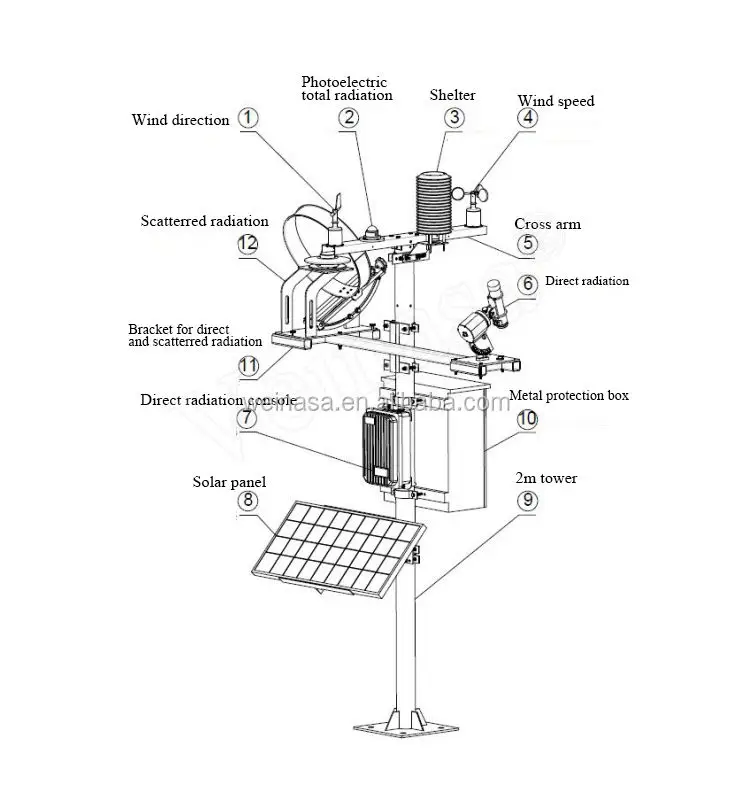

What sensors parameters including of Veinasa-GF-2 Meteorological Data Collector Weather Station Photovoltaic Systems:
1. Wind speed sensor
2. Wind direction sensor
3. Photoelectric total radiation sensor
4. Small louver box and built-in sensor
5. Scattered radiation sensor
6. Direct radiation sensor
7. Direct radiation sensor controller
8. Data acquisition instrument
9. Metal protective box
10. Solar panels
For above sensors, customers can configure according to their actual situation. Please refer to the manual of the automatic weather station for the specific working principle of the sensor.
What sensors parameters including of Veinasa-GF-2 Meteorological Data Collector Weather Station Photovoltaic Systems:
1. Wind speed sensor
2. Wind direction sensor
3. Photoelectric total radiation sensor
4. Small louver box and built-in sensor
5. Scattered radiation sensor
6. Direct radiation sensor
7. Direct radiation sensor controller
8. Data acquisition instrument
9. Metal protective box
10. Solar panels
For above sensors, customers can configure according to their actual situation. Please refer to the manual of the automatic weather station for the specific working principle of the sensor.
Configuration List
Temperature,humidity,barometer | pcs | 1 | Built-in anti-rain and anti-UV corrosion of the veranda, measuring air temperature, humidity | |||
Wind speed | pcs | 1 | ||||
Wind direction | pcs | 1 | Wind cup style, measuring the size of wind speed level | |||
Scattering radiation | pcs | 1 | Tail-wing style , measuring the direction of the wind | |||
Total radiation | pcs | 1 | Thermopile reactor, Radiometer | |||
Direct radiation | pcs | 1 | Tipping, measuring the size of the ground rainfall | |||
Meteorological data collector | ||||||
Meteorological data collector and software | set | 1 | Multichannel port, LCD display, timing storage, parameter setting, power-down protection. Complete sets of special software (query, analysis, download and other functions) | |||
Power supply system | ||||||
220V power supply | set | 1 | 220V power supply | |||
Solar power supply | set | 1 | 30W solar panels, 40Ah battery, charge and discharge controller | |||
Communication system | ||||||
RS485/232 | set | 1 | RS-485/232 | |||
Mounting bracket attachment | ||||||
3.5m eters | set | 1 | 3.5 m triangular stainless steel bracket | |||
Standard weather main chassis | set | 1 | Built-in partitions, fixed plate, external locks, waterproof | |||
Other accessories | set | 1 | Venetian boxes, cross arm, sensor bracket and other hardware | |||
Product Display
Veinasa-GF-2 Higher-accuracy Sensor Remote Monitoring System Photovoltaic Weather Station with the help of accurate real-time data and our online weather station portal, users can evaluate the efficiency of solar photovoltaic mounting system more conveniently and comprehensively.
What's the Key Features of Meteorological Data Collector Weather Station Photovoltaic Systems?
I. Accurate real-time and historical data enables more comprehensive evaluation of system performance
II. Compatible with data acquisition devices with simple configuration, it reduce installation and maintenance costs
III. Visualized sensor data via web portal for easy understanding
IV. Remote monitoring and management via online portal, immediate identification of defects and malfunctions
V. Standard sensors for general demands, and optional higher-accuracy sensors for more demanding projects
What's the Key Features of Meteorological Data Collector Weather Station Photovoltaic Systems?
I. Accurate real-time and historical data enables more comprehensive evaluation of system performance
II. Compatible with data acquisition devices with simple configuration, it reduce installation and maintenance costs
III. Visualized sensor data via web portal for easy understanding
IV. Remote monitoring and management via online portal, immediate identification of defects and malfunctions
V. Standard sensors for general demands, and optional higher-accuracy sensors for more demanding projects
Core Advantage
Veinasa-GF-2 Higher-accuracy Sensor Remote Monitoring System Photovoltaic Weather Station ,the above picture shows us the process of weather station data transmission as well as our weather station's application field.
This is professional weather station manufacturer/factory. What we bring you?
1. Rooted in meteorological field over 10+ years
2. Experienced and professional R&D team
3. Every Products verified by CE, ROHS, tested by professional testing institute with Calibration Report.
4. Perfect after-sale service (replied in 24 hours), OEM and customization available
5. 5 years' on-site installation, training and technical support experience in various cases;
6. 30+ patents obtained
This is professional weather station manufacturer/factory. What we bring you?
1. Rooted in meteorological field over 10+ years
2. Experienced and professional R&D team
3. Every Products verified by CE, ROHS, tested by professional testing institute with Calibration Report.
4. Perfect after-sale service (replied in 24 hours), OEM and customization available
5. 5 years' on-site installation, training and technical support experience in various cases;
6. 30+ patents obtained
Application case
Veinasa-GF-2 Higher-accuracy Sensor Remote Monitoring System Photovoltaic Weather Station is use for many fields. In the last year, we provide our client with both standard and custom solutions, and we have completed 99 Big Sale Digital Weather Station GSM Professional WIFI Automatic Wireless Weather Station.
·What kind of weather station system available?
I. Standard Weather Station for School Research
II. Agricultural Weather Station for Greenhouse Plant, Farm, Forest Monitoring
III. Automatic Rain gauge Station for flood prevention
IV. Soil Health Monitoring station for Farm irrigation
V. Roadway Early Warning Station for Road Condition
VI. Dam Water Level Station for Dam or reservoir monitoring
VII. Solar power generation station for energy industry
·What kind of weather station system available?
I. Standard Weather Station for School Research
II. Agricultural Weather Station for Greenhouse Plant, Farm, Forest Monitoring
III. Automatic Rain gauge Station for flood prevention
IV. Soil Health Monitoring station for Farm irrigation
V. Roadway Early Warning Station for Road Condition
VI. Dam Water Level Station for Dam or reservoir monitoring
VII. Solar power generation station for energy industry
More Products
Company Information
FAQ
Q: Are you a factory/manufacturer?
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used soil sensor TR-TS.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol. If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this sensor?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What’s the standard cable length?
A: Its standard length is 2m. But it can be customized.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol. If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this sensor?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What’s the standard cable length?
A: Its standard length is 2m. But it can be customized.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
