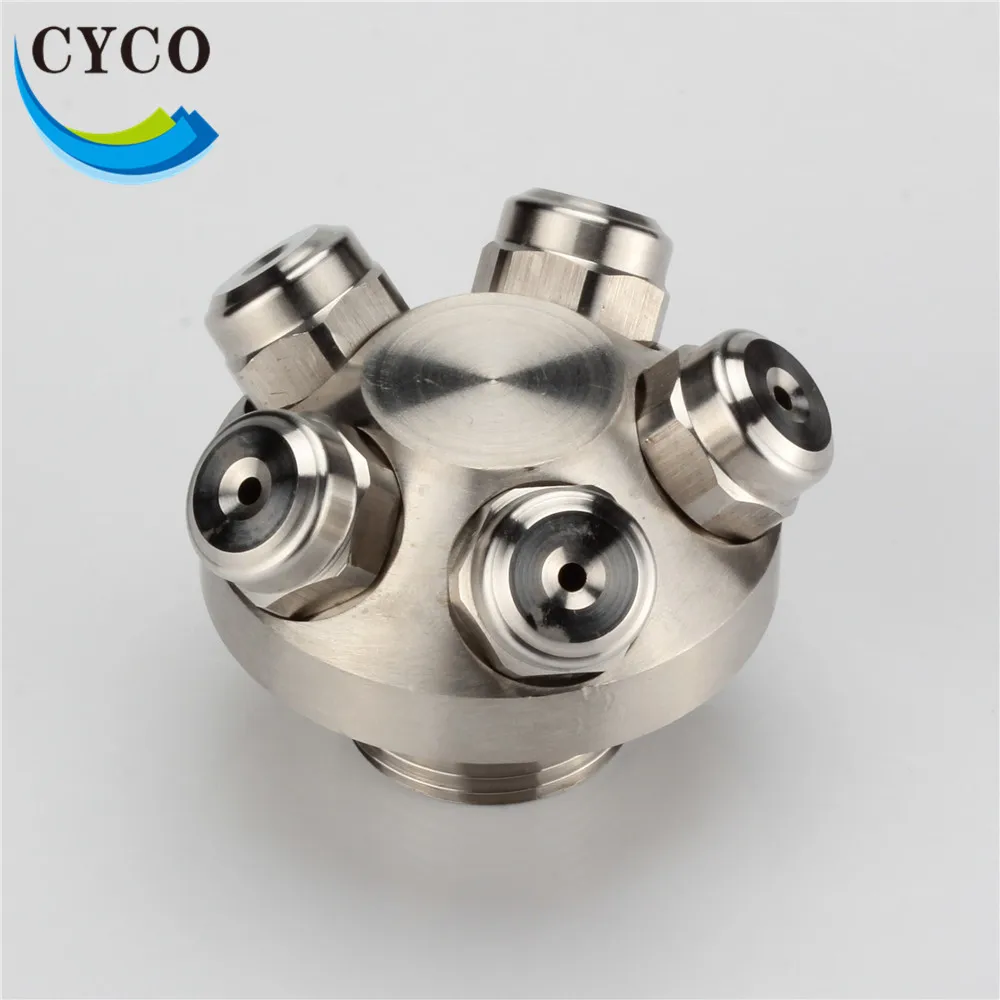

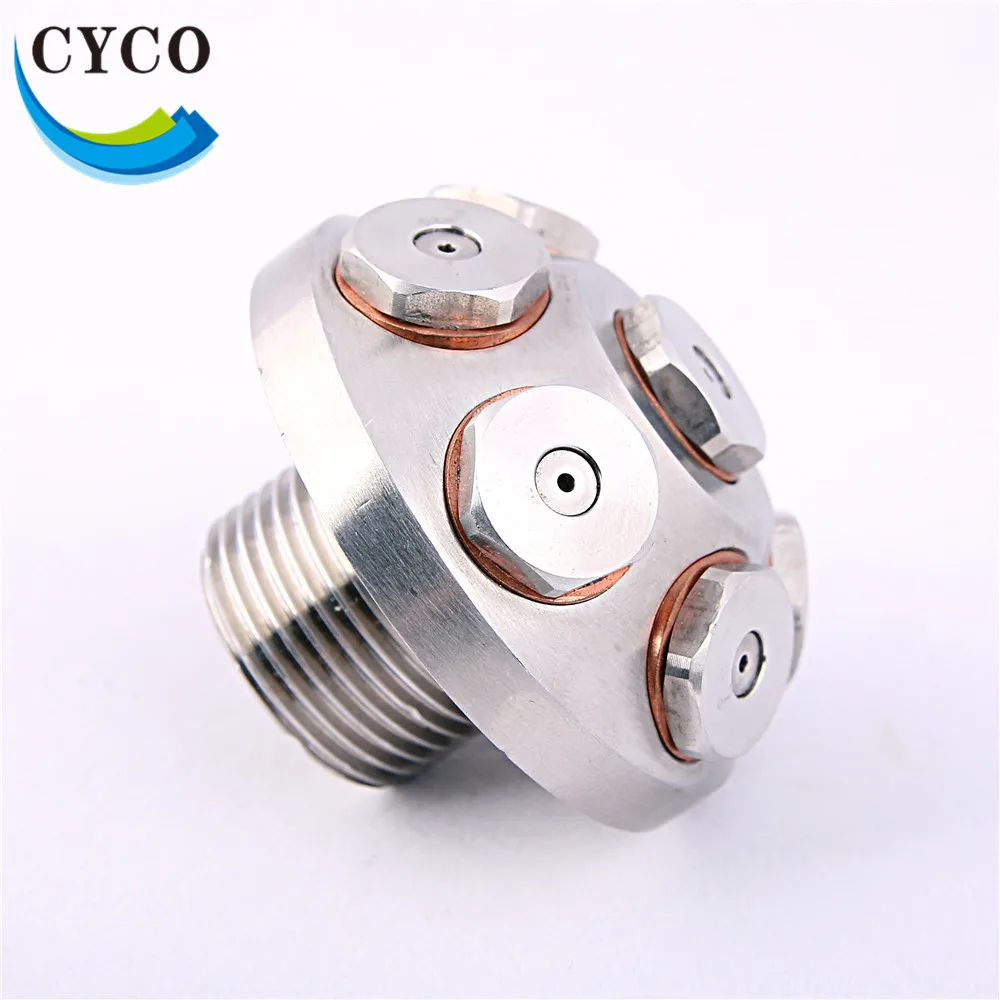

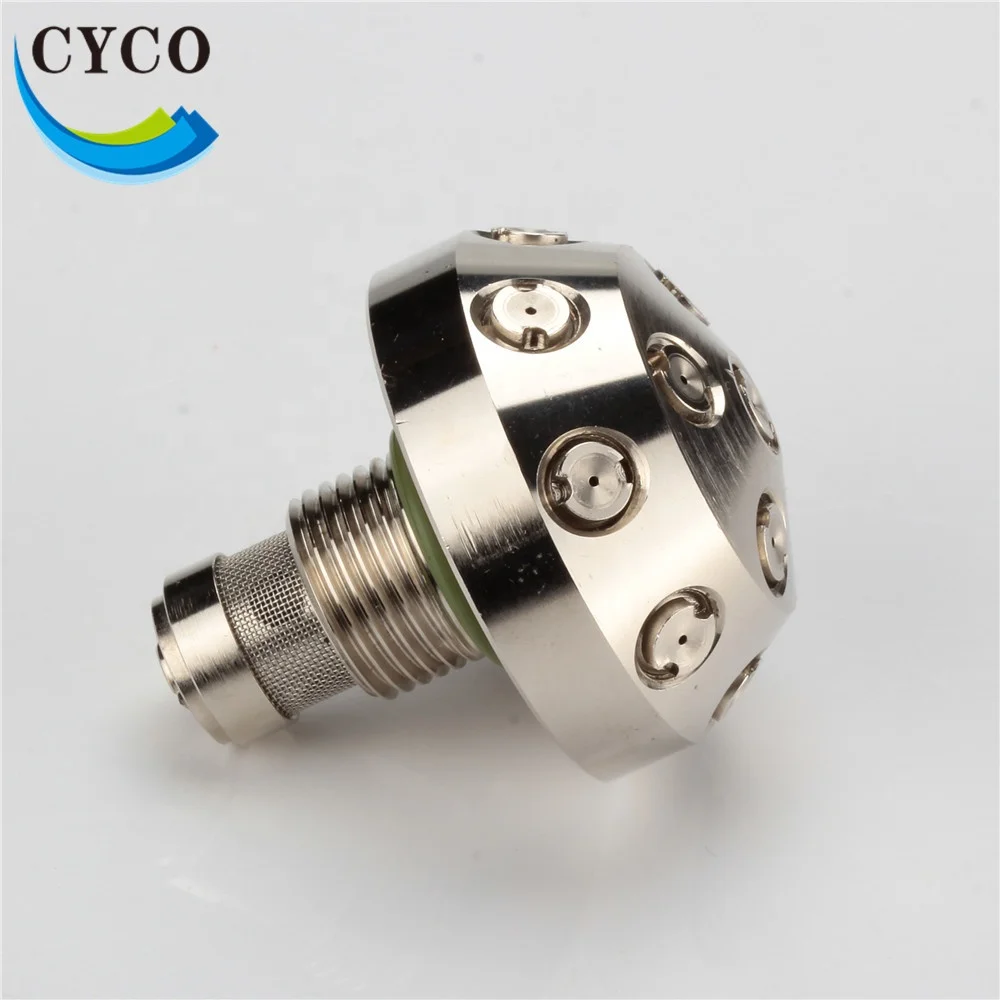

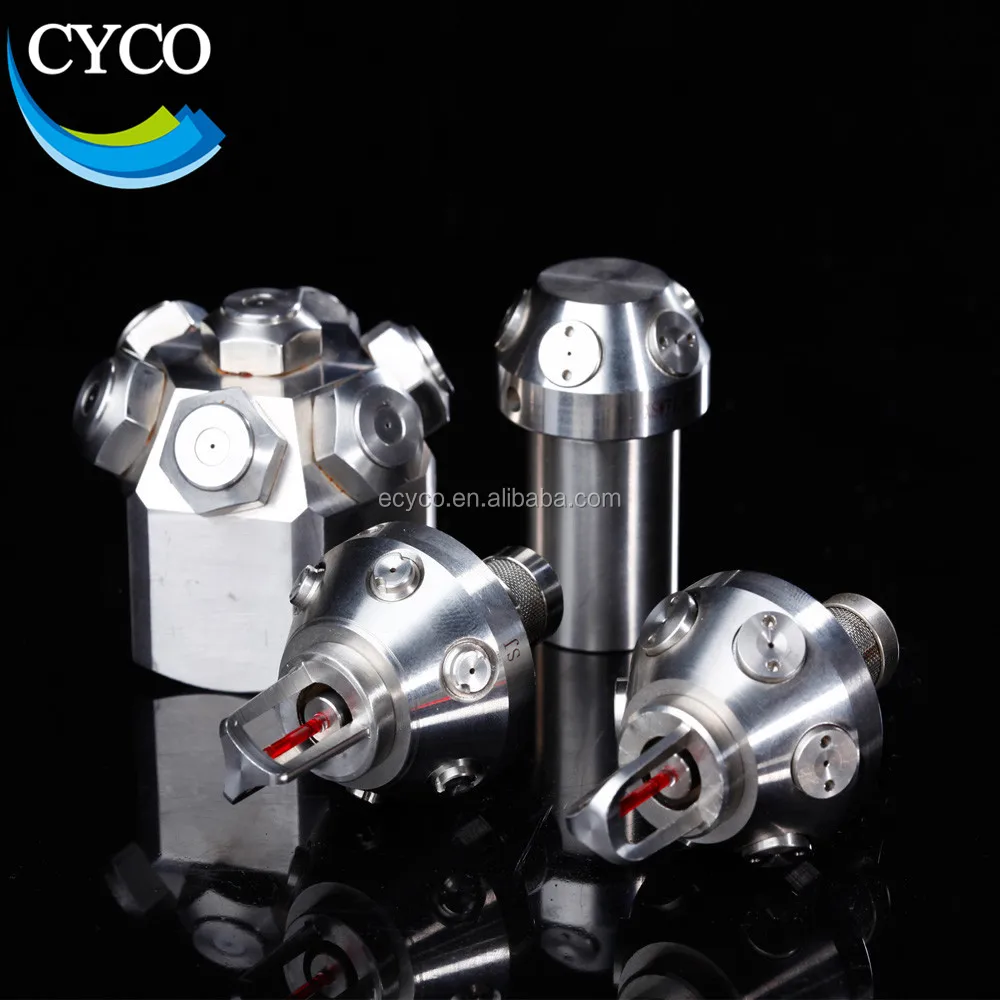

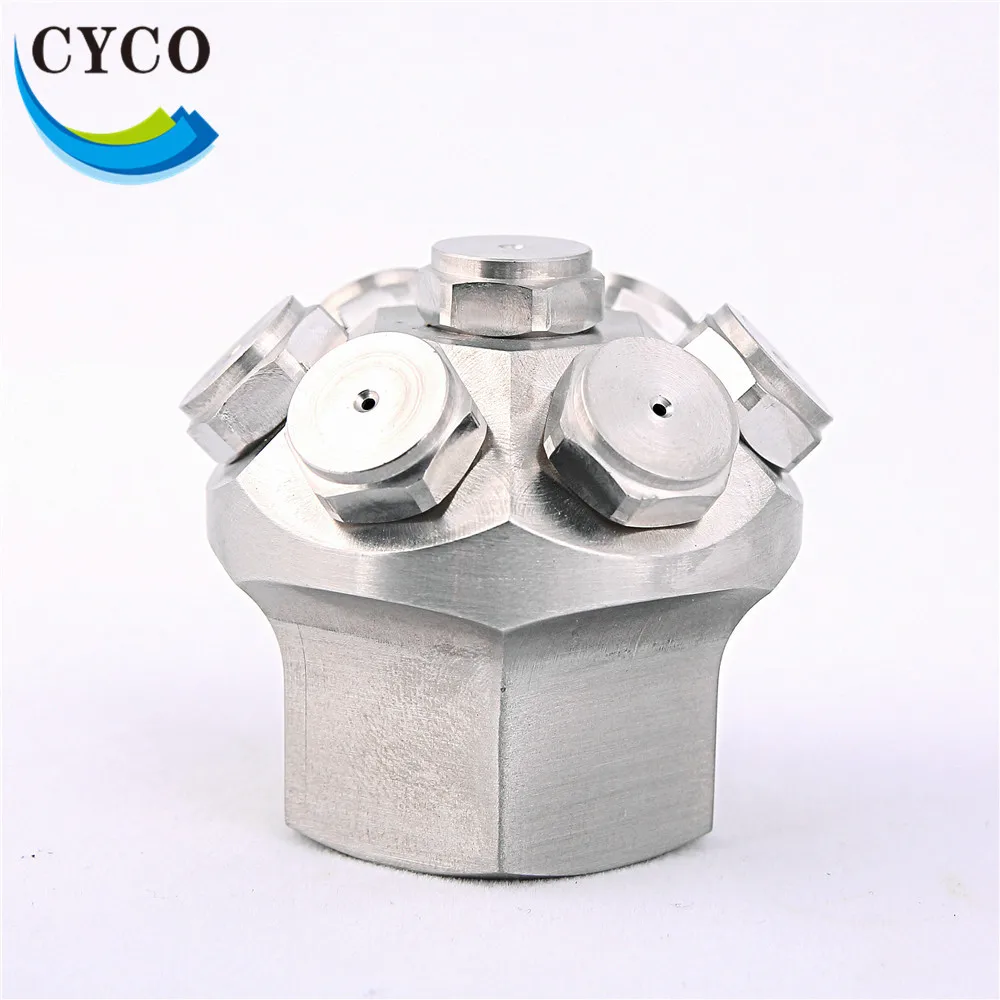

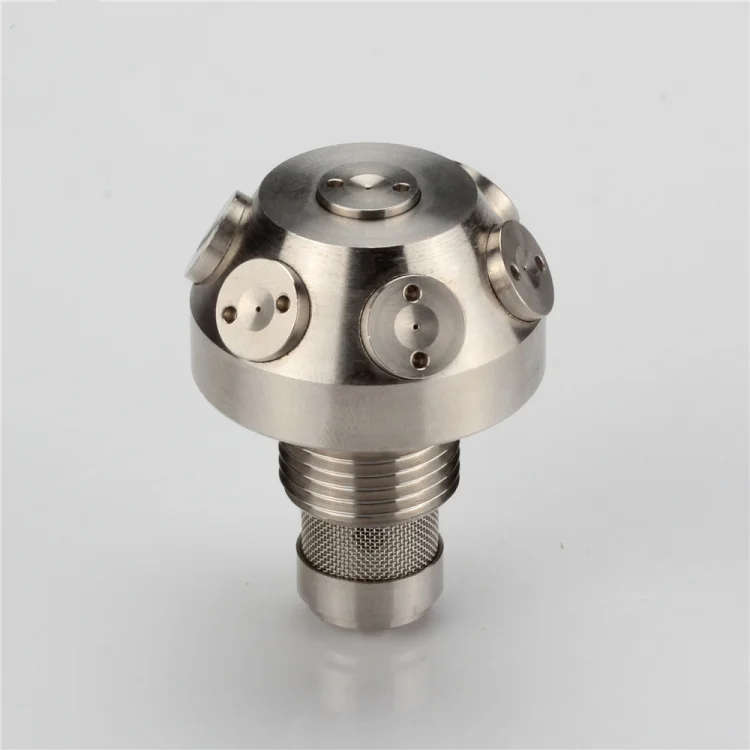

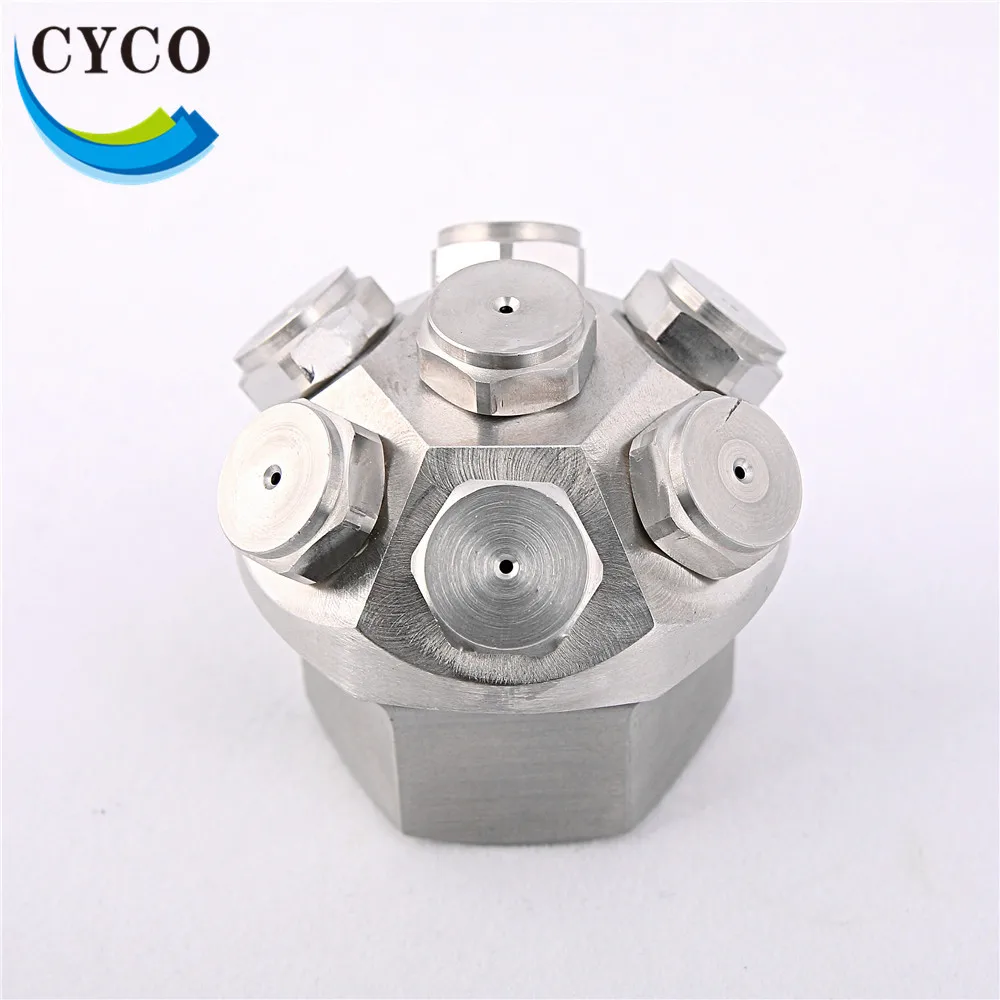

Closed Open High Pressure Water Mist Nozzles For Fire fighting
Product Description

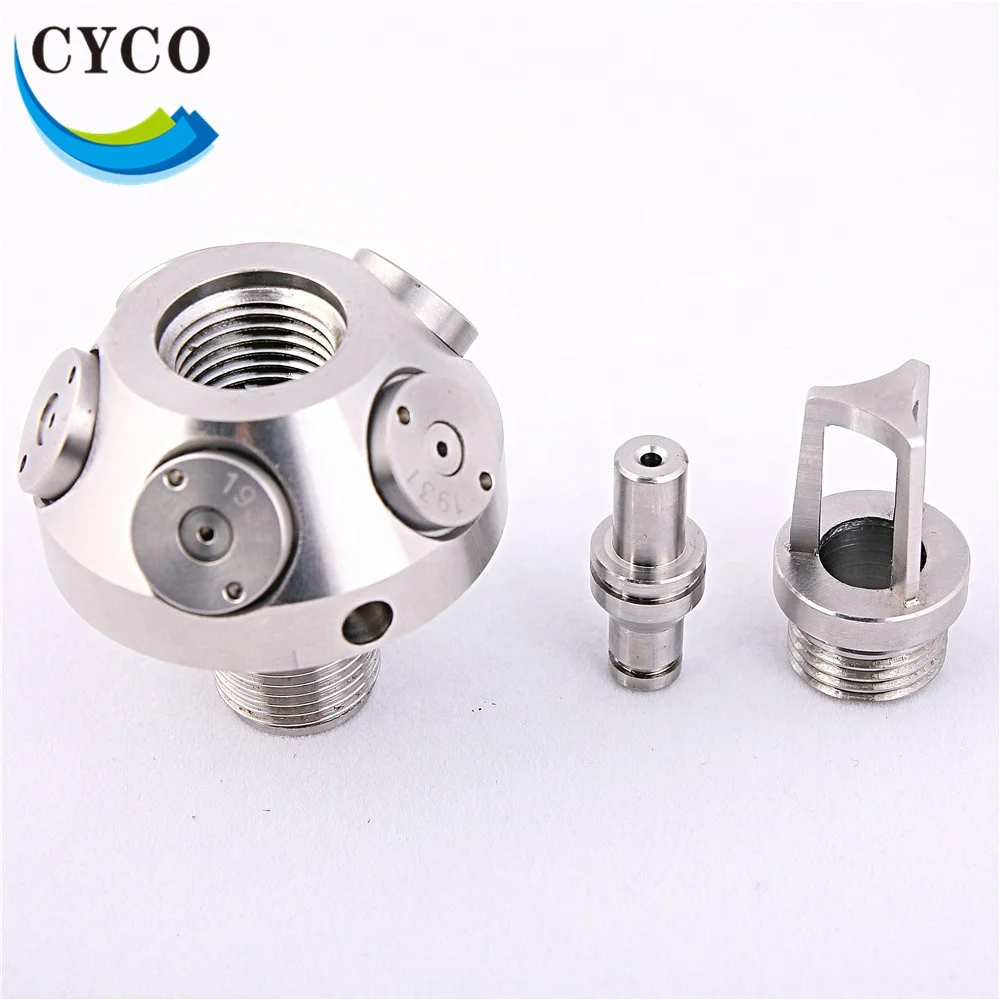

Design Features • Used in high pressuer water mist system for fire suppression • Major parts include nozzle body, nozzle tips, whirl core, spray orifice, strainer mesh • High operating pressure (8~15MPa) • Very fine atomizing droplets (Dv0.99≤200μm), Class I water mist • Good dispersion effect • Fog-like droplets remain in air for long time • Less water consumption Spray Characteristics: • Spray pattern: Full Cone • Spay angles: 120°(other angles optional) • Operating pressure: 8~15MPa • K-factors: 0.5 to 3.5, can be customized as your request Ordering Information:Contact us for more information
COMMON APPLICATIONS Used in high pressure water mist system for fire suppression.
Material available: 316SS, Brass (Chrome plated) Operating Pressure: 8~15Mpa K-factor: 0.5 ~3.5, can be customized as your request Strainer: 40 mesh, 120 mesh, 200 mesh Class I water mist: Dv0.5≤100μ,Dv0.99<200μ
