Product Overview

Description


Product Description

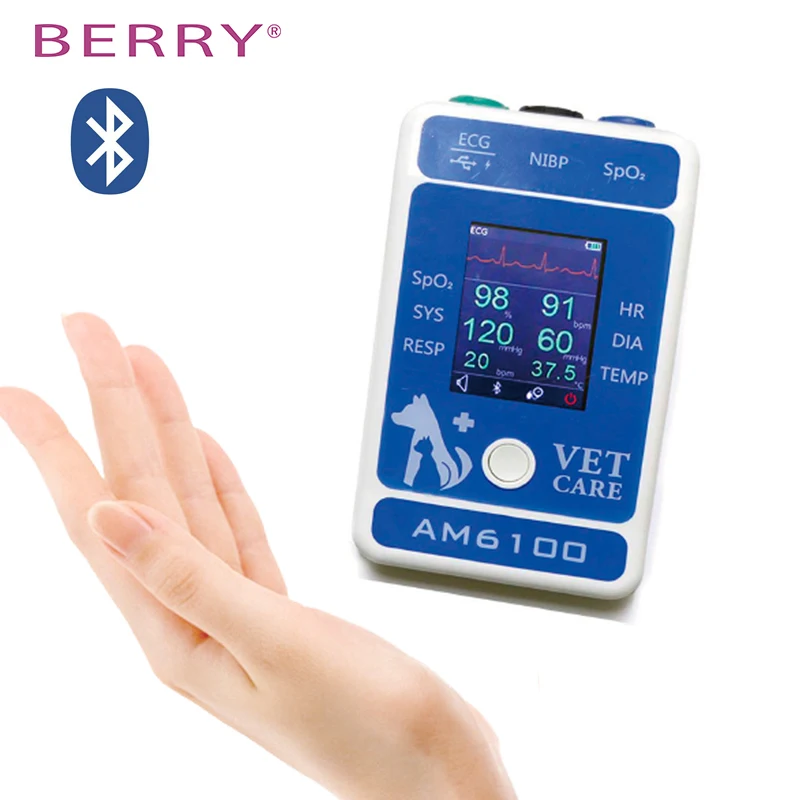

AM6100 is 6 vital sign veterinary monitor, for cat and dogs like.

Monitoring 6 vital signs: spo2, PR, NIBP, ECG, Resp, Temp.
Free App can be download at google play for Android pad and android phone, named: Pet Monitor.
Support Bluetooth BLE 4.0 & 3.0, And the data is transmit from device to App via Bluetooth/serial port. Can active the device via physical button or on App.
Small, lightweight, it is simple to operate and easy to carry.
Rechargeable Lithium-ion Battery support continuously working 12 hours.

Used at home and in hospitals, it can be freely combined with other medical devices, which can greatly improve the level and function of primary medical products and provide excellent platform for the improvement of pet treatment and management level.

Detailed Images

Veterinary Monitor

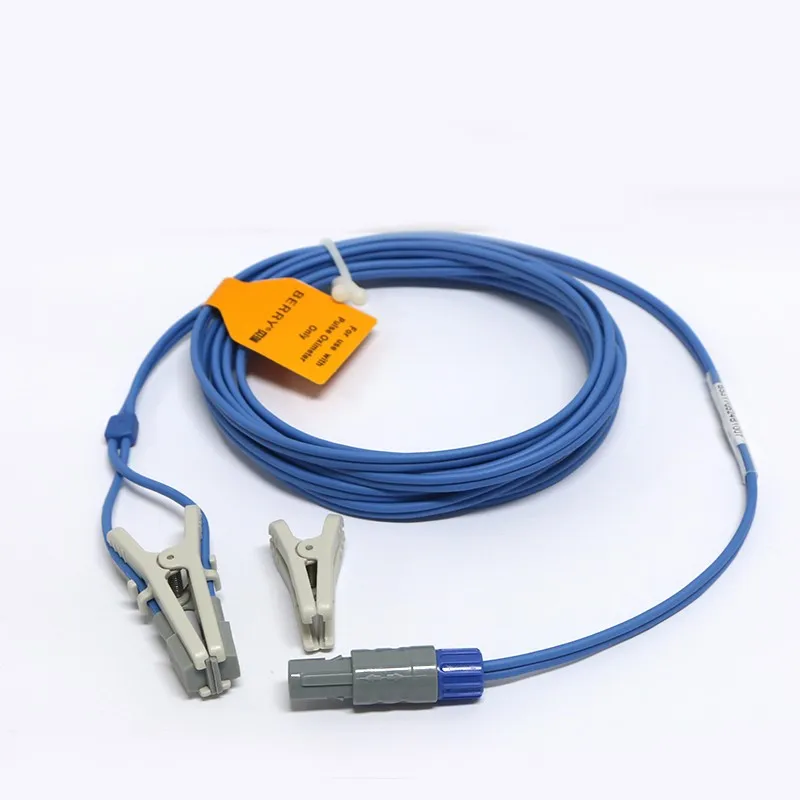

Ear clip spo2 sensor with 1 changeable tongue clip

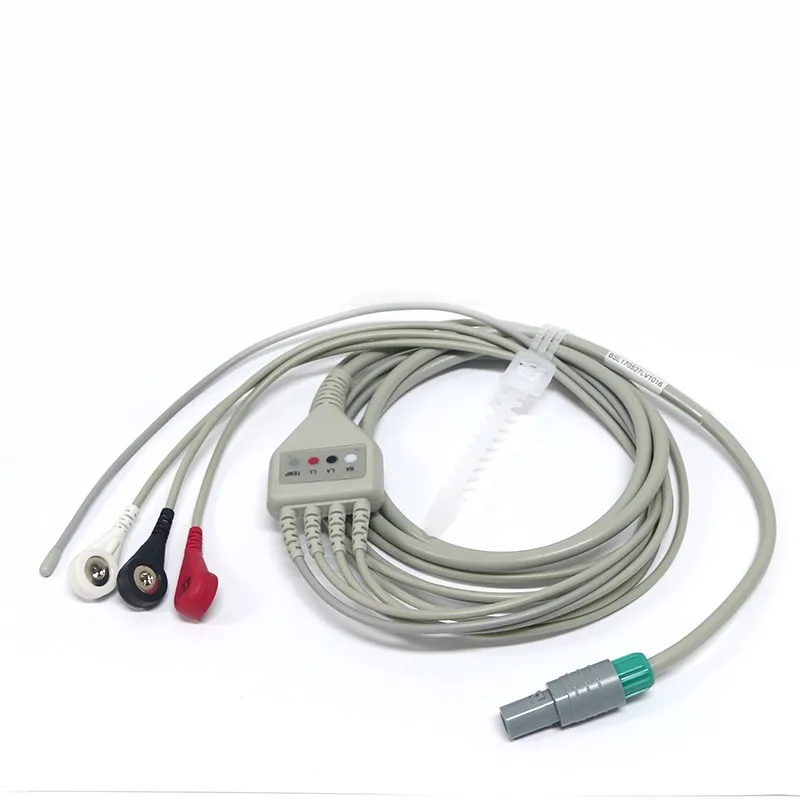

ECG Cable, built together with rectal temperature sensor

ECG Clap

Reusable NIBP Cuff

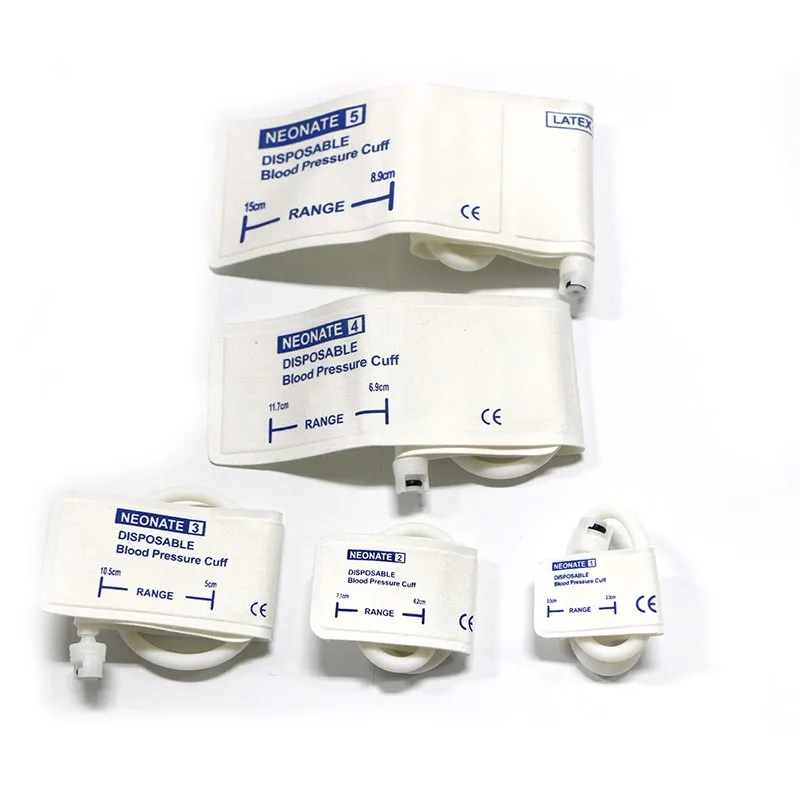

Disposable NIBP Cuff, 1set, 5pcs

NIBP Tube

All Accessories for 1 set AM6100

All the accessories into 1 carry case

Specification
\t
SpO2
\t
Detection scope: 35%-100%
Accuracy: ±2% 80%-100%
                   ±3% 70%-79%
\t
Heart rate
\t
Scope: 15bpm to 300bpm
Accuracy: ±1bpm

\t
NIBP
\t
Detection scope:
Systolic blood pressure: 4kPa-34kPa(30-255mmHg)
Diastolic pressure: 2kPa-29.3kPa(15-220mmHg)
Mean pressure: 2.7kPa-31.3kPa(20-235mmHg)
Detection accuracy: Static pressure:±4mmHg
\t
ECG
\t
Waveform: Lead I
Band width 0.05Hz-100Hz(3dB) diagnose mode
1-40Hz monitor mode
0.1-25Hz operation mode
\t
Resp
\t
/
\t
Temp
\t
Type: Vascular/surface temperature
Scope: 20℃-50℃
Accuracy: ±0.2℃

\t
 Bluetooth
\t
Support both Bluetooth 3.0 and BLE 4.0
\t
Built-in-Battery
\t
3.7V,1800mAh lithium battery
\t
Service life
\t
3 years
\t
Size
\t
145mm*85mm*37mm
\t
Weight
\t
240g
\t
Display
\t
2.4 inch color TFT LCD
\t
Key
\t
Power on and perform functions
APP Quick Guide

PET MONITOR


1.Search "Pet Monitor" or "Berry Monitor for pad"app on the Google play. And Register an account
2.Launch SpO2/NIBP/ECG/TEMP
3. Display the results on the screen.

Free App

Connect with Android Pad and Phone

Android Pad

Clinic Use
Packing & Delivery


1 SET into 1 Black Carry Case, G.W: 1.5KG/Set   28*19*16CM

5 sets into 1 exporting Carton, G.W.: 6.0KG    46*26*21CM

10 sets into 1 exporting Carton, G.W.: 11KG  53*47*21CM

20 sets into 1 exporting Carton, G.W.: 22KG   47*44*43CM


Delivery Time: 15 days for 100 units for reference.
