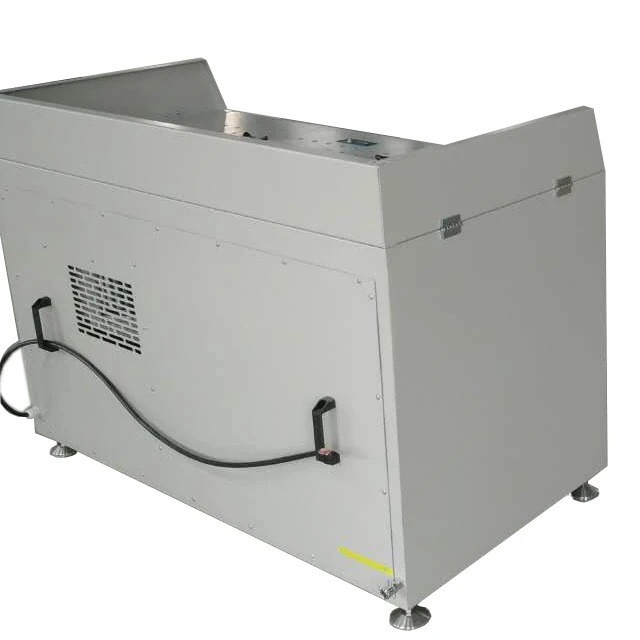

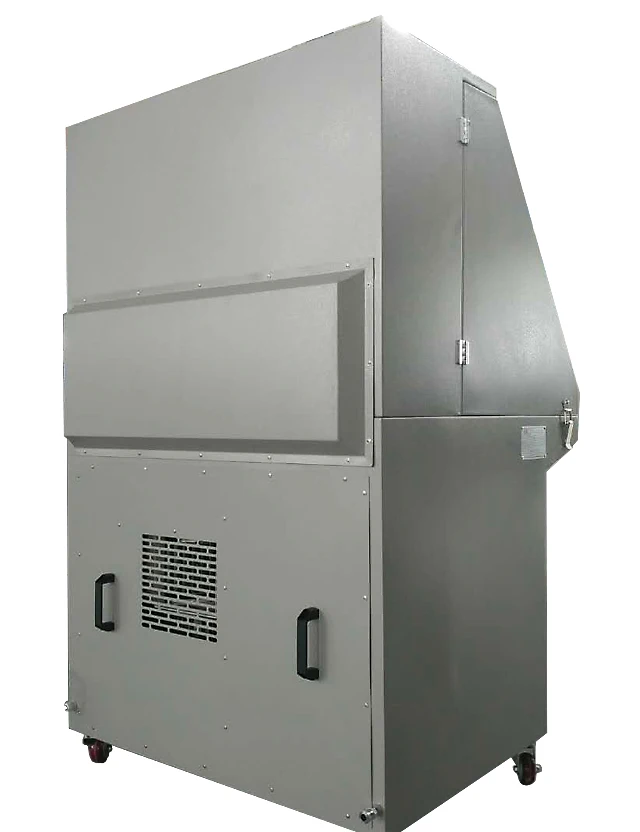

Dust clean table | magnetic electromagnetic grinding table | sanding downdraft mesa
- Category: >>>
- Supplier: Jinan Huaxin Automation Engineering Co. Ltd.
Share on (62006656855):
Product Overview
Description
Product Description
Product Application

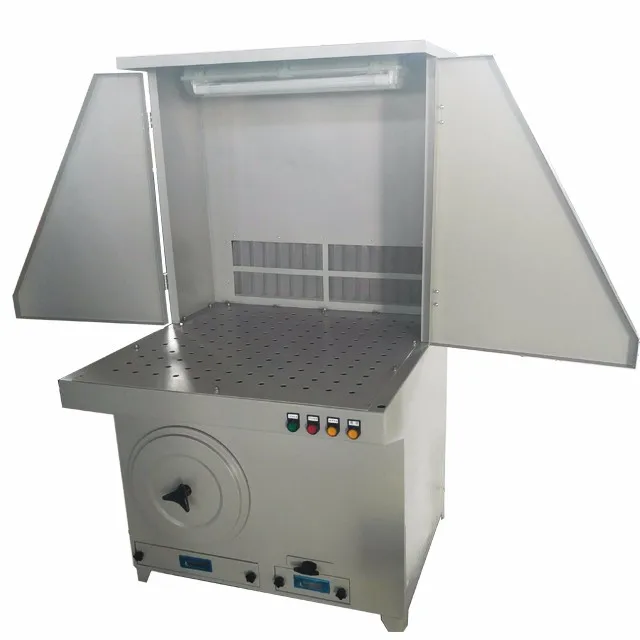

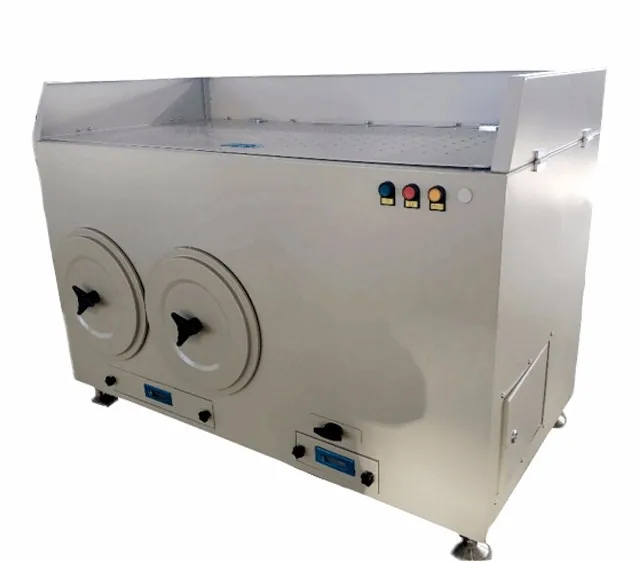

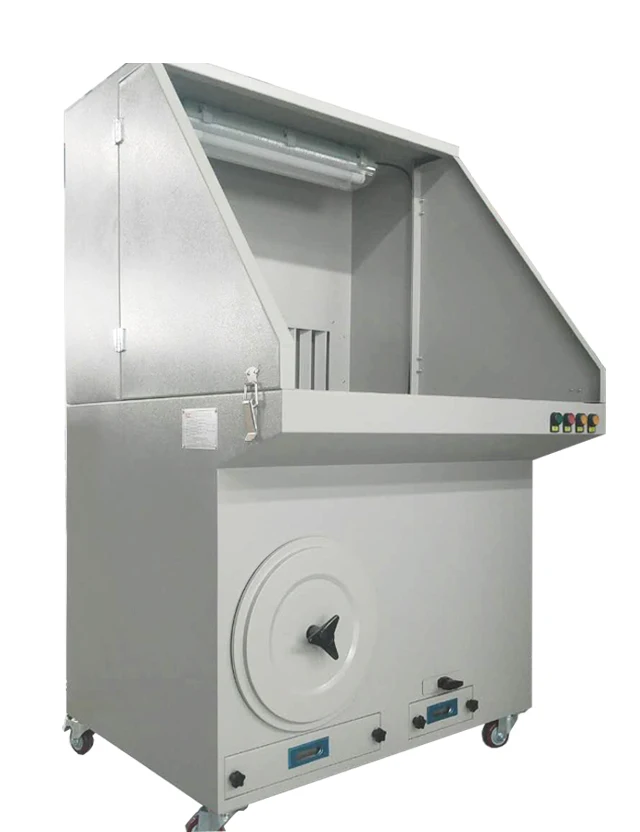

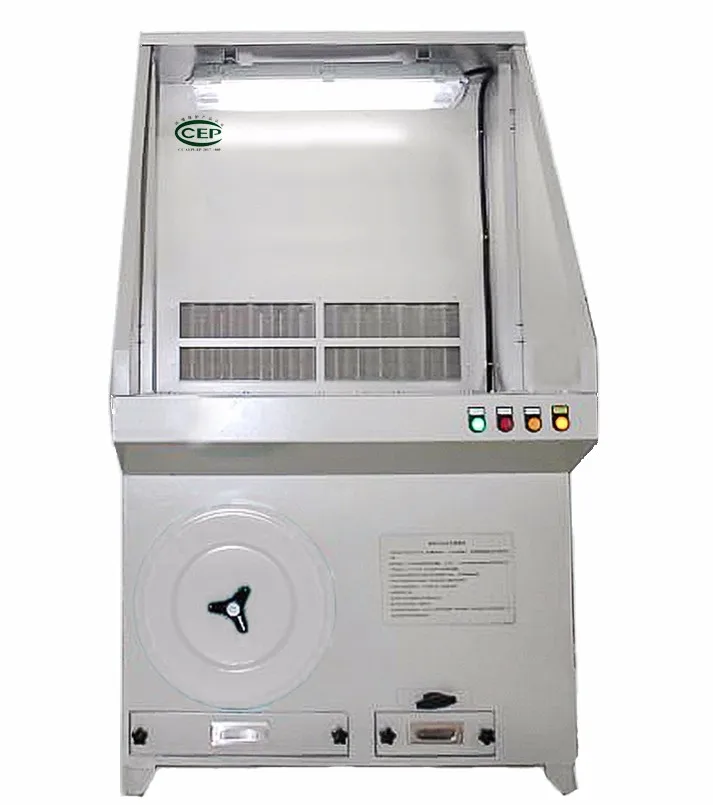

HXZDM series dust clean table with automatcic pulse cleaning sysytem,suit to dust filtration and dust collection for grinding,cutting,sanding,pulishing,turning, etc.
| Modle | HXZDM-80 | Airflow | 3500m3/h |
| Min particle size | 0.3μm(customizable) | Brand Name | HUAXIN |
| Condition | Electricity | Filtration efficiency | 99.9% |
| Power | 3kW | Dimension | 1000x1100x1600mm |
| Voltage | Customizable | Weight | 200KGS |
| Noise | 80dB(A) | Main filter | Filter cartridge |
| Cleaning way | Auto-pulse jet cleaning | Filter material area | 6.5m² |
| Modle | HXZDM-100 | Airflow | 3500m3/h |
| Min particle size | 0.3μm(customizable) | Brand Name | HUAXIN |
| Condition | Electricity | Filtration efficiency | 99.9% |
| Power | 3kW | Dimension | 1300x700x1200mm |
| Voltage | Customizable | Weight | 180KGS |
| Noise | 80dB(A) | Main filter | Filter cartridge |
| Cleaning way | Auto-pulse jet cleaning | Filter material area | 13m² |
Main Features
1) Material: 2MM Carbon steel or stainless steel
2) Installed with pulse valves and control system
3) Famous Brand Electrical Appliances,ABB switch,Intelligent Control System, Safety and Durability
4) Overcurrent, overheat, overload and power supply phase-out protection. Make sure the electrical system is almost never damaged.
5) Strict welding and painting technology achieve to high tightness and corrosion resistance cabinet. Equipment with specialized sound absorption material, can reduce running noise, to achieve it work in low noise and high efficiently.
6) Three-layer filtration system,three-layer filtration system with high safety and precision.Built-in fireproof network, with the function of filtering large particles and preventing sparks from entering the filter chamber.
7) Dust removal filter element, abandoning the traditional cellulose filter paper or polyester fiber non-woven fabric with larger aperture and lower filtration precision, chooses new nano-fiber surface filter material, which has fine and good air permeability. There is also a layer of PTFE film imported from Japan on the surface. The dust filtration accuracy can reach 0.3 micron, and it can effectively screen and block over 99.99% of welded fume dust through flue gas. Not only that, the new filter material is also easy to clean ash, and has twice as long service life as the traditional filter material
8) Support for various upgrades and customizations.
9) Large inhalation, good purification effect.Two buckets.Perfect design, very easy to use.

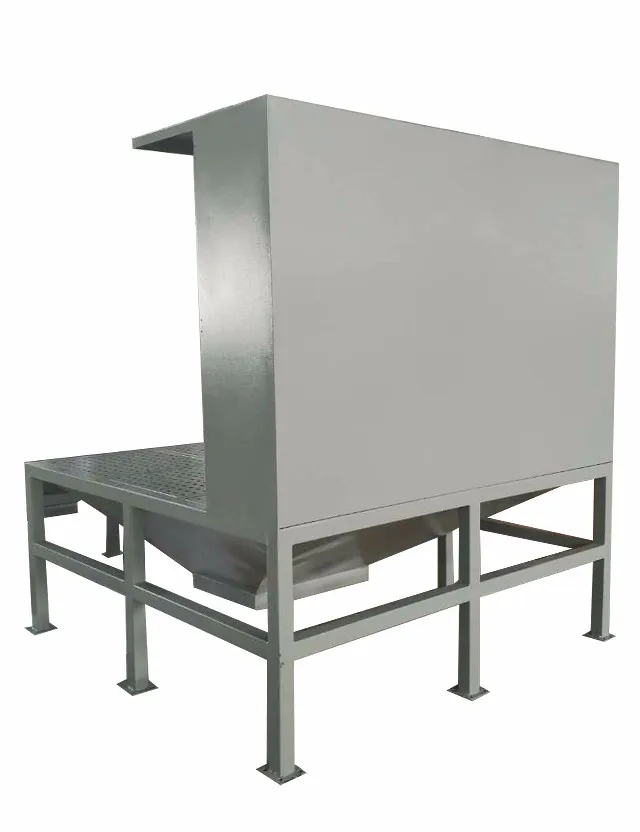

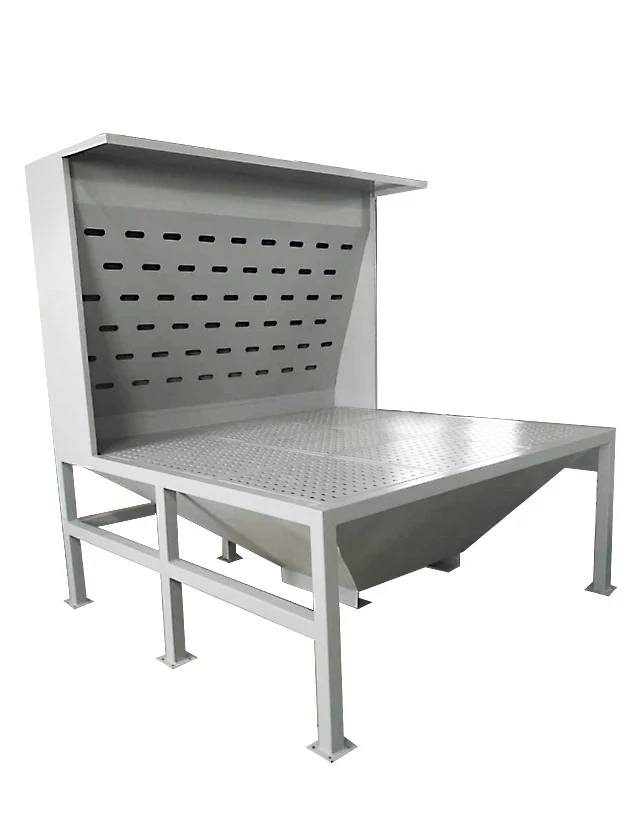

There is also a grinding table used with the centralized dust removal system,support size customization
Certifications
Detailed Images
Machine Parts

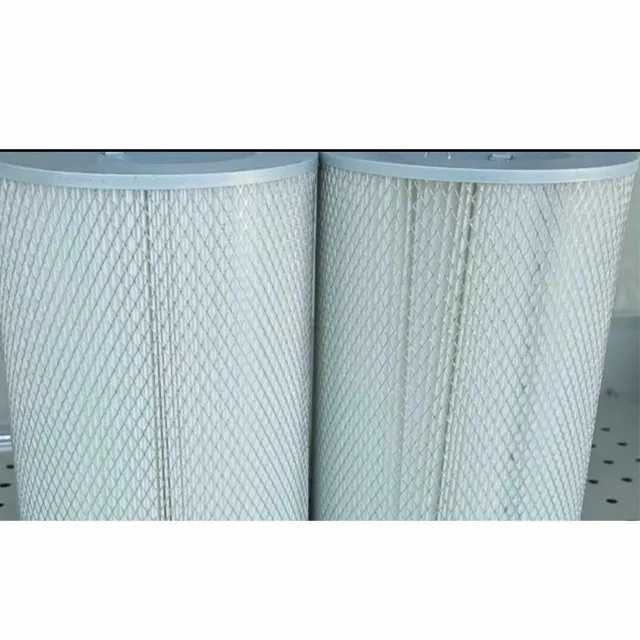

Name: Filter cartridge
Brand: HUAXIN
Original: China
Dust removal filter element, abandoning the traditional cellulose filter paper or polyester fiber non-woven fabric with larger aperture and lower filtration precision, chooses new nano-fiber surface filter material, which has fine and good air permeability. There is also a layer of PTFE film imported from Japan on the surface. The dust filtration accuracy can reach 0.3 micron, and it can effectively screen and block over 99.99% of welded fume dust through flue gas. Not only that, the new filter material is also easy to clean ash, and has twice as long service life as the traditional filter material.
Main Features

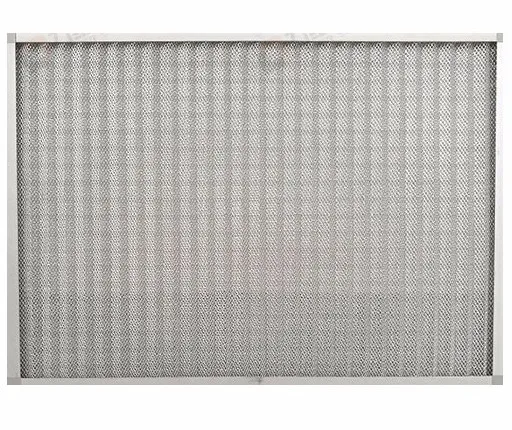

Name: Fireproof filter
Brand: HUAXIN
Original: China
Built-in fireproof network, with the function of filtering large particles and preventing sparks from entering the filter chamber.
Machine Parts
Name: Intelligent electronic control combination system
Brand:HUAXIN
Original: China

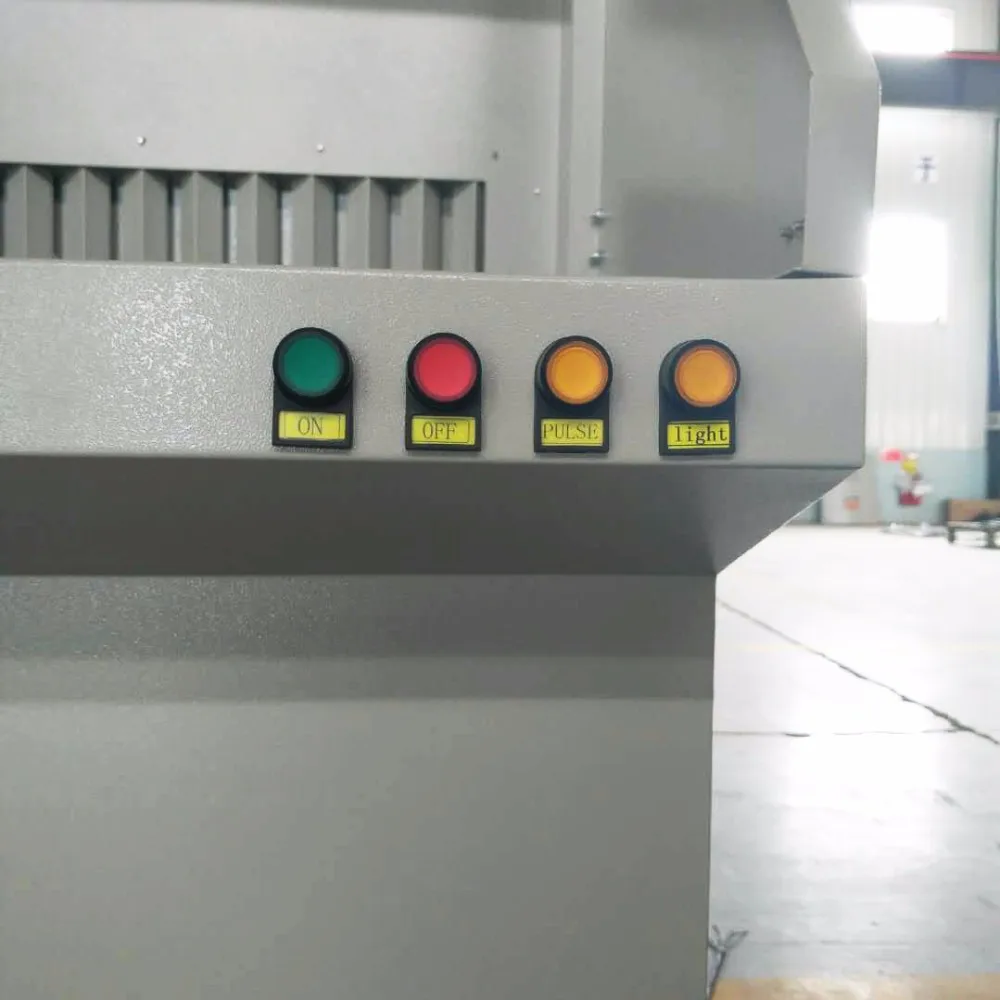

Overcurrent, overheat, overload and power supply phase-out protection. Make sure the electrical system is almost never damaged.Famous Brand Electrical Appliances,ABB switch,Intelligent Control System, Safety and Durability
Main Features

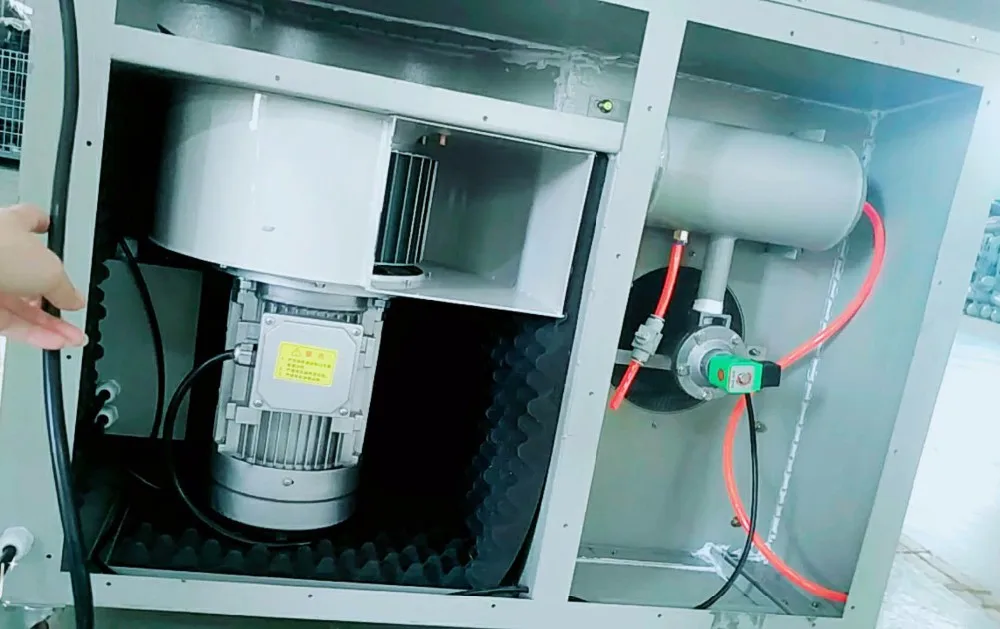

Name: Brand blower and silencer cotton
Brand: YINNIU
Original: China
Brand blower + silencer cotton can minimize noise, reduce occupational injuries and protect your health.
Self-developed automatic pulse dust cleaning system. High cleaning efficiency.
Our Service

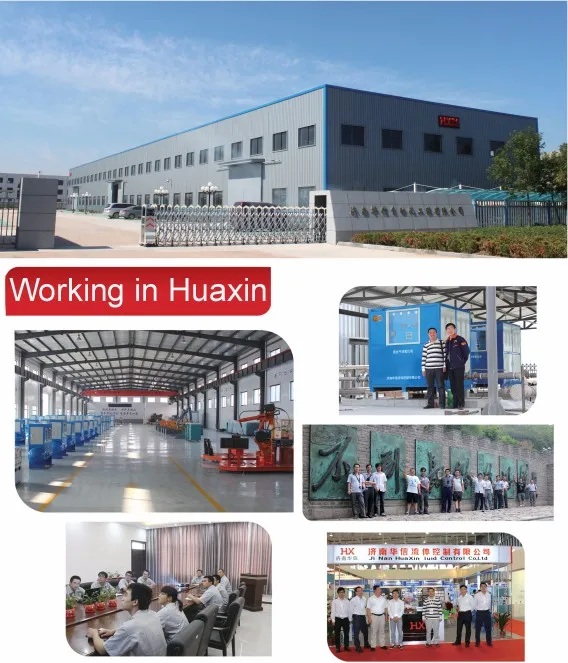

About Us

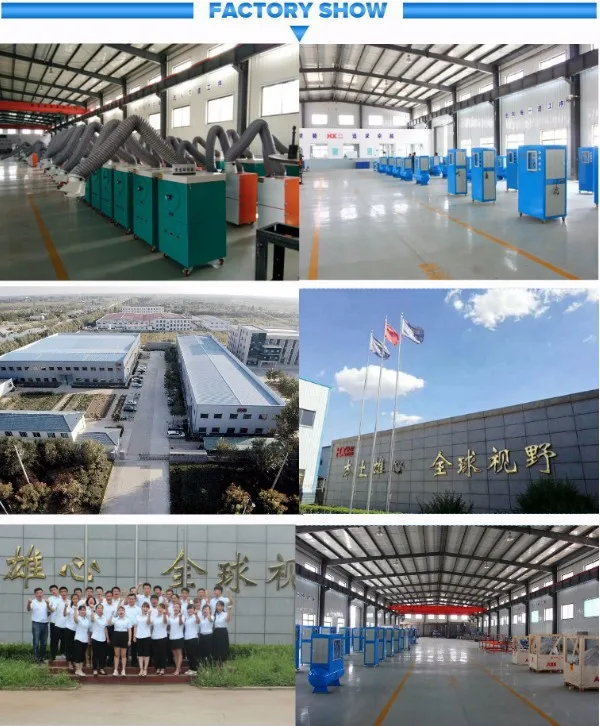

Jinan Huaxin Automation Engineering Co., Ltd. is a national high-tech enterprise dedicated to providing centralized gas supply system, two or more gas mixing systems and industrial fume extractor and dust collector for modern factories.
The company has registered capital of 30 million RMB, and has a strong R & D team., has obtained 13 national invention patents, utility model patents more than 40. In 2012, Huaxin Corporation officially established Jinan Huaxin Technology Research and Development Center; in 2013, was awarded Jinan "contract-abiding and credit-worthy enterprises", the same year was awarded "Jinan academician expert Grass-roots Service workstation"; in July 2014 was awarded a certificate of innovation fund for science and technology-based SMEs; in 2016, was awarded a demonstration of intellectual property rights in Shandong Province. Enterprises, in 2017, won the "national intellectual property advantage enterprises".
We are is always committed to the R&D and production of purifying products such as welding fume extractor,dust collector and downdraft table. We have introduced advanced technologies from abroad. Our materials are selected from a variety of imported components. And they are formed to be a wide range of soot, dust purification products and integrated system engineering products. Our products are widely used in welding, cutting, grinding, painting, casting, chemical, wood processing, tobacco, ceramics, paper and other industries. We can specifically solve various industrial plant pollution problems, and provide special product development and application services, quality products and perfect services for clients.
Our company has rich technical force, advanced equipment, excellent process, perfect detection and a sound quality assurance system. Inspection and Certification Center. The product performance indicatiors have reached the international leading level.
We also has a group of after-sales service members with religious styles and exquisite technologies to provide circumspect services for you. We take markets' requirements as business targets and science technologies as our guidance, and strictly conform to the aim of 'quality first, customer foremost'. Our company uses our abundant capital with the efforts of our staff to provide a comfortable and clean work.
