FB0745 high resolution 0.7 4.5x microscope monocular zoom lens
- Category: >>>
- Supplier: Guilin FT-Opto Co. Ltd.
Share on (62006705781):
Product Overview
Description
Product Description
1. Parallel light path optical system,zoom body magnification 0.7X~4.5X,ratio 1:6.4
2. Whole parfocal,lighting uniformity ,high resolution
3. Support a variety of professional light source
4. CCD Adapter(Optinal): 0.3X,0.5X,0.75X,1.5X,2X,3X
5. Auxiliary objectives(Optinal):0.3X,0.5X ,0.6X,1.5X,2X
6. High magnification infinity PL achromatic objective :5X,10X ,20X,40X,60X,80X,100X
7. High magnification infinity PL apochromatic objective:5X,10X ,20X,50X
8. Standard configuration: B45 zoom body + 1X objective + 1X CCD Adapter
●0.7-4.5X zoom,1XCCD adapter and 1X objective
●1:6.4 big ratio●standard working distance is 86mm
●Can choose Auxiliary Objective 0.3X,0.5X ,0.6X,1.5X,2X
●Standard C mount.CS mount optional
● Equipped with fine-tuning handwheel , which can be adjusted to focus.no need adjust working distance again after focus wellagain

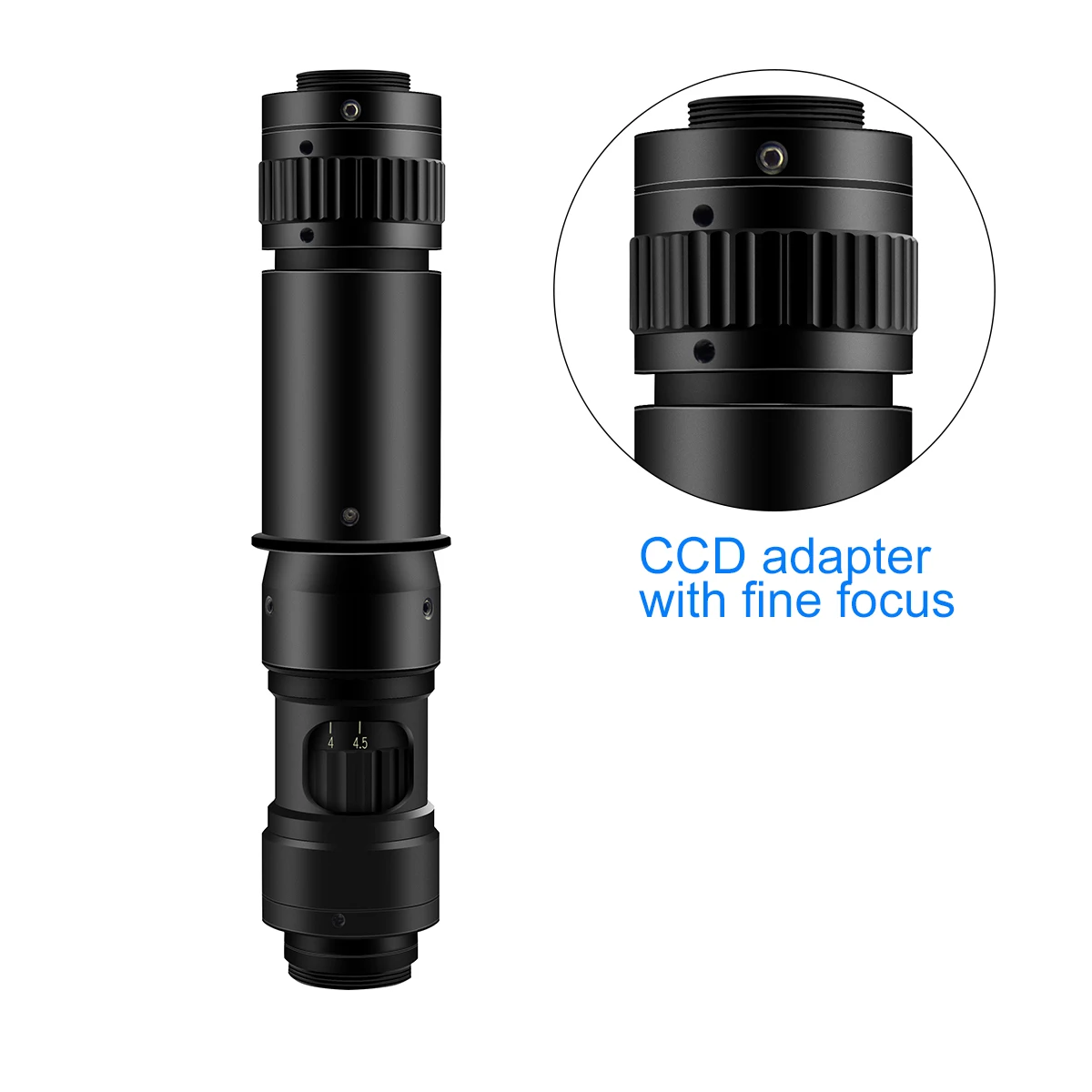

●Can choose 0.3X.0.5X,1.5X.2.0X,3.0X CCD adapter optional
Optical Parameter of 0.7-4.5X monocular zoom lens | ||||||||||||||||
Auxiliary Objective (use for 1X) | CCD Adapter | |||||||||||||||
0.3X | 0.5X | 0.75x | 1X | 1.5X | 2.0X | 3.0x | ||||||||||
Standard 1.0X WD:86mm | Mag | 0.21-1.35X | 0.35-2.25X | 0.5-3.3X | 0.7-4.5X | 1~6.7X | 1.4-9.0X | 2.1-15X | ||||||||
FOV (mm) | 22*17-3.5*2.6 | 13*10-2*1.6 | 9.6*7.2-1.4*1 | 6.8*5- 1*0.8 | 4.8*3.6- 0.7*0.5 | 3.4*2.5-0.5*0.4 | 2.2*1.7-0.35*0.26 | |||||||||
0.3X WD:270mm | Mag | 0.06-0.4X | 0.1-0.67X | 0.15-1X | 0.21-1.35X | 0.3-2X | 0.42-2.7X | 0.63-4X | ||||||||
FOV (mm) | 80*60-12*9 | 48*36-7*5.3 | 32*24-4.8*3.6 | 22*17-3.5-2.6 | 16*12-2.4*1.3 | 11*8.5-1.7*1.3 | 7.6*5.7-1.2*0.9 | |||||||||
0.5X WD:160mm | Mag | 0.1-0.67X | 0.17-1.1X | 0.26-1.68X | 0.35-2.25X | 0.52-3.3X | 0.7-4.5X | 1-6.7X | ||||||||
FOV (mm) | 48*36-7*5.3 | 28*21-4.3*3.2 | 18*13.8-2.8*2 | 13*10-2*1.6 | 9*6.9-1.4*1 | 6.8*5-1*0.8 | 4.8*3.6-0.7*0.5 | |||||||||
0.6X WD:130MM | Mag | 0.12-0.8X | 0.21-1.35X | 0.3-2X | 0.42-2.7X | 0.63-4X | 0.8-5.4X | 1.26-8X | ||||||||
FOV (mm) | 40*30-6*4.5 | 22*17-3.5*2.6 | 16*12-2.4*1.3 | 11*8.5-1.7*1.3 | 7.6*5.7-1.2*0.9 | 6*4.5-0.8*0.6 | 3.8*2.8-0.6*0.4 | |||||||||
1.5X WD:50mm | Mag | 0.3-2X | 0.52-3.3X | 0.78-5X | 1-6.7X | 1.6-10X | 0.21-1.35X | 3-20X | ||||||||
FOV (mm) | 16*12-2.4*1.3 | 9*6.9-1.4*1 | 6*4.6-0.96*0.7 | 4.8*3.6-0.7*0.5 | 3*2.2-0.48*0.36 | 22*17-3.5*2.6 | 1.6*1.2-0.24*0.18 | |||||||||
2.0X WD:39mm | Mag | 0.42-2.7X | 0.7-4.5X | 1-6.7X | 1.4-0.9X | 0.21-1.35X | 2.8-18X | 4.2-27X | ||||||||
FOV (mm) | 11*8.5-1.7*1.3 | 6.8*5-1*0.8 | 4.8*3.6-0.7*0.6 | 3.4*2.5-0.5*0.4 | 22*17-3.5*2.6 | 1.7*1.2-0.26*0.2 | 1.1*0.8-0.17*0.13 | |||||||||
Remark: 1) Total Mag.= CCD Adapter Mag.×Zoom body Mag.×Objective Mag. 2) FOV Range = CCD Senser Size/Optical Mag. (FOV is the reference to the 1/3" CCD Camera) | ||||||||||||||||
Product Pictures

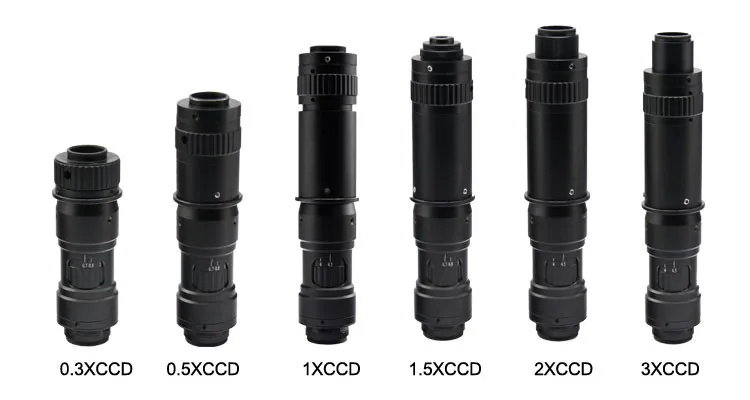

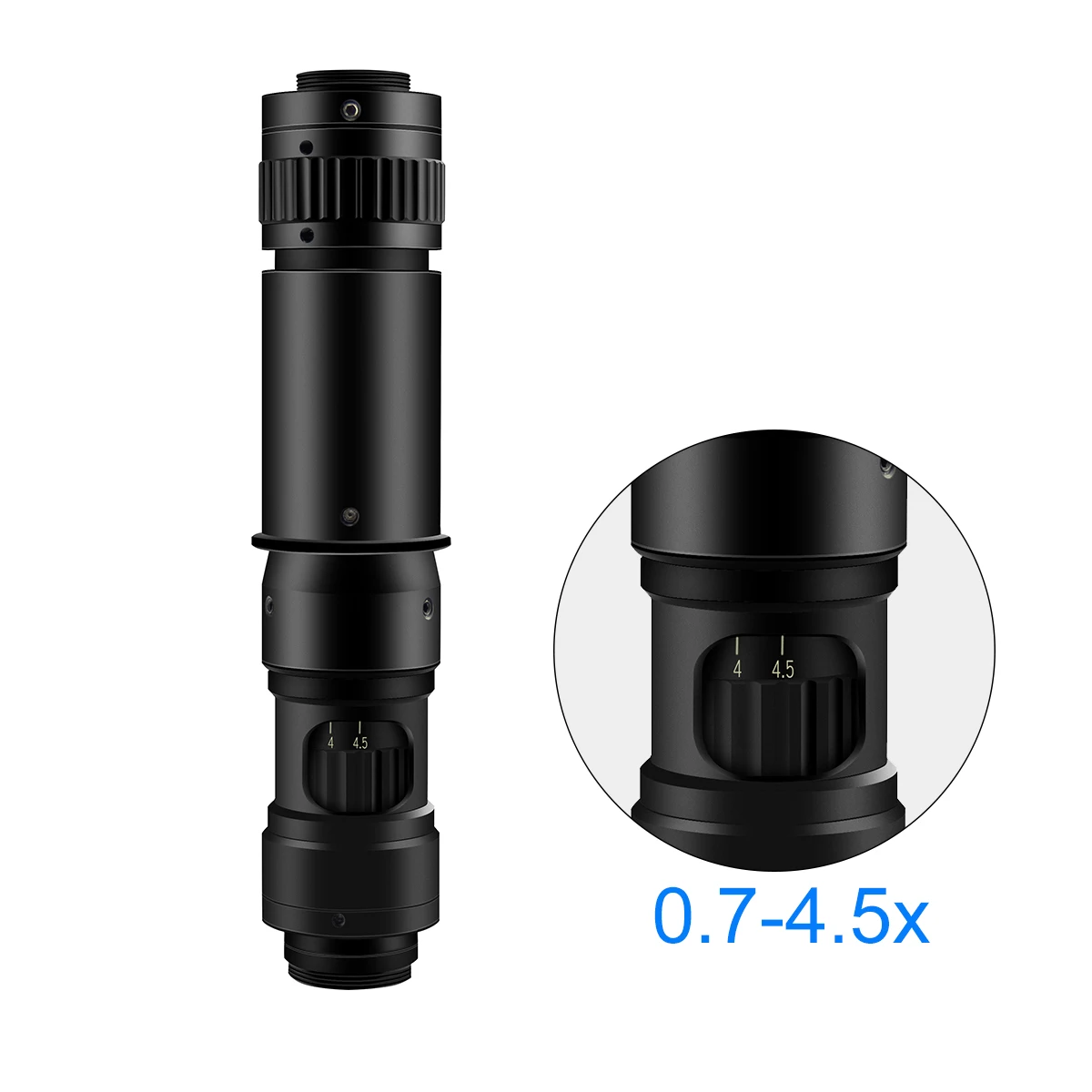

FB0745 | 0.7-4.5X zoom lens | ||||
FB0745D | 0.7-4.5X zoom lens with detends and fixed | ||||
FB0745C | 0.7-4.5X zoom lens with coaxial light | ||||
FB0745CD | 0.7-4.5X zoom lens withdetends and fixed with coaxial light | ||||

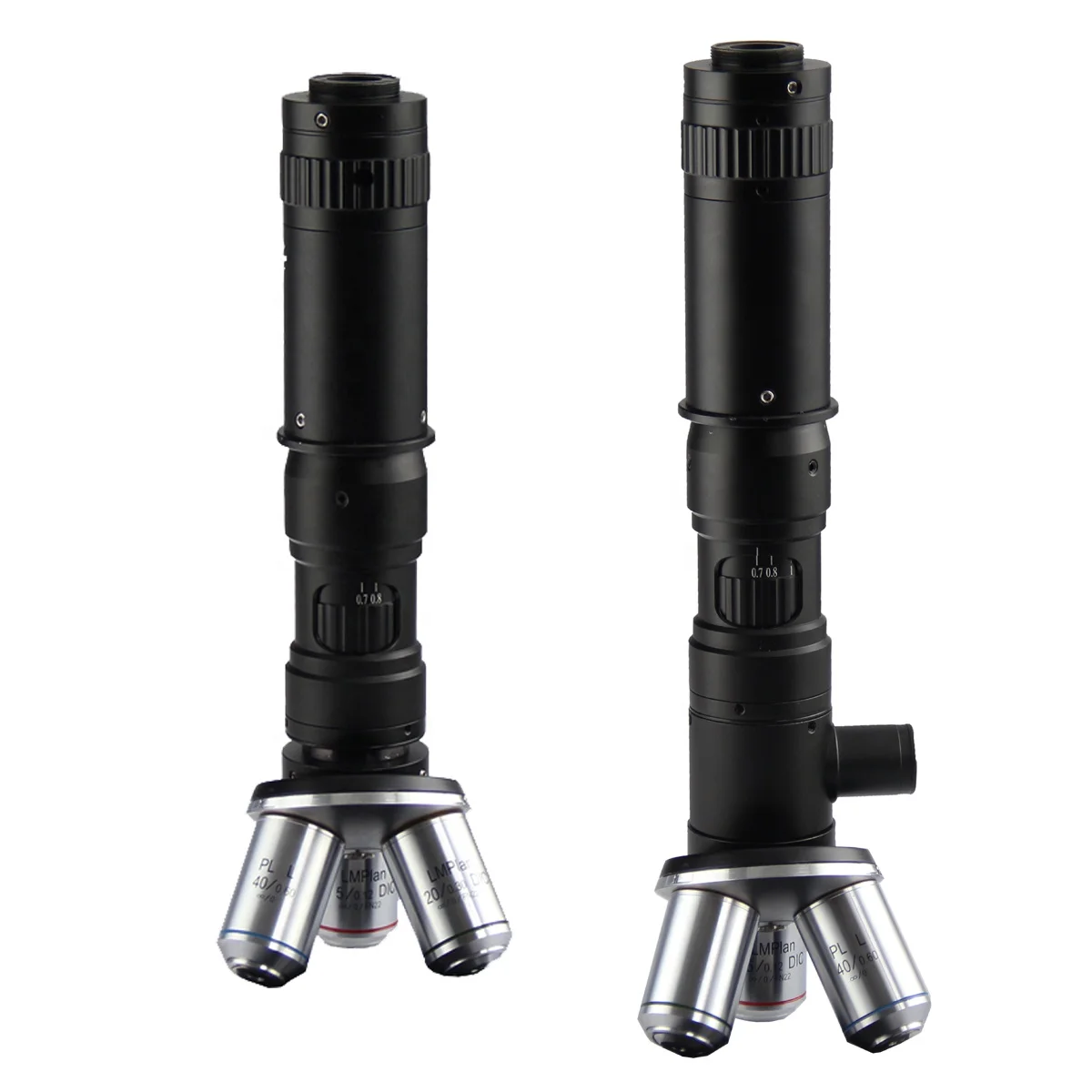

FB0745 zoom lens

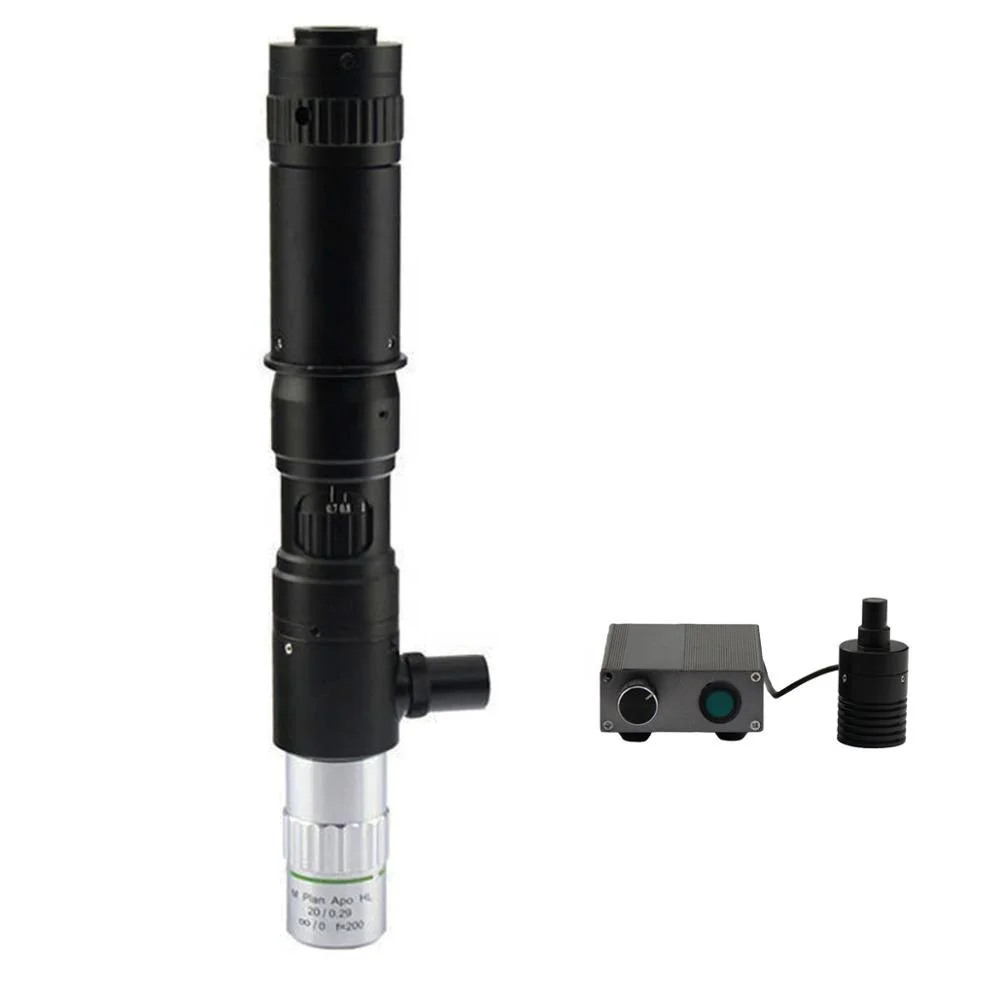

FB0745C coaxial zoom lens
FB0745C coaxial zoom lens with objective
FB0650C coaxial light zoom lens with nosepiece

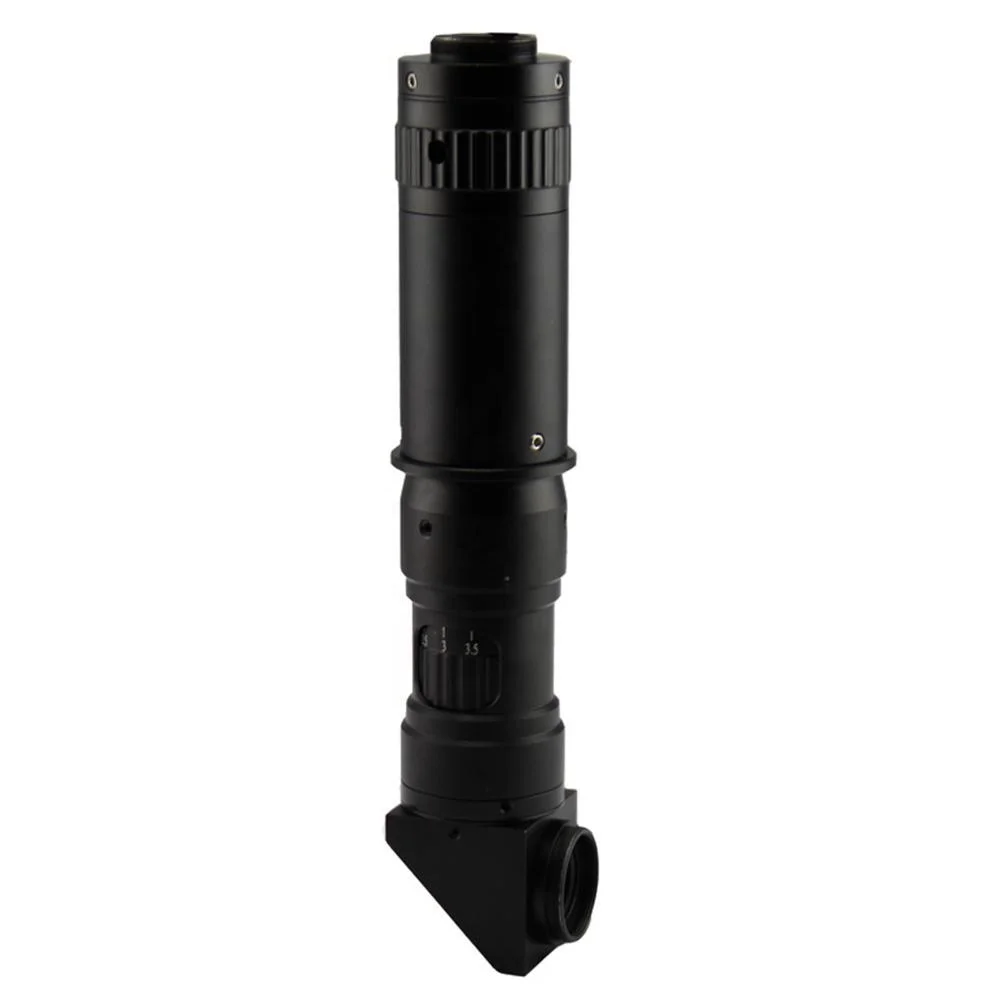

FB0745 zoom lens with 90° steering device
FB0745 0.7-4.5X zoom lens

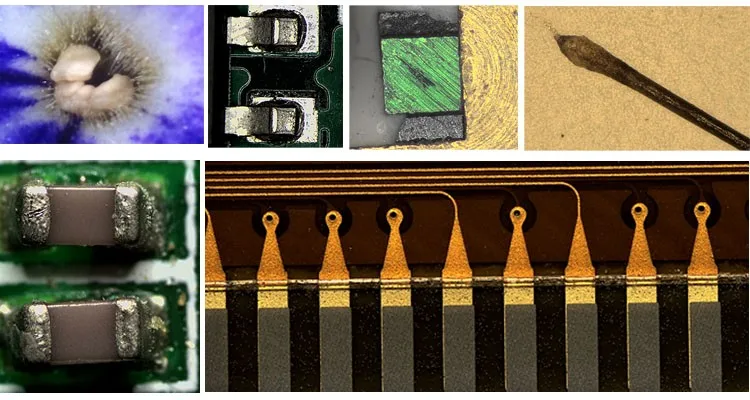

Actual Effect Image

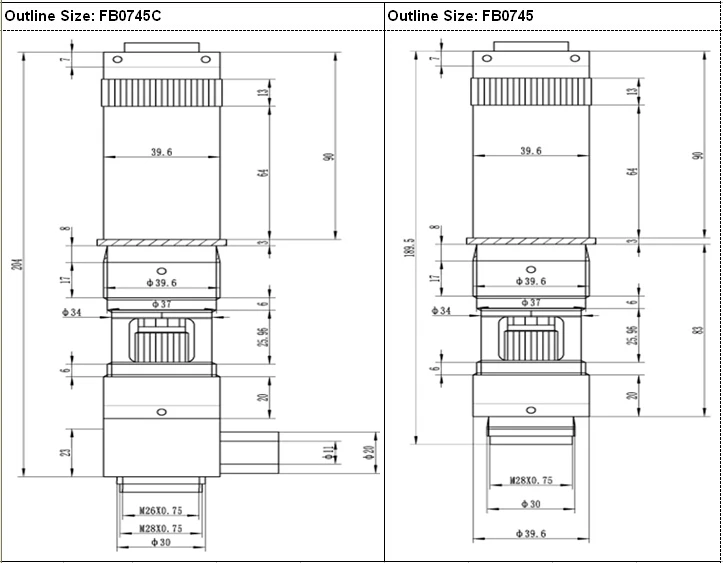

Drawing Size

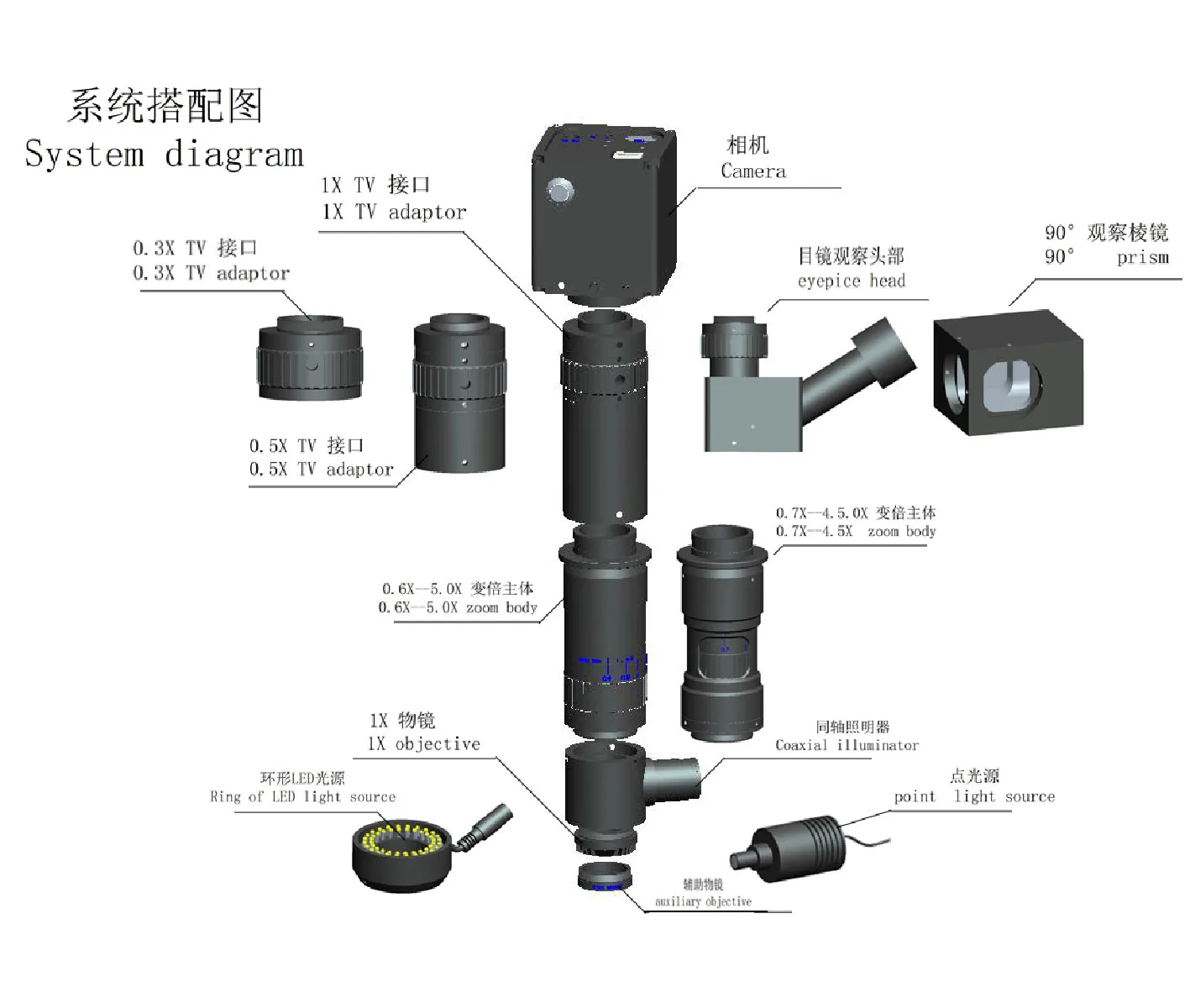

Optional Accessory
CCD Adapter | ||
C4503 | 0.3X CCD adapter | |
C4505 | 0.5X CCD adapter | |
C45075 | 0.75X CCD adapter | |
C4515 | 1.5X CCD adapter | |
C4520 | 2.0X CCD adapter | |
C4530 | 3.0X CCD adapter | |
Auxiliary Objective | ||
AW4503 | 0.3X .Working distance is 270mm | |
AW4505 | 0.5X .Working distance is 160mm | |
AW4506 | 0.6X .Working distance is 130mm | |
AW4515 | 1.5X..Working distance is 50mm | |
AW4520 | 2.0X.Working distance is 39mm | |
LC6511 11mm coaxial device
LC6511P 11mm coaxial device with polarizer
L6511 11mm 3W LED point light for coaxial device
LR65 12v 5w LED ring light
12v 5w LED ring light with polarizer
Related Product
Packing & Delivery
acking size | FB0745(30*13*6CM) FB0745C(33*21*7cm) |
Gross weight | 1.5KG |
Packing style | polyfoam protection and strong carton |
Delivery time | Sample order within 5 days |
