ZJESL Zeus type LED linear light Reflection cup design suspension LED linear light
- Category: >>>
- Supplier: Haining ESL Electrical Lighting Appliance Co. Ltd.
Share on (62006751387):
Product Overview
Description
LED linear Light Zeus Type
Life hours:50,000hours 5years warranty
1.Meet the needs of various engineering size and shape designs
2.Zeus pendant luminaires with common linear light distribution produce superb uniformity when arranged centrally above the table
3.Zeus offers nice glare-low,protects people's eye perfectly
4.According to customer needs,customization is optional:reflector module,grille,milky diffuser

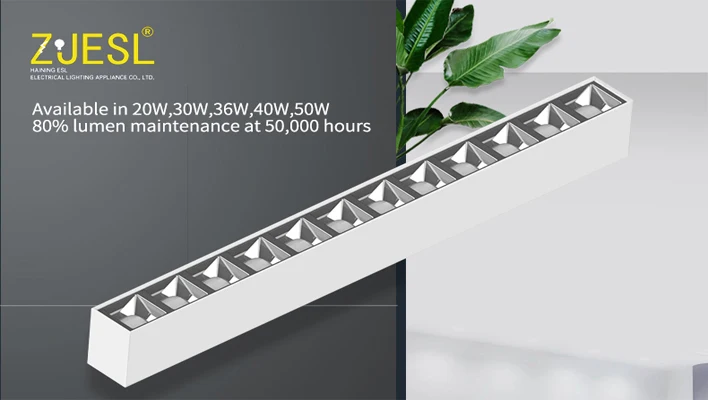

Available in 20w,30w,36w,40w,50w
80%lumen maintenance at
50,000 hours
1.No UV or IR rays.No mercury.
2.Replaces traditional T8 Fixture.
3.Slim appearance,no visible screws.
4.Pendant light with stainless steel cable.
5.Designed to meet recommended luminance and illuminance rquirements for low bay and task level applications in office,education,health,retail and exhibition.
6.UGR<19
Product Details

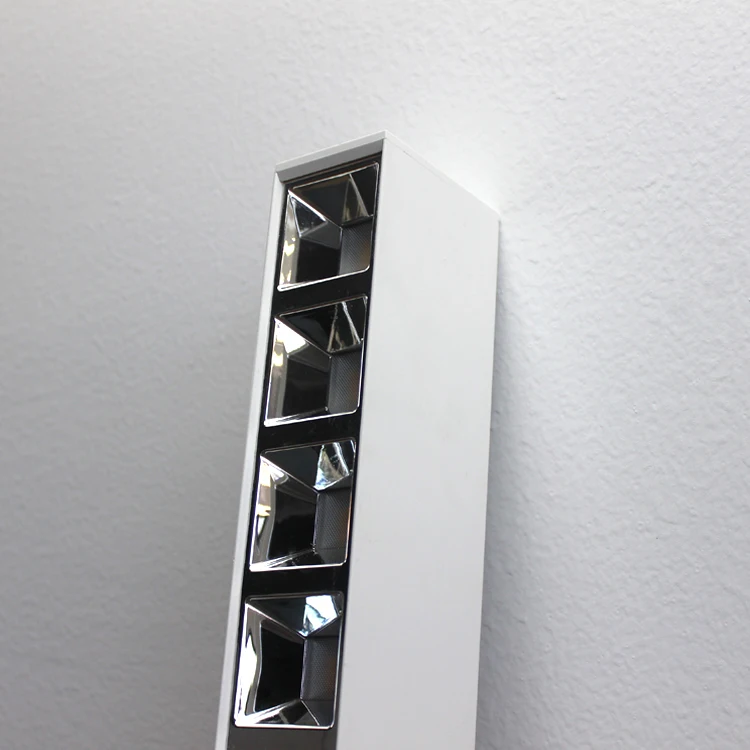

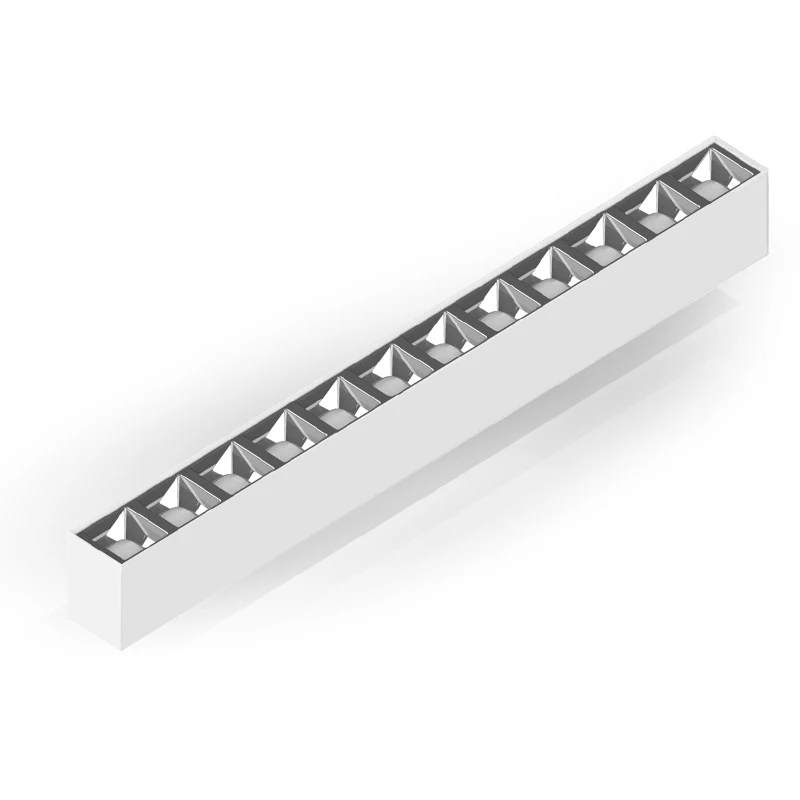

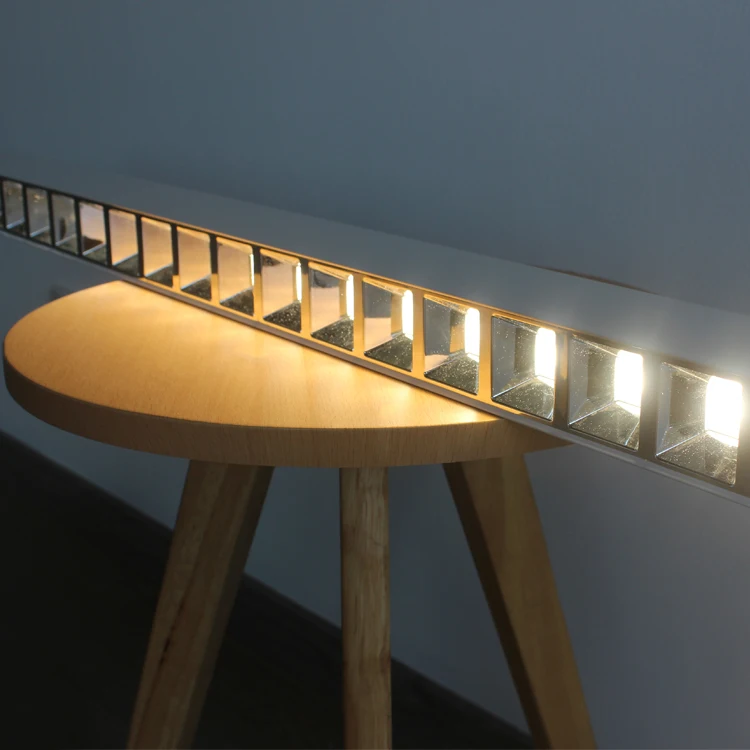

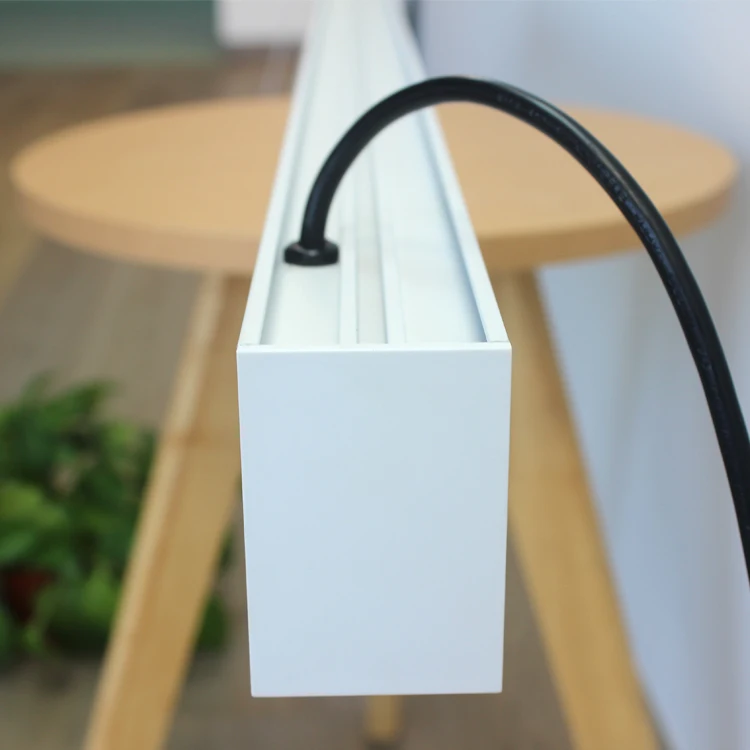

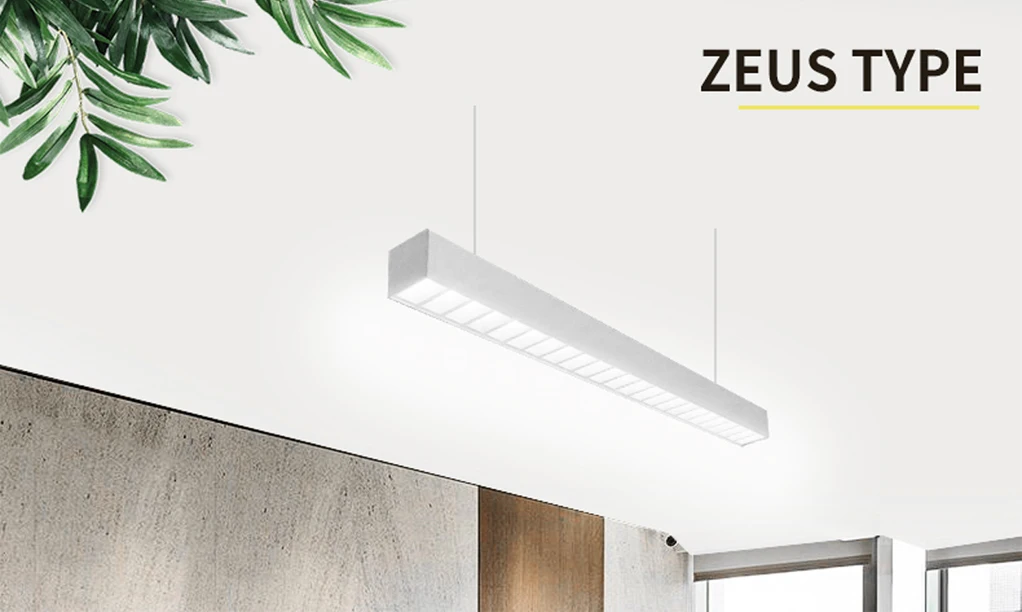

Product Display

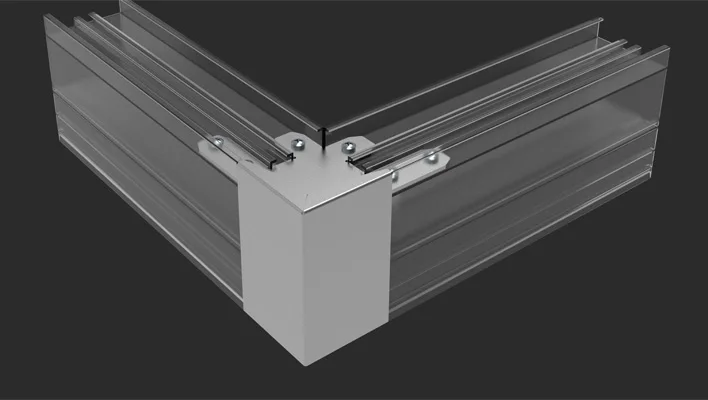

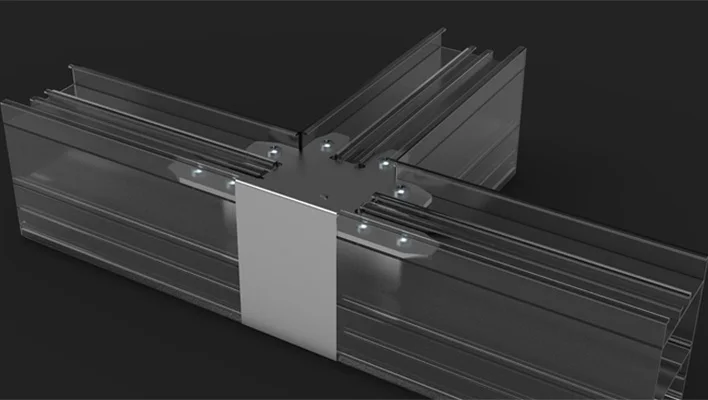

Connector

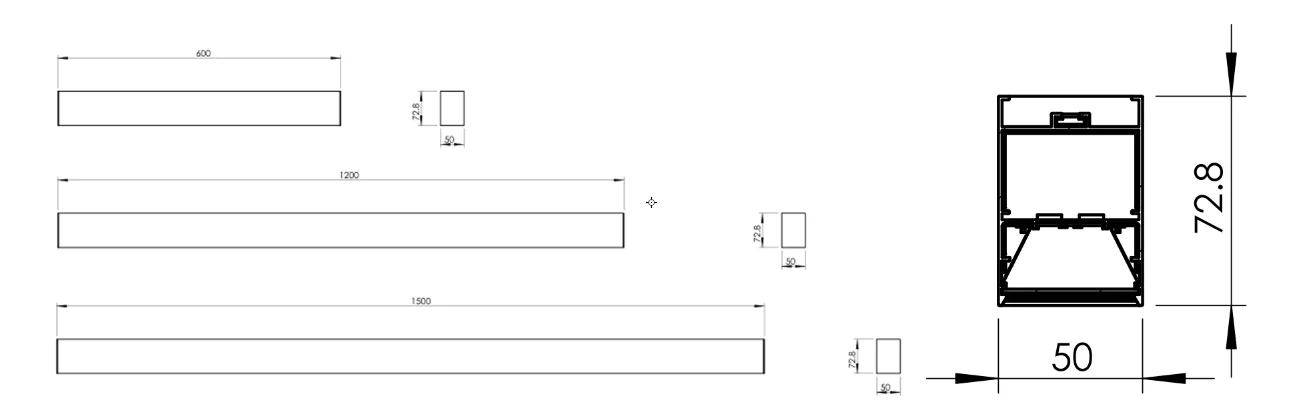

Product drawing
Data sheet
Power | Lumen/W | UGR | DF | Beam Angle | Color | Size(MM) | Certification Item | Reference Item |
24w | 100/120/130 | <19 | >0.9 | 70°±5° | White/Black/Silver | L570×50×70 | LED Linear24w | ESZ-5070-24W-60-Zeus |
30w | 100/120/130 | <19 | >0.9 | 70°±5° | White/Black/Silver | L1140×50×70 | LED Linear30w | ESZ-5070-30W-120-Zeus |
40w | 100/120/130 | <19 | >0.9 | 70°±5° | White/Black/Silver | L1430×50×70 | LED Linear40w | ESZ-5070-40W-150-Zeus |
50w | 100/120/130 | <19 | >0.9 | 70°±5° | White/Black/Silver | L1710×50×70 | LED Linear50w | ESZ-5070-50W-180-Zeus |
60w | 100/120/130 | <19 | >0.9 | 70°±5° | White/Black/Silver | L2280×50×70 | LED Linear60w | ESZ-5070-60W-240-Zeus |
60w | 100/120/130 | <19 | >0.9 | 70°±5° | White/Black/Silver | L2850×50×70 | LED Linear60w | ESZ-5070-60W-300-Zeus |
WW:2700-3500K NW:4000-4500K PW:5000-5500K CW:6000-6500K
IP20,IK08,1-10V Dimmable,Dali,CCT changing,Ripple<5%,Flicker free,Input voltage:100-240V AC,CRI>80/>90

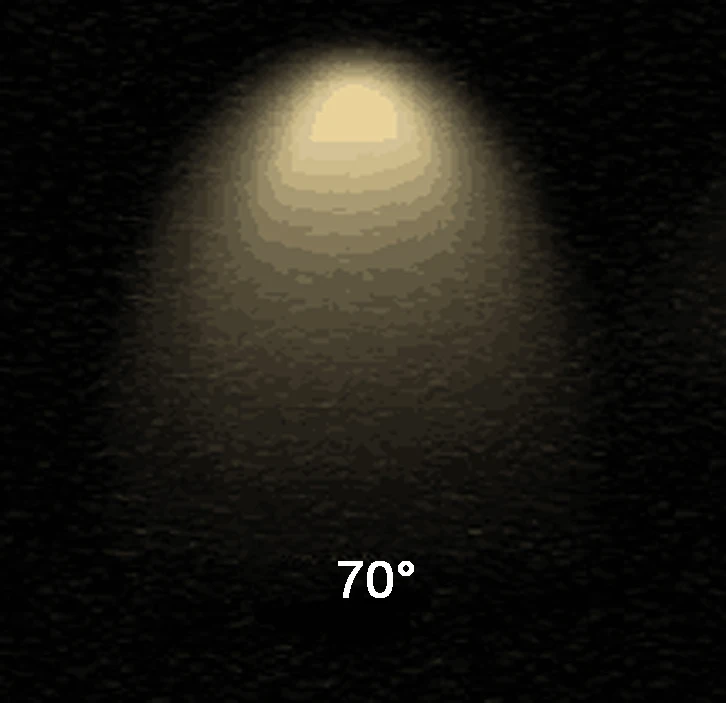

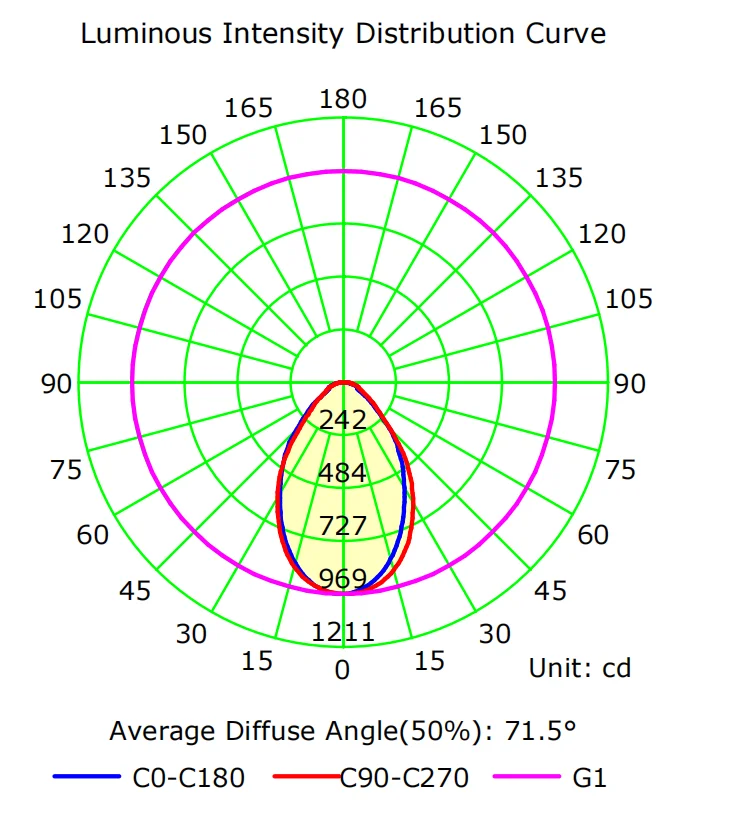

Luminous Intensity Distribution Curve

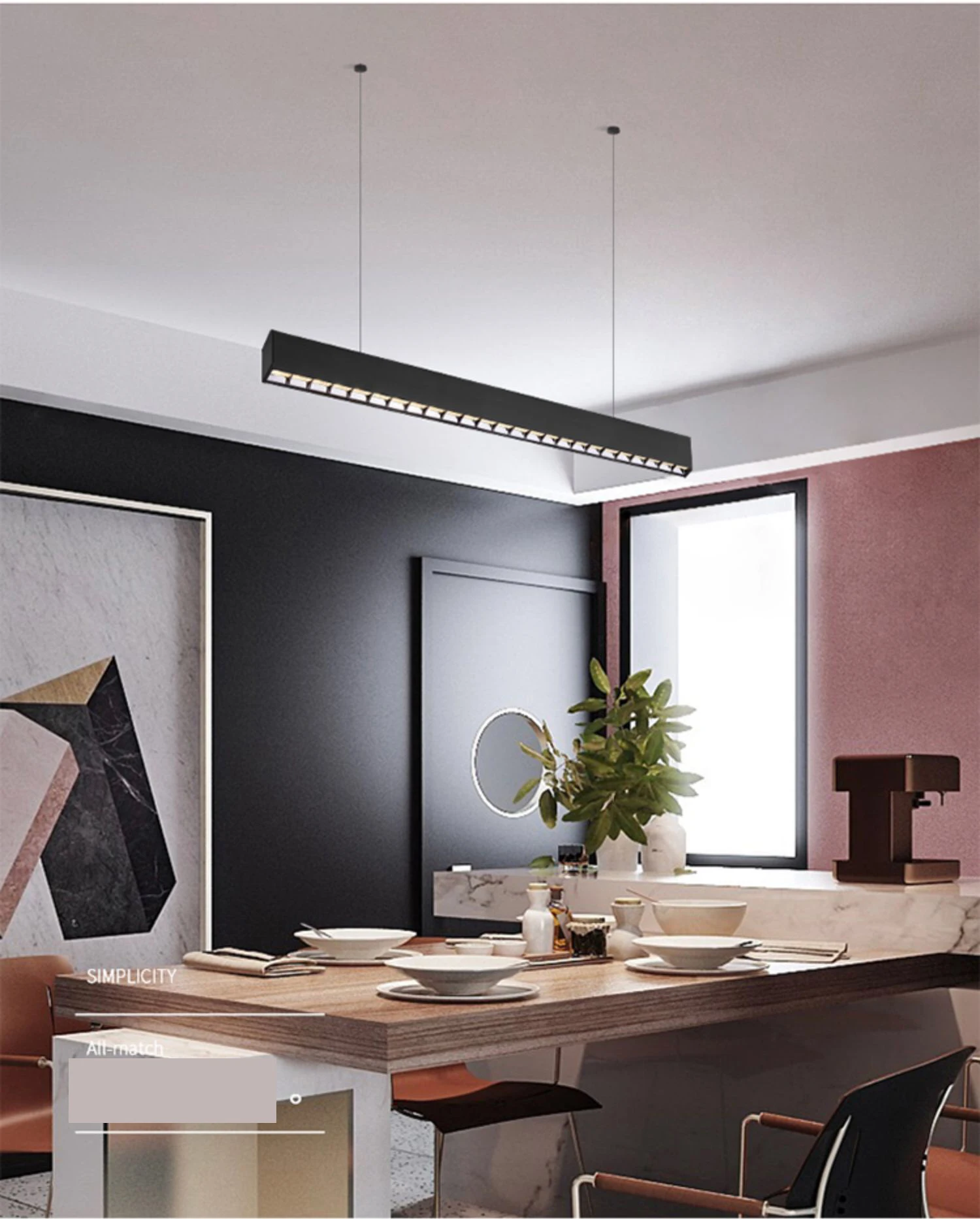

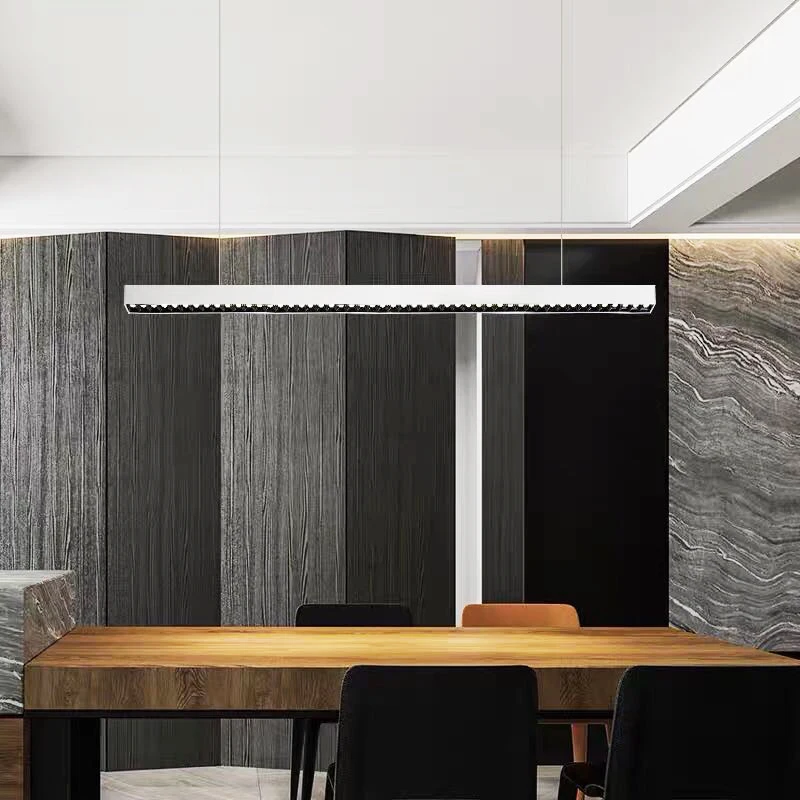

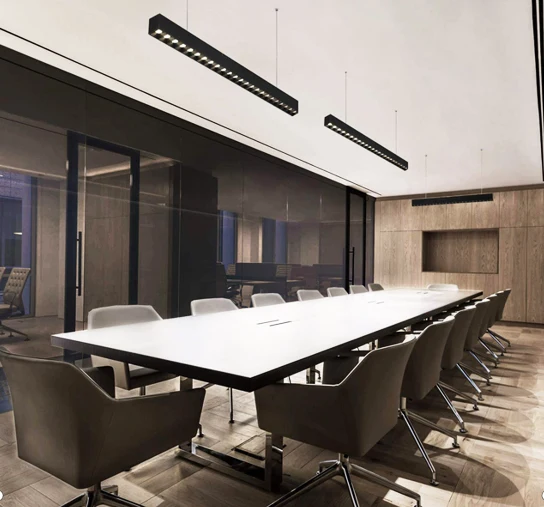

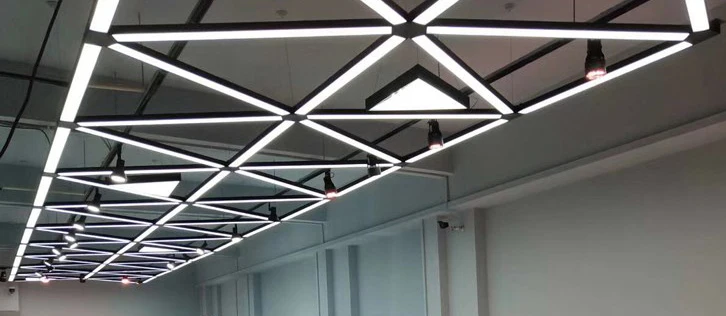

kitchen conference room restaurant
