Russian standard K11 series self centering lathe chuck 3 jaw lathe chuck

Share on (62006808462):


Price:

Quantity:


Product Overview

Description

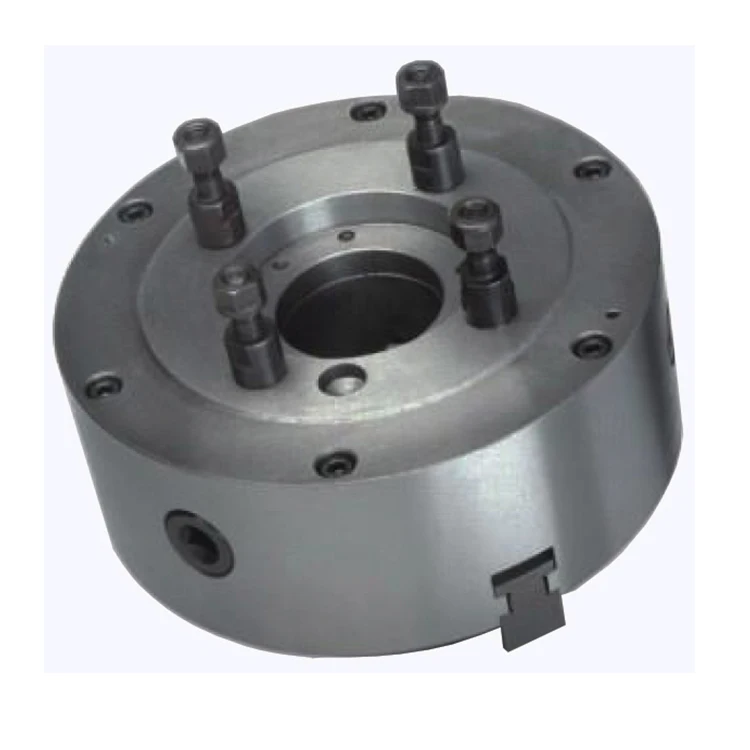

Russian standard K11 series self-centering lathe chuck 3 jaw lathe chuck



Product Description

Russian standard K11 series self-centering lathe chuck 3 jaw lathe chuck.jpg

Russian standard K11 series self-centering lathe chuck 3 jaw lathe chuck.jpg

DESCRIPTION:
German standardized 3-jaw self centering Chucks are according to DIN6350. The chucks of this type are mounted to spindle nose through an adapting flange. A set of internal jaws and a set of external jaws are provided with as well as 2-piece jaws. Two-piece jaws are according to ISO3442 Standard. Soft jaws are offered upon users' requests to increase the clamping accuracy by remachining.

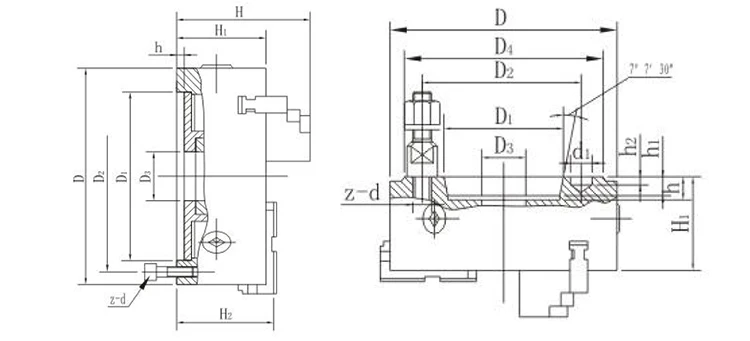

SPECIFICATIONS:
12-102-053ModelD1D2D3HH1H2hz-d
12-102-054DK11 805667166650*33-M6
12-102-055DK11 10070832274.555*33-M8
12-102-056DK11 12595108308458*43-M8
12-102-057DK11 160125140459565*46-M10
12-102-058DK11 160A12514045109657146-M10
12-102-059DK11 2001601766510975*46-M10
12-102-060DK11 200A16017665122758046-M12
12-102-061DK11 2502002248012080*56-M12
12-102-062DK11 250A20022480134.5808656-M16
12-102-063DK11 315260286104131.590*56-M16
12-102-064DK11 315A260386104148.59096.556-M16
12-102-065DK11 400330362136157.5100*56-M16
12-102-066DK11 400A330362136167100108.556-M16
12-102-067DK11 500A42045820020311512366-M16
12-102-068DK11 630A54558626021813013876-M16
12-102-069DK11 800A71076038524914815886-M20
12-102-070DK11 1000A91095046026616517586-M24

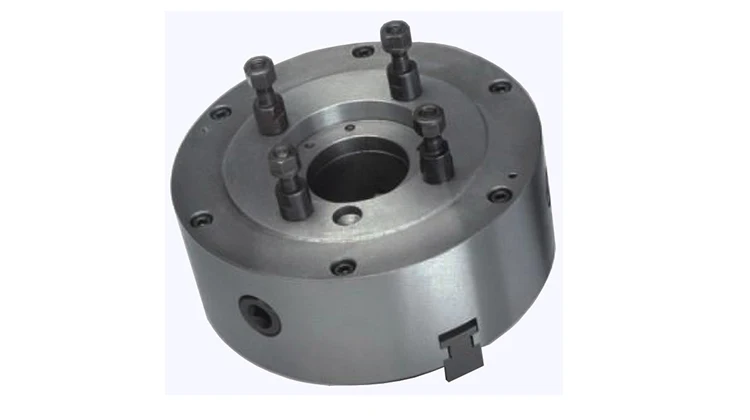

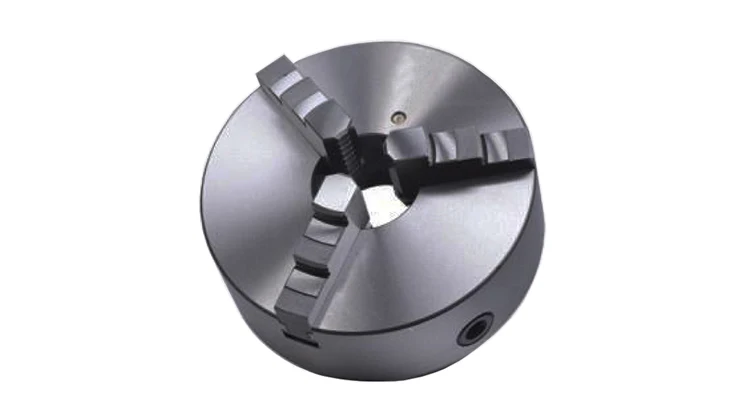

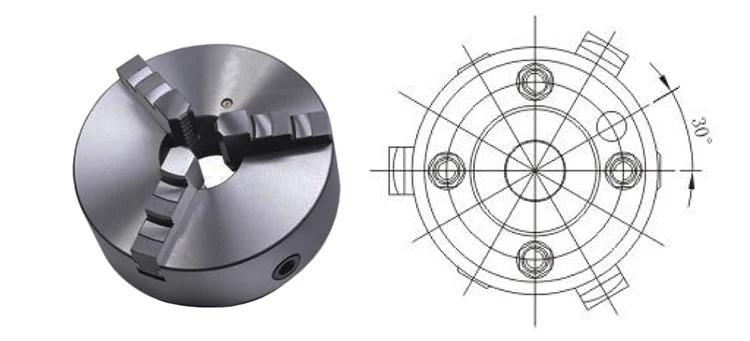

Detailed Images

Russian standard K11 series self-centering lathe chuck 3 jaw lathe chuck.jpgRussian standard K11 series self-centering lathe chuck 3 jaw lathe chuck.jpg
