cheap mini CNC bed type milling machine CNC mill price
- Category: >>>
- Supplier: Tengzhou Hipow Machinery Co. Ltd.
Share on (62006837080):
Product Overview
Description
Product Description
 |

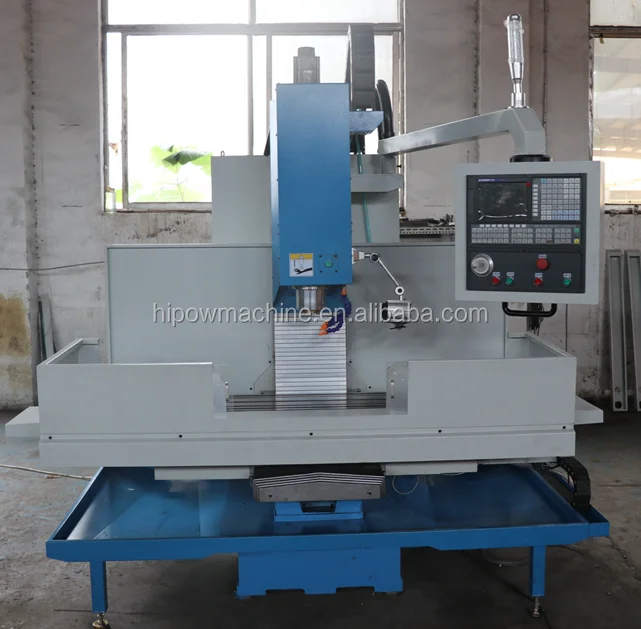

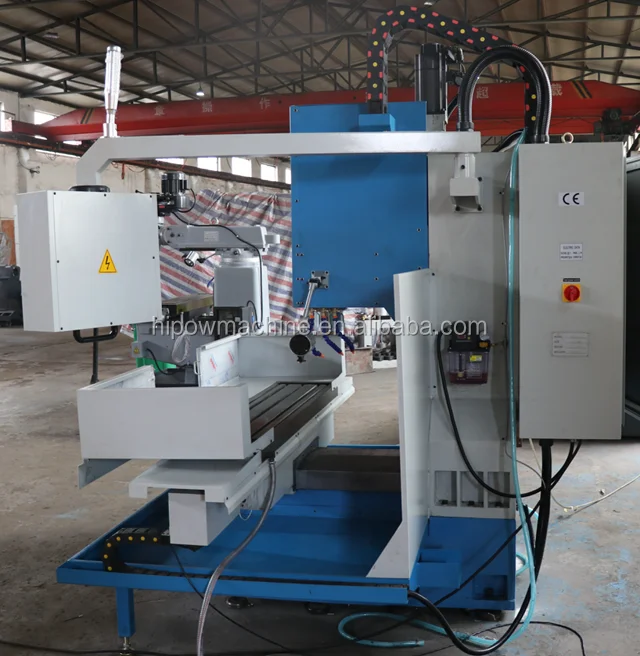

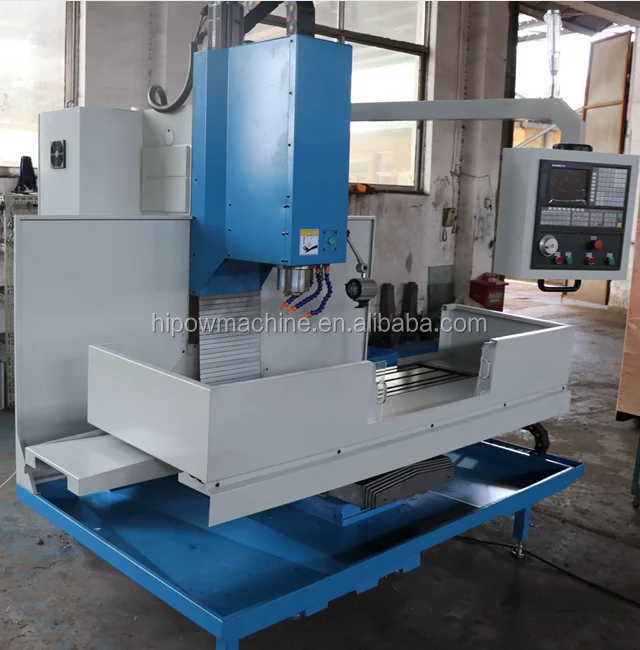

XK7132 cheap mini CNC bed-type milling machine CNC mill price |
 |
Main Feature 1.High Precision Hard guideway and screw 2.Taiwan-made BT40 spindle unit,6000,8000rpm speed available 3.Taiwan OKADA Funnel Type 12T/16T/20T ATC can be choosen 4.Reliable Control System:Fanuc,Siemens,Mitsubishi,GSK. 5.Automatic Central Lubrication System. 6. Full Machine Cover can be choosen.
|

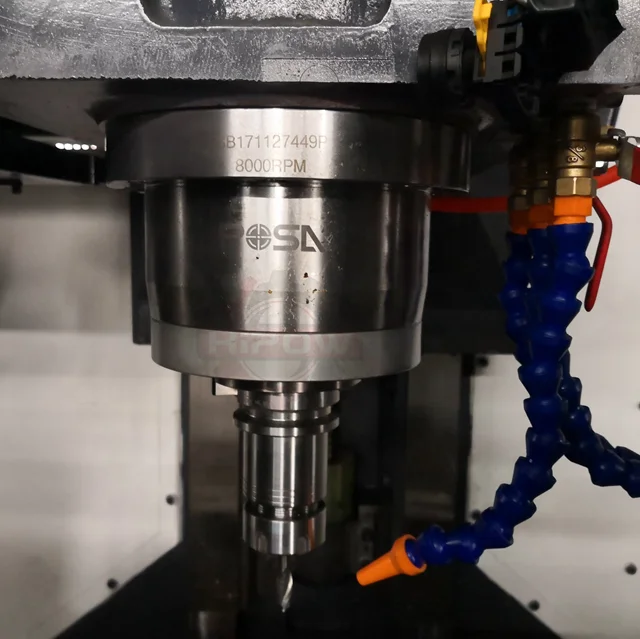

1. TAIWAN High Precision Speed Spindle
1)6000,8000 rpm Speed Spindle available
2)BT30,BT40 Spindle Taper freely choosen
3)High Speed, Stable Performace
2. High Rigidity Hard Guideway and Screw
1)High Rigidity,High Performance
2)High Precision,Long Using Life

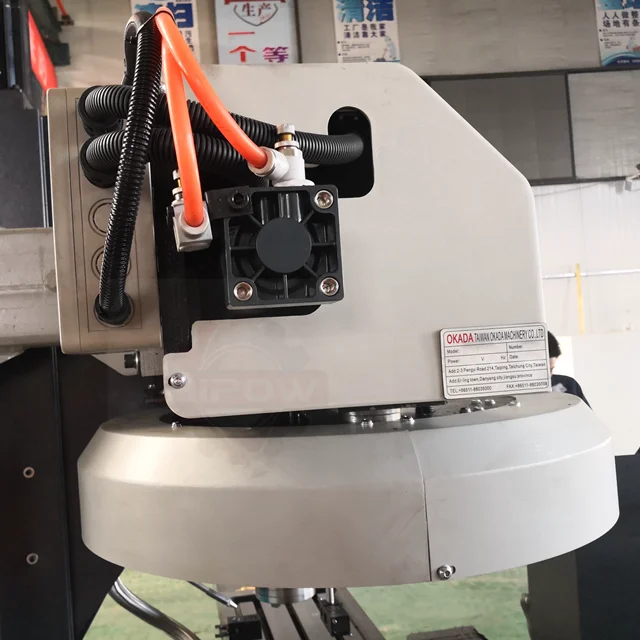

3. TAIWAN Funnel Type Tools Magazine
1)OKADA Funnel Type ATC 10T,12T ATC can be choosen
2) Funnel Type Tools Magazine is optional parts

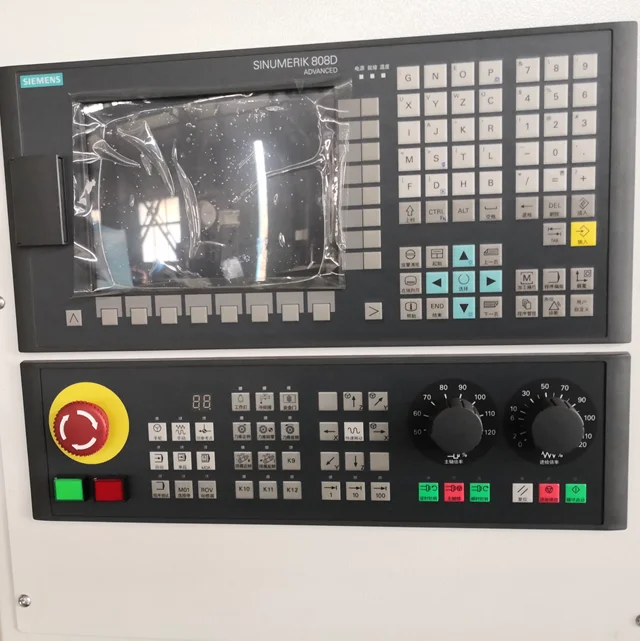

4. Reliable Control System
1)Standard : GSK980, KND System,
2)Optional:Fanuc,Siemens,Mitsubishi and other system
5. High Quality Electrical Parts
1)High Quality Electrial Compotents is used
2)Make the Machine performance Better.
 |
| Specification | XK7132 |
| Table size | 1500x330mm |
| X/Y/Z axis travel | 900x450x500mm |
| Spindle motor | 5.5kw servo motor |
| Distance between spindle center and surface column | 420mm |
| Spindle taper | BT40 |
| Machine controller | GSK980MDI |
| Rapid speed of X/Y/Z axis | 12m/min |
| X/Y/Z way motor torque | X/Y 7.7N/M Z 10N/M |
| Position precision | ±0.02/300mm |
| Spindle speed | 20-8000rpm |
| T-slot | 3/18/85 |
| Table load | 500kgs |
| Distance from spindle to table | 100-600mm |
| Packing size | 2200x2100x2450 |
Company Information
 |
Packaging & Shipping
 |
| Packing of exported CNC machine is usually in wooden case. Small CNC machine can be packed in wooden case in whole. |
FAQ
 | |
| Q1. | How can I get a quotation? |
| A. | Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. |
| Q2. | Can you provide customized machine or SPM (Special purpose machine)? |
| A. | Yes, we provide smart CNC solutions for our customer, in order to increase efficiency. |
| Q3. | Can you provide training for operation CNC machines? |
| A. | Yes, free training in our factory is available. |
| Q4. | How about your price? |
| A. | Send me details about what you need, you will get the best price in China. The price is competitive over the world. |
| Q5. | What’s the delivery time, and what’s the package? |
| A. | Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package. |
