LPMS Injection plastic 6208 low pressure injection molding machine with CE Chinese factory price

Product Overview

Description

LPMS  Injection plastic 6208/6832S used JX-350 low pressure injection molding machine  with CE Chinese factory price









1>Machines which Inject Glue to Protect the Batteries.

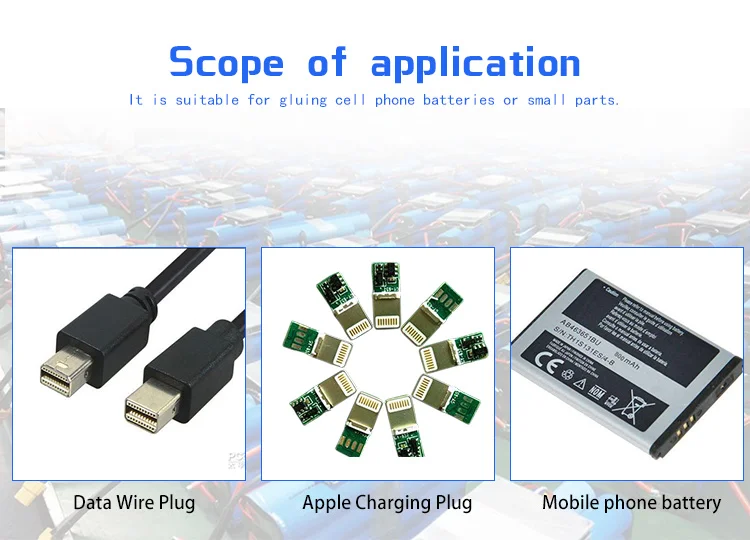

2> Used for battery factories automatical production in mobile cell phone batteries, etc.

3> Do 600-700pcs injection per hour.

4> Touch screen operation, easy and fast responding.

5> 0-1 worker to operate the machine, fast and with great efficiency.

     Can be connected to other machines to proceed automatically.

6> Overseas sales office in New Delhi, India.

7> 12 months warranty and life-time maintenance.

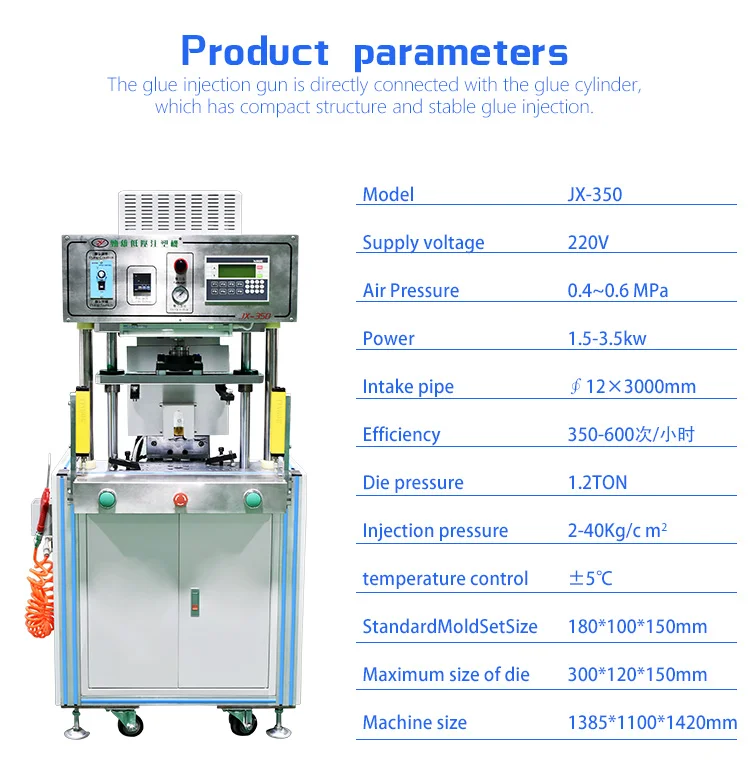

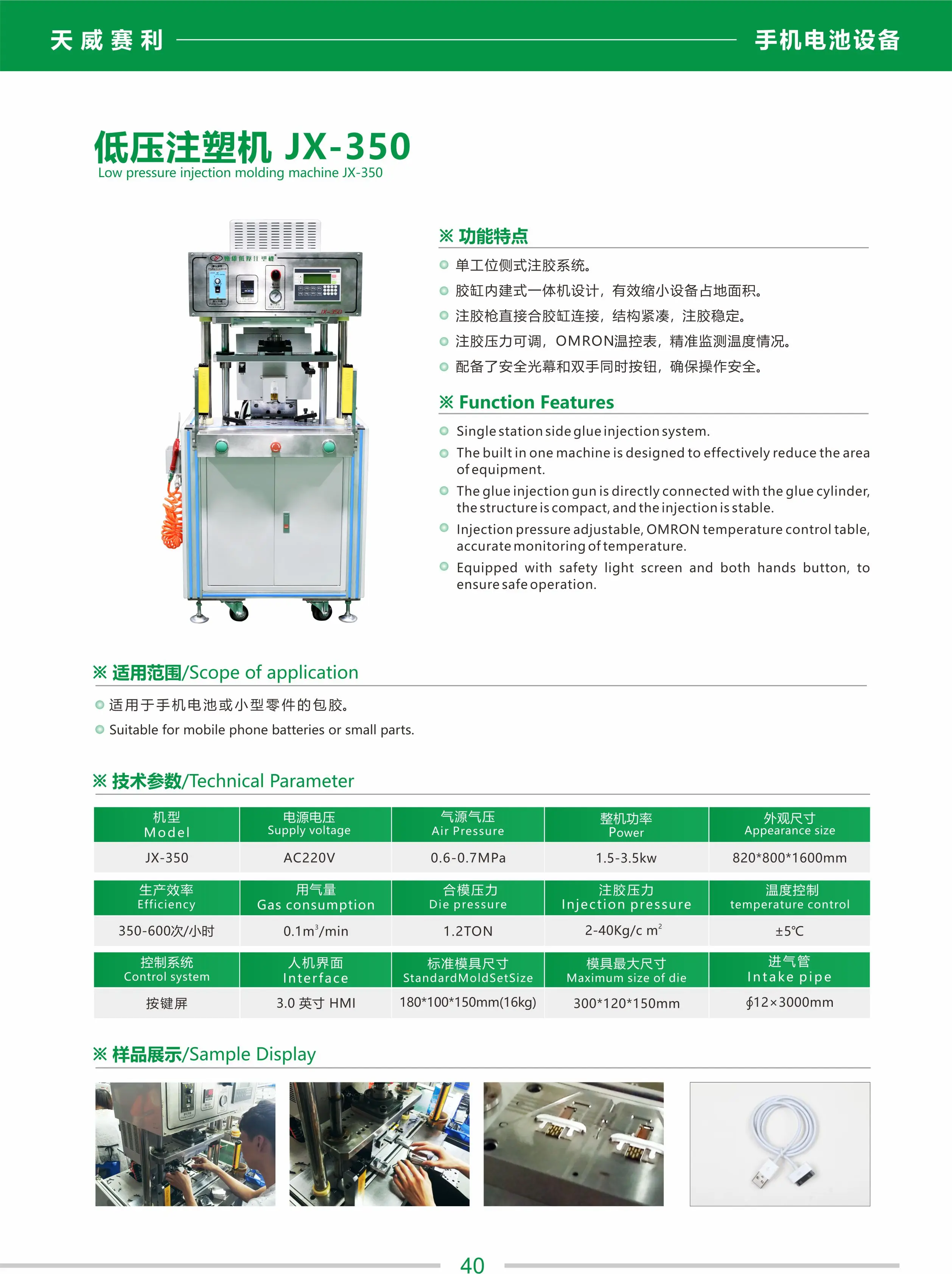

Techinical Parameters:

       hdpe low pressure injection molding machine



Plastic machinery	350
Size(mm)Machine(kg)	850×1015×1640(270kg)
WorkStation Height(mm)	840
Plant View(mm)	1020×850
Packing(mm)Size(kg)	950×1120×1700(315kg)
Melting Tank	(3Liter)×1
Gun & Tip Angle	(36.4°60°.90°)optional
Heated Hose	N/A
Electricity	200-240VAC/1Phase/50 or 60Hz
Temperature Control Zones	2
Temperature Range	70℃- 260℃
Max.Power(Kw)	4
Working pressure(Mpa)	0.5(Mpa)~0.8(Mpa)
Air Consumption	0.1m3/min
Clamping Device	(Pneumatic)
Clamping Force	Max.1.2Ton
Clamping Stroke(mm)	125mm or 150mm optional
Control System	Text display

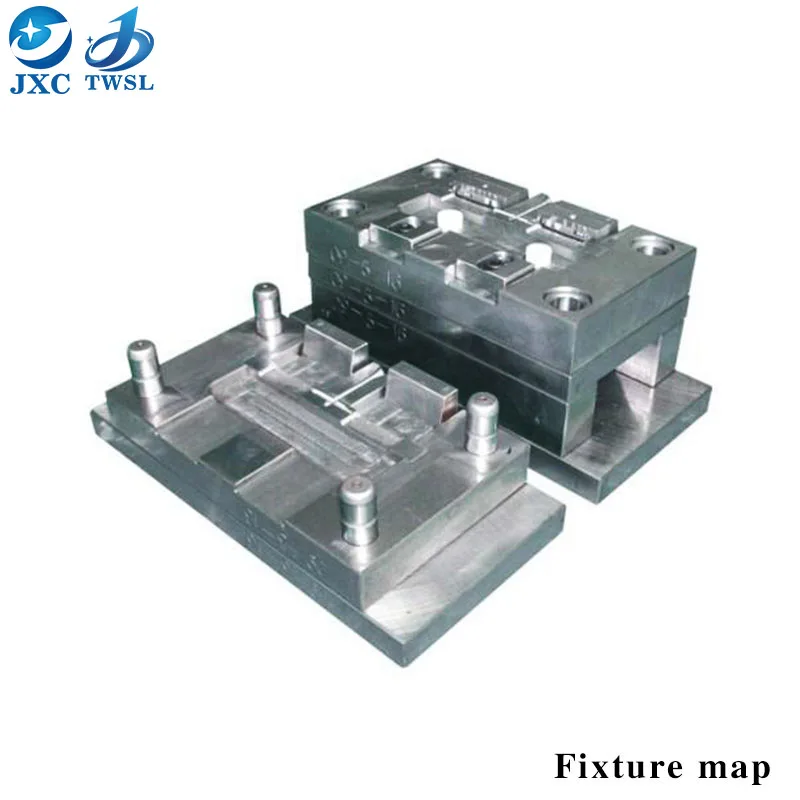

Standard Mold Set Size(mm)	180×100×150(16kg)
Max.Mold Set Size(mm)	300×120×150
Max. Part Size(mm)	50×45×8

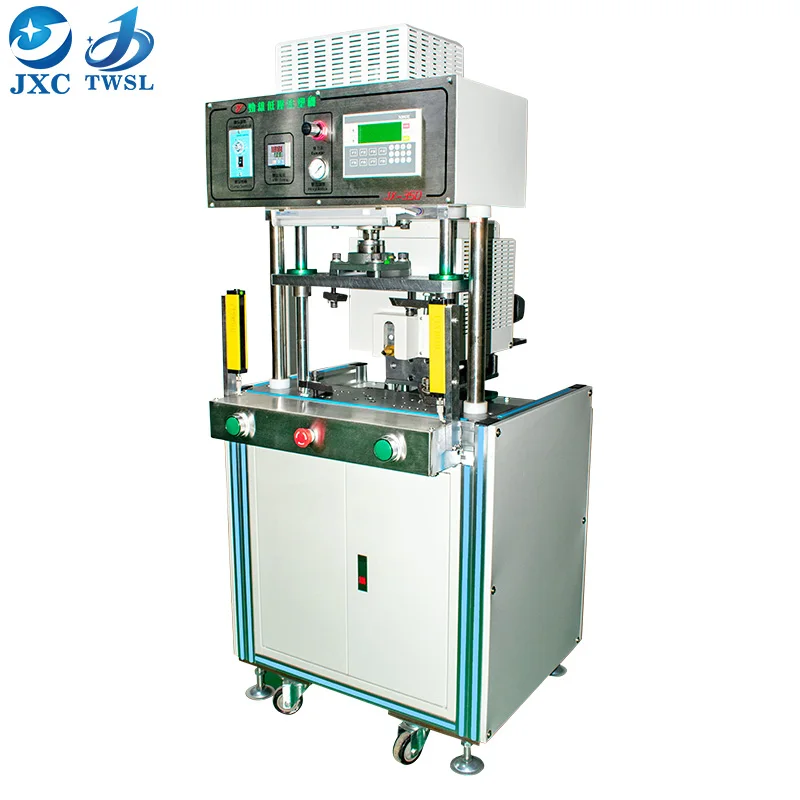

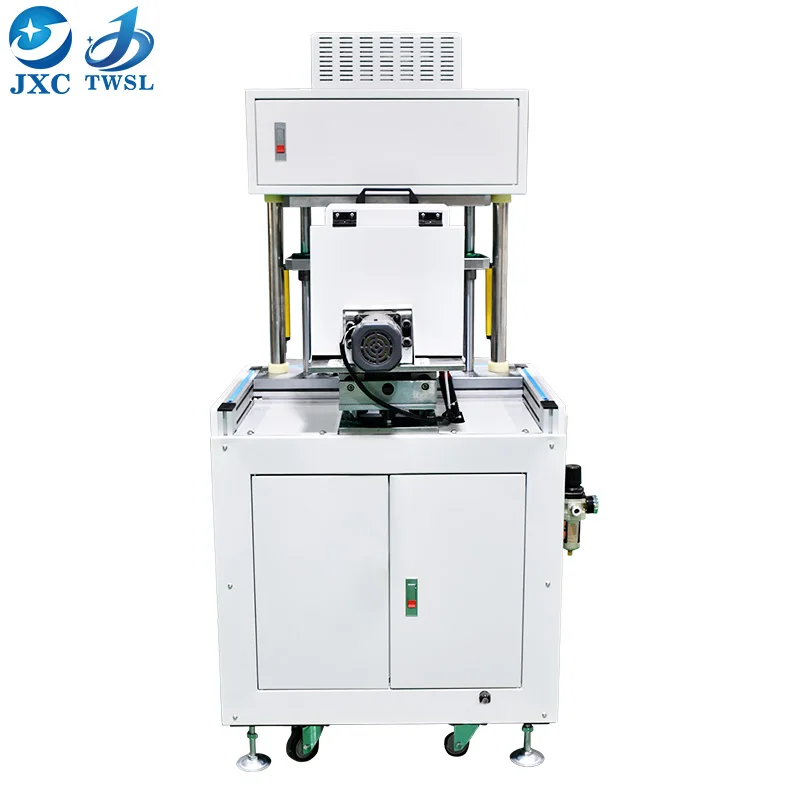

Images:

       plastic machine low pressure injection molding







Wooden Box Export Package:



Payment & Shipping:





Pre-sales
1) Quick response to your inquiry within 12 hours. Inquiry and consulting support. All will be replied in 12 hours.
2) Ideal solution can be offered in accordance with your particular needs.

3) Visit to our Factory is welcomed and try the machine on site or in person.

After-Sales
1) Training can be offered for both installation and use of the machine.
2)  1-year guarantee (free Maintenance in a year since out put date).



 More details,



Madison Jenny | Sales Manager
Shenzhen JXC Mechanical & Equipment Co., Ltd.
Cel: +86-18098919495

Wechat: 18098919495

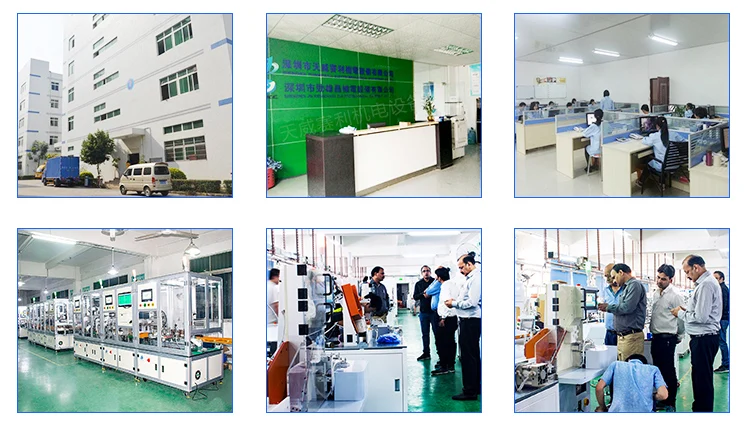

Shenzhen JXC Mechanical & Equipment Co., Ltdis a 12-year expert in factory automatic production machines. Our main products are used in manufacturers of batteries for power bank, laptops and cell phones. Besides the batteries pack & spot welding, we also supply low pressure injection machines at all kinds of customers' requests. With our machines, global factories can speed up their production rates and greatly enhance their business expanding efficiency. We can give advices about how to open your own factories. So far we have 8 engineers and 2000 square meters workshop. We can help you to build your own factory and expand your business! Any interests, please feel free to contact us!







We've gained more than 75% market shares in China with leading technology and service, and are trusted by world giants like BYD, SCUD and Desay, etc.

For successful cases, we recommend India INTEX AND ICCON, who have co-operated with us very recently.
