NA7662B,100kHz to 6.0GHz Vector Network Analyzer



Product Overview


The NA7600 Series Vector Network Analyzer answers consumer feedback with the latest advances in international test and measurement development.2-port network analyzer boasts frequencies spanning 100kHz to 3.0 GHz, 4.5 GHz, 6.0 GHz and 8.5 GHz, covering the entire wireless LAN communications range as well as radio and television.


It also features full 2-port S-parameter testing, superior measurement accuracy, and excellent stability and test speed. The NA7600 Series is ideal for verifying RF components for R&D in any field:communications, military, semiconductor,broadcast TV, research & education and more.





Selection Guide






































ModelFrequencyImpedance
NA7632A100kHz~3.0GHz50Ω
NA7632B100kHz~3.0GHz75Ω
NA7642A100kHz~4.5GHz50Ω
NA7662B100kHz~6.0GHz50Ω
NA7682A100kHz~8.5GHz50Ω




Ordering Information










































































Models and Components
NA7632A100kHz ~ 3GHz, 50Ω, 2-Port Vector Network Analyzer
NA7632B100kHz ~ 3GHz, 75Ω, 2-Port Vector Network Analyzer
NA7642A100kHz ~ 4.5GHz, 50Ω, 2-Port Vector Network Analyzer
NA7662A100kHz ~ 6GHz, 50Ω, 2-Port Vector Network Analyzer
NA7682A100kHz ~ 8.5GHz, 50Ω, 2-Port Vector Network Analyzer
NA7600-60012.1 inch touch screen
NA7600-700N(m)-N(m), 6GHz, 50Ω, 0.6m, RF Test Cable (NA7632A/42A/62A)
NA7600-701N(m)-N(m), 9GHz, 50Ω, 0.6m, RF Test Cable (NA7682A)
NA7600-702N(m)-N(m), 3GHz, 75Ω, 0.6m, RF Test Cable (NA7632B)
DS8831-7061.5m crossover LAN cable
SA8300-7001.5m power cable
NA7600-000NA7600 SiteWorkbench and Documentation Disc
NA7600-001NA7600 User Guide
Options
NA7600-800Time domain analysis software
NA7600-703GPIB option




Function & Benefits



  • 12.1 inch 1280x800 TFT touch screen

  • Wide frequency coverage from 100kHz to 6.0GHz

  • >125dB dynamic range

  • <0.005dB rms trace noise

  • 80μsec/point measurement speed

  • Powerful analysis and error correction

  • Connect with other systems via USB, LAN, and GPIB ports

  • Software-enabled updates and measurement options available at any time





Specifications


















































































































































































































System Performance
Frequency Range100kHz to 3.0/4.5/8.5GHz
Dynamic RangeIFBW=3kHz90dB( ≤ 300kHz );
105dB( >0.3MHz to 6GHz );
108dB( >6GHz to 8.5GHz );
IFBW=10Hz100dB( ≤ 300kHz );
125dB( >0.3MHz to 6GHz );
120dB( >6GHz to 8.5GHz );
Directivity46dB(≤ 3GHz);
42dB(>3GHz to 6GHz);
38dB(>6GHz to 8.5GHz);
Source Match40dB(≤ 3GHz);
36dB(>3GHz to 6GHz);
35dB(>6GHz to 8.5GHz);
Load Match46dB(≤ 3GHz);
40dB(>3GHz to 6GHz);
36dB(>6GHz to 8.5GHz);
Reflection Tracking±0.03dB(≤ 3GHz);
±0.04dB(>3GHz to 6GHz);
±0.06dB(>6GHz to 8.5GHz);
Transmission Tracking±0.03dB(≤ 3GHz);
±0.06dB(>3GHz to 6GHz);
±0.10dB(>6GHz to 8.5GHz);
Measuring Points-60~+60dBmV
Measurement Speed80dB(30kHz RBW)
Test Port Output
Frequency Range100kHz ~ 3 GHz (NA7632A, B)
100kHz ~ 4.5 GHz (NA7642A)
100kHz ~ 6 GHz (NA7662A)
100kHz ~ 8.5 GHz (NA7682A)
Frequency Resolution1Hz
Frequency Accuracy±2ppm (5°C  to  40°C )
Phase Noise@10kHz-85dBc/Hz ( 100kHz  to  3GHz );-80dBc/Hz  ( 3GHz  to  8.5GHz );
Measurement Points2 to 10001
Points80us/point
Harmonics(+5dBm Output) -25dBc(<5MHz);-30dBc(≥5 MHz);
Level Accuracy±1.0dB
Source Power Range-55 to +10dBm(100kHz to 4.5GHz);
-55 to +8dBm(4.5GHz to 6GHz);
-55 to +6dBm(6GHz to 8.5GHz);
Output Power Resolution0.05dB
Test Port Input
Maximum Input+10dBm (100kHz~4..5GHz)
+13dBm (4.5GHz~6.0GHz)
+13dBm (6.0GHz~8.5GHz)
Damage Level +26dBm,±35VDC
Level Resolution0.01dB
Maximum Input Level10dBm
Noise FloorRBW = 3kHz-80dB (<300kHz)
-95dB (0.3 MHz ~ 6 GHz)
-92dB (6 GHz ~ 8.5 GHz)
RBW = 10kHz-90dB (<300kHz)
-120dB (0.3 MHz ~ 6 GHz)
-115dB (6 GHz ~ 8.5 GHz)
Trace Noise       ( 0dBm input , RBW = 3kHz)Magnitude8mdBrms (<300kHz)
5mdBrms (0.3 MHz ~ 6 GHz)
6mdBrms (6 GHz ~ 8.5 GHz)
Phase0.060° rms (<300kHz) 0.040°
rms (0.3 MHz ~ 6 GHz) 0.045°
rms (6 GHz ~ 8.5 GHz)
StabilityMagnitude±0.005dB/°C( <3GHz );
±0.01dB/°C( 3GHz to 6GHz );
±0.02dB/°C( 6GHz to 8.5GHz);
Phase±0.1°/°C( <3GHz );
±0.2°/°C( 3GHz to 6GHz );
±0.4°/°C( 6GHz to 8.5GHz);
General Specification
IF Bandwidth1, 1.5, 2, 3, 4, 5, 7;
10, 15, 20, 30, 40, 50, 70;
100, 150, 200, 300, 400, 500, 700;
1kHz, 1.5kHz, 2kHz, 3kHz, 4kHz, 5kHz, 7kHz;
10kHz, 15kHz, 20kHz, 30kHz, 40kHz, 50kHz, 70kHz

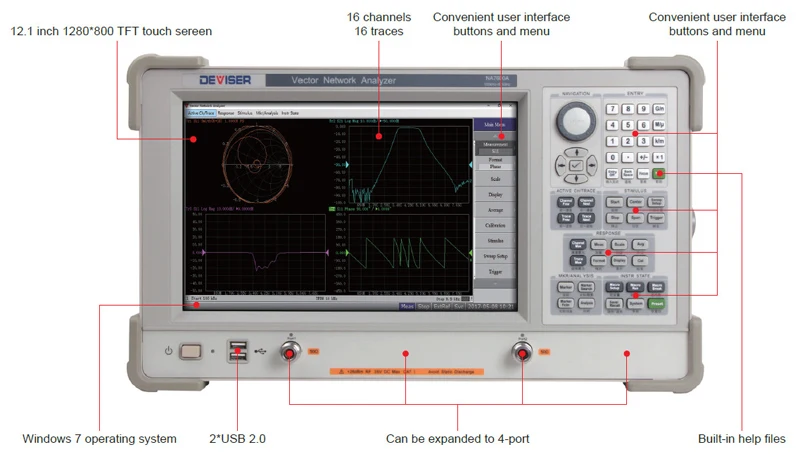

Front PanelRF ConnectorType N,female,50Ω
Display12.1 inch 1280x800 TFT touchscreen
USB Interface2x Type-A USB 2.0
Rear PanelExternal Trigger InputType BNC (f)
Input level: 0.5V (low threshold), 2.1V (high threshold)
Input level range: 0 ~ 5V
Pulse width: ≥2us
Polarity: positive or negative
External Reference InputType: BNC (f)
Input Frequency: 10MHz±10ppm
Input level: -3~+10dBm
Internal Reference OutputType: BNC (f)
Output Frequency: 10MHz ±1ppm
Signal type: Sinewave
Output level: 0dBm±3dB Output
Impedance: 50Ω
Video Output15-pin, D-SUB
GPIB24-pin, D-SUB (type D-24, f). Compatible w/ IEEE488
USB Interface1x Type-A USB 3.0, 3x Type-A USB 2.0
LAN2x RJ-45; 10/100/1000 Base-T
Parallel Port25-pin, D-SUB; LPT print
Serial Port9-pin D-SUB; compatible with RS-232
Power Supply90~254VAC;47~63Hz;150VA max
Dimensions445*265*330mm
Weight ( net )15kg






Accessories


 Optional Accessories









































































































































































































































































































































































































































































75Ω RF Test Cable
NA7600-702N(m)-N(m), 3GHz, 75Ω, 0.6m, RF Test Cable
NA7600-704N(m)-N(m), 3GHz, 75Ω, 1.0m, RF Test Cable
NA7600-705N(m)-F(m), 3GHz, 75Ω, 0.6m, RF Test Cable
NA7600-706N(m)-F(m), 3GHz, 75Ω, 1.0m, RF Test Cable
NA7600-707N(m)-BNC(m), 2GHz, 75Ω, 0.6m, RF Test Cable
NA7600-708N(m)-BNC(m), 2GHz, 75Ω, 1.0m, RF Test Cable
50Ω RF Test Cable
NA7600-709N(m)-BNC(m), 2GHz, 50Ω, 0.6m, RF Test Cable
NA7600-710N(m)-BNC(m), 2GHz, 50Ω, 1.0m, RF Test Cable
NA7600-711BNC(m)-BNC(m), 2GHz, 50Ω, 0.6m, RF Test Cable
NA7600-712BNC(m)-BNC(m), 2GHz, 50Ω, 1.0m, RF Test Cable
NA7600-713N(m)-N(m), 6GHz, 50Ω, 0.6m, RF Test Cable
NA7600-714N(m)-N(m), 6GHz, 50Ω, 1.0m, RF Test Cable
NA7600-715N(m)-N(f), 6GHz, 50Ω, 0.6m, RF Test Cable
NA7600-716N(m)-N(f), 6GHz, 50Ω, 1.0m, RF Test Cable
NA7600-717N(m)-SMA(m), 6GHz, 50Ω, 0.6m, RF Test Cable
NA7600-718N(m)-SMA(m), 6GHz, 50Ω, 1.0m, RF Test Cable
NA7600-719SMA(m)-SMA(m), 6GHz, 50Ω, 0.6m, RF Test Cable
NA7600-720SMA(m)-SMA(m), 6GHz, 50Ω, 1.0m, RF Test Cable
NA7600-721N(m)-N(m), 9GHz, 50Ω, 0.6m, RF Test Cable
NA7600-722N(m)-N(m), 9GHz, 50Ω, 1.0m, RF Test Cable
NA7600-723N(m)-N(f), 9GHz, 50Ω, 0.6m, RF Test Cable
NA7600-724N(m)-N(f), 9GHz, 50Ω, 1.0m, RF Test Cable
NA7600-725N(m)-SMA(m), 9GHz, 50Ω, 0.6m, RF Test Cable
NA7600-726N(m)-SMA(m), 9GHz, 50Ω, 1.0m, RF Test Cable
NA7600-727SMA(m)-SMA(m), 9GHz, 50Ω, 0.6m, RF Test Cable
NA7600-728SMA(m)-SMA(m), 9GHz, 50Ω, 1.0m, RF Test Cable
50Ω Phase-Stable Cable
NA7600-731N(m)-N(m), 9GHz, 50Ω, 0.6m
NA7600-732N(m)-N(m), 9GHz, 50Ω, 1.0m
NA7600-733N(m)-N(f), 9GHz, 50Ω, 0.6m
NA7600-734N(m)-N(f), 9GHz, 50Ω, 1.0m
NA7600-735N(m)-SMA(m), 9GHz, 50Ω, 0.6m
NA7600-736N(m)-SMA(m), 9GHz, 50Ω, 1.0m
NA7600-737SMA(m)-SMA(m), 9GHz, 50Ω, 0.6m
NA7600-738SMA(m)-SMA(m), 9GHz, 50Ω, 1.0m
75Ω Calibration Kit (incl. open circuit, short circuit, load)
CK-N030BN(f) , DC ~ 3GHz , 75Ω
CK-N031BN(m) , DC ~ 3GHz , 75Ω
CK-F030BF(f) , DC ~ 3GHz , 75Ω
CK-F031BF(m) , DC ~ 3GHz , 75Ω
CK-B020BBNC(f) , DC ~ 2GHz , 75Ω
CK-B021BBNC(m) , DC ~ 2GHz , 75Ω
N 50Ω Calibration Kit (incl. open circuit, short circuit, load)
CK-N030AN(f) , DC ~ 3GHz , 50Ω
CK-N031AN(m) , DC ~ 3GHz , 50Ω
CK-N060AN(f) , DC ~ 6GHz , 50Ω
CK-N061AN(m) , DC ~ 6GHz , 50Ω
CK-N090AN(f) , DC ~ 9GHz , 50Ω
CK-N091AN(m) , DC ~ 9GHz , 50Ω
CK-N180AN(f) , DC ~ 18GHz , 50Ω
CK-N181AN(m) , DC ~ 18GHz , 50Ω
BNC 50Ω Calibration Kit (incl. open circuit, short circuit, load)
CK-B020ABNC(m), DC ~ 2GHz, 50Ω
CK-B021ABNC(m), DC ~ 2GHz, 50Ω
3.5mm 50Ω Calibration Kit (incl. open circuit, short circuit, load)
CK-4060A3.5mm (f) , DC ~ 6GHz , 50Ω
CK-4061A3.5mm (m) , DC ~ 6GHz , 50Ω
CK-4090A3.5mm (f) , DC ~ 9GHz , 50Ω
CK-4091A3.5mm (m) , DC ~ 9GHz , 50Ω
CK-4260A3.5mm (f) , DC ~ 26.5GHz , 50Ω
CK-4261A3.5mm (m) , DC ~ 26.5GHz , 50Ω
75Ω Adapter
NA7600-739N(m)-F(f), DC ~ 3GHz, VSWR<1.15
NA7600-740N(m)-F(m), DC ~ 3GHz, VSWR<1.15
NA7600-741N(f)-F(f), DC ~ 3GHz, VSWR<1.15
NA7600-742N(f)-F(m), DC ~ 3GHz, VSWR<1.15
NA7600-743N(m)-BNC(f), DC ~ 2GHz, VSWR<1.1
NA7600-744N(m)-BNC(m), DC ~ 2GHz, VSWR<1.1
NA7600-745N(f)-BNC(f), DC ~ 2GHz, VSWR<1.1
NA7600-746N(f)-BNC(m), DC ~ 2GHz, VSWR<1.1
NA7600-747F(f)-F(f), DC ~ 3GHz, VSWR<1.15
50Ω Adapter
NA7600-749N(m)-BNC(f), DC ~ 2GHz, VSWR<1.1
NA7600-750N(m)-BNC(m), DC ~ 2GHz, VSWR<1.1
NA7600-751N(f)-BNC(f), DC ~ 2GHz, VSWR<1.1
NA7600-752N(f)-BNC(m), DC ~ 2GHz, VSWR<1.1
NA7600-753N(m)-N(m),DC ~18GHz,VSWR<1.15
NA7600-754N(m)-N(f),DC ~18GHz,VSWR<1.15
NA7600-755N(f)-N(f),DC ~18GHz,VSWR<1.15
NA7600-756N(m)-SMA(m),DC~18GHz,VSWR<1.2
NA7600-757N(m)-SMA(f),DC~18GHz,VSWR<1.2
NA7600-758N(f)-SMA(m),DC~18GHz,VSWR<1.2
NA7600-759N(f)-SMA(f),DC~18GHz,VSWR<1.2
NA7600-760N(m)-3.5mm(m),DC ~18GHz,VSWR<1.15
NA7600-761N(m)-3.5mm(f),DC ~18GHz,VSWR<1.15
NA7600-762N(f)-3.5mm(m),DC ~18GHz,VSWR<1.15
NA7600-763N(f)-3.5mm(f),DC ~18GHz,VSWR<1.15
NA7600-764NA7600 SiteWorkbench and Documentation Disc
NA7600-765SMA(m)-SMA(f),DC ~18GHz,VSWR<1.2
NA7600-766SMA(f)-SMA(f),DC~18GHz,VSWR<1.2
NA7600-7673.5mm(m)-3.5mm(m),DC~26.5GHz,VSWR<1.15
NA7600-7683.5mm(m)-3.5mm(f),DC~26.5GHz,VSWR<1.15
NA7600-7693.5mm(f)-3.5mm(f),DC~26.5GHz,VSWR<1.15
75Ω Standard Load
NA7600-770N(f), DC ~ 3GHz, 35dB
NA7600-771N(m), DC ~ 3GHz, 35dB
NA7600-772F(m), DC ~ 3GHz, 35dB
NA7600-773F(f), DC ~ 3GHz, 35dB
NA7600-774BNC(m), DC ~ 2GHz, 35dB
NA7600-775BNC(f), DC ~ 2GHz, 35dB
50Ω Standard Load
NA7600-776BNC(m), DC ~ 2GHz, 35dB
NA7600-777BNC(f), DC ~ 2GHz, 35dB
NA7600-778N(m), DC ~ 6GHz, 35dB
NA7600-779N(f), DC ~ 6GHz, 35dB
NA7600-780SMA(m), DC ~ 6GHz, 35dB
NA7600-781SMA(f), DC ~ 6GHz, 35dB
NA7600-782N(m), DC ~ 9GHz, 35dB
NA7600-783N(f), DC ~ 9GHz, 35dB
NA7600-7843.5mm(m), DC ~ 9GHz, 35dB
NA7600-7853.5mm(f), DC ~ 9GHz, 35dB
Other Options
NA7600-729Impedance converter, N(50m)-N(75f), 3GHz
NA7600-730Impedance converter, N(75m)-N(50f), 3GHz
