CNC machinery factory price busbar punching shearing bending machine equipment

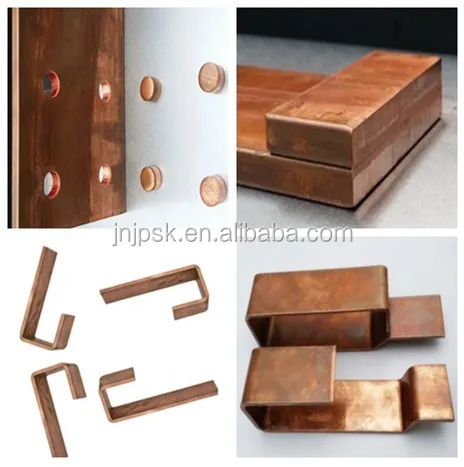

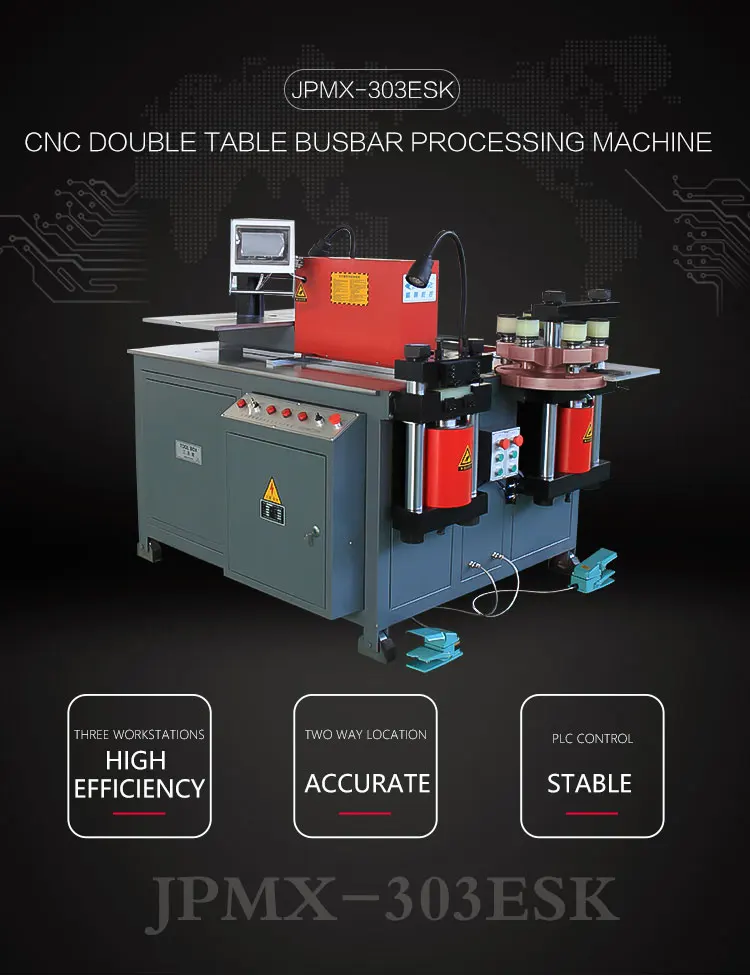

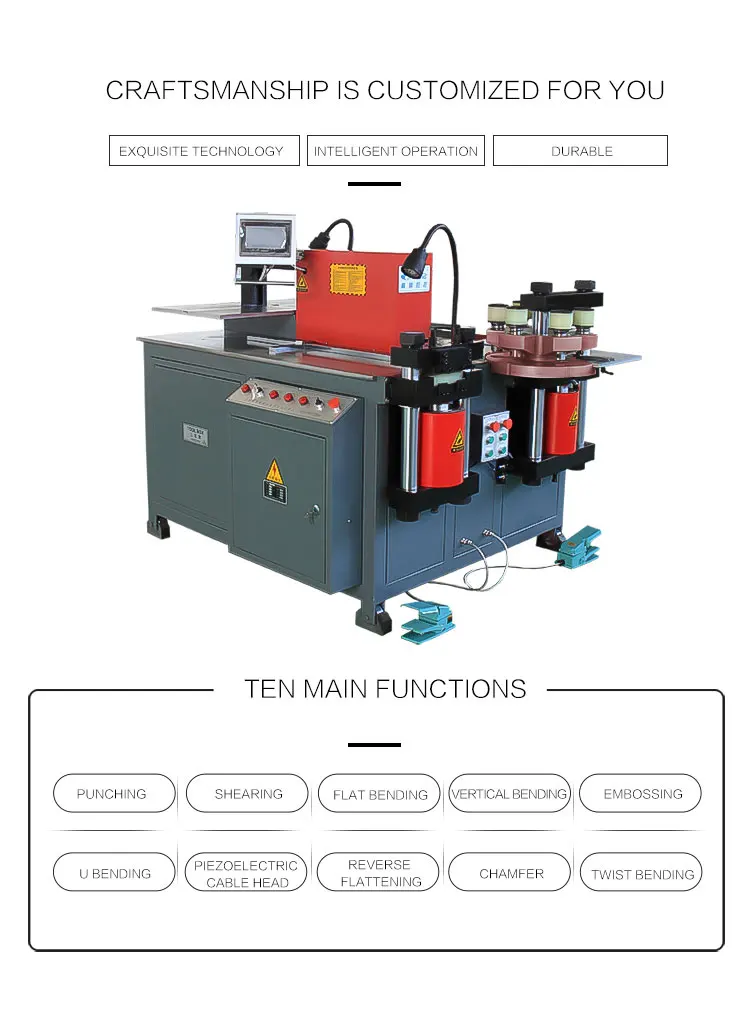

This series of CNC busbar processing machine has three processing units: punching, shearing/cutting and bending. The three unit can be used simultaneously or sequentially, which shortens the processing time and improves production efficiency. The bending unit adopts Siemens PLC of Germany. The main function is processing copper and aluminum busbar in different specifications. By relative operation unit, it can do all kinds of processing to copper and aluminum busbar quickly and easily, such as shearing/cutting, punching (circular hole and oblong hole), flat/horizontal bending, vertical bending, U-bending, embossing, flat pressing, twisting, cable connector processing etc.

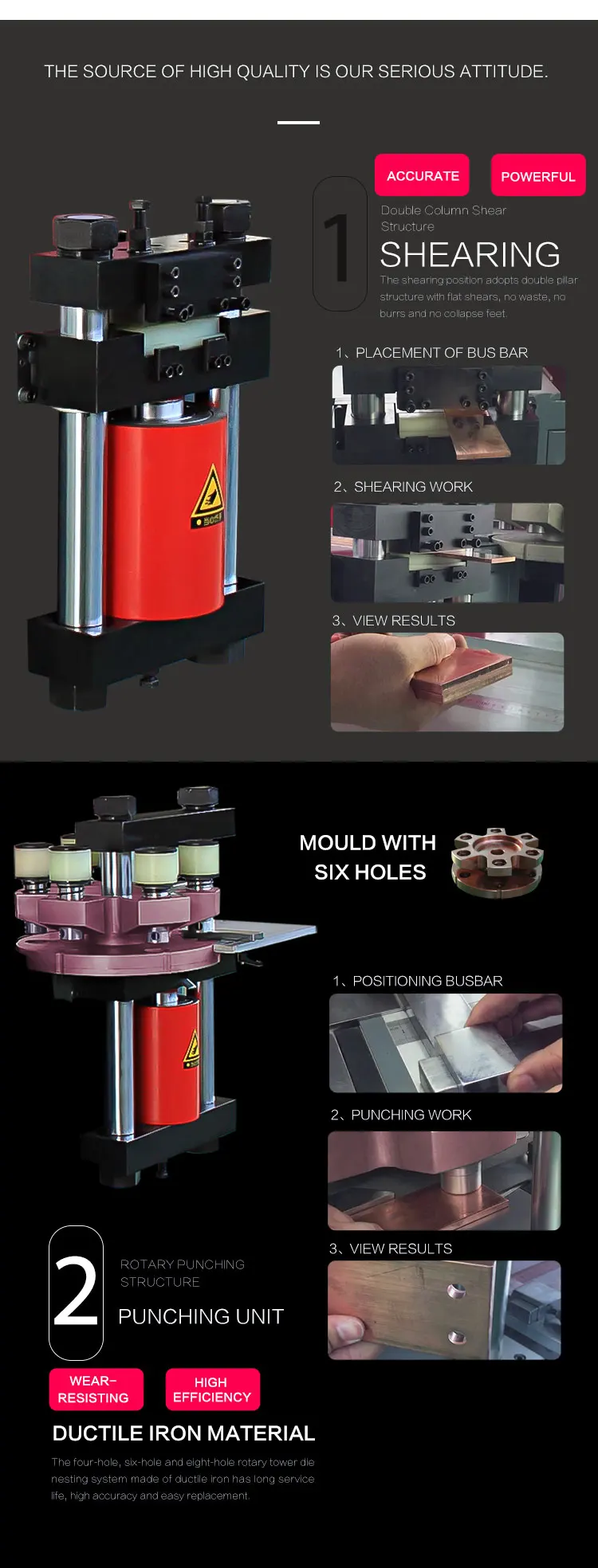

1. The shearing/cutting unit adopts double column shearing dies, the incision interface is flat, no waste, burrs and droop.

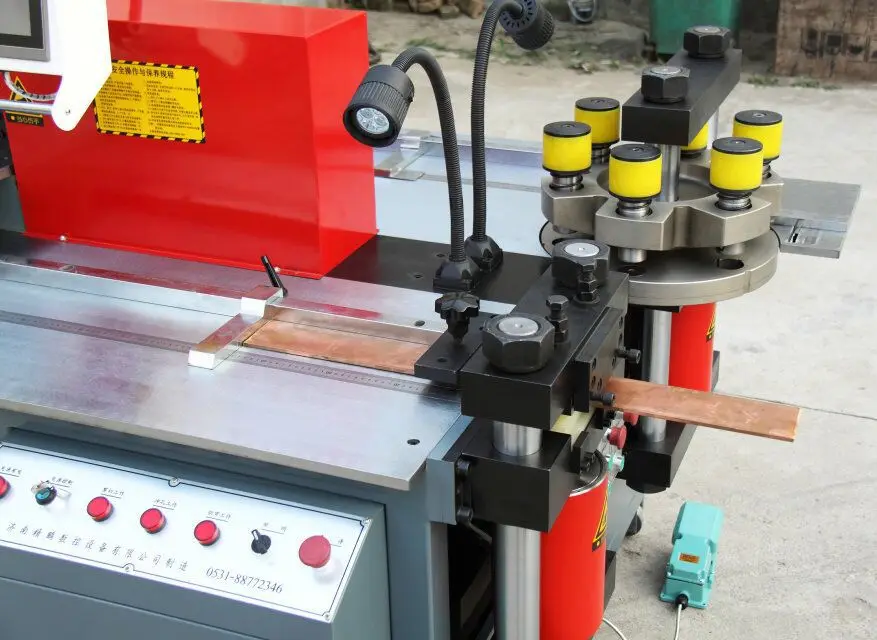

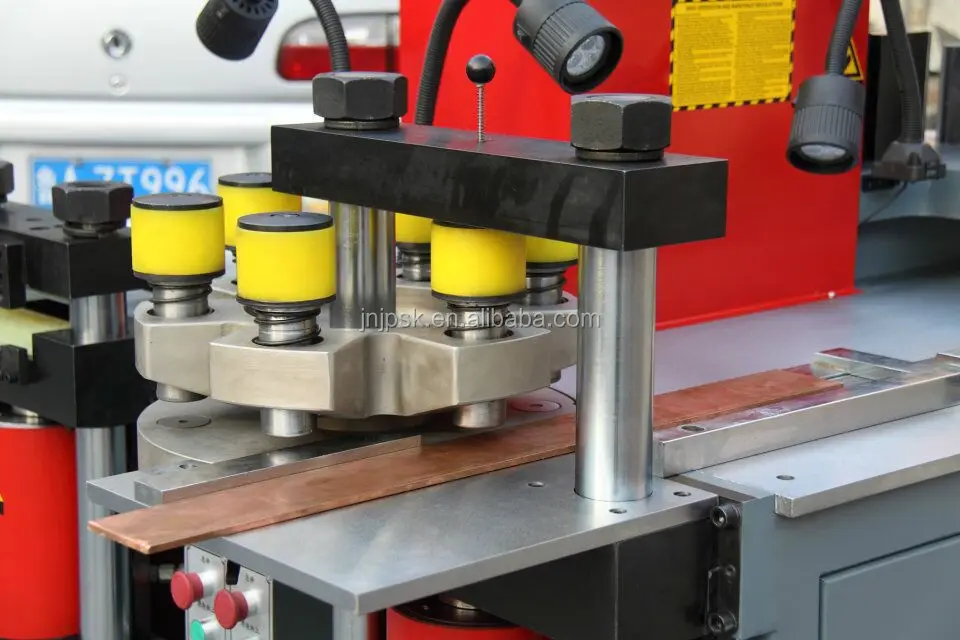

2. The punching unit is an integral six-mode turnplate, which ensure the upper and lower molds are absolutely in the center.  There is no need to change the mold, reduce the misoperation caused by frequent mold changes, reduce the damage rate of the mold, and extend the service life of the mold.

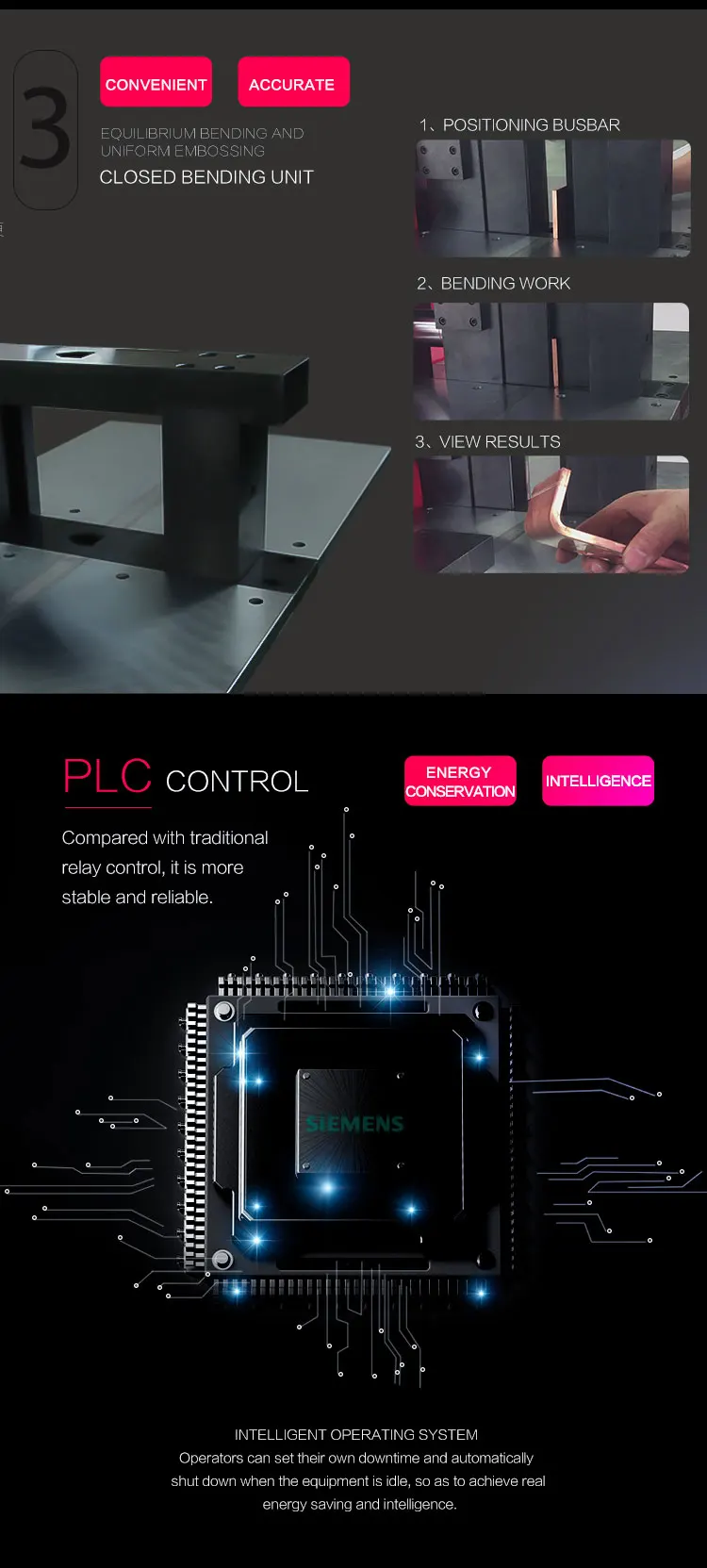

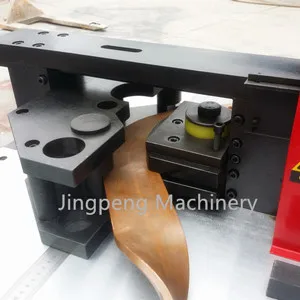

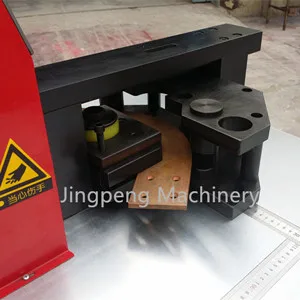

3. The bending unit adopts a closed bending structure, which makes it more uniform during processing horizontal bending and embossing, and improves the repeat positioning accuracy in mass production.

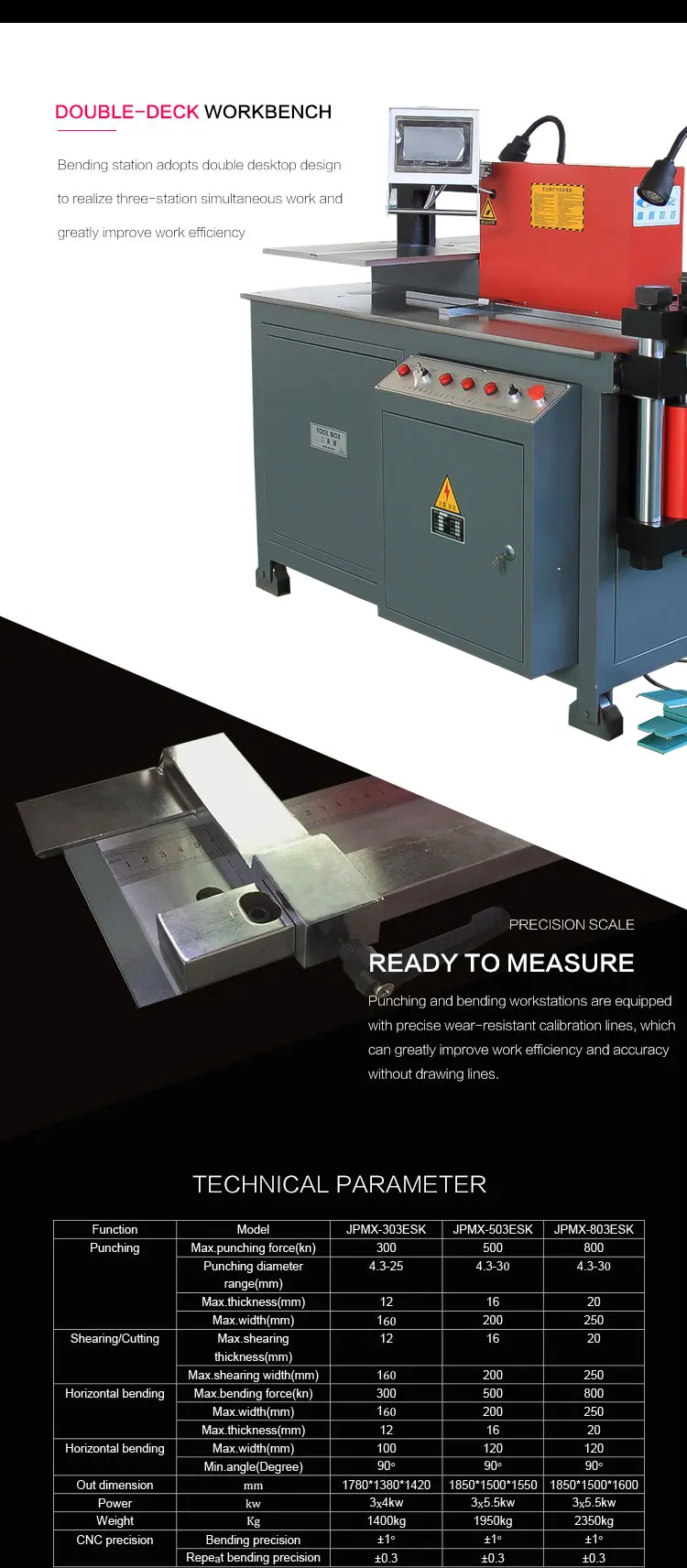

4. The ESK series bending unit adopts a double-decker working table, and the three-units work does not affect each other at the same time.  The SK and CSK series bending unit use a single-layer work table, making the machine more economical and practical.

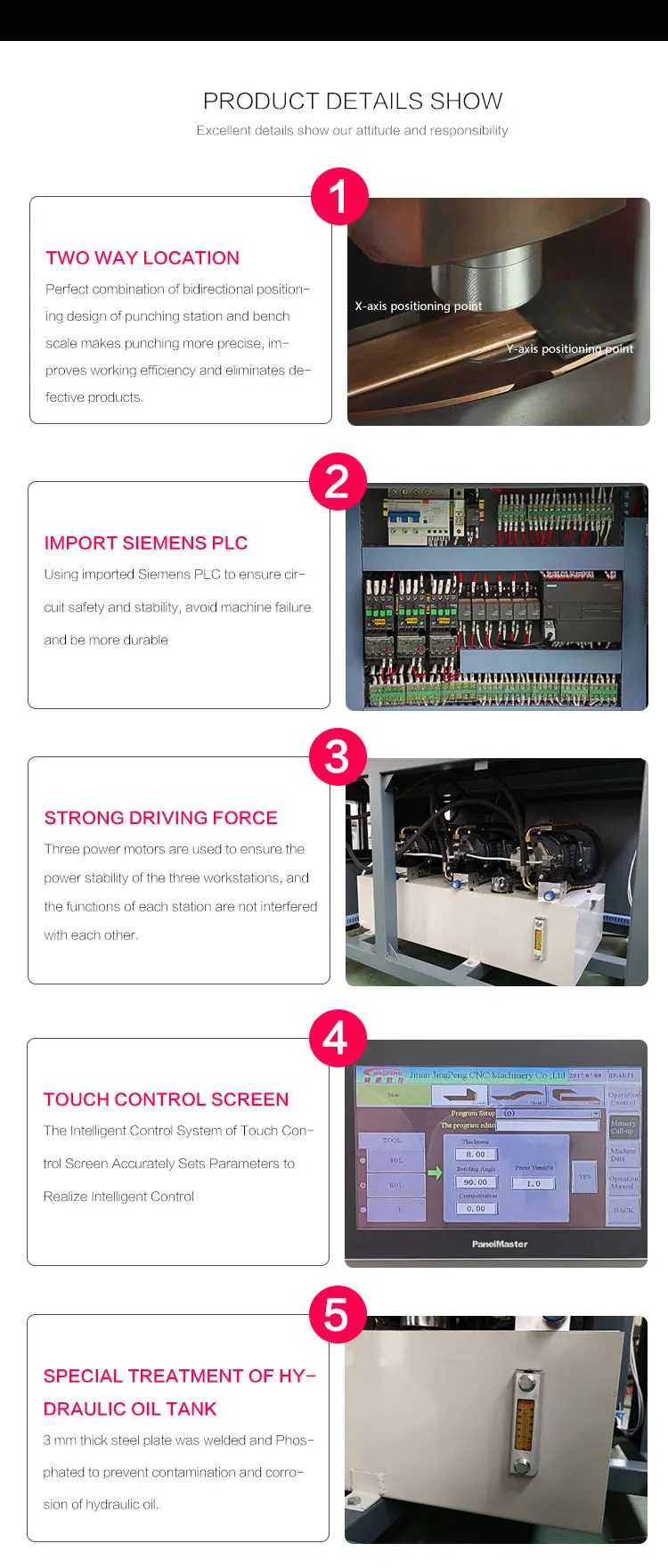

5. The CNC system adopts Siemens PLC of Germany, and the bending angle is automatically controlled.  The system has a storage function, convenient for storing and calling at any time.  Each unit can set automatic downtime, it’s more efficient and saving energy.  The system comes with a fine-tuning function, it’s more convenient to use.

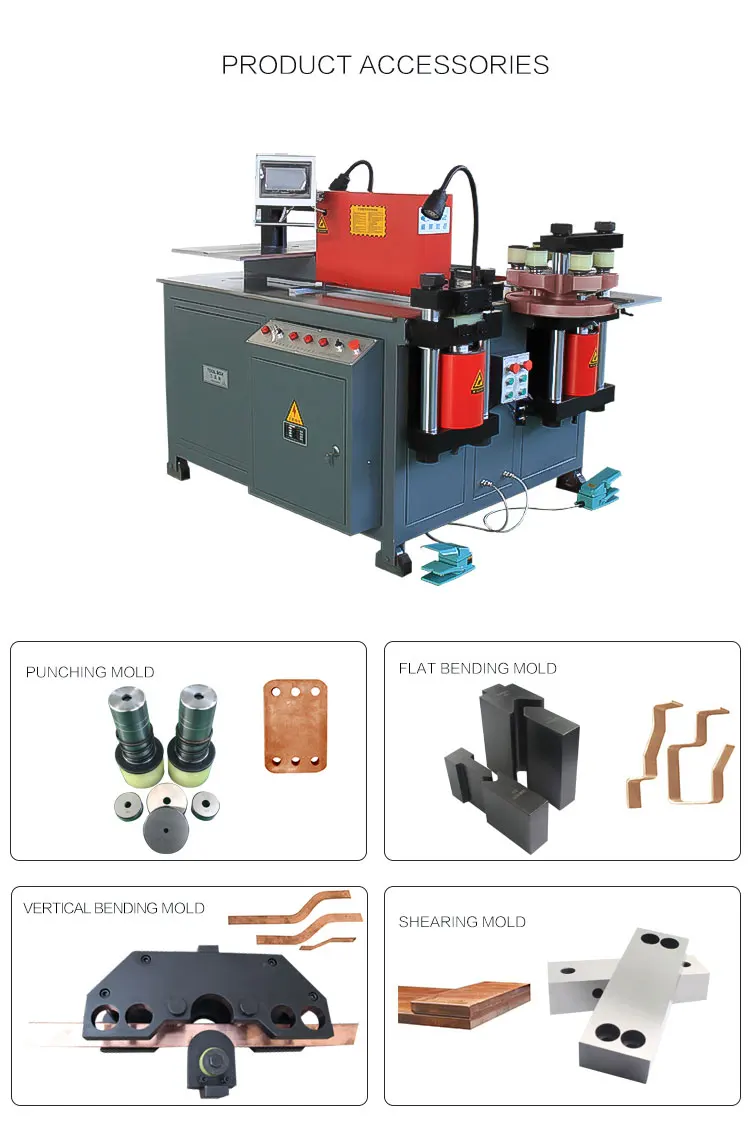

6.  Different molds or tools can be installed according to user requirements to complete special shape processing.

Jinan Jingpeng CNC Machinery Co.,Ltd
