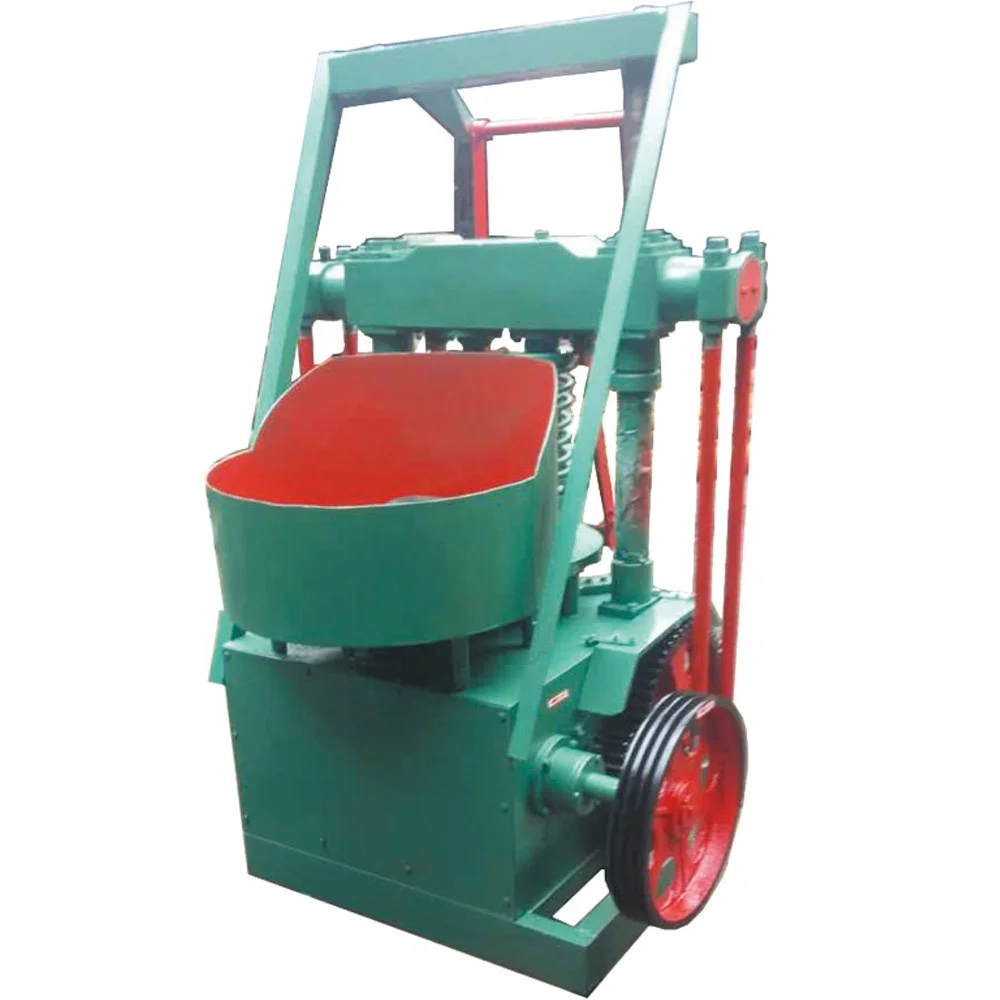

UDFM 140 Honeycomb Coal Charcoal Dust Brick Making Briquette Press Machine
- Category: >>>
- Supplier: Kaifeng Youdo Machinery Co. Ltd.
Share on (62006964322):
Product Overview
Description
Honeycomb coal charcoal briquette making machine
The honeycomb briquette machine is specially used for making honeycomb coal and Charcoal，The shape can adjust according to customers.

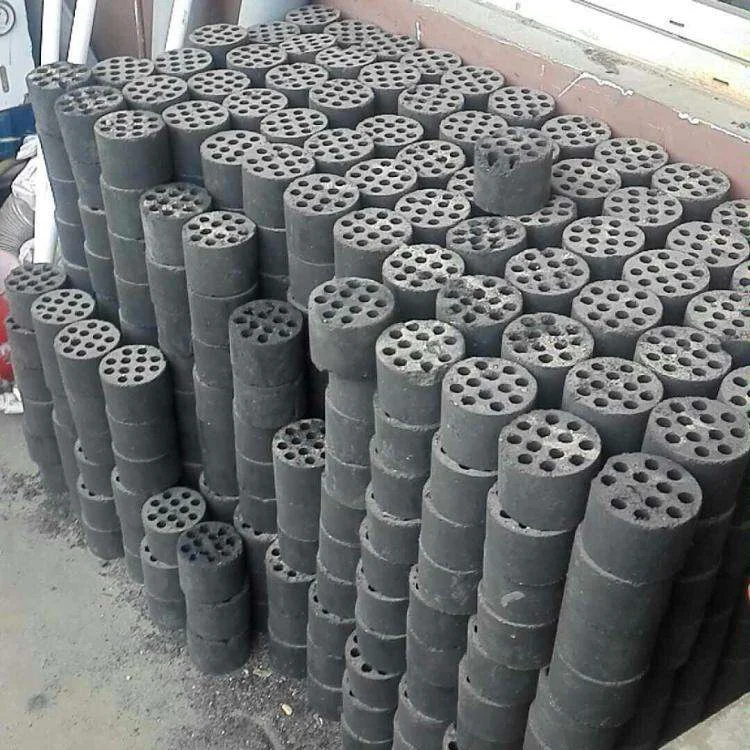

Honeycomb coal briquette machine have been mainly used in home fire, heating with anthracite honeycomb made of cylindrical briquettes.
Honeycomb coal briquette machine have been mainly used in home fire, heating with anthracite honeycomb made of cylindrical briquettes.
Previously been processed into the coal sphere slightly larger than ping-pong, and later the coal processed into one
cylinder, and marked with a number of holes inside the cylinder, because it can increase the surface area of coal, so that the full combustion of coal, to reduce resource waste.
cylinder, and marked with a number of holes inside the cylinder, because it can increase the surface area of coal, so that the full combustion of coal, to reduce resource waste.
Product introduction
Model | UDFM-140 | UDFM-160 | ||
Production specification | 100-140mm | 100-160mm | ||
Power | 7.5KW | 7.5KW | ||
Capacity | 45pieces/min | 45pieces/min | ||
Weight | 1.4t | 2t | ||
Dimensions | 1320*1260*1850mm | 1400*1300*2000mm | ||
Model | UDFM-180 | UDFM-220 | ||
Production specification | 100-180mm | 180-220mm | ||
Power | 7.5kw | 11KW | ||
Capacity | 42pieces/min | 35pieces/min | ||
Weight | 2.6t | 4t | ||
Dimension | 1500*1400*2200mm | 1580*1450*2200mm | ||

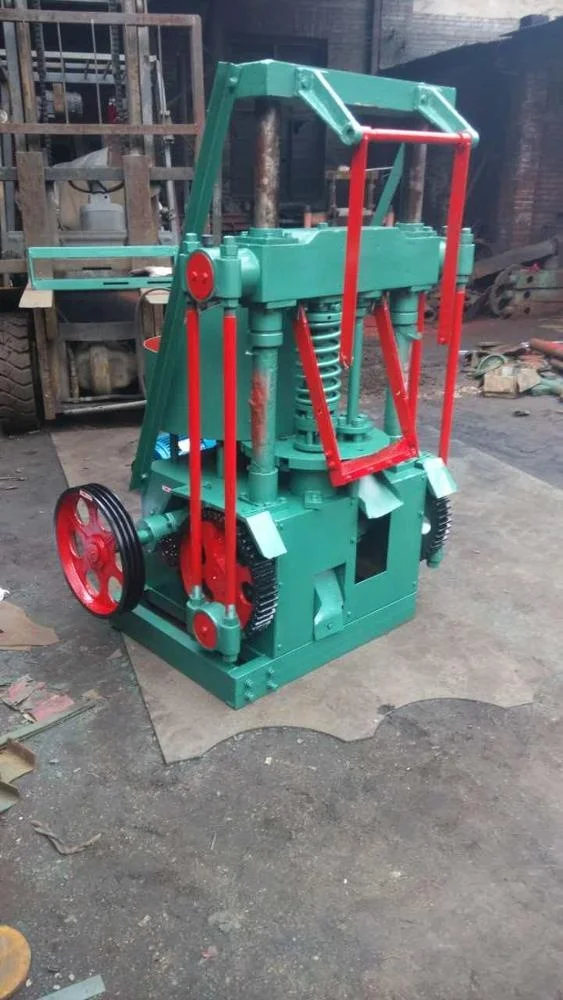

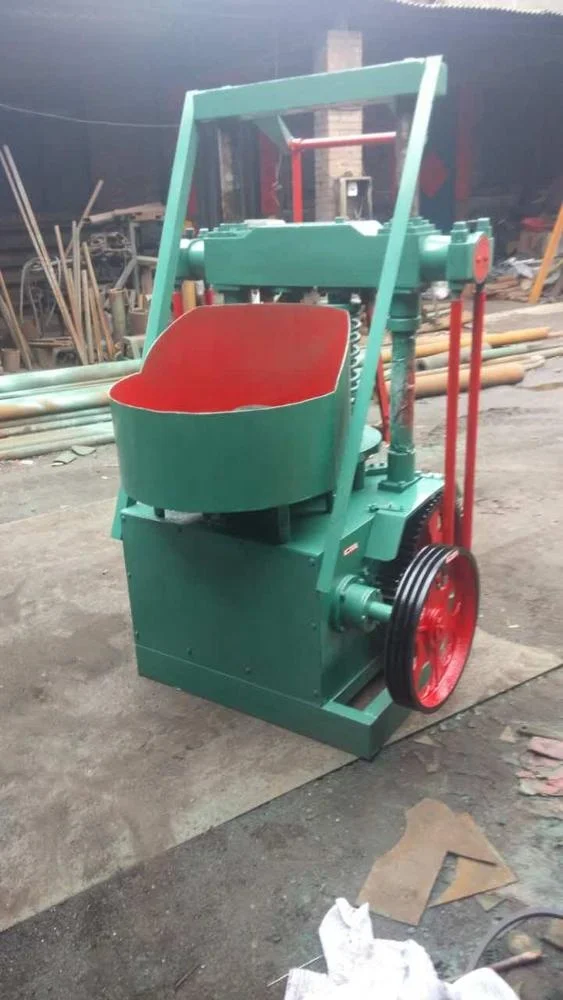

Structure and principle
The briquette machine has a simple structure and is divided into five parts: body, rotation, feeding, stamping and transmission. All parts cooperate with each other and coordinate smoothly. 1. Body part: It is composed of a pressure plate and a base, and it becomes the skeleton entity of the machine.
2. Transmission part: It is composed of motor, pulley, gear, transmission shaft and other components. The motor rotates the gear shaft through the pulley, transmits it to the drive shaft through the gear, and also rotates the dial through a pair of bevel gears and the drive shaft to turn the dial onto the four-hole disc.
3. Feeding part: It consists of shaft, hopper, mixer, it consists of axial flow gear mixer, stirring coal and loading mode pipe. 4. Four sliders, sliding beams, punches, punch blocks, punches, movable pressure plates, movable die bottoms, and springs for stamping parts. When the machine moves, the tie rod slide beam is driven by the two-speed gear, the punch goes down, and the downward force of the punch acts on the movable disc displacement spring to tighten, the coal is formed and rushes into the coal, and Songmei moves the coal through the spring. Press plate, coal compaction is determined.
5. The conveying part consists of conveyor, pulley, bracket and conveyor. The conveyor belt rotates randomly to send the body into briquettes, and the conveyor belt is spirally adjustable and the shelf is adjustable.
Installation and testing
1. First use the machine to level and fix it firmly on the cement foundation. 2. Clean the oil and sundries on the machine, and refuel all transmission and moving parts.
3. Check whether the screws of each part are loose.
4. Adjust the clearance position of steering, stamping and other parts. After adjusting the pulley of the moving plate by hand, each operating part should be operated freely
5. The main engine rotates the pulley clockwise to advance. Do not turn it upside down. Before starting the machine, try to
remove the belt steering motor. The steering motor and the steering wheel turning machine are roughly the same, and then install the belt test machine.
6. In this method, when the test pulse motor is rotated by a mobile machine, if there is no other noise, the drive can be operated normally. No heavy truck starts, feed before production until the machine runs normally.
7. The company's technical personnel will help install the three guarantees of the product during the contract period.
remove the belt steering motor. The steering motor and the steering wheel turning machine are roughly the same, and then install the belt test machine.
6. In this method, when the test pulse motor is rotated by a mobile machine, if there is no other noise, the drive can be operated normally. No heavy truck starts, feed before production until the machine runs normally.
7. The company's technical personnel will help install the three guarantees of the product during the contract period.
Operation
1. Before driving, check the machine for loose fasteners and impurities in the machine body. Pull the big wheel by hand to check the alignment accuracy of the punch and the discharge pipe at the bottom of the mold.2. All rotating parts and bearings are regularly refueled.
3. When turning on the machine, you should pay attention to the grounding of the machine, and there is no abnormal phenomenon such as noise in the mouth. If any abnormal phenomenon occurs, the service should be stopped immediately.
4. If the punch is stuck, turn off the power immediately, wait for the punch and die to clear the coal before driving, and do not touch the sundries to prevent accidents.
Related Products
After Sales Service
Quality assurance
We have always focused on research and development because they are the key to our corporate innovation. They make us do better in production, technical service and marketing.
We provide high-quality machines and professional after-sales service.
Our goal is to maximize customer satisfaction and value. We usually provide 1 year warranty and free common accessories.
assured.When disassembling, we will paste the corresponding label on each part, and provide multi-language installation video and instruction manual. Customer satisfaction is our aim.
We provide high-quality machines and professional after-sales service.
Our goal is to maximize customer satisfaction and value. We usually provide 1 year warranty and free common accessories.
We promise that our products are brand new and have not been used. They are made of corresponding materials and adopted a new design.
The quality, specifications, and functions are in compliance with the contract requirements.
We promise that the products produced on this production line can be stored for one year without any additives.
The quality, specifications, and functions are in compliance with the contract requirements.
We promise that the products produced on this production line can be stored for one year without any additives.
Test and teardown
We will take the initiative to test the operation of the machine when it is completed, and take videos to let customers rest assured.When disassembling, we will paste the corresponding label on each part, and provide multi-language installation video and instruction manual. Customer satisfaction is our aim.
Package
We will wrap the machine with film to avoid damp and scattered during transportation, and thicken the export wooden box to surround the machine to protect the machine from impact and friction. The size depends on the machine.Transportation
We can provide multiple channels of transportation. We guarantee that the freight forwarders we use have more than 5 years of cooperation history, provide you with fast timeliness and economic prices, and ensure the safety and integrity of your machines.Installation and commissioning
After the equipment arrives at the customer's workshop, please arrange the equipment in accordance with the floor plan drawn up by us. During the epidemic, we can use online videos or video tutorials to guide debugging. After the epidemic is over, we can also arrange professional engineers to your factory. You need to provide our engineers' round-trip air tickets and accommodation, as well as salary.
