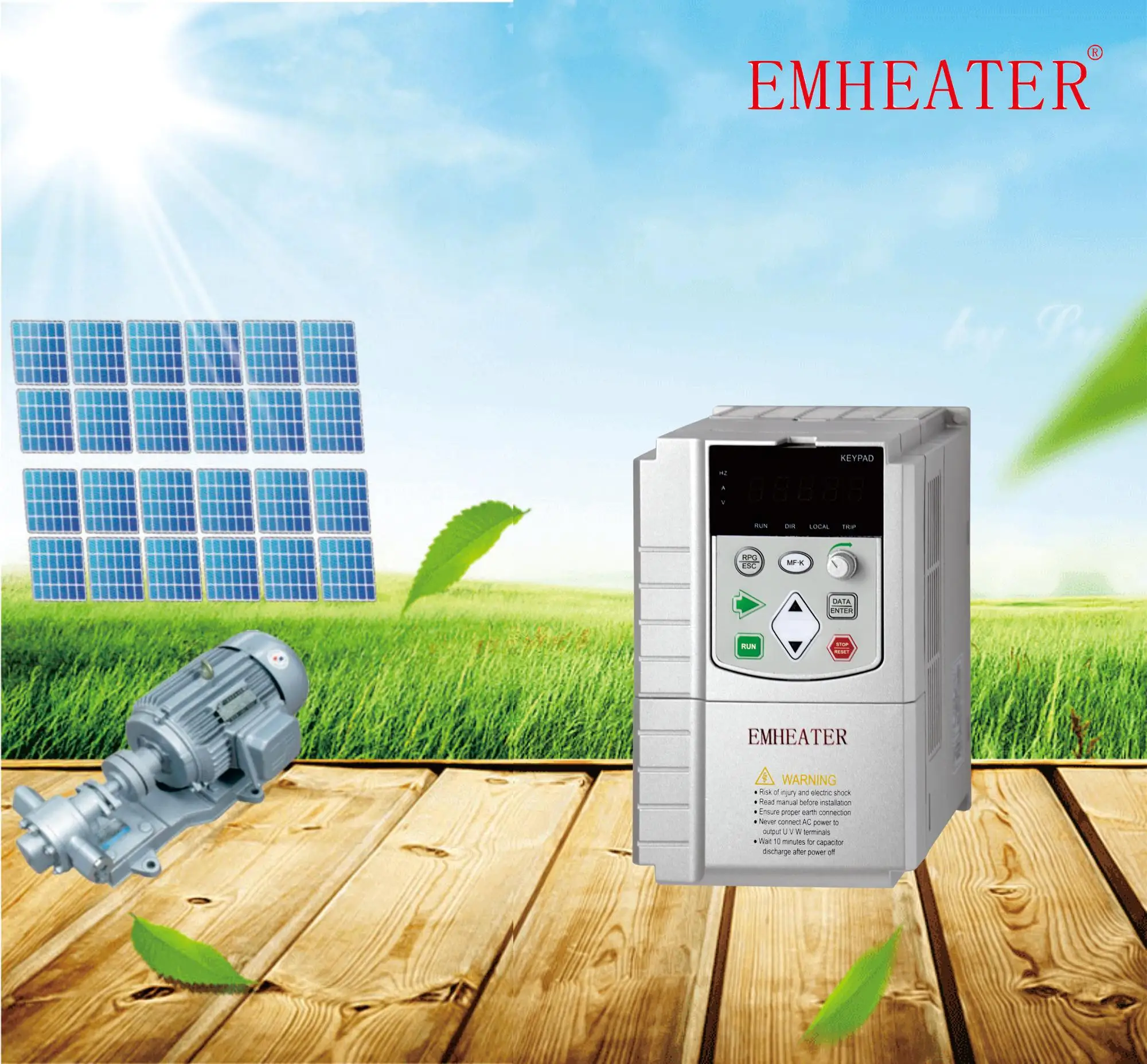

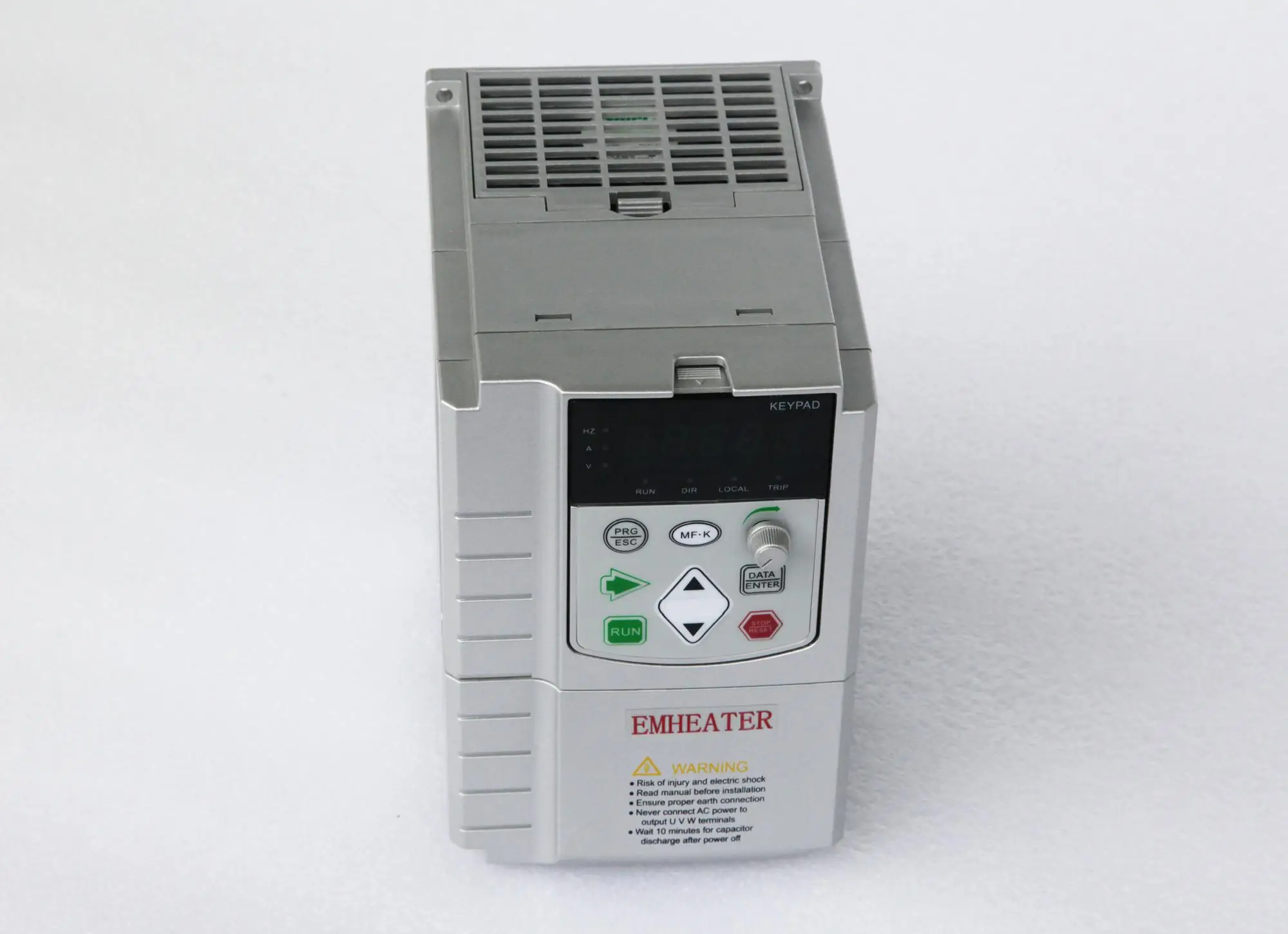

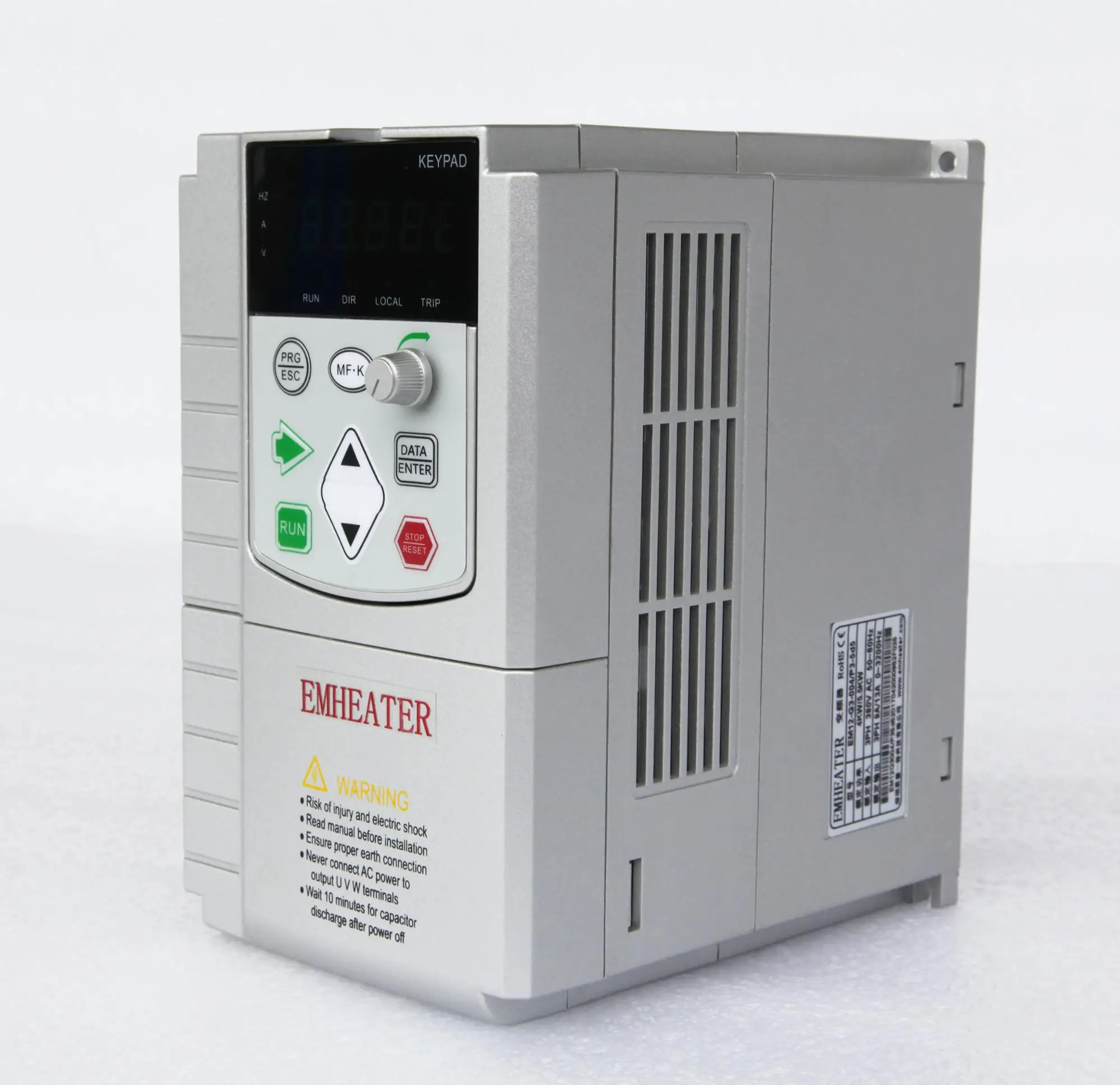

Three phase Power Brake Unit 380V 2.2kw Solar AC inverters VFD/ASD
- Category: >>>
- Supplier: Dongguan Emheater Electrical Equipment Limited Corperation
Share on (62007008417):
Product Overview
Description
CHINA BEST COST EFFECTIVE FREQUENCY INVERTER

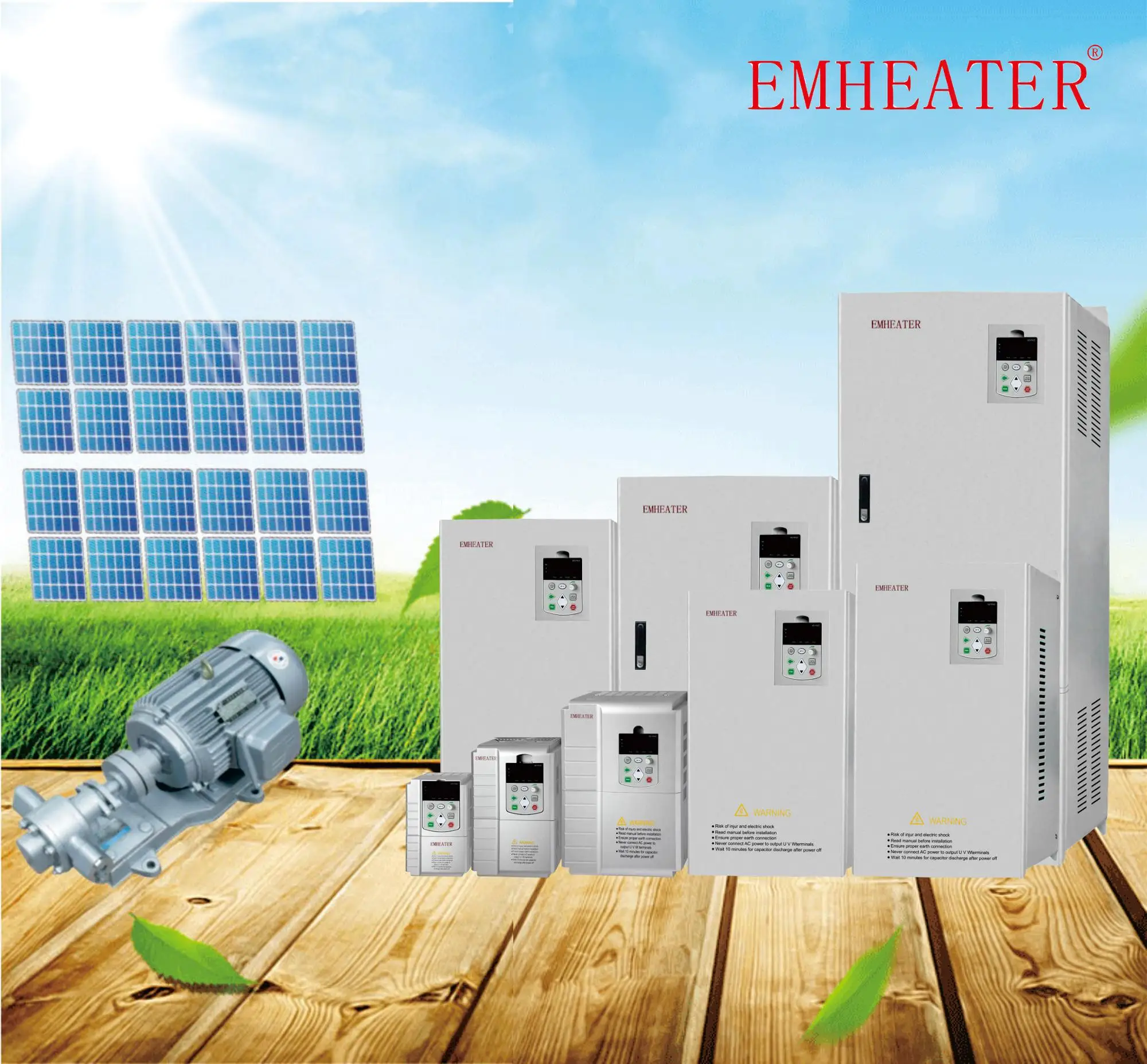

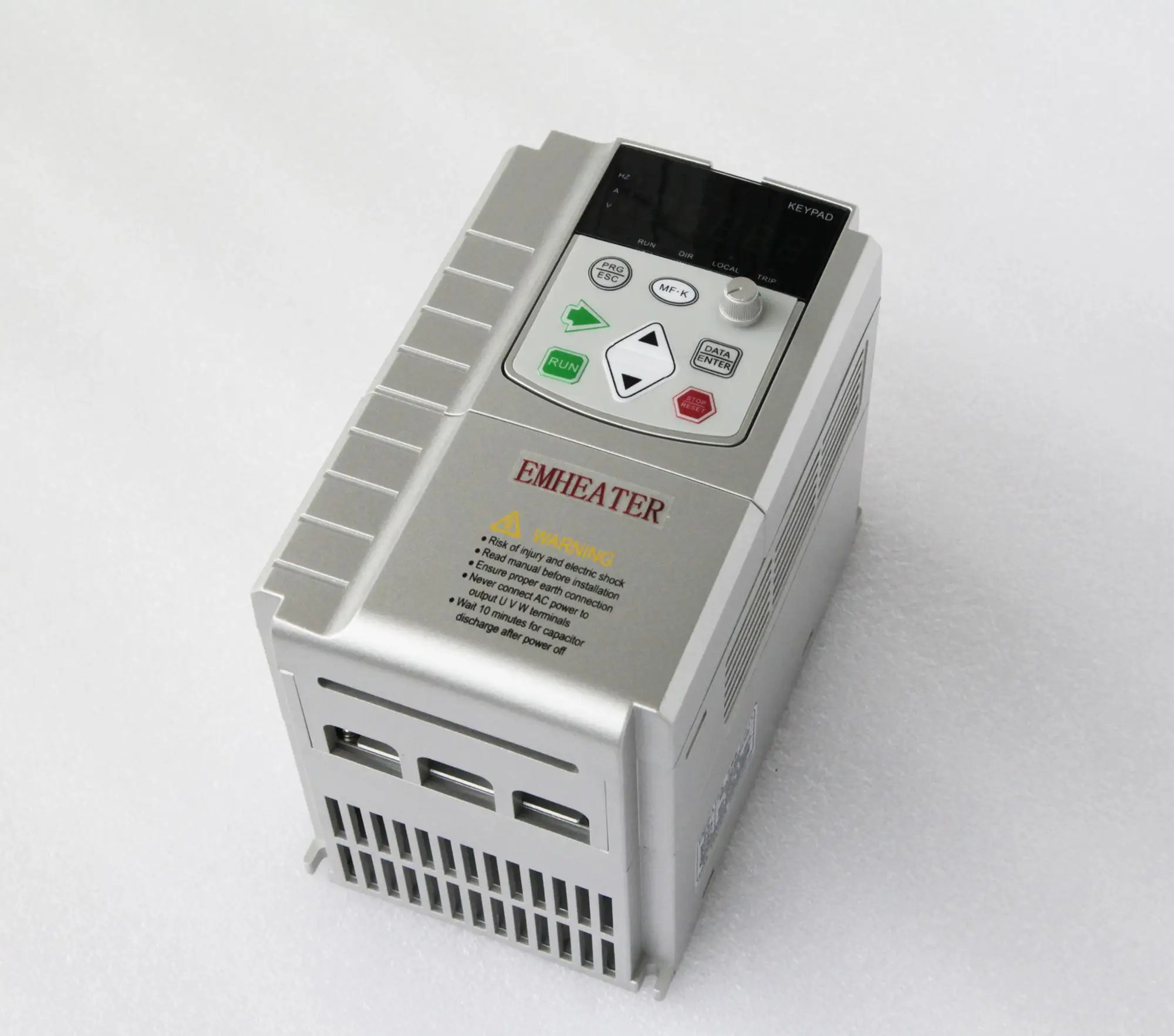

EM12-SP Solar Pump Inverter
Feature:
EM12-SP MPPT algorithm of fast tracking of maximum power point of PV cells, efficiency > 99%.
Solar battery working point voltage can be manually or automatically MPPT tracking.
All-weather automatic operation, can also be manually, realize "sunrise work and sunset sleep”.
It can switch between city grid AC power supply and PV battery power.
Auto sleep function/pump dry protect/low frequency protection/ over load protection, etc.

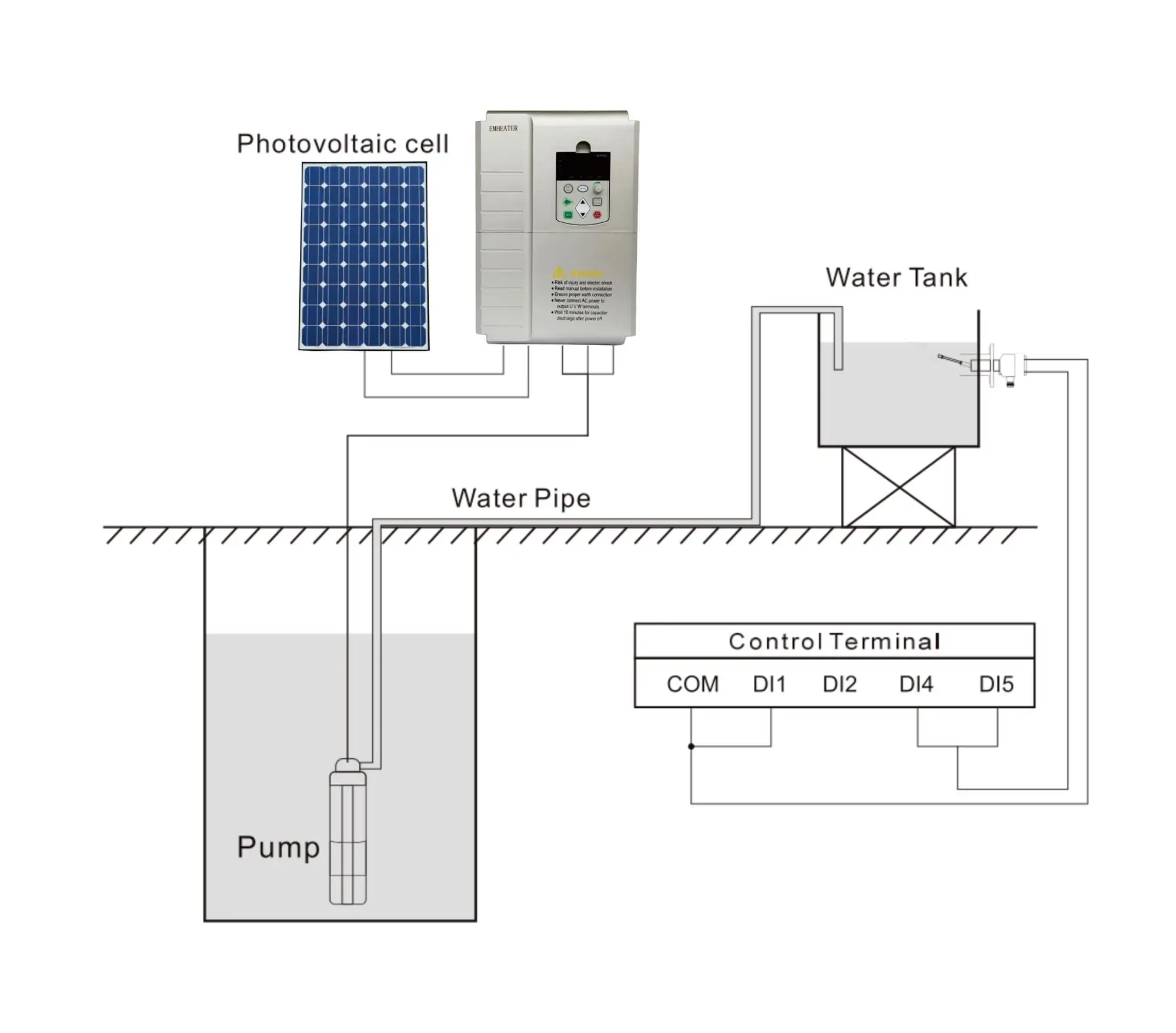

Water level detection function, can support terminal and analog detection.
Accurate display PV power, PV current, operating parameters, such as pump flow.
The IGBT carrier frequency can auto adjustment according to heat sink temperature.
35 kinds protection function, including auto detecting short circuit after power on.
Suggested working Voltage Range:DC 300V~380V or DC450V~650V.
Controller perfect protection function, such as over voltage/over current/loss of phase.
Output Voltage Range:0V~rated input voltage.
Output Frequency Range:V/F( 0~3000Hz); Vector Control (0~300Hz).
Overload Capacity:60s with 150% of rated current, 3s with 180% of rated current.
Speed Accuracy: ±0.5% (SVC); ±0.02% (VC).
Pulse setting input: 0Khz~100Khz.
All model built-in Modbus, RS485 card, terminal control, analogy control.
EM12-SP models are integrated IGBT.
The malfunction ratio is 0.1% within 18 months warranty.
Industry application

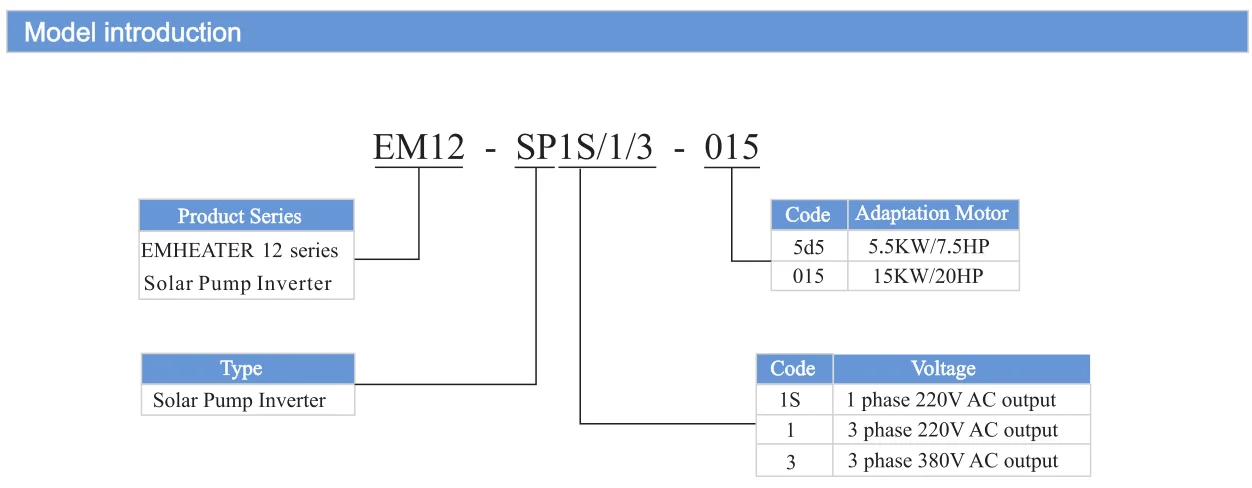

EM12-SP1S is Solar Pump Inverter Using DC300~380V or (AC200-240V) Input
Output Single phase AC 220V for driving single phase 220V pump
Model No. | DC Voltage | Power | Current | G.W | Package size | Installation |
(V) | (KW) | (A) | (KG) | L/W/H(mm) | W/H/D(mm) | |
EM12-SP1S-d75 | 300~380 | 0.75 | 4 | 3 | 235*175*214 | 118/185/157 |
EM12-SP1S-1d5 | 300~380 | 1.5 | 7 | |||
EM12-SP1S-2d2 | 300~380 | 2.2 | 10 | |||
EM12-SP1S-004 | 300~380 | 4 | 16 | 5 | 320*230*230 | 160/247/177 |
EM12-SP1S-5d5 | 300~380 | 5.5 | 23 |
EM12-SP1 is Solar Pump Inverter For Using DC300~380V (AC200-240V) Input
Output 3phase AC220V for driving 3 phase pump or motor.
Model No. | DC Voltage | Power | Current | G.W | Package size | Installation |
(V) | (KW) | (A) | (KG) | L/W/H(mm) | W/H/D(mm) | |
300~380 | 0.75 | 4 | 3 | 235*175*214 | 118/185/157 | |
EM12-SP1-1d5 | 300~380 | 1.5 | 7 | |||
EM12-SP1-2d2 | 300~380 | 2.2 | 10 | |||
EM12-SP1-004 | 300~380 | 4 | 16 | 5 | 320*230*230 | 160/247/177 |
EM12-SP1-5d5 | 300~380 | 5.5 | 23 |
EM12-SP3 Solar Pump Inverter For Using DC 450-650V (AC380~420) Input
Output 3phase AC380V for driving 3 phase pump or motor.
Model No. | DC Voltage | Power | Current | G.W | Package size | Installation |
(V) | (KW) | (A) | (KG) | L/W/H(mm) | W/H/D(mm) | |
EM12-SP3-d75 | 450~650 | 0.75 | 2.1 | 3 | 235*175*214 | 118/185/157 |
EM12-SP3-1d5 | 450~650 | 1.5 | 3.8 | |||
EM12-SP3-2d2 | 450~650 | 2.2 | 5.1 | |||
EM12-SP3-004 | 450~650 | 4.0 | 9 | |||
EM12-SP3-5d5 | 450~650 | 5.5 | 13 | |||
EM12-SP3-7d5 | 450~650 | 7.5 | 17 | 5 | 320*230*230 | 160/247/177 |
EM12-SP3-011 | 450~650 | 11 | 25 | |||
EM12-SP3-015 | 450~650 | 15 | 32 | 8 | 390*300*270 | 220/320/198 |
EM12-SP3-018 | 450~650 | 18.5 | 37 | |||
EM12-SP3-022 | 450~650 | 22 | 45 | 9 | ||
EM12-SP3-030 | 450~650 | 30 | 60 | 25 | 610/410/350 | 300/540/240 |
EM12-SP3-037 | 450~650 | 37 | 75 | |||
EM12-SP3-045 | 450~650 | 45 | 91 | 40 | 640/450/460 | 340/580/270 |
EM12-SP3-055 | 450~650 | 55 | 112 | |||
EM12-SP3-075 | 450~650 | 75 | 150 | 51 | 670/520/480 | 410/610/280 |
EM12-SP3-090 | 450~650 | 90 | 1 |
our certificate:

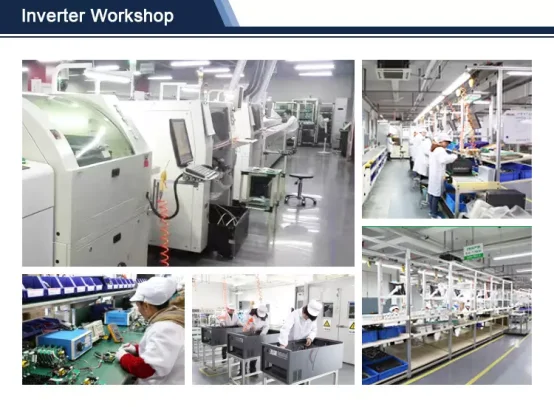

Producing and shipping
