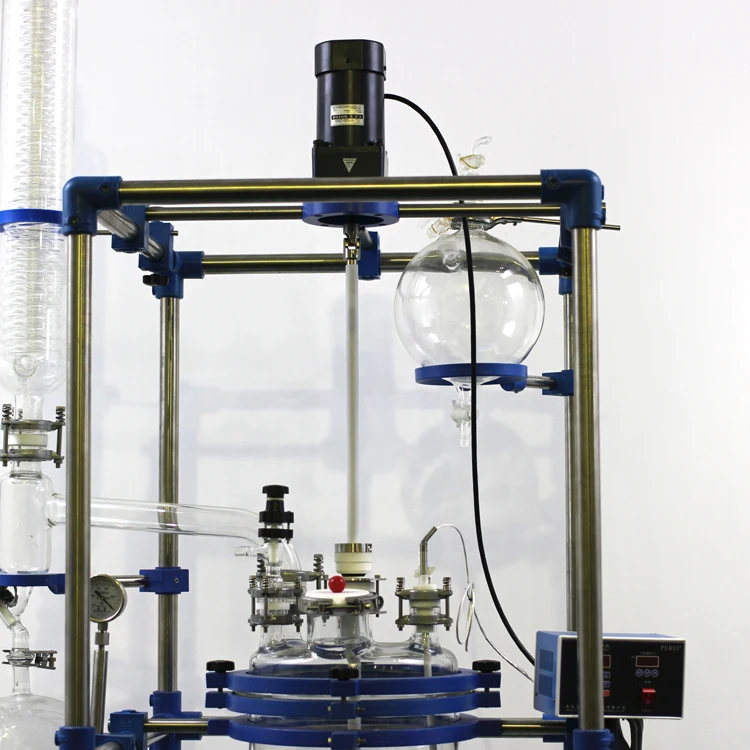

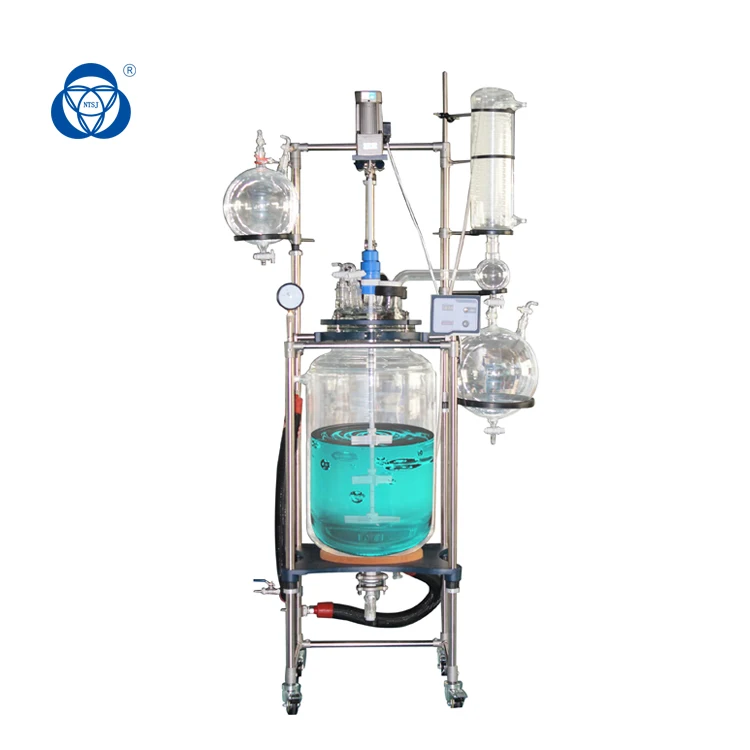

10L lab vacuum distillation hydrolysis stirring glass reactor

Glass reactor is with double glass design,the inner layer placed reaction solvent can do the mixing raction,the outer layer can be added with the different hot and cold sources(frozen liquid,hot oil)to do loop cooling or heating reaction,Under the conditions of constant temperature setting,the mixing reaction can be carried on inside the sealted glass reactor according to requirments under the conditions of atmospheric pressure or negative pressure,and the dripping,reflux and distillation and stirring etc can also be done.

Model
PGR-3
PGR-20
PGR-50
PGR-80
PGR-100
PGR-200
Volume(L)
3
20
50
80
100
200
Neck No.on Cover
4
6
6
6
6
6
External Diameter of inner veesel(mm)
150
290
365
410
460
600
External Diameter of outer veesel(mm)
200
330
410
460
500
650
Cover Diameter
150
265
265
340
340
340
Vessel Height(mm)
300
850
850
950
950
1200
Motor Power(w)
40
40
140
250
250
750
Vacuum Degree(Mpa)
0.098
0.098
0.098
0.098
0.098
0.098
Rotation Speed(rpm)
50-1400
50-600
50-600
50-600
50-600
50-600
Torque(Nm)
0.27
2.23
2.23
3.98
3.98
6.37
Power(V)
220
220
220
220
220
220

MORE DETAILES,LEASE CLICK HERE.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Detailed Images

Machine Parts

Name: VESSEL

Brand: NTSJ

Original: CHINA

Vessel is made of 3.3 borosillicate glass,

0.25L-200L is optional.

Main Features

Name: PT-100 THERMOMETER
Brand: NTSJ
Original: CHINA
PT100 sensor probe has high measurement accuracy,

less error and is hard to be broken,improved the

working efficiency.

PTFE coated outside without pollution,the anti-corrosion

effect is excellent.

Machine Parts

Name: RECEIVING FLASK
Brand: NTSJ
Original: CHINA
Adopt 3.3 borosilicate glass,flange type connector,

the bottom discharge valve can discharge material

continuously,1L-100L is optional.

Main Features

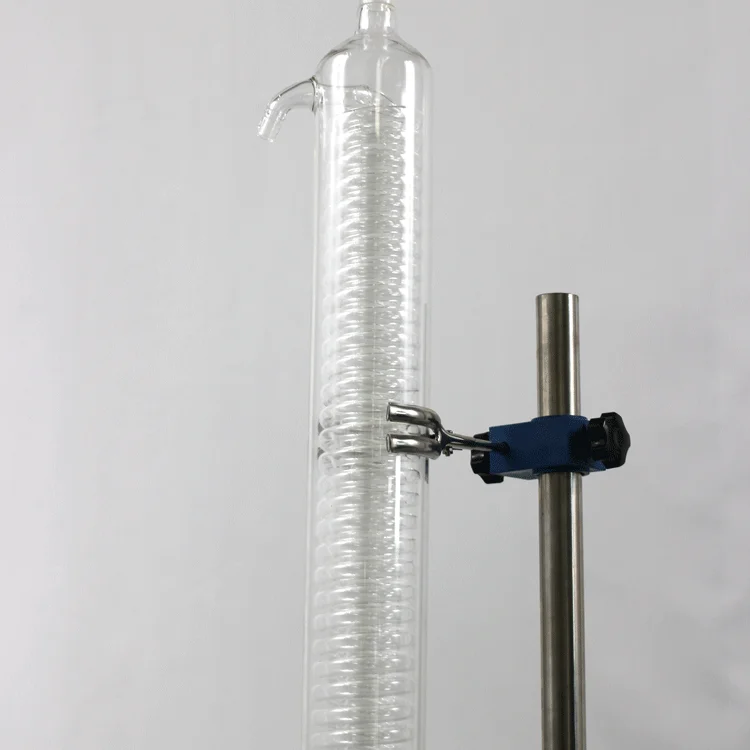

Name: CONDENSER
Brand: NTSJ
Original: CHINA
Efficient coil condenser is made of 3.3 borosilicate

glass,0.3m²-3m² is optional.

Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Packing & Delivery
Packaging
Size
2700(L) * 700 (W) * 1000 (D)
Weight
140kg

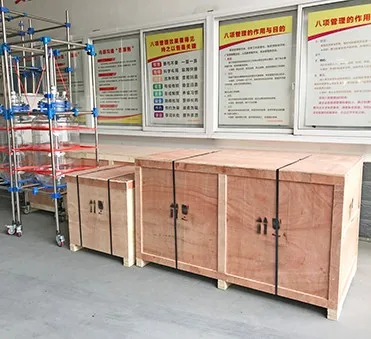

Packaging Details

The normal package is wooden box(Size: L*W*H).
Just tell us your requirements and we will produce professional design drawings for you

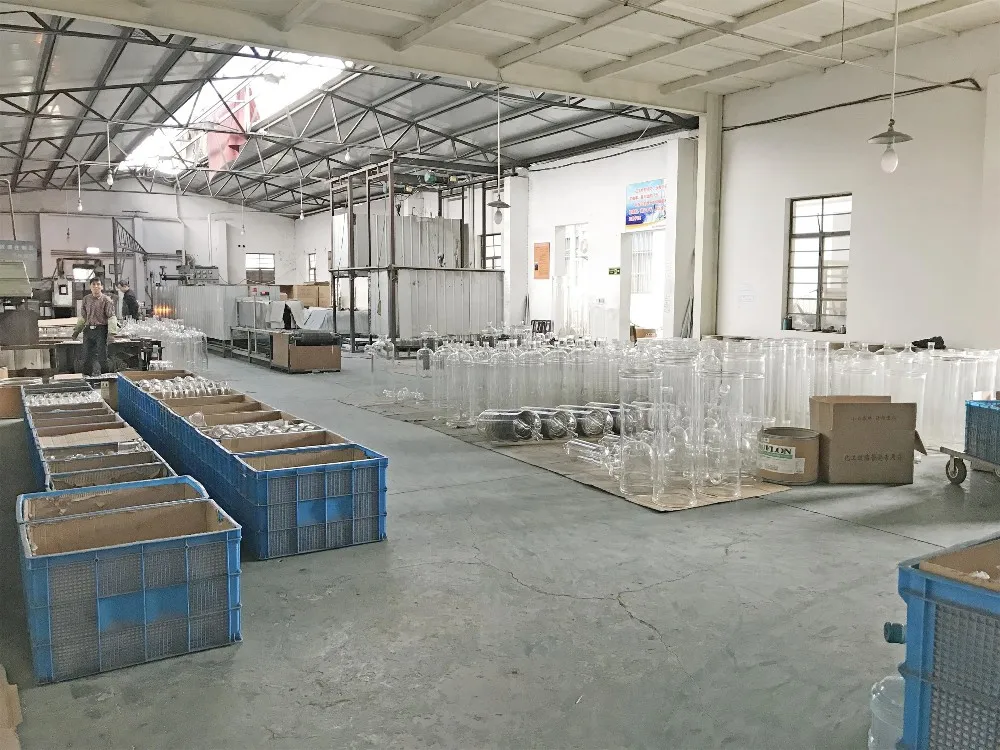

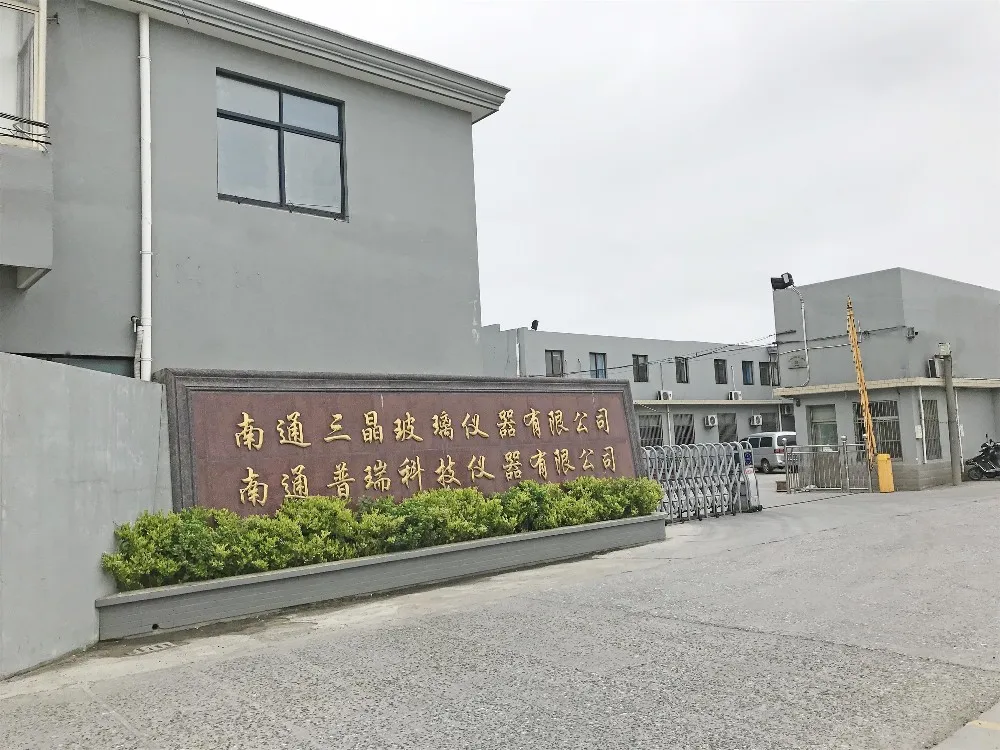

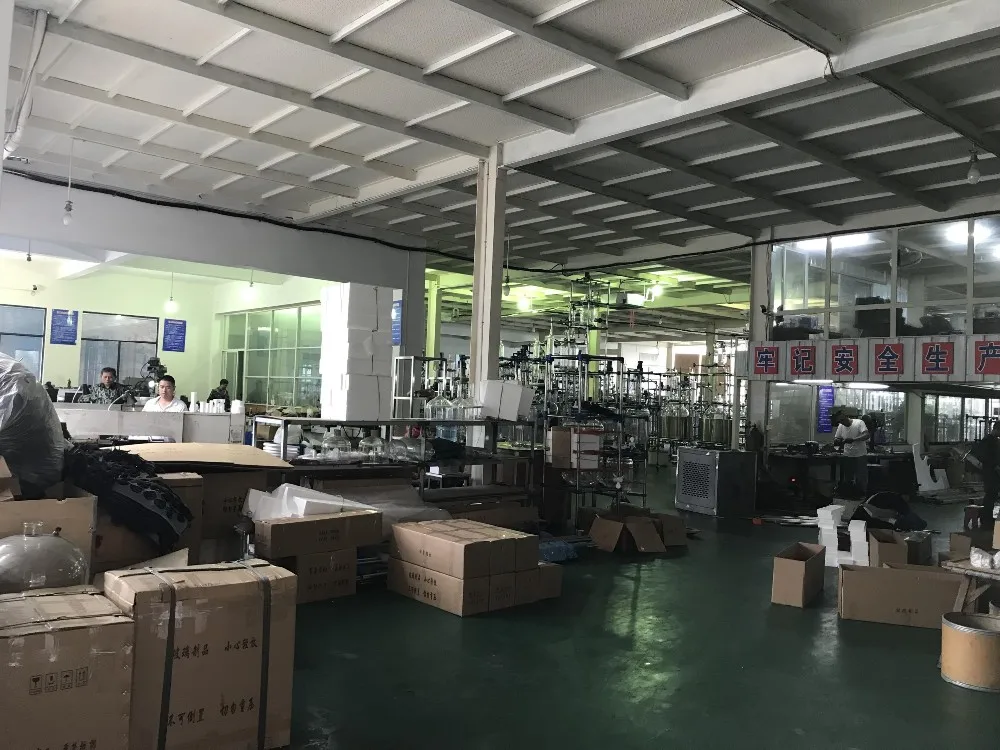

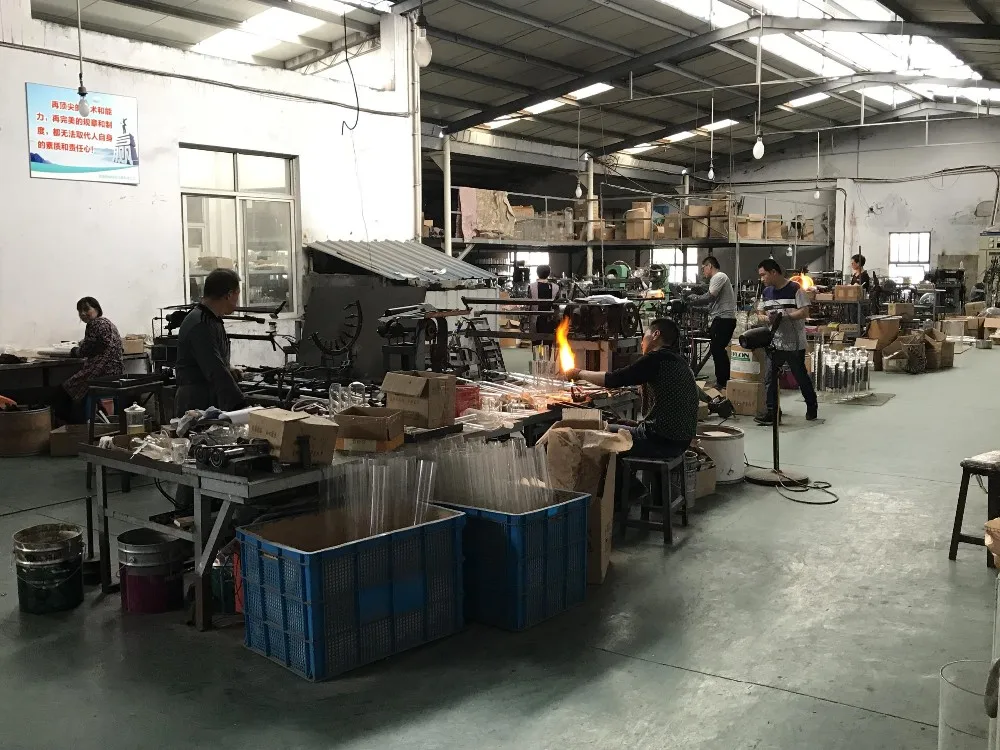

Our Factory

Sanjing Chemglass Co.,Ltd is one of largest professional manufacturers of chemical glass equipments in China , located in Rudong industrial Park Zone , Nantong-a beautiful coastal city situated at north east of Yangtze Delta , lied 35 kilometers north Nantong City and to the north of Yangkou Deep-water Port , only 2 hours drive from the Center of Shanghai City .
The company specializes in design , production and manufacturing of biological and chemical testing instruments and pharmaceutical glass equipments , main products are : glass reactor series , rotary evaporator chemical glass pipes , glass condenser series , glass reaction devices series , bath pots series , heating circulator series , thermostatic bath series , cooling circulator series , constant speed stirrer , water circulation vacuum pumps , lab consumables and other products which are widely used in pharmaceuticals , chemicals , biological pharmacy , new materials , noble metals and other files , meanwhile , we can provide relevant industry with design , manufacturing , equipment selection instrument supporting , installation , debugging . maintenance and other services etc.
