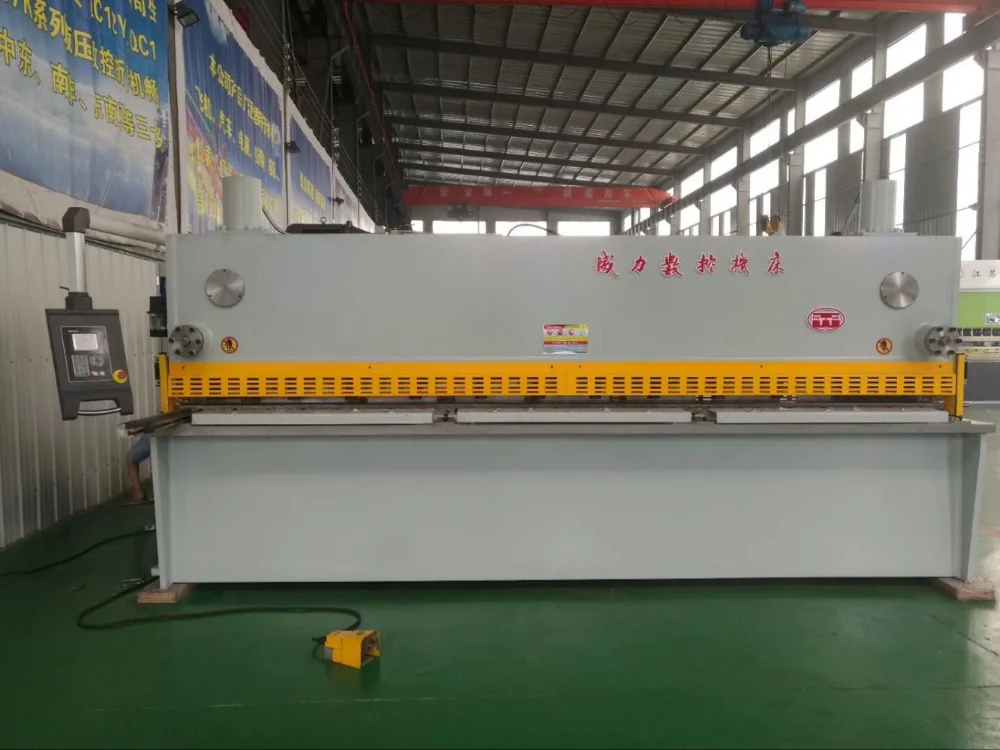

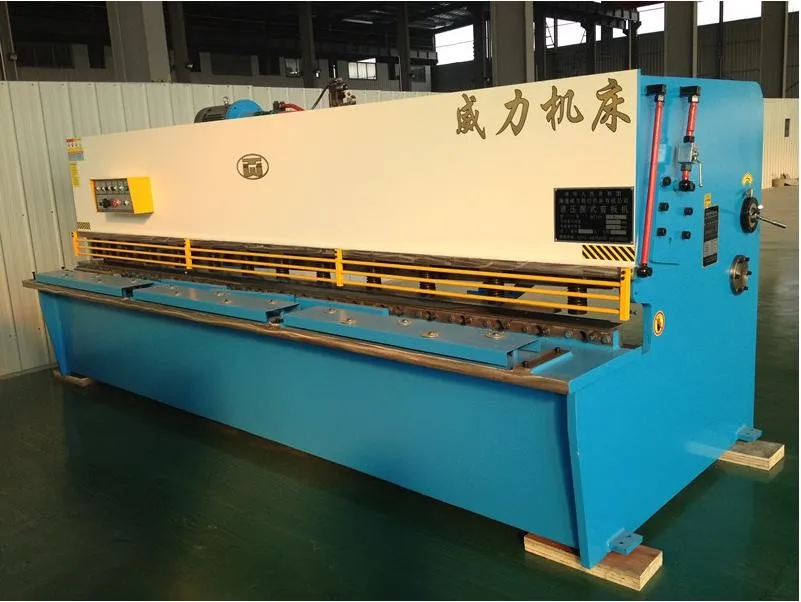

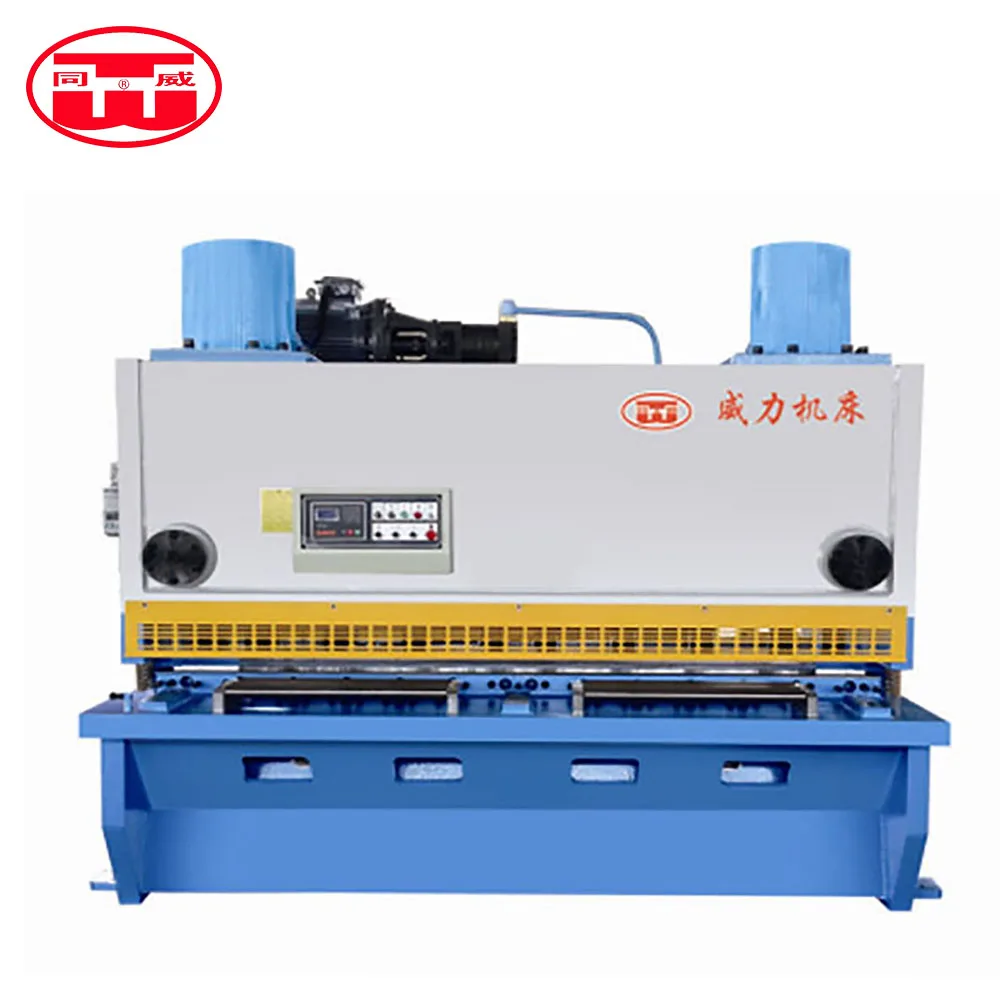

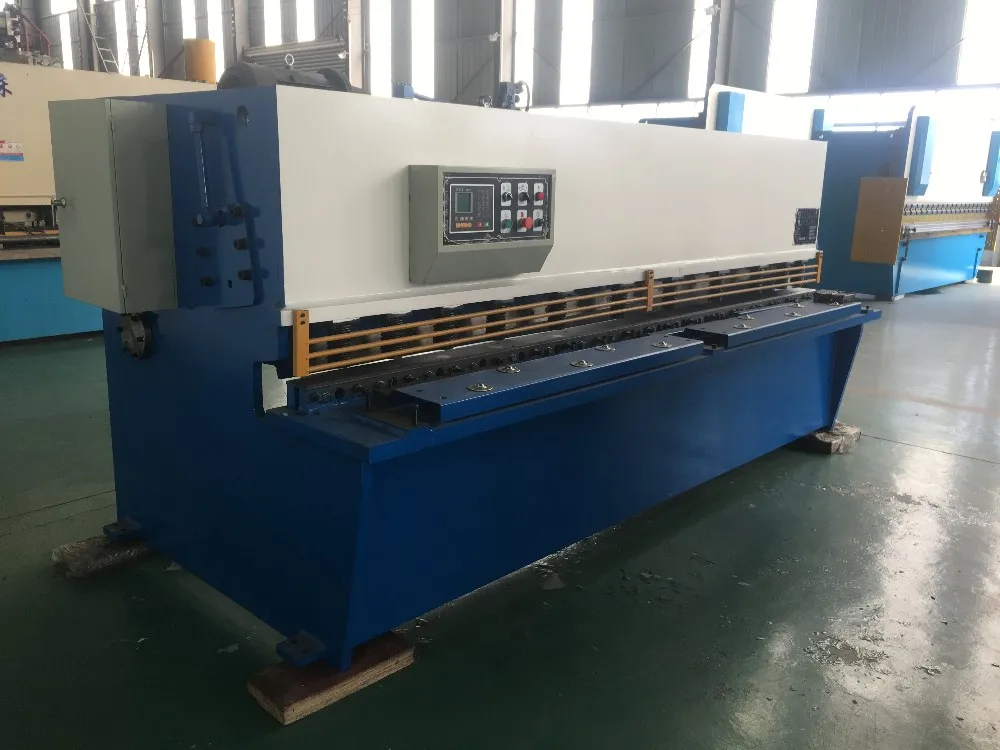

4mm 6mm 8mm 12mm plate sheet metal used cnc manual guillotine hydraulic shear for punching and shearing machine

Share on:

Price:RUB 651,222.40
Price in USD:Details


Product Overview


Product Introduction

Hydraulic transmission, pendulum-type tool holder. The overall welding of the frame is hard and durable, and the use of a nitrogen cylinder returns smoothly and rapidly.

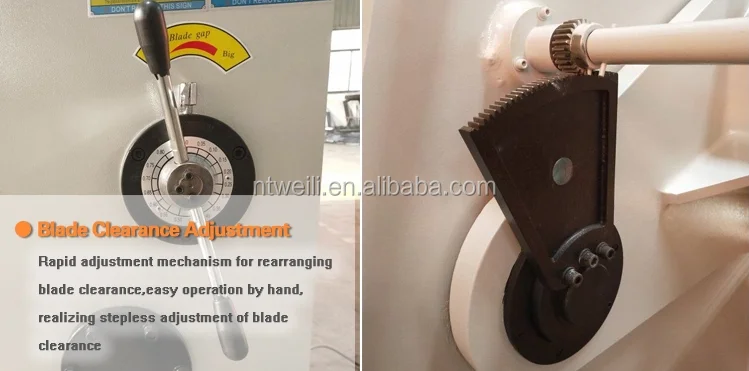

It has the function of stepless adjustment stroke. The amount of upper and lower blade edge clearance is adjusted by the handle, and the gap of the blade is even and rapid.
NC control system and position encoder, inverter, closed-loop control system, speed, high positioning accuracy, good stability, can accurately ensure the accuracy of the back gauge displacement size, while the CNC system has precision compensation and automatic detection A variety of additional features.


√ Hardened blades.
- Top blades : 2 sides
- Bottom blades : 4 side

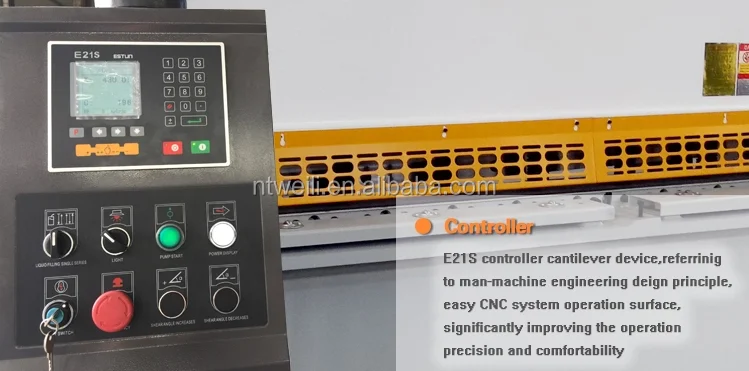

√ E21S controller.

√ 600mm motorized backgauge system with 0,1 mm accuracy.
√ 800mm side gauge and front support arms.
√ Metric and inch rulers.
√ Front, side and back safety panels which are suitable for CE norms.

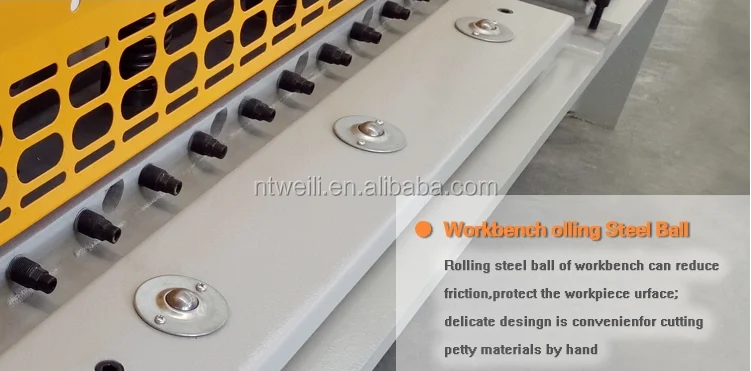

√ Sheet sliding system.

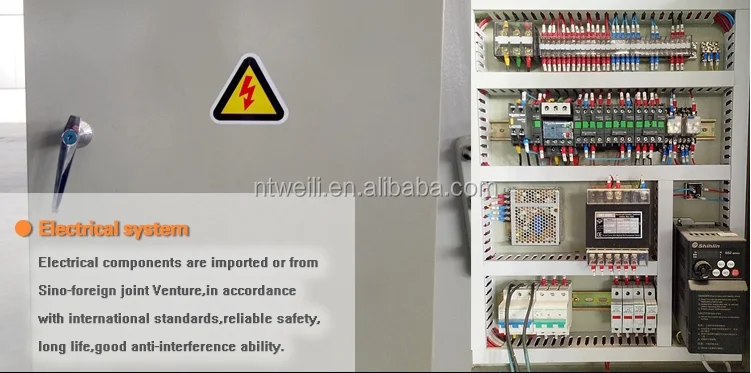

√ Schneider Electric System.

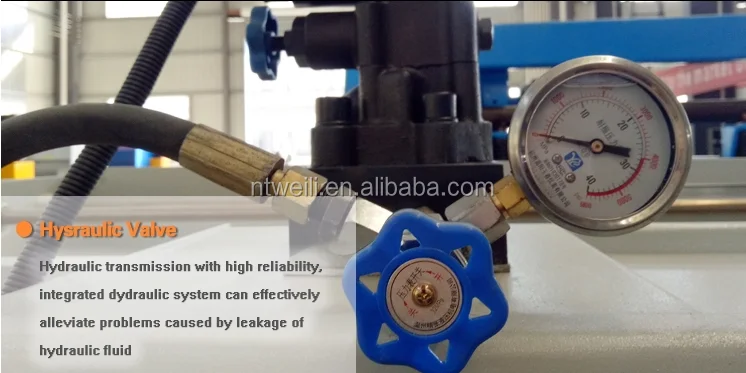

√ Rexroth hydraulic system.

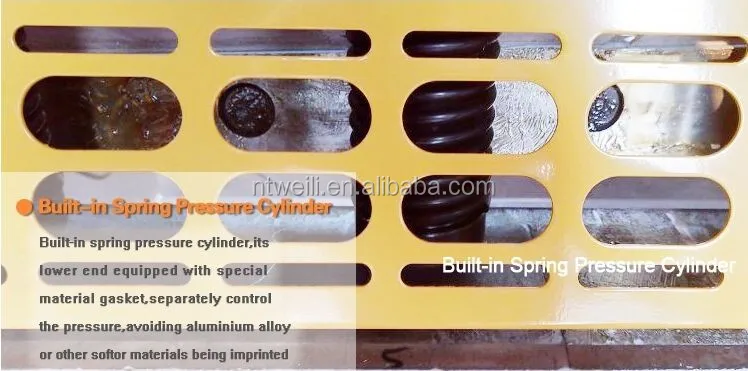

√ Hold down cylinders.
√ Moveable foot pedal.
√ Manual blade gap adjustment.
√ Emergency stop button.
√ Collapsible finger protection.


√ Optional throat depth.
 √ Front angle gauge.
√ Side gauge and front support arms in optional lengths.
√ Sheet conveyor and stacking system.
√ Front Gauge X1, X2 axis and backgauge X3, X4 axis.
√ Optional backgauge stroke.
√ Sheet support system for thin sheets.

1- Pneumatic support system. (Lever type)
2- Pneumatic support system. (Monobloc panel type)
√ Hydraulic oil cooling and heating system.
√ Optional solid table.
√ Stainless steel blades.
√ Ability to increase stroke amount per minute.
√ Light safety system for finger protection.
√ Optional alternative colors.
√ Coolant system or heater can be placed in electric panel during ambient conditions.
√ Double foot pedal.
√ Electrical panel or controller can be placed on right side of the machine.
√ Laser cutting line.
√ Central lubrication system

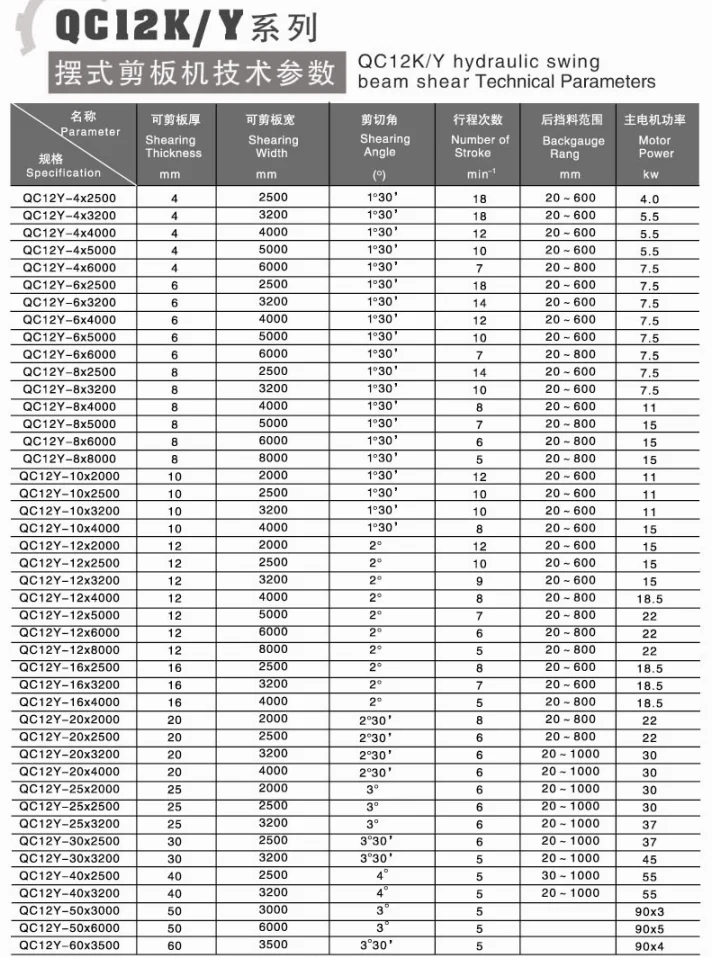

Product Details

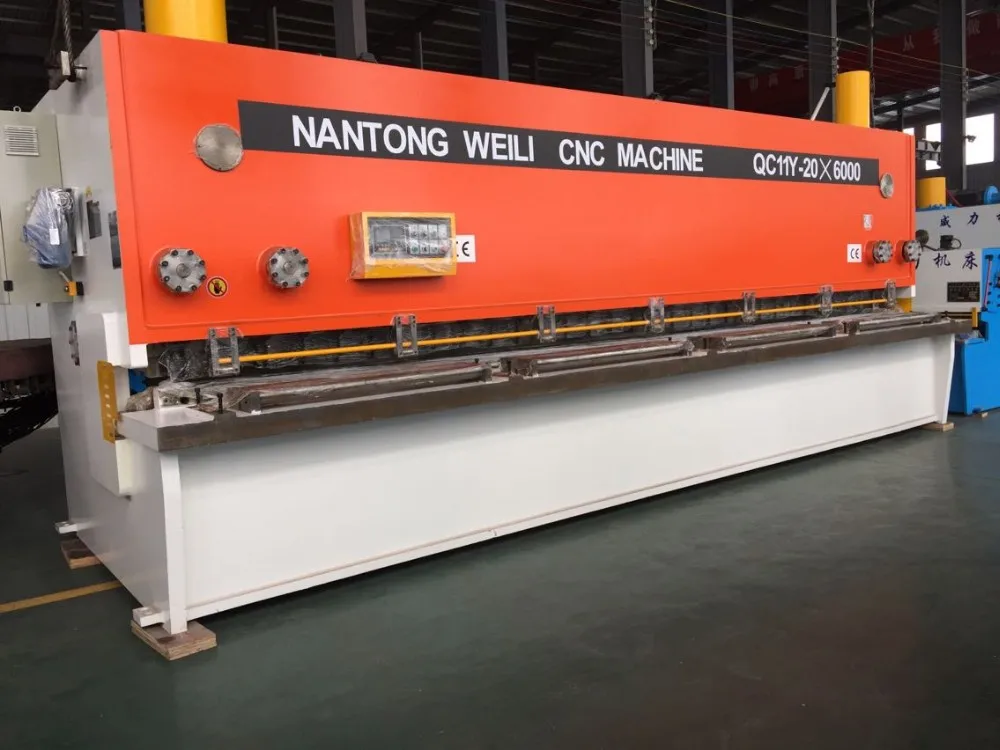

Product Display

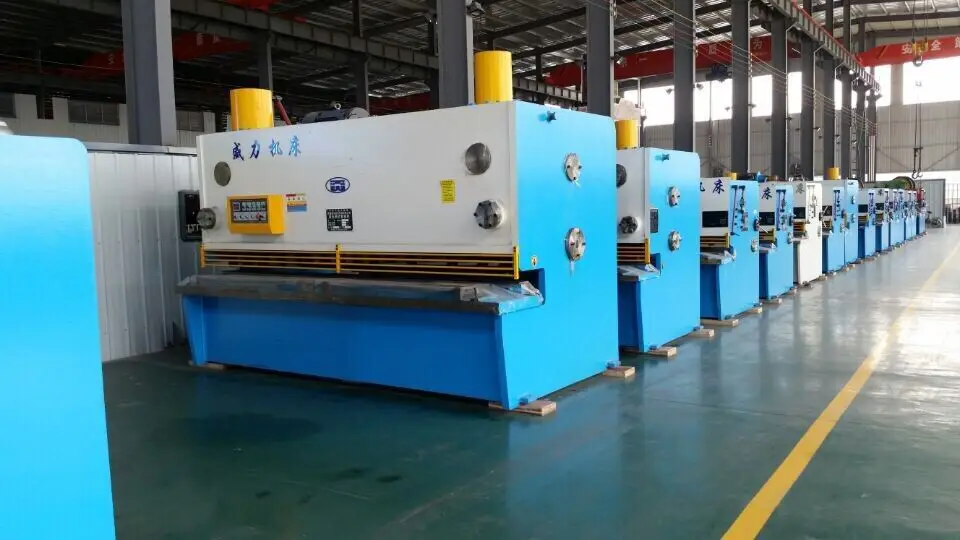

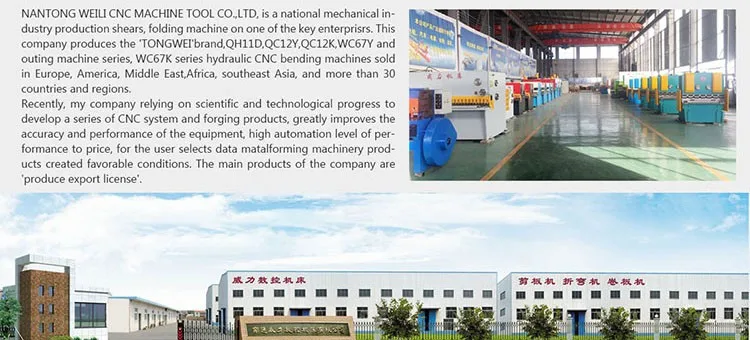

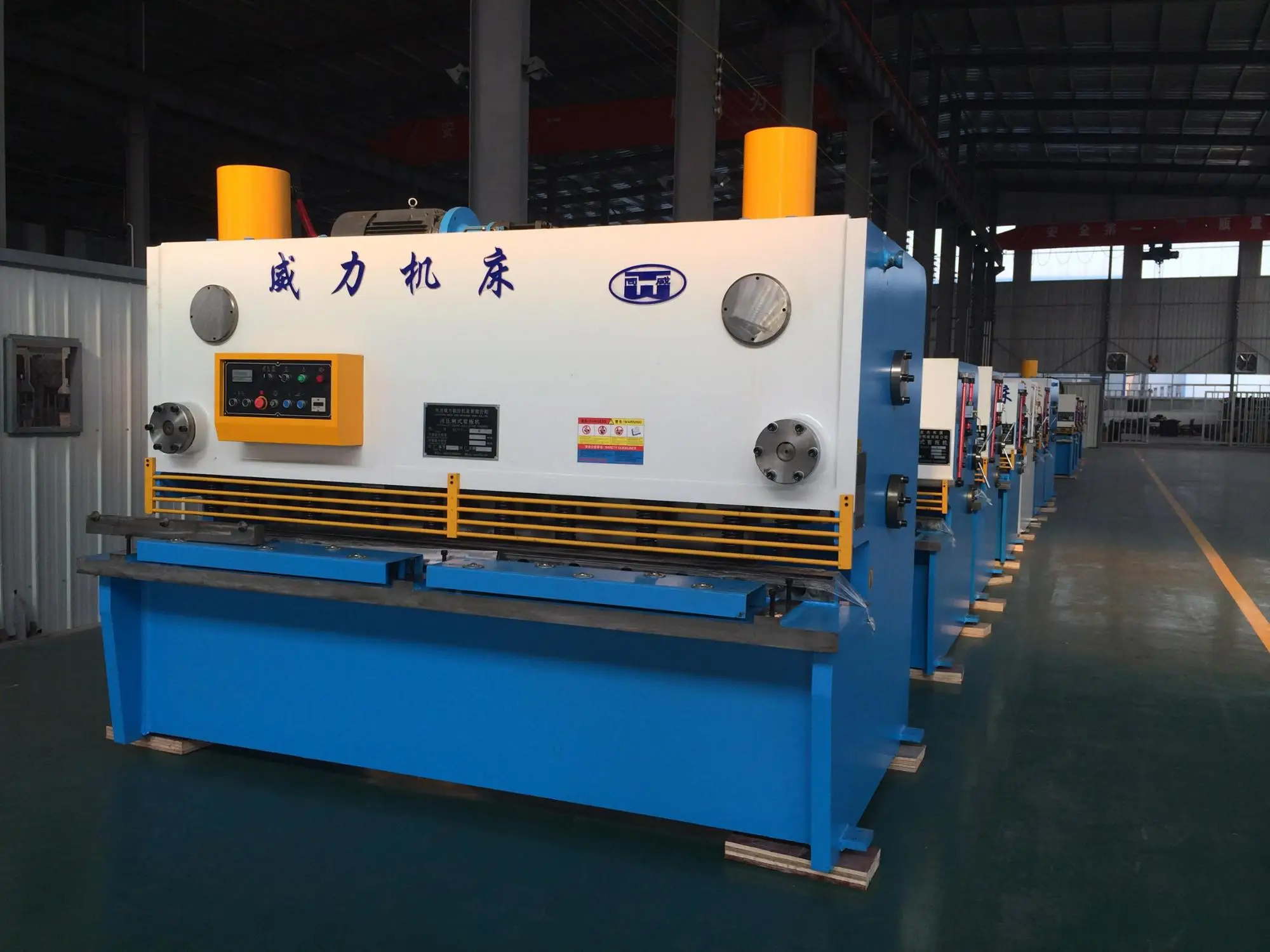

Factory Show

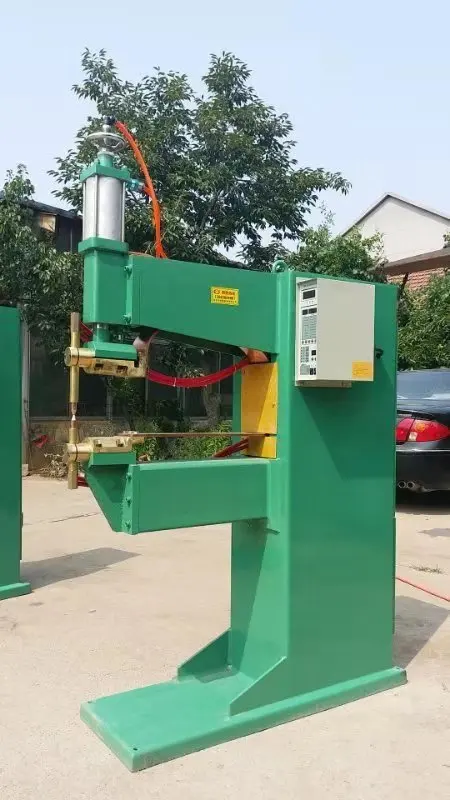

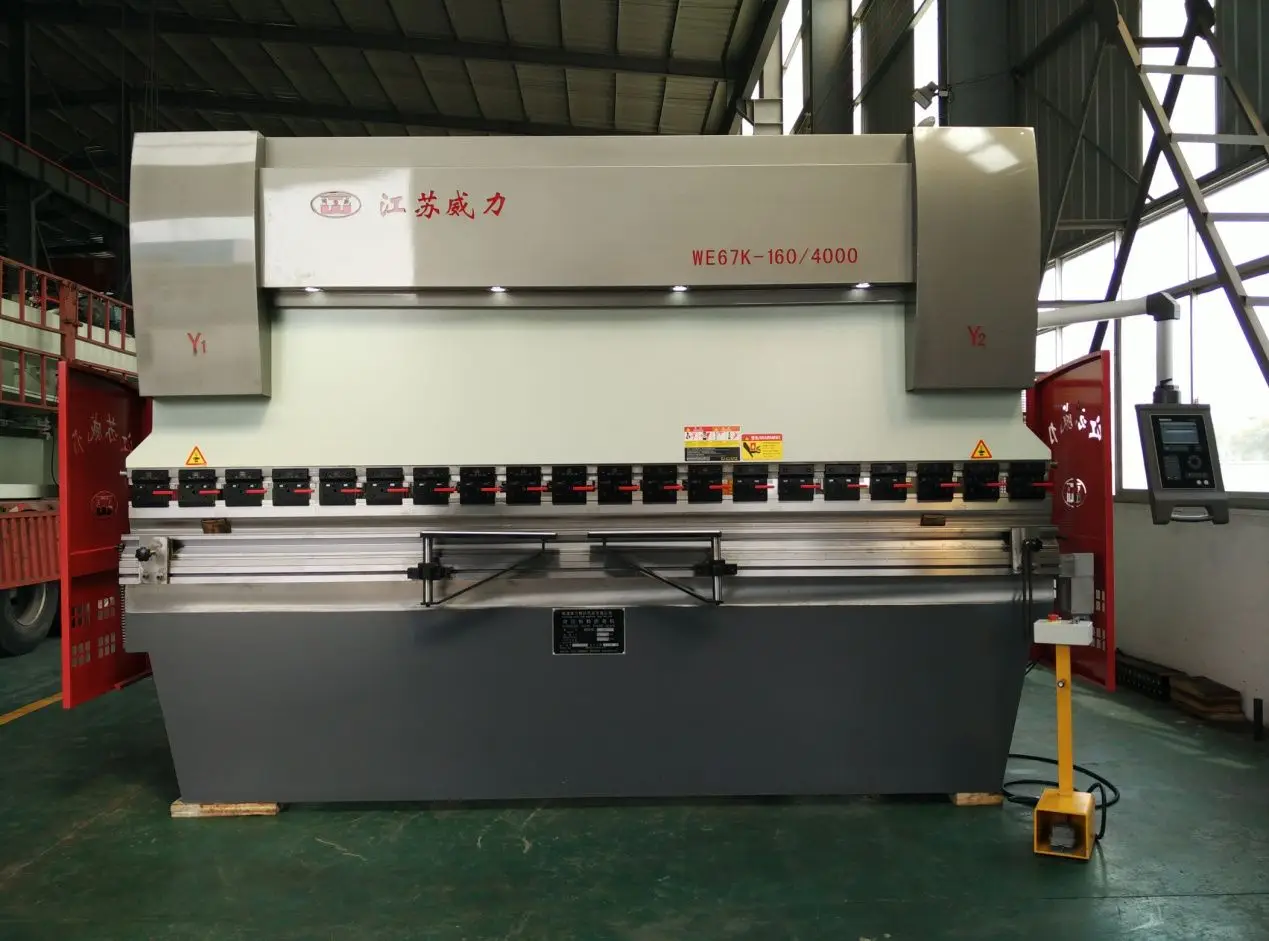

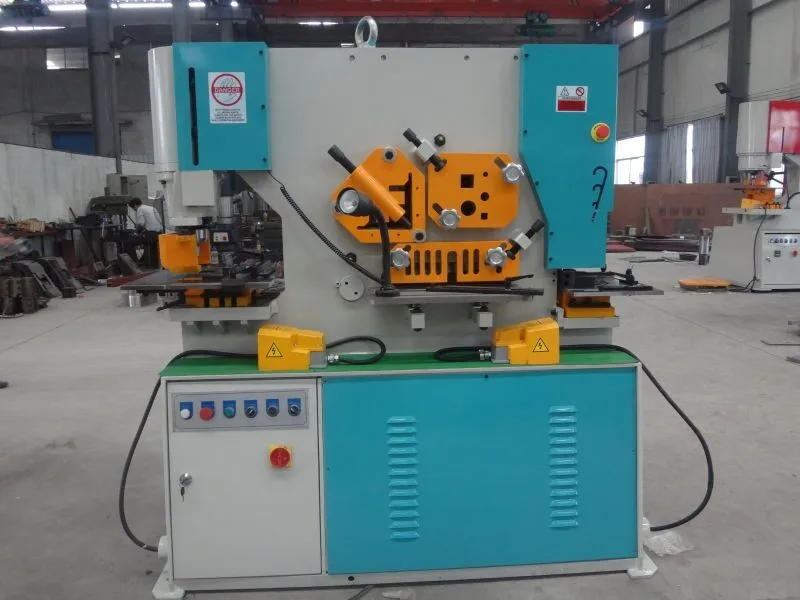

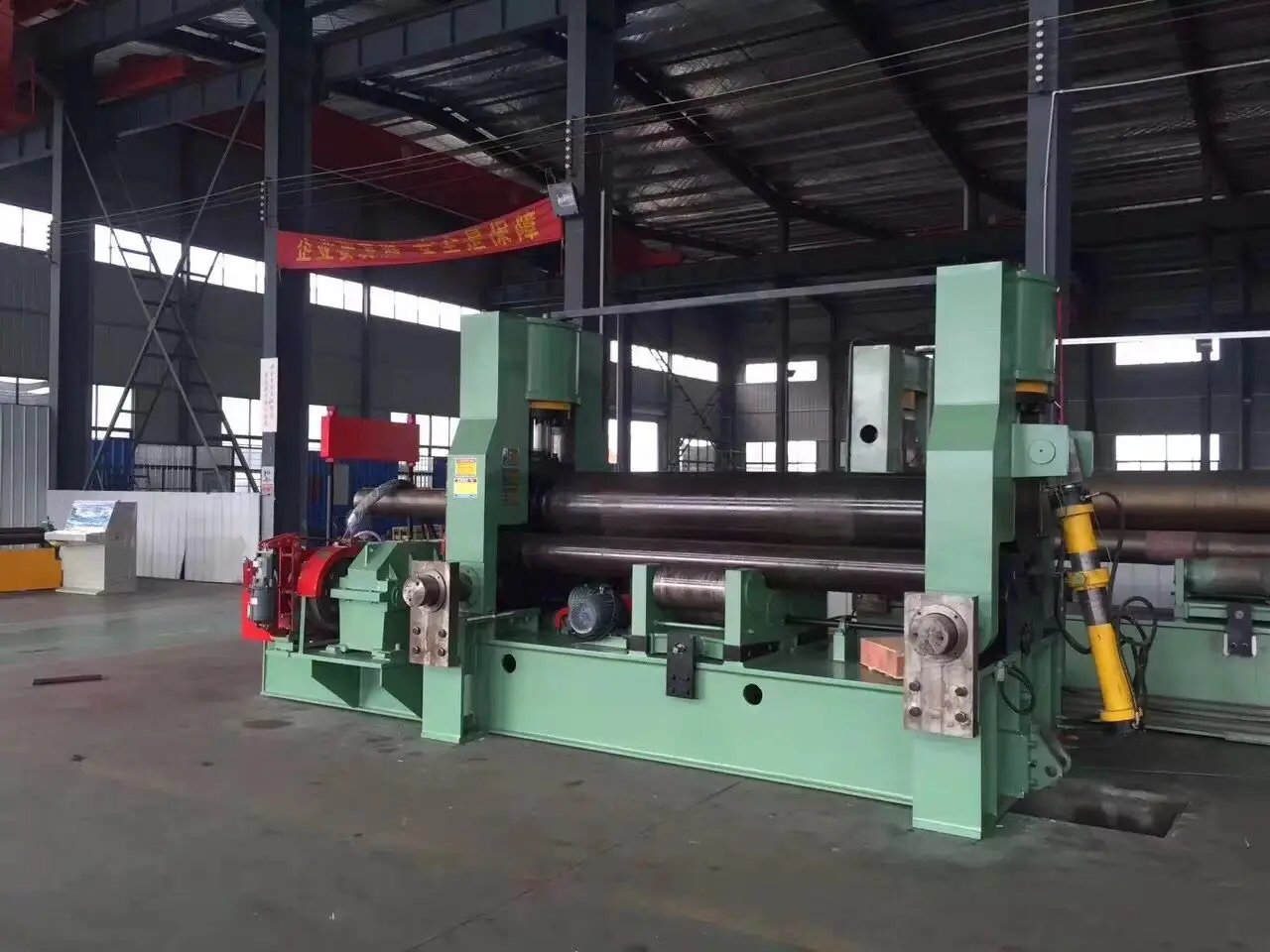

We are factory, and was set up in 2003! Our factory mainly production shearing machine, press brake machine, rolling machine, punching machine, hydraulic press machine ,iron worker, welding machine .

Guarantee period:
Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers' incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.

After-sales services:
Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.

Why Choose Us:
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by WHATSAPP, Skype, Email or Telephone.

How can we provide you efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.
