Product Overview
Description

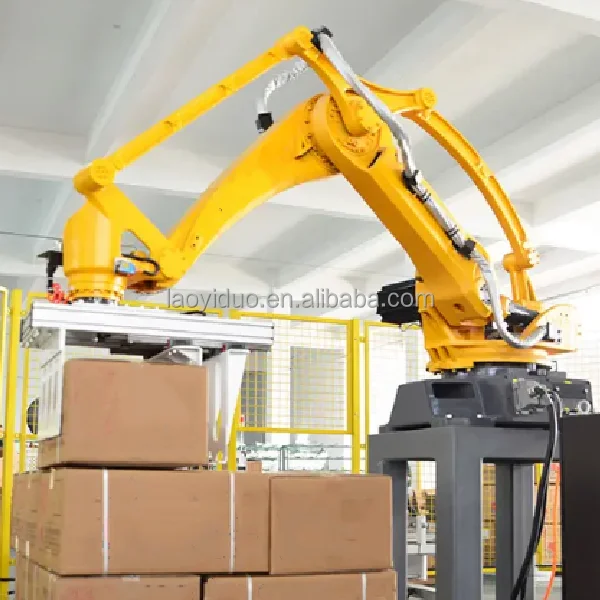

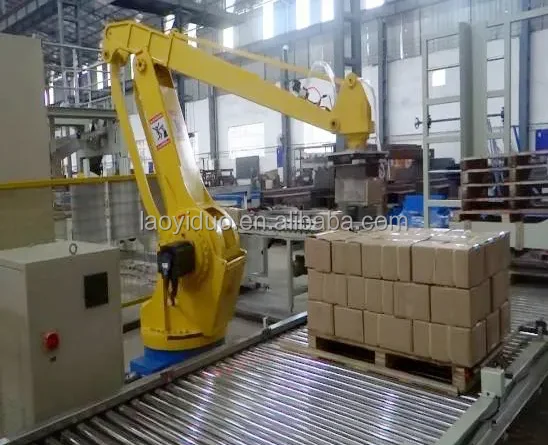

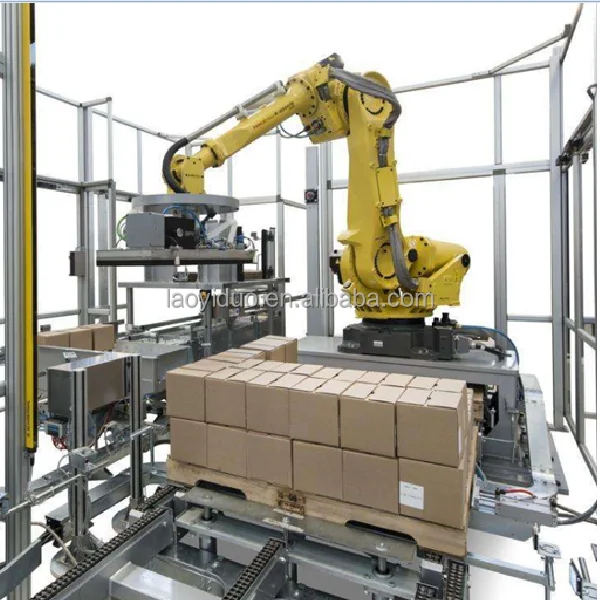

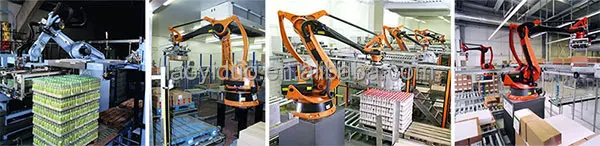

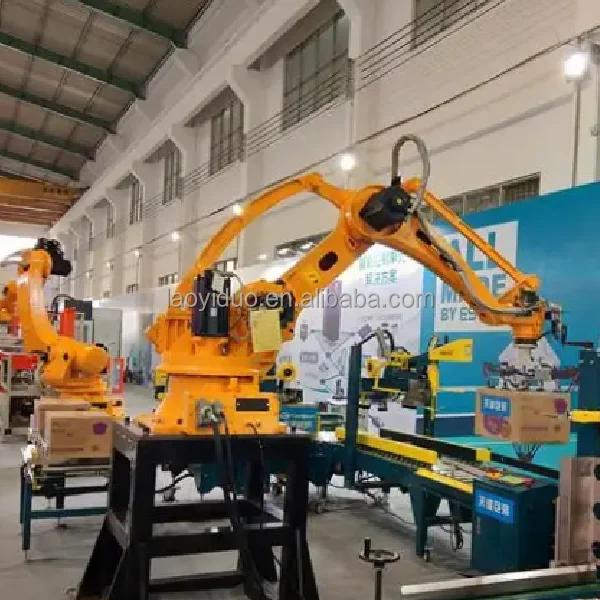

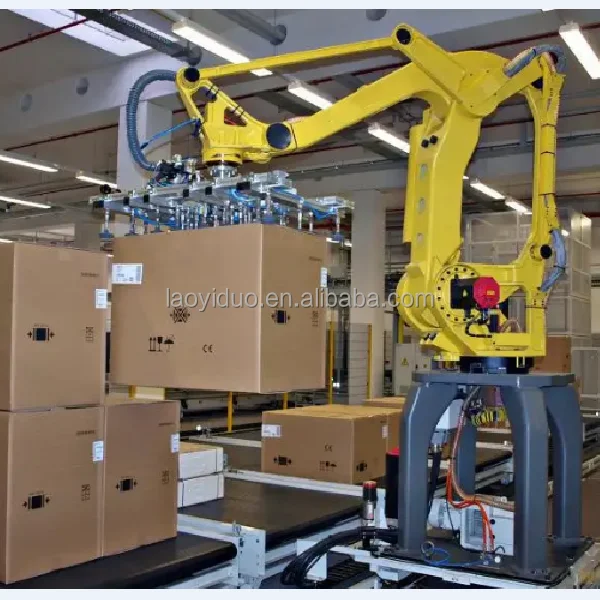

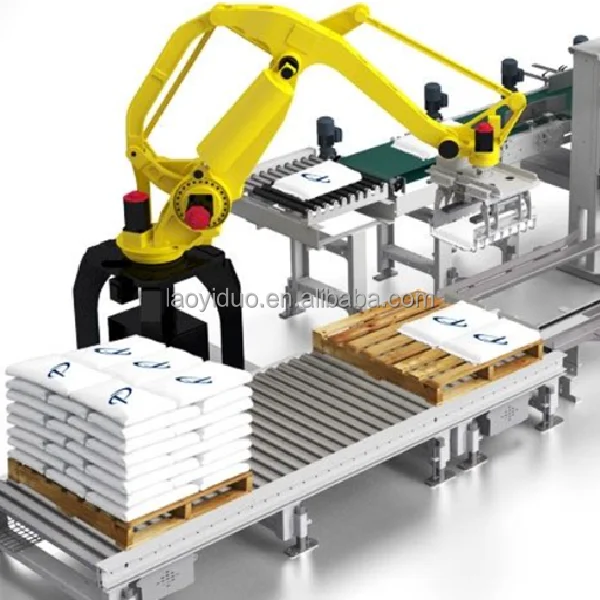

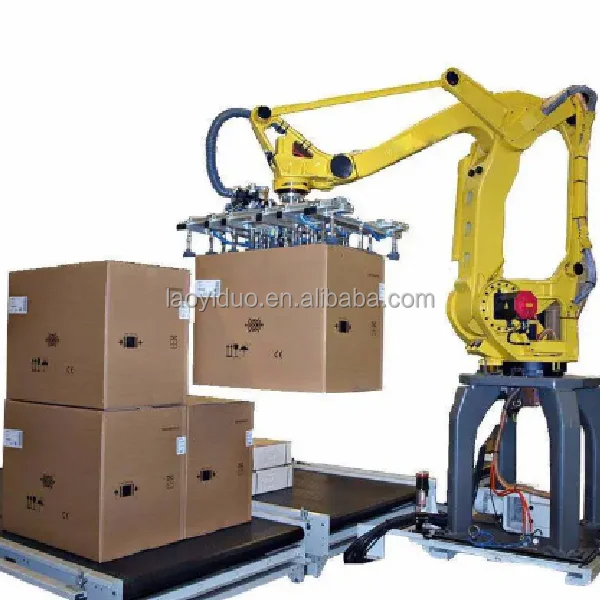

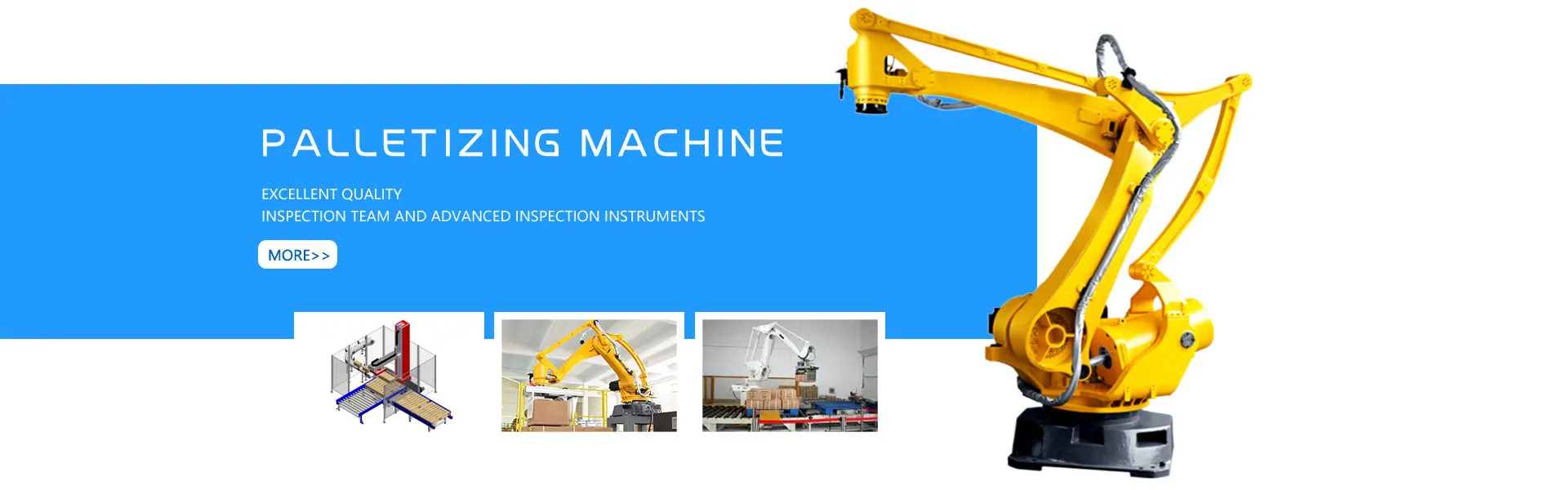

Robot Palletizing Systems
Robot Palletizer designs standard and customized palletizing systems that can increase productivity and save you money. RP's modular design offers flexibility, high throughput, and simple operation. Our robot palletizing systems are flexible and can handle virtually any product, including single, dual or multiple parts, rigid or heavy cases, bags, newspapers, cartons cases, bundles, pallets, pails, totes or trayed products.
Our proven designs come with guaranteed handling rates and safety features that are both fast and reliable. We utilize four to six-axis Fanuc robotic arms in our systems due to their overall flexibility, user-friendly set-up, reliability and extensive service and parts network.
Product Name: Robot Palletizing
<1> Product Features: With absolute value servo, there is no need to return to the origin when starting up, and the positioning accuracy is higher. The bus system architecture has no problem of missing pulses and signal interference, and is more stable. At the same time, multiple on-line integrated control can facilitate on-site management and operation. The movable hand-held device and the independent electric control box ensure the flexibility of operation and the independence of the electric box, avoiding interference and pollution of the on-site environment, and improving the efficiency and life of the machine. Meet a variety of palletizing process requirements, can design a variety of shape, pre-stored procedures, select at any time, replacement products are convenient and fast. Kaifan's self-developed core programs and algorithms use a robot-specific control system with a full Chinese operating system, which greatly shortens the programming time and speeds up the machine.
Benefits of Robot Palletizing Systems
Optimum product/case handling
Quicker product change-over
Reduced maintenance and/or downtime
Greater layout flexibility – multiple lines in minimal space
Broad range of operational environment compatibilities
Optimized pallet load configurations for multiple products
Types of Robot Palletizing Systems:
Cartons
Cases
Bags
Boxes
Pouches
Pails
Kegs
Barrels
<2> Product specific specifications and specific parameters:
Product | Notes | |||
SHR300-
3200R

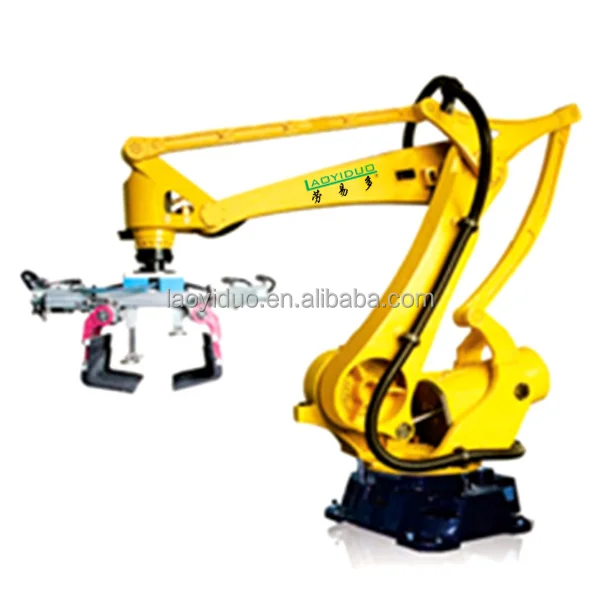

Product
picture |  | |||
Robot
parameters | structure type | Articulated robot | ||
Degree of freedom | 4 | |||
Payload weight | 300KG | |||
Maximum radius of activity | 3159mm | |||
Angle of motion | S axis | ±180° | ||
L axis | -45°,+90° | |||
U axis | -120°,+15.5° | |||
T axis | ±360° | |||
Maximum speed of movement | S axis | 140°/s | ||
L axis | 140°/s | |||
U axis | 140°/s | |||
T axis | 305°/s | |||
Allowable inertia (GD²/4) | T axis | 80KG*m² | ||
Product weight | 1200KG | |||
Environmental conditions | Temperature | 0~45°C | ||
Humidity | 20~80%RH(No condensation) | |||
*Do not have flammable or corrosive gases or liquids *Can not involve water, oil, powder *Not close to the electromagnetic source | ||||
Battery capacity | 19.8KVA | |||

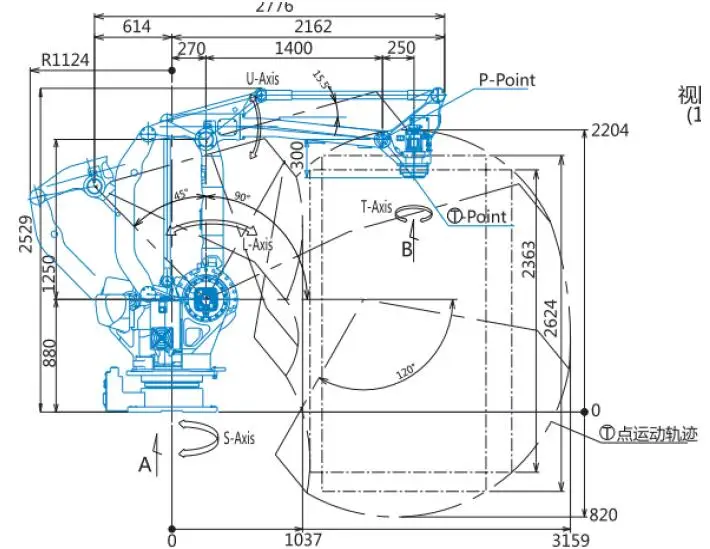

Working range |  | |||

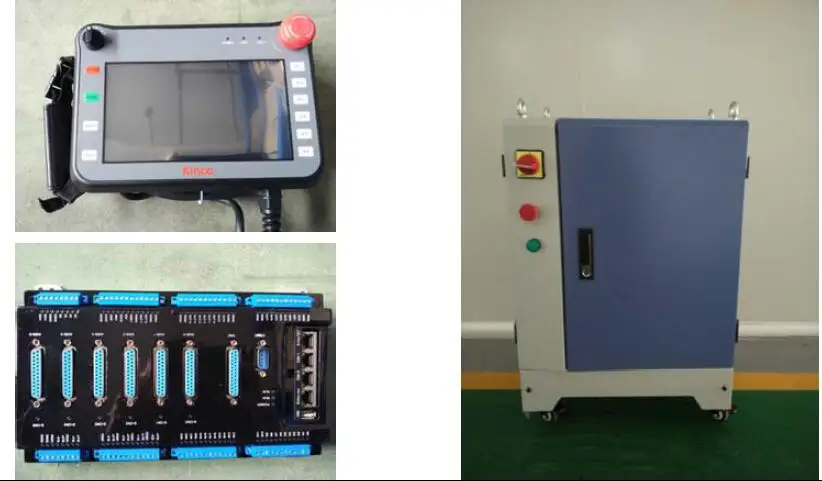

Electric part |  | |||
Software unit | ² 1, all Chinese and English Kaifan bus operating system.
² 2, Delta servo motor and imported RV reducer.
² 3, built-in palletizing software software package.
² 4, convenient to confirm the status of the pallet.
² 5, precise positioning of the pallet position.
² 6, easy to choose the job and writing mode. | |||
connecting
cables | ² Connect the cable to the arm and controller.
² Length: 5m.
² The joints are 180 degrees at both ends. | |||
