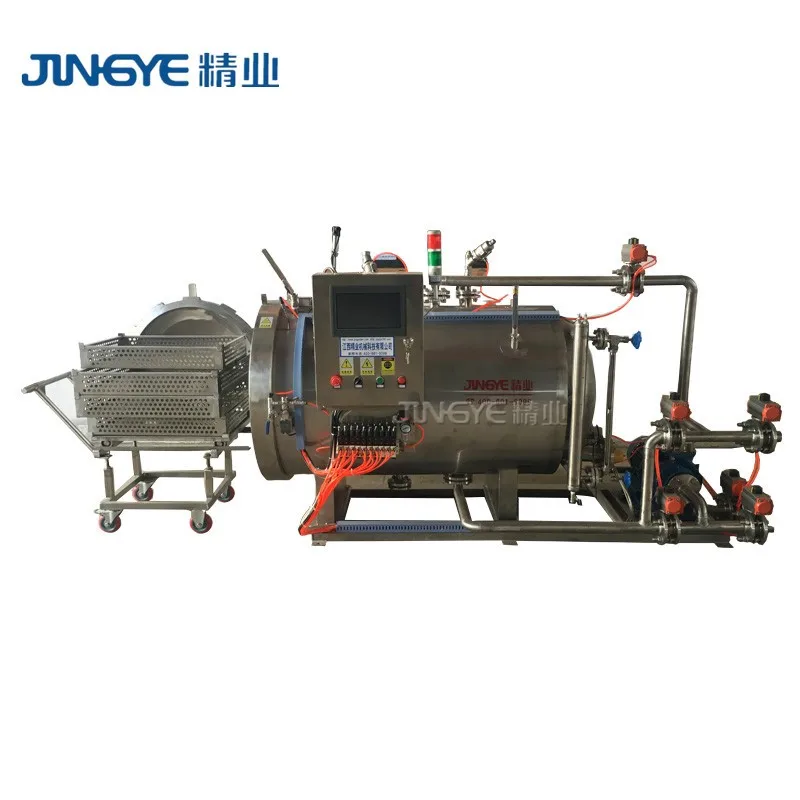

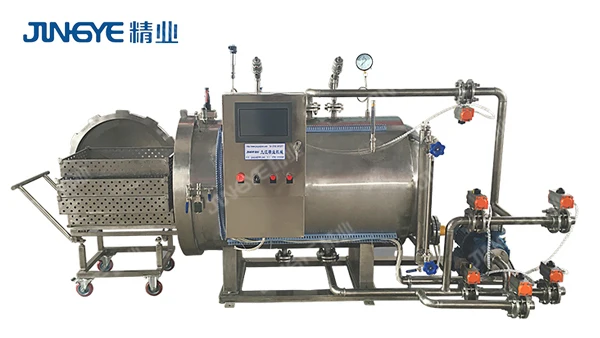

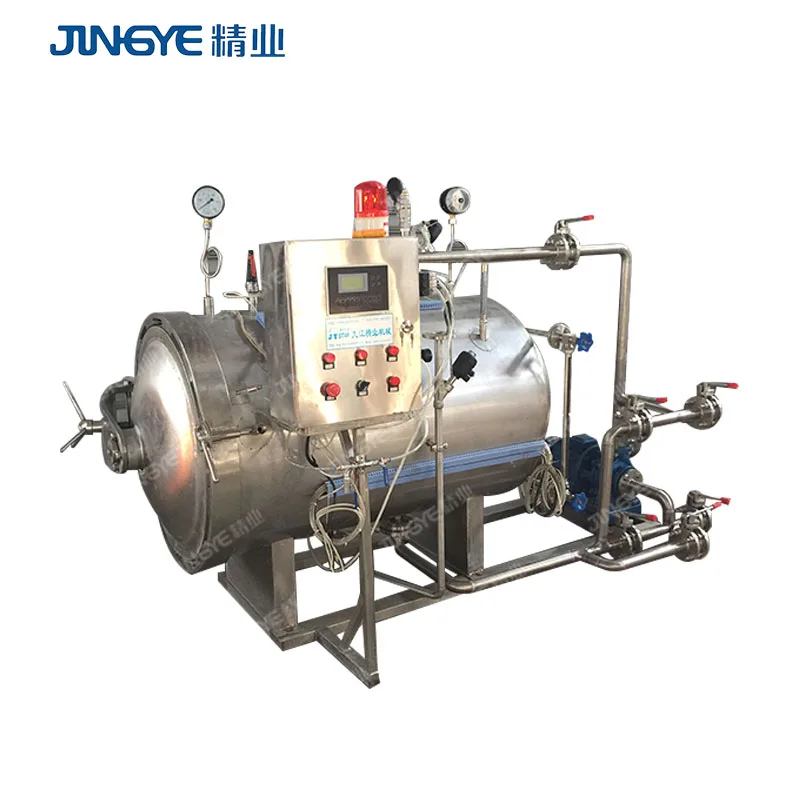

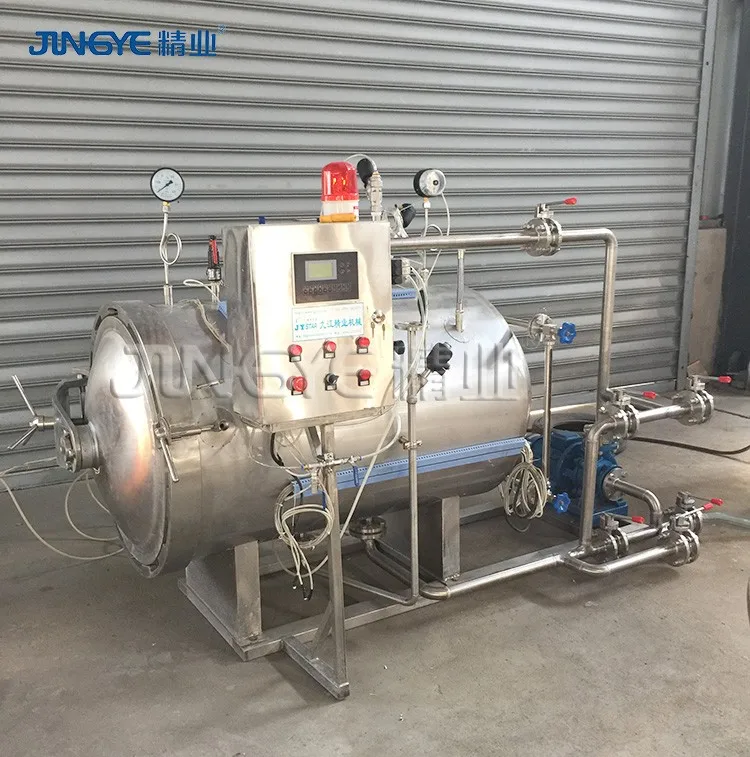

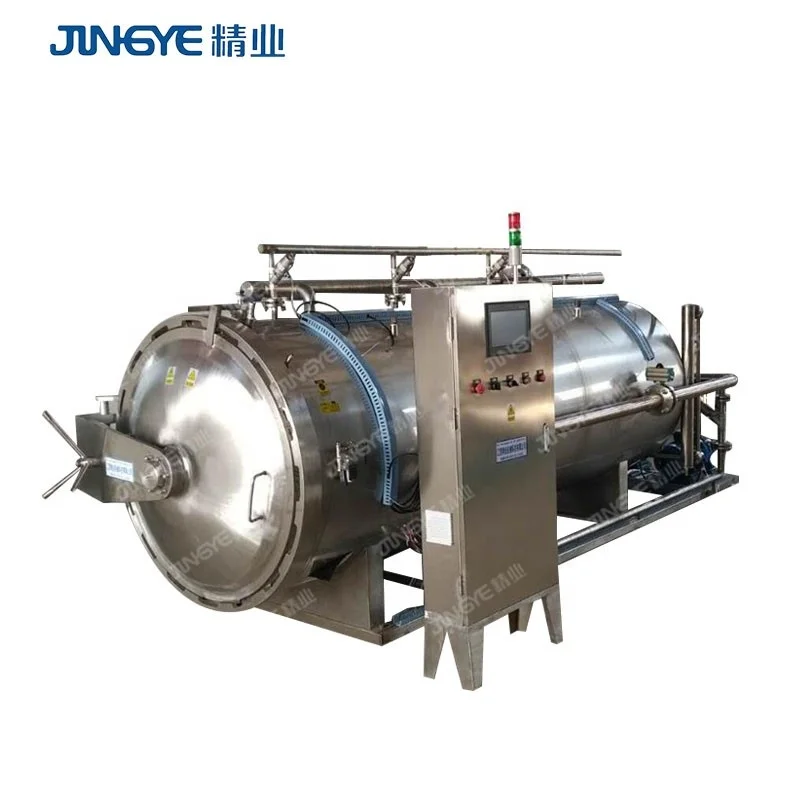

Full Automatic Retort Autoclave Sterilizer For Canning Food And Tins

Product Overview

Description

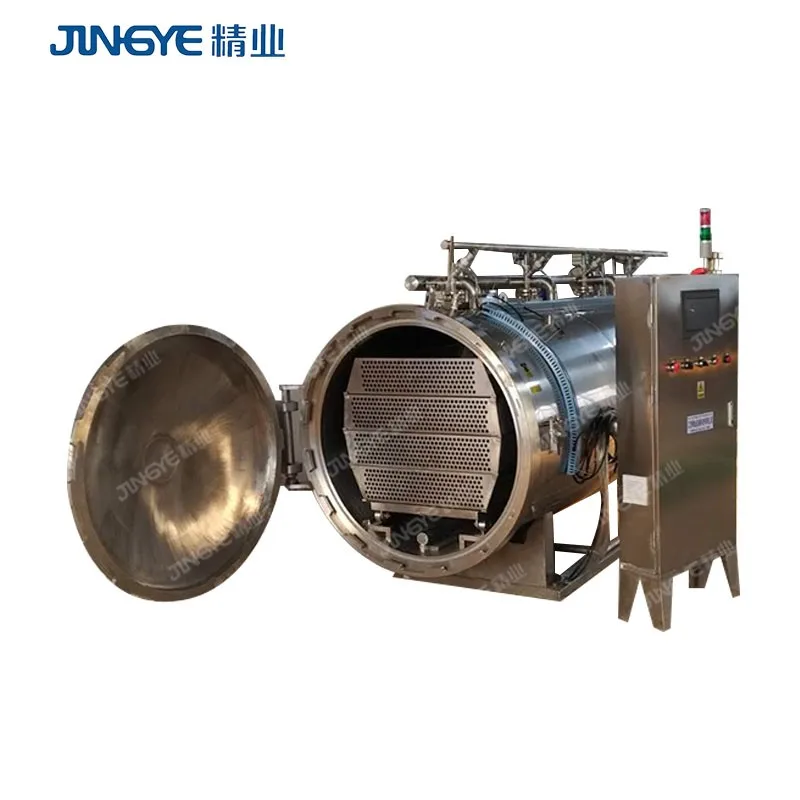

JINGYE Side Spray Type Retort, has nozzles on both sides of its interior. And the nozzles spew out hot steam and tiny droplets of water, steam&drops will goes through the packaging and the gaps, so even in the gaps, and the temperature is uniform.

- Fast heating up and cooling process

- Uniform temperature distribution

- Efficient use of energy and water, energy saving

- Most economic solution for many products and packages

JINGYE Pressure Cooker is widely used in process of packaged food: such as canned sardine, tuna, vegetable, beef stew; pickles jars, vacuum pouch food, fruit jars, etc,

1. Separate control of sterilization temperature and pressure.Can meet a variety of packaging forms of sterilization requirements (iron cans, glass cans, flexible packaging, PP bottles, etc.), which not only improve the utilization rate of equipment, but also save unnecessary repeated investment;

2. The whole sterilization process adopts PLC automatic control, the heat distribution temperature in the kettle is controlled within plus or minus 0.5 degrees Celsius, saving energy;Equipped with F value measurement function;99 sterilization formulas can be stored;

3. The whole sterilization process is completed in strict accordance with the pre-set process formula automatically, and the formula is equipped with multi-level password to eliminate the possibility of misoperation.Ensure the safety of products.

4. Adopt double safety measures to realize automatic sensing control of temperature and pressure to eliminate potential safety hazards.

Model	Diameter (mm)	Deepness (mm)	Design temperature (℃)	Test Pressure (Mpa)	WorkPressure(Mpa)
JYS-DZ/P/S/C-0712	700	1200	147	0.44	0.35
JYS-DZ/P/S/C-0918	900	1800	147	0.44	0.35
JYS-DZ/P/S/C-1024	1000	2400	147	0.44	0.35
JYS-DZ/P/S/C-1230	1200	3000	147	0.44	0.35
JYS-DZ/P/S/C-1336	1300	3600	147	0.44	0.35
JYS-DZ/P/S/C-1436	1400	3600	147	0.44	0.35
JYS-DZ/P/S/C-1540	1500	4000	147	0.44	0.35

Q. Are you manufacturer or trading company?
A. We are professional retort manufacturer for more than seven years.

Q. How long is the product warranty period?
A. It is twelve months.

Q. If the machine goes wrong, how should you resolve?
A. Show you a video,If it does not work, we will depatch our engineers to settle the problems overseas.

Q. What’s the Payment Term?
A. According to different countries/areas, we have different payment terms..

Q. What’s the lead time after placing order ?
A. Usually it takes about 25~30 days after we received your deposit. If large scale machines, we will try to deliver it within 2 months.

Q. What’s the delivery term?
A. FOB, CFR & CIF optional; It depends on client’s requirements;

Q. How much is MOQ of your machine?
A. 1 set.
