2024 Gas saving IR Gas Burner HD242 for Industrial Infrared Ovens in Powder Coating, Curing, and Thermoforming

Product Overview

Description

IR Gas Burners for Industrial Infrared Ovens in Powder Coating, Curing, and Thermoforming



Infrared gas burner specification:

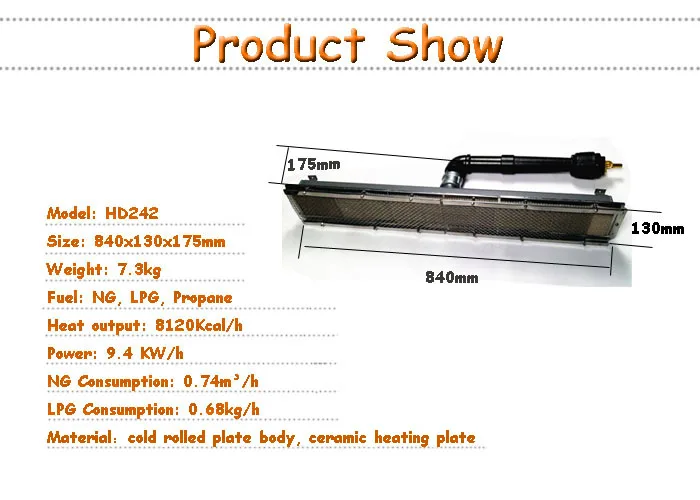

Model	Dimension	Net Weight	Working Gas	Burner Material	Heat Output		Gas Consumption
	L*W*H(mm)	kg			KW/hour	Kcal/hour	NG(m3/hr)	LPG(kg/hr)
HD242	930*130*175	7.3	Natural Gas,liquefied petroleum gas,Propane	2mm thickness sheet metal body,ceramic tiles inside,cast iron pipe	9.4	8120	0.74	0.68



How does the infrared gas burner work?



Features:

• Catalytic reaction,high energy converted above 95%.


• Fast heating,reach to full power in 8 seconds.


• Each infrared gas burner burner parts are replaceable.


• Infrared gas burner surface max temperature can reach to 800 degree Celsius,the infrared burners can make oven reach to 500 degree Celsius.


• Infrared radiant heating the products directly,do not need combustion,blower.


• No pollution.



For more information,please send us inquiry.
