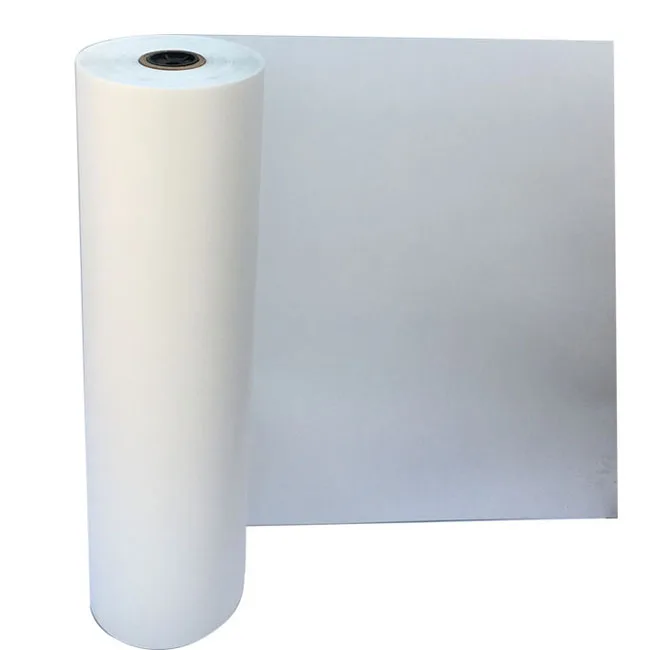

6650 NHN Insulation Paper Class H polyimide film,Polyaramid fabric (Nomex Paper) combined flexible material

FW-6650(NHN)

PolyIimide Film/ Polyaramid fabric (Nomex Paper) combined flexible material

   1. COMPOSITION AND PRESENTATION

FW-6650 is Polyimide film/polyaramid fabric (Nomex Paper) combined flexible material (NHN) is a three layer flexible laminate in which polyaramid fibre paper (N) is boned to two sides of polyimide film (H).



2. PROPERTIES AND APPLICATIONS.

FW-6650 (NHN) shows excellent mechanical and electrical properties and good heat resistance as class H insulation material. It is suitable for solt, phase and liner insulation in Class H electric machines.



3. PACKING AND STORAGE

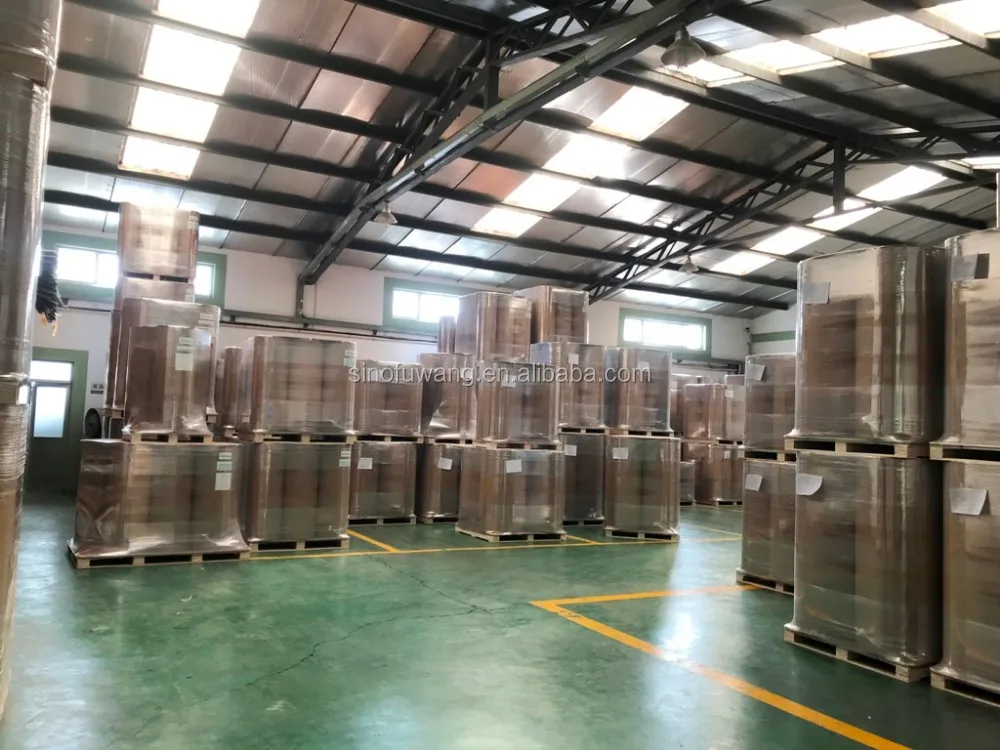

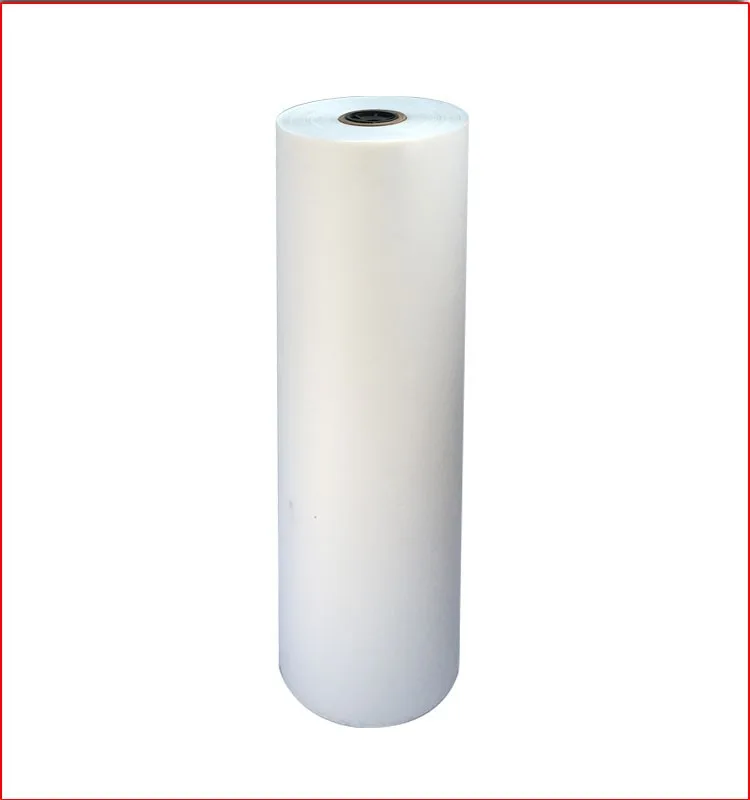

Combined flexible material is supplied in reel form. Inner diameter of a core is 80mm. 6650 polyester film/aromatic polyamide fabric combined flexible material weight of each reel is 25kg or 50kg, width of the combined material is 450±10mm or 900±20mm. Combined flexible material should be stored under 40℃in clean and dry warehouse, far away form fire, beat and avoid sunshine. The storage life is 12 months form the date of dispatch.
