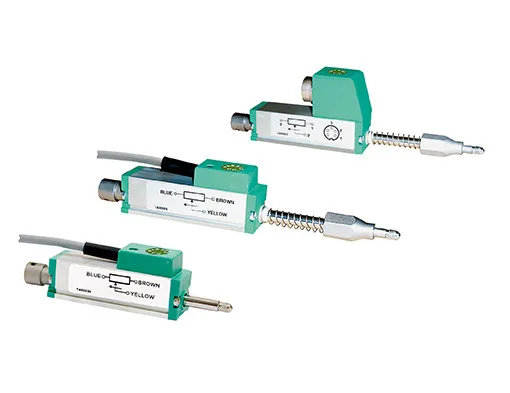

These displacement sensors are potentiometric displacement sensors used for direct measurement, testing and monitoring of mechanical displacements. The spring-loaded control rod eliminates the need of coupling with the measurement object.
A prerequisite for a very long life duration of the devices is a parallel alignment of the motion direction of the measurement object and the rod.
Areas of application are:
Displacement on: -Electromagnets -Hydraulic cylinders -Switches and buttons
Due to the technology employed in potentiometric displacement sensors, they always operate with a sliding contact system. Special processes are applied to give the resistance tracks low friction, low tendency to stick/slip, resistance to abrasion and a long-term stability.
The rods are guided in long-life, low friction sliding bearings with close tolerances which provide high durability and measuring quality. The pre-stressed spring presses the sensor tip against the measurement object. This spring is double-guided and disappears in the probe head, if the rod is in its end position.
The probe tip consists of a ball made of stainless steel. The bore at rod end serves for coupling retraction units. The rod is protected against twist for measurement ranges up to 50 mm. The probe tip (hexagonal) must not be turned by any tool, otherwise its anti-twist protection will be destroyed.
Specific characteristics: -Service live: 108 movements -Resolution 0.01 mm -Follower roll on request -Optional with internal spring
Characteristics:
Principle
Potentiometric
Measuring range
0 ... 150 mm
Signal output
Depending on excitation voltage
Protection class
IP40
Range of operating temperature
-30 ... +100 degC
Supply voltage
Depending on measuring range
Electrical connection
8712 - 5 pins plug connection
Electrical connection
8713 Integrated connection cable 1 m
Electrical connection
8713 Integrated connection cable 3 m
Electrical connection
8713 Integrated connection cable 5 m
