Product Overview

Description

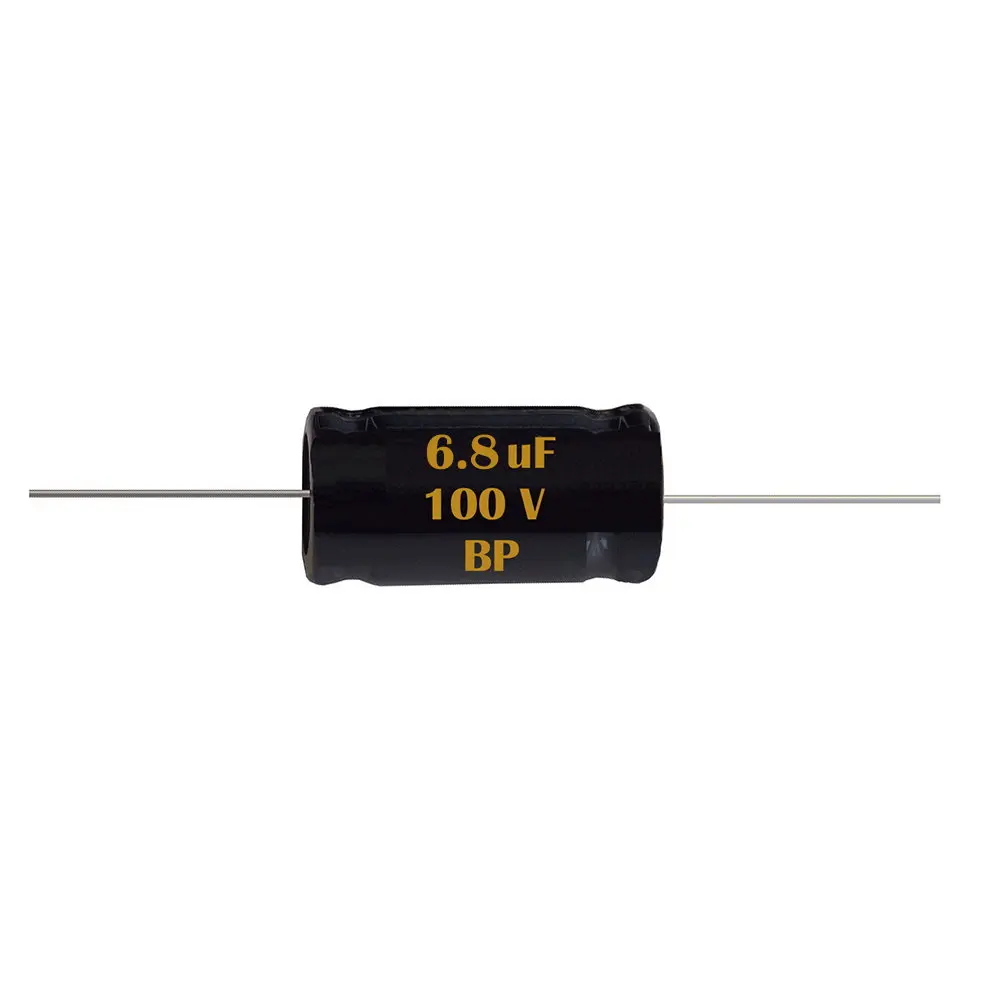

Taiwan Manufacture Bi Polar 1Khz Aluminum Electrolytic Capacitor Axial 6.8uf 100v for Speaker Application






Product Description


ELECTRICAL CHARACTERISTICS




Working Voltage: 100V
Operating Temperature: -40°C ~ + 85°C
Rate Capacitance Range: 6.8uF
Capacitance Tolerance: -20 ~ +20% at the 120Hz
DC Leakage Current(mA): 0.03 CV or 3 A ( after 3 minutes application of rated voltage )
Dissipation Factor: at 120Hz, 25°C
For capacitor whose capacitance exceeds 1000uF, the value of DF(%) is increased by 2% for every additional 1000uF

 Load Life :  2000 hours with W. V  at  rated  voltage .
                   Capacitance Change:    Within 20% of initial value.
                   Dissipation Factor:        Not exceed 200% of initial requirement.
                   Leakage Current:           Not exceed the initial requirement.

Shelf Life :  1000 hours, at  rated  voltage .
                  Capacitance Change:    Within 20% of initial value.
                  Dissipation Factor:        Not exceed 150% of initial requirement.
                  Leakage Current:           Not exceed 200% of initial requirement.

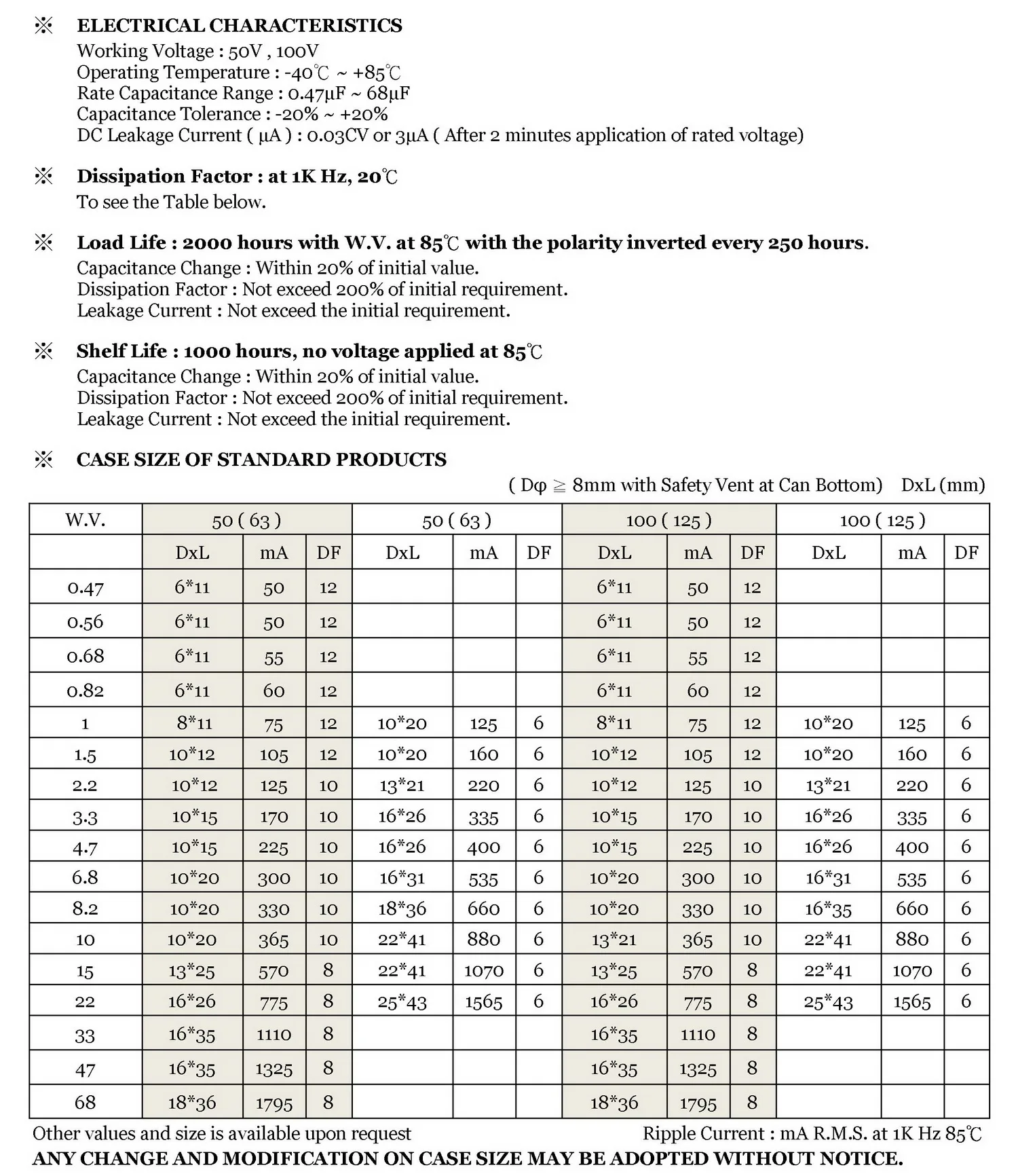

 Bi-Polarized for Speaker.jpg

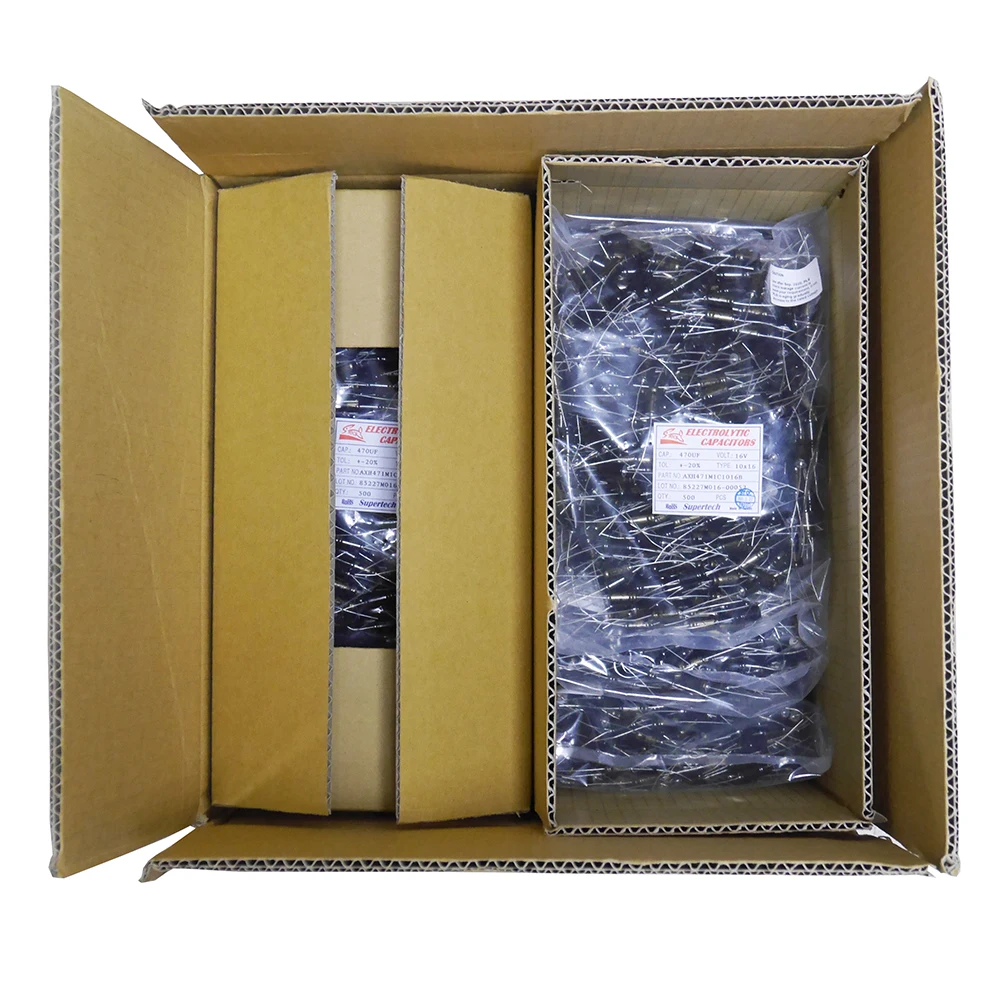

Packaging & Shipping


Package:


BULK


Shipping:


BY AIR, SEA , DHL, FEDEX, TNT, EMS IS AVAILABLE
