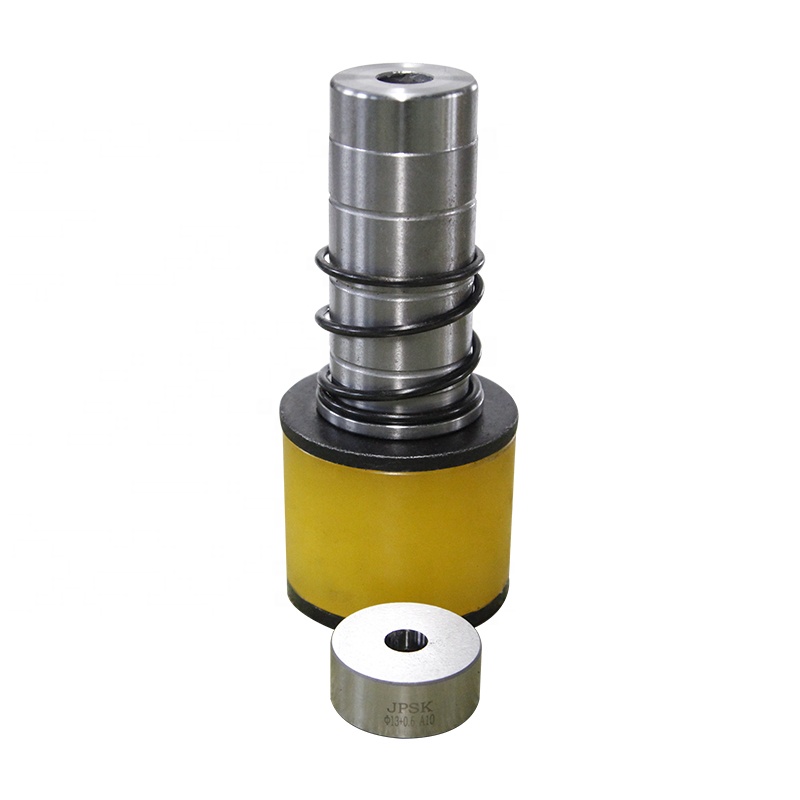

Busbar Processing Machine punching dies, punch molds
US $110.00-$115.00

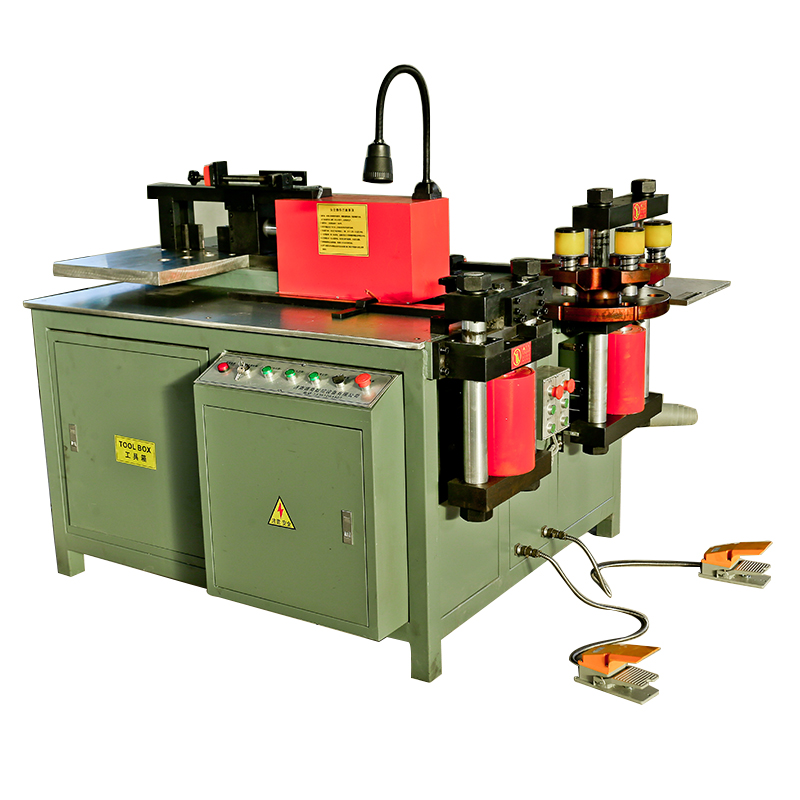

Dhy 200 Three in one Hydraulic Bus Bar Machine Hand Copper Busbar Punching Cutting Processing Tool
- Category: Busbar Machine >>>
- Supplier: Hailin Industrial & Development (Shanghai) Co. Ltd.
Share on (62007436944):
Product Overview
Description
Dear Friends:
Welcome to browse our product:
Hailin easy-operated Hydraulic bus bar bending machine in a competitive price.
Product Description
3 in 1 Hydraulic Bus Bar Tool HB-200W
Feature:
• Single action
*3 in 1 Cutting Bending Punching Bus bar
* Robust and stiff frame, strong structure
*High quality cutting, bending and punching, fast cycle time
*High operating safety with built-in safety-system
* With the help of hydraulic power, easy and quick operation can be achieved.
*Include: CB-200A, CH-70, CWC-200 and EHP-63A
Parameters:
Model | HB-200W |
Max Cutting Capacity | 200*12mm |
Max Punching Capacity | Ø11.1mm-Ø20.6mm Thickness 12mm |
Max Bending Capacity | 200*12mm |
Power | 220V/50HZ |
Rated Pressure | 700kg/cm2 (10000psi) |
Punching | Ø11.1mm Ø14.3mm Ø17.5mm Ø20.6mm (Round Dies) |
Size | 900*660*1220mm |
Weight | 170kg |
Application:
The bus bar main work for switch board, distribution box and electrical working, State Grid construction, underground cable construction, Building construction etc.
Our Service:
We have professional technical team to meet your new items developing.
We will be your eyes while producing, which means we will send producing picture for every steps.
Packaging & Shipping
Company Information
FAQ
FAQ:
Q: What kind of Blade Proceeding is?
A: By forging, which make body more healthy and powerful.
Q: What the different compare other company.
A: we could promise our tools are light weight, but save about 50% labor cost.
Q: Are u manufacturer or trading Co?
A: Yes, we are the manufacturer, but also we doing trader, if there is more items u hope to buy in china, but no time. Welcome u contact with us. Our whole team will be working with u together.
